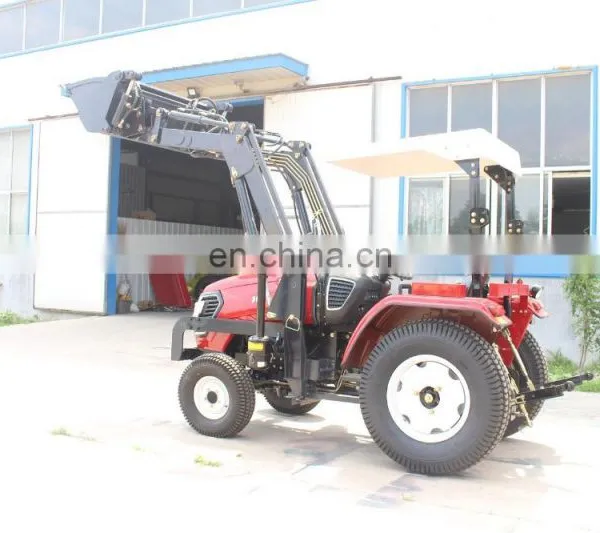

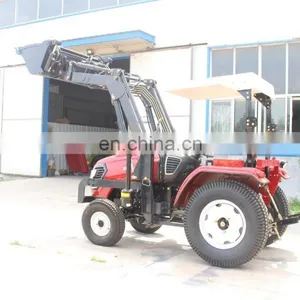

Weifang Mini Tractor 25-35hp With Front End Loader

Weifang Mini Tractor 25-35hp With Front End Loader thumbnail-1
Weifang Mini Tractor 25-35hp With Front End Loader thumbnail-2
Weifang Mini Tractor 25-35hp With Front End Loader thumbnail-3
Weifang Mini Tractor 25-35hp With Front End Loader thumbnail-4
Weifang Mini Tractor 25-35hp With Front End Loader thumbnail-5
Weifang Mini Tractor 25-35hp With Front End Loader thumbnail-6
Weifang Mini Tractor 25-35hp With Front End Loader thumbnail-7
Weifang Mini Tractor 25-35hp With Front End Loader photo-1
Weifang Mini Tractor 25-35hp With Front End Loader photo-2
Weifang Mini Tractor 25-35hp With Front End Loader photo-3
Weifang Mini Tractor 25-35hp With Front End Loader photo-4
Weifang Mini Tractor 25-35hp With Front End Loader photo-5
Weifang Mini Tractor 25-35hp With Front End Loader photo-6
Weifang Mini Tractor 25-35hp With Front End Loader photo-7
US$ 5,000 - 7,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
MAP
Place of Origin:
Shandong, China
Type:
Wheel Tractor
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MAP
Place of Origin Shandong, China
Type Wheel Tractor
Usage Farm Tractor
Drive Type Gear Drive
Condition New
By wheel 4WD



Product Description

  weifang mini tractor 25-35hp with front end loader



*Dual clutch
*Canopy with ROPS

*4*4 wheel drive



Specification





Model

TY254

Type

4WD Wheeled Type

Length(to the front ballast)

3030mm

Width

1470mm

Height (to the exhaust vent)

1900mm

Front Wheel Tread

1215 Fixed or 1150-1215 Adjusted

Rear Wheel Tread

1300 Fixed or 1300-1350 Adjusted

Axle Base

1710mm

Min. Ground Clearance

347.5mm

Structure weight

1130kgs

Front ballast weight

56kgs

Rear ballast weight

112kgs

Rated traction force

663kgs

Engine Model

390/485

Engine Type

3-Cylinder

Cooler type

Water

Stroke

4 Stroke

Rated Power

22kw

Rated Speed

2400r/min

Fuel

Diesel

Front Wheel Tyre

6.00-14

Rear Wheel Tyre

9.5-24

Clutch

Dual-stage clutch

Steering

Power steering

Transmission Type

8+8 with shuttle gearshift

Suspension Type

3-point links

Type and Rev

Semi-independent Type 540/1000

Spline Size

F35 Rectangle Spline with 6 teeth



 weifang mini tractor 25-35hp with front end loader





weifang mini tractor 25-35hp with front end loaderweifang mini tractor 25-35hp with front end loader





Implements

weifang mini tractor 25-35hp with front end loaderweifang mini tractor 25-35hp with front end loader

Packaging & Shipping

 2sets in 1*20GP,4sets in 1*40HQ





Our Services

 weifang mini tractor 25-35hp with front end loaderweifang mini tractor 25-35hp with front end loader



FAQ

 weifang mini tractor 25-35hp with front end loader
