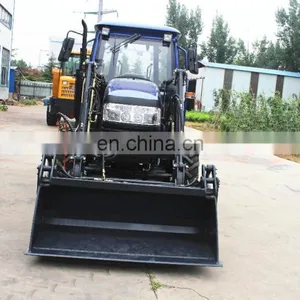

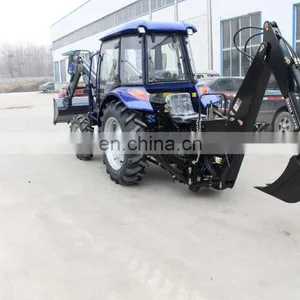

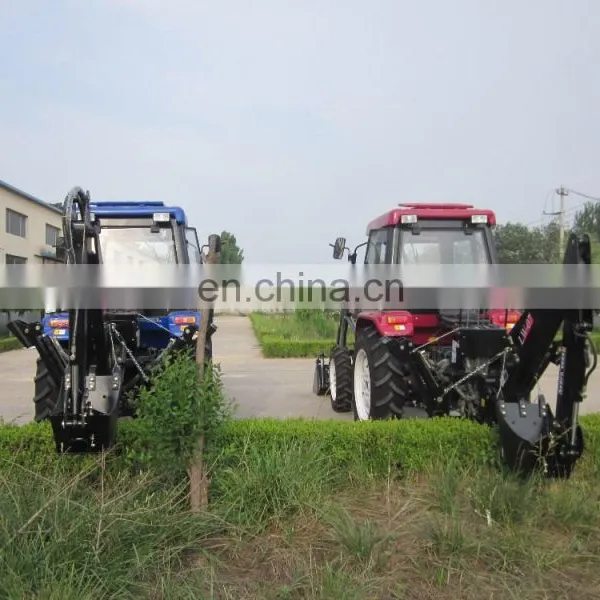

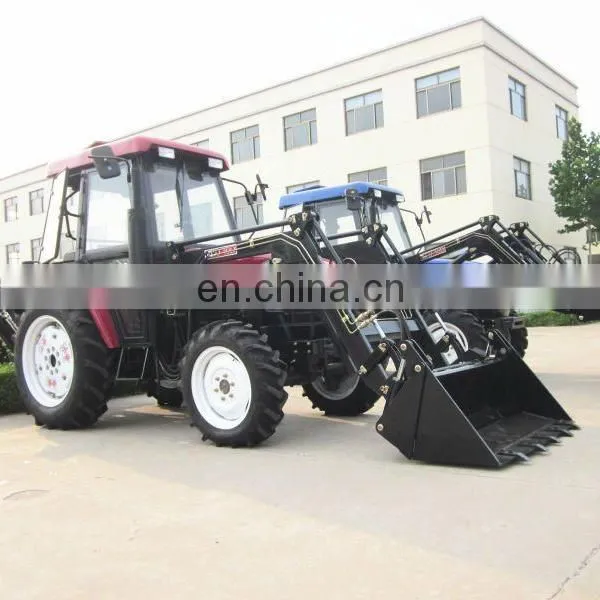

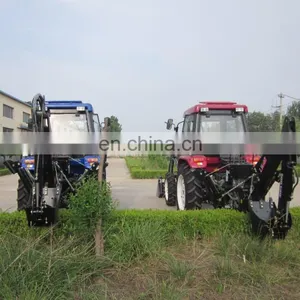

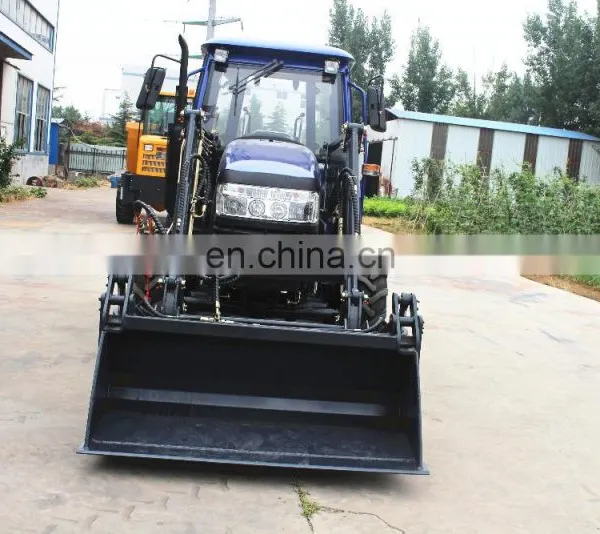

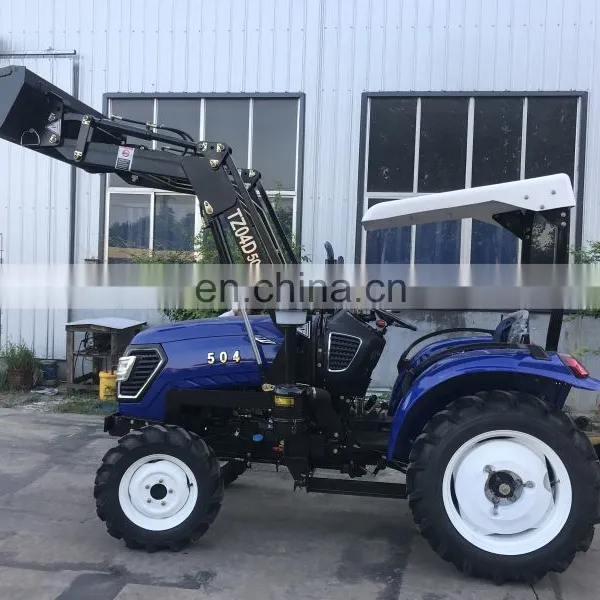

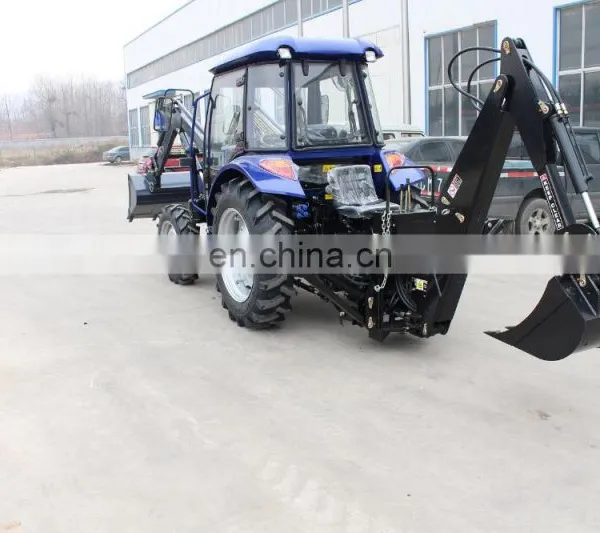

tractor 504 with front loader and backhoe
*4*4 wheel drive
*Dual clutch
*Cabin with warmer or canopy with ROPS
Specification
Model |
504 |
Type |
4WD Wheeled Type |
Length(to the front ballast) |
3835mm |
Width |
1620mm |
Height (to the exhaust vent) |
2135mm |
Front Wheel Tread |
1280mm |
Rear Wheel Tread |
1300 Fixed or 1200-1500 Adjusted |
Axle Base |
2030mm |
Min. Ground Clearance |
325mm |
Structure weight |
1734kgs |
Front ballast weight |
168kgs |
Rear ballast weight |
300kgs |
Rated traction force |
1150kgs |
Engine Model |
498 |
Engine Type |
4-Cylinder |
Cooler type |
Water |
Stroke |
4 Stroke |
Rated Power |
50hp |
Rated Speed |
2400r/min |
Fuel |
Diesel |
Front Wheel Tyre |
8.3-20 |
Rear Wheel Tyre |
12.4-28 |
Clutch |
Dual-stage clutch |
Steering |
Power steering |
Transmission Type |
8+4 or 8+8 with shuttle gearshift or (8+4)×2 with creeper shift |
Suspension Type |
3-point links |
Type and Rev |
Semi-independent Type 540/1000 |
Spline Size |
F35 Rectangle Spline with 6 teeth |

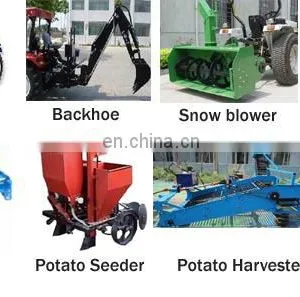

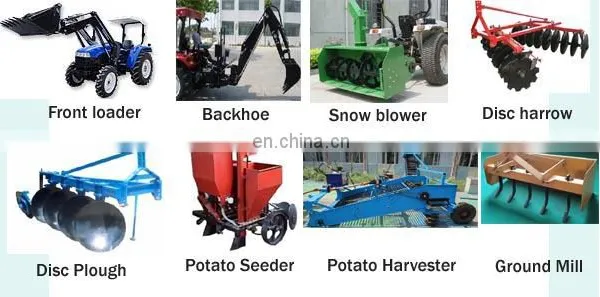

Farm implements
