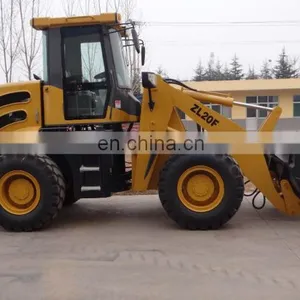

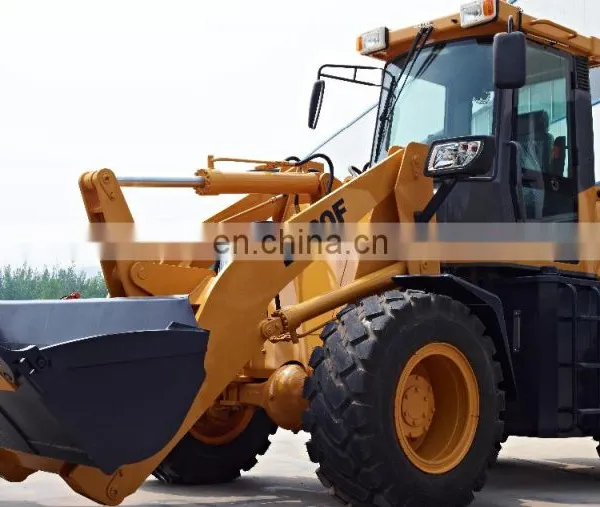

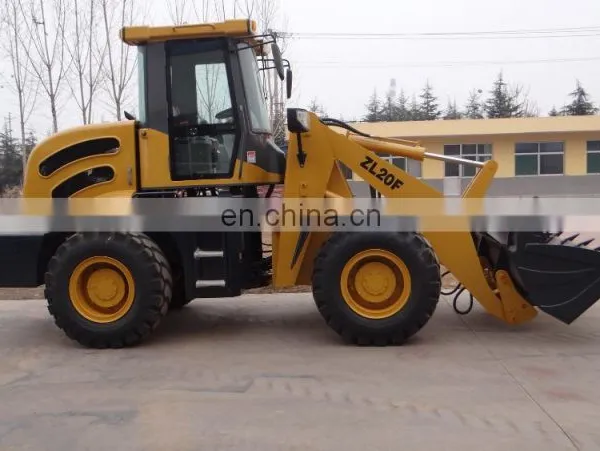

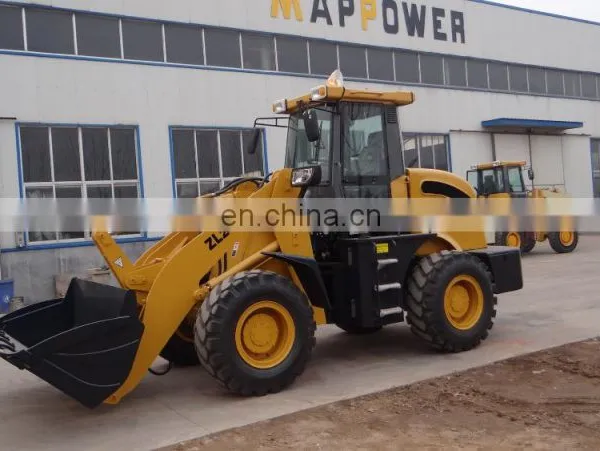

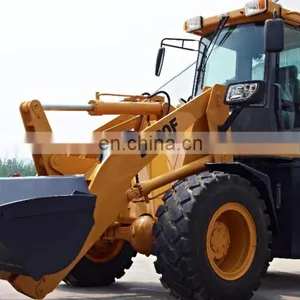

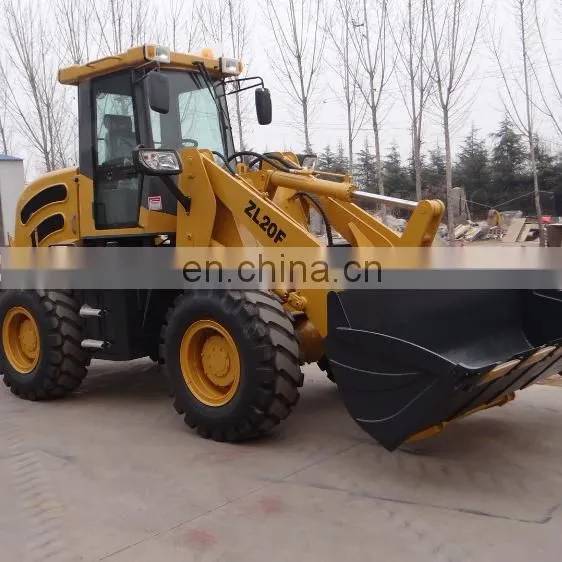

New 2000kgs Mini ZL20 Wheel Loader

New 2000kgs Mini ZL20 Wheel Loader thumbnail-1
New 2000kgs Mini ZL20 Wheel Loader thumbnail-2

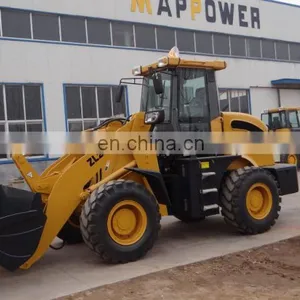

New 2000kgs Mini ZL20 Wheel Loader thumbnail-3
New 2000kgs Mini ZL20 Wheel Loader thumbnail-4
New 2000kgs Mini ZL20 Wheel Loader photo-1
New 2000kgs Mini ZL20 Wheel Loader photo-2
New 2000kgs Mini ZL20 Wheel Loader photo-3
New 2000kgs Mini ZL20 Wheel Loader photo-4
US$ 8,680 - 9,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
MAP
Place of Origin:
Shandong, China
Type:
Wheel Tractor, 2.0ton wheel loader
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MAP
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas
Usage Farm Tractor
Drive Type Gear Drive
Condition New
Power(W) 59KW
By wheel 4WD

new 2000kgs mini ZL20 wheel loader

Product Description

1)Dumping height:3100mm 2)Loader Bucket :1.2CBM 3)17/16-20 Tire 4)Joystick and Pilot control

 Detailed Specification:

Performance

1

rated loading

2000kg

2

overall weight

5800kg

3

rated bucket capacity

1.2m3

4

maximum tractive force

54KN

5

maximum breakout force

45.4KN

6

maximum grade ability

30

7

maximum dump height

3000mm

8

maximum dump reach

752mm

9

overall dimension (L×W×H)

5600×2100×2850mm

10

minimum turning radius

5251mm

Engine

11

model

4105

12

type

Vertical, in-line, water cooled, 4-stroke diesel engine

13

No. of cylinder-bore/stroke

4105×125mm

14

rated power

58kw2200r/min

15

maximum torque

270N.m

16

min fuel-consume ratio

≤243g/kw.h

Transmission system

17

torque converter

YJ280A

18

gearbox mode

Countershaft power-shift

19

gear shift

2 forward shift  2 reverse shift

20

maximum speed

24km/h

Drive axles

21

main reducing spiral



Circular Arc Bevel gear, single stage

22

decelerating mode

Single stage planetary type

23

wheel base (mm)

2400mm

24

wheel tread

1640mm

25

ground clearance

310mm

Hydraulic system

26

system working pressure

16MPa

27

boom lifting time

4.8s±0.2s

28

 total time

9.2s±0.5s

29

fuel tank capacity

80L

30

function of leveling automatically

 yes

Brake system

31

service brake

air assist disc brake on 4 wheels

32

parking brake

flexible shaft operated external drum

Tyre

33

type specification

16/7020

34

front tyre pressure

0.22Mpa

35

rear tyre pressure

0.18Mpa

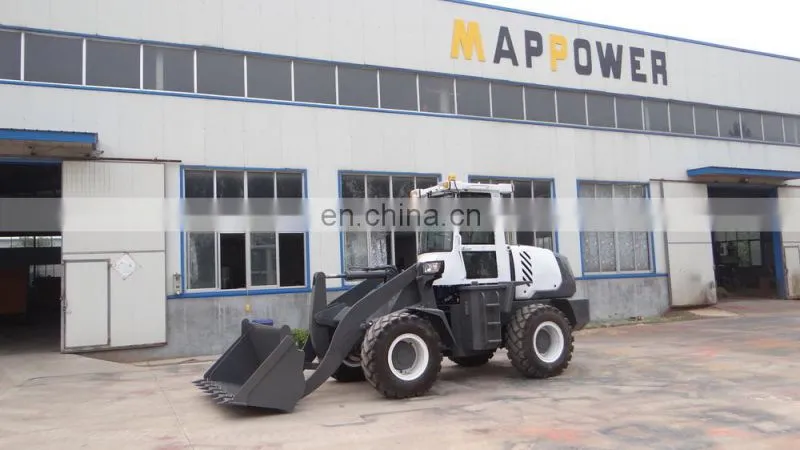

 new 2000kgs mini ZL20 wheel loader





new 2000kgs mini ZL20 wheel loader





new 2000kgs mini ZL20 wheel loader





Company Information



Why choose us?

1. More than 200 workers.

2. With the occupying area of 2500 square meters.

3. More than 8 years experiences in the industry of construction machine and agricutural machine.

4. Competitive price and high quality.

Our Services

Warranty and payment term



1) Payment terms: 30% T/T deposit,balance before shipment.



2) Delivery time: 25-30 days after we receive the deposit



3) Warranty period:1 year or 2000 working hours which comes first.

 new 2000kgs mini ZL20 wheel loadernew 2000kgs mini ZL20 wheel loader

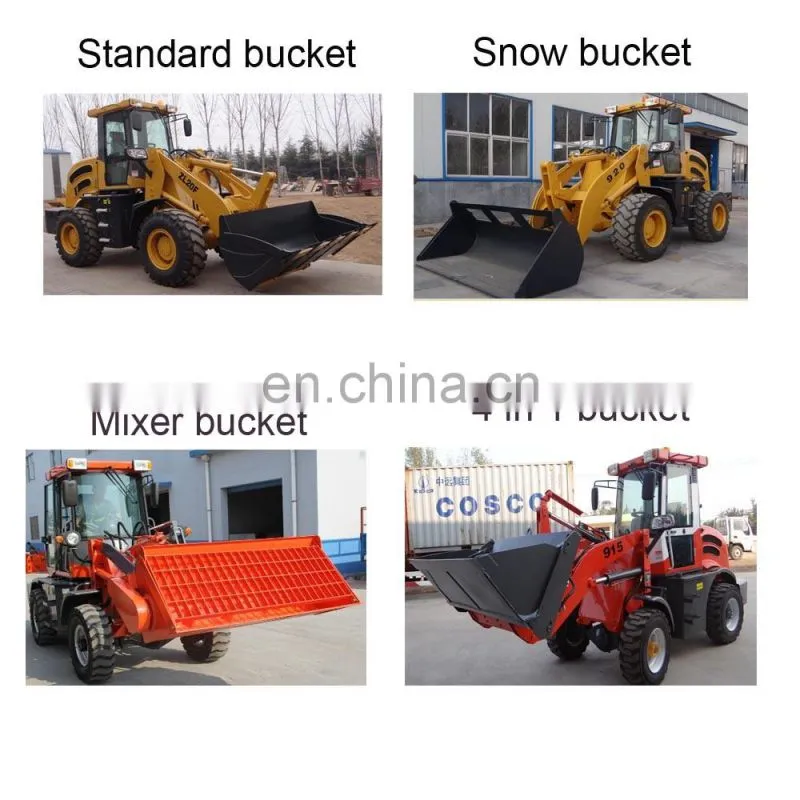

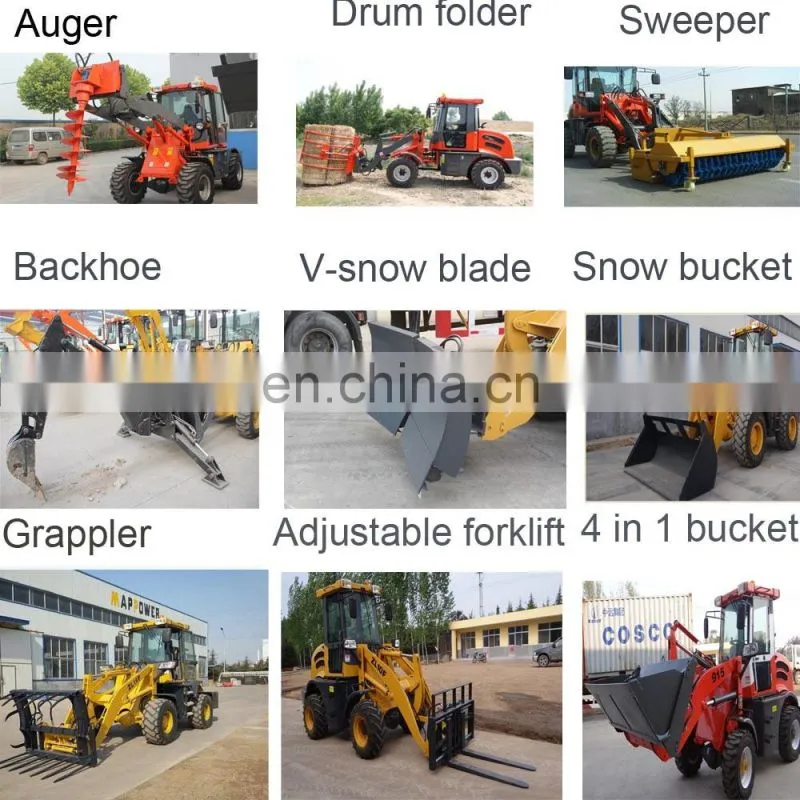

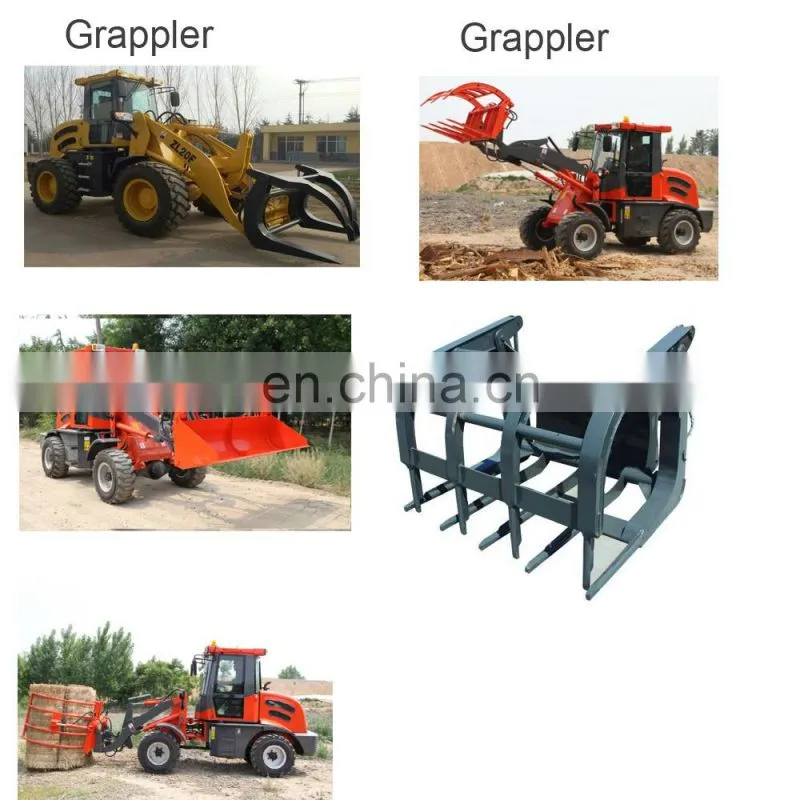

MAP can offer different implements





new 2000kgs mini ZL20 wheel loadernew 2000kgs mini ZL20 wheel loadernew 2000kgs mini ZL20 wheel loader




Packaging & Shipping



Packing and shippment



 Packing:Nude packing



Shipping:2SET IN 40HQ container

new 2000kgs mini ZL20 wheel loader
