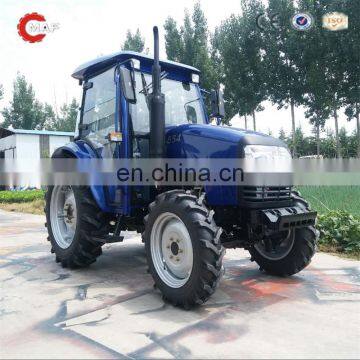

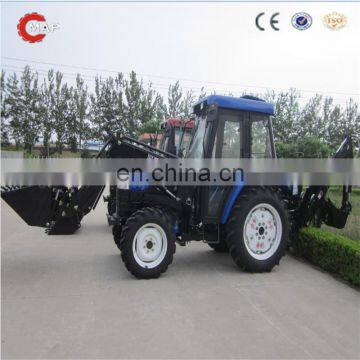

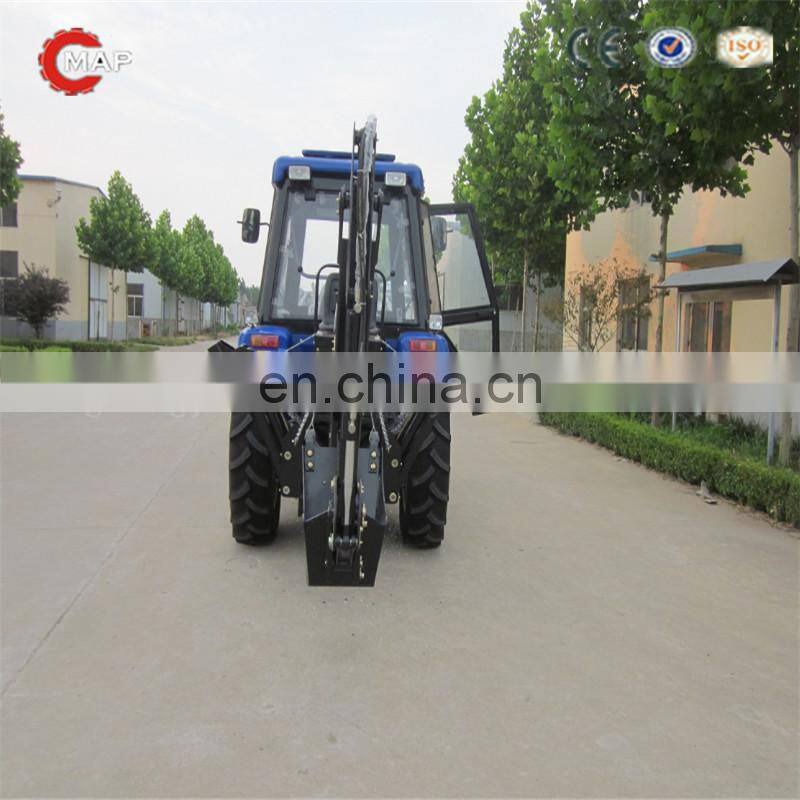

Map554 4WD mini tractor with front end loader and backhoe
We are specilized in producing tractor cover 25HP to 130HP.
2)various farming implements
3)with EPA certificated engine
4)adjustable design
MAP554--Tracor Main Specifications
Type:4WD Wheeled Type
Engine: 4102 4x4 wheel drive, Vertical,4- cylinder ,water cooler
Rated Power: 40kW
Rated Speed:2400r/min
Clutch:Dual-stage clutch
Model |
554 |
Type |
4WD Wheeled Type |
Length(to the front ballast) |
3835mm |
Width |
1620mm |
Height (to the exhaust vent) |
2135mm |
Front Wheel Tread |
1280mm |
Rear Wheel Tread |
1300 Fixed or 1200-1500 Adjusted |
Axle Base |
2030mm |
Min. Ground Clearance |
325mm |
Structure weight |
1734kgs |
Front ballast weight |
168kgs |
Rear ballast weight |
300kgs |
Rated traction force |
1150kgs |
Engine Model |
4102 |
Engine Type |
4-Cylinder |
Cooler type |
Water |
Stroke |
4 Stroke |
Rated Power |
40kW |
Rated Speed |
2400r/min |
Fuel |
Diesel |
Front Wheel Tyre |
8.3-20 |
Rear Wheel Tyre |
12.4-28 |
Clutch |
Dual-stage clutch |
Steering |
Power steering |
Transmission Type |
8+4 or 8+8 with shuttle gearshift or (8+4)×2 with creeper shift |
Suspension Type |
3-point links |
Air braking |
with |
Cabin & heater |
with
|
Various implements :

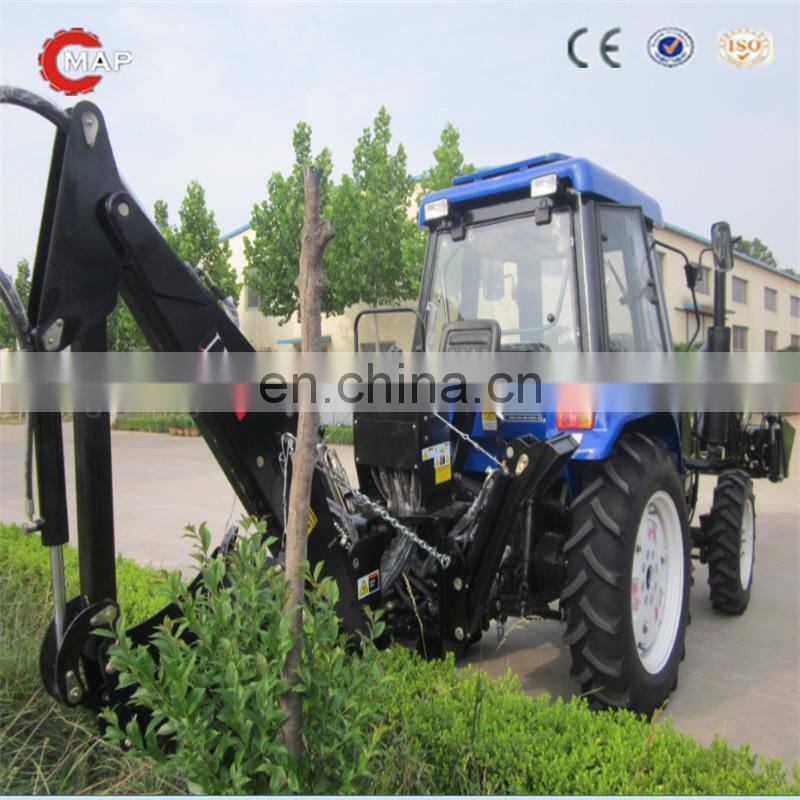

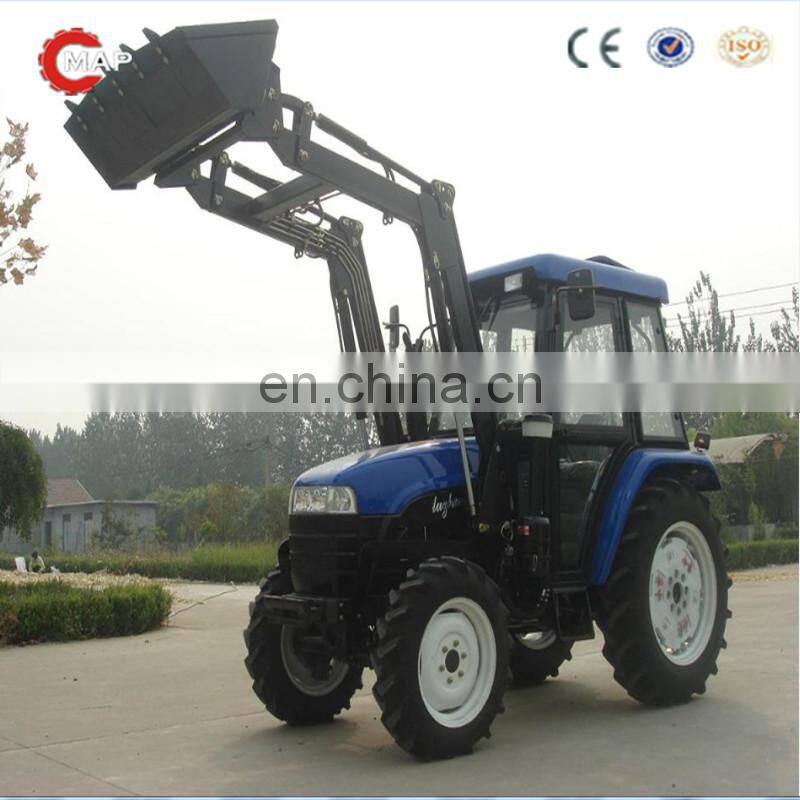

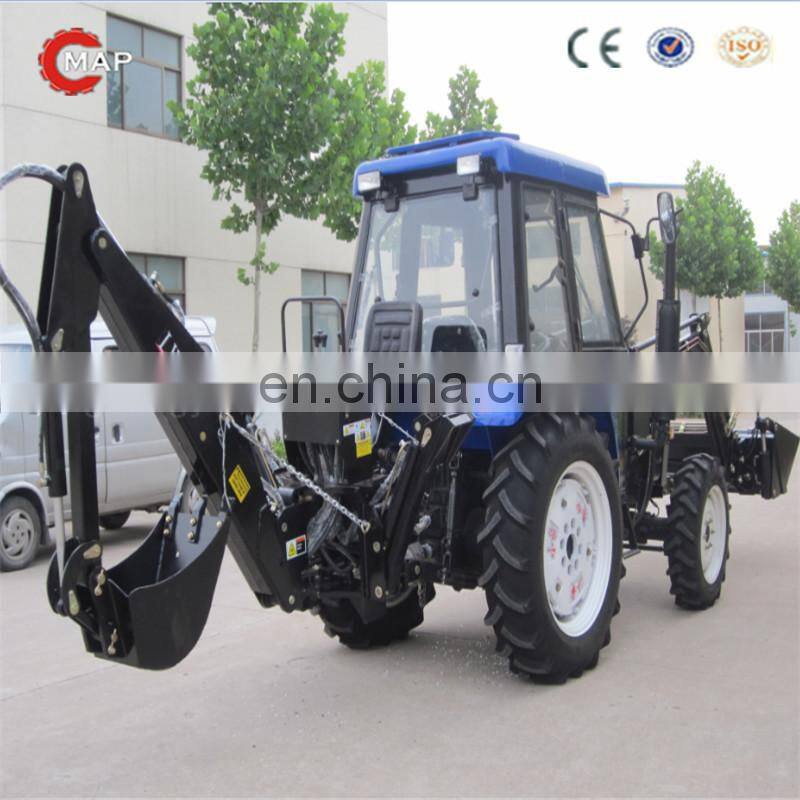

The tractor can equipped with front end loader (include loader, 4 in 1 loader, forklift, woof fork, soft hand)

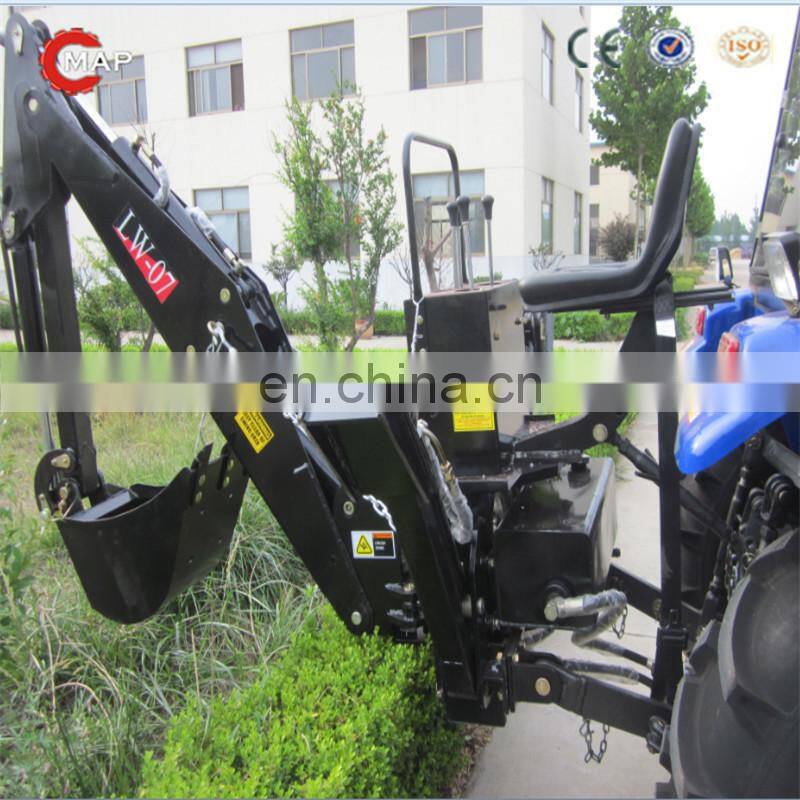

Backhoe, wood chipper and agricultural machinery (include disc harrow, Cultivator, Slasher Mower, Trailer,
Plough, Disc plough, Disc harrow, Rotary tiller etc)
Detail Show
