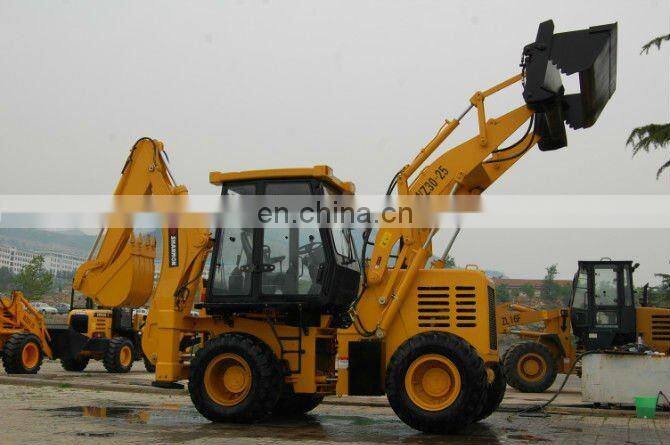

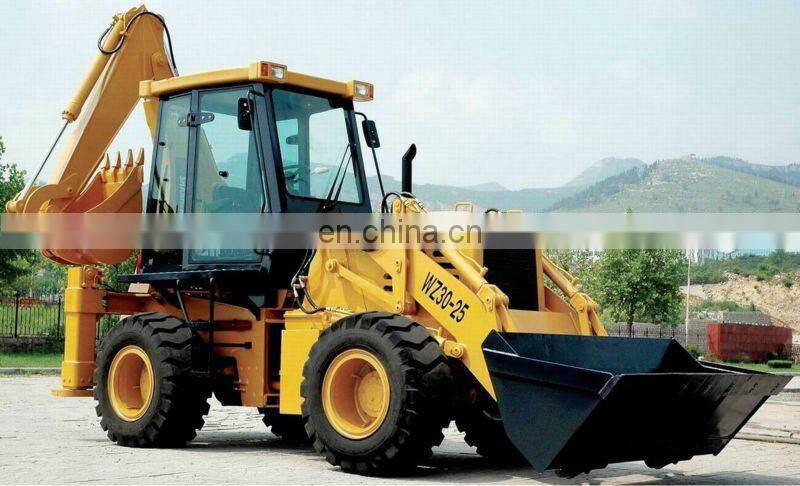

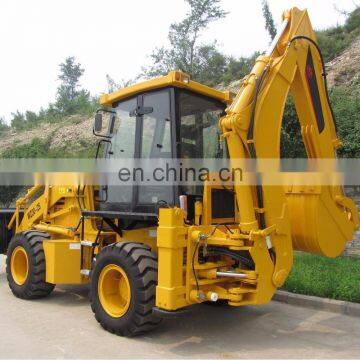

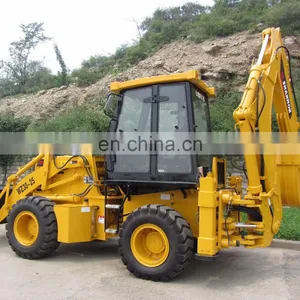

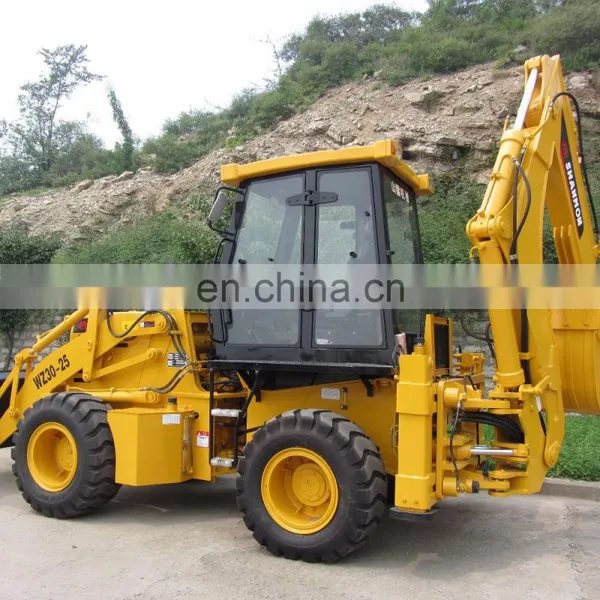

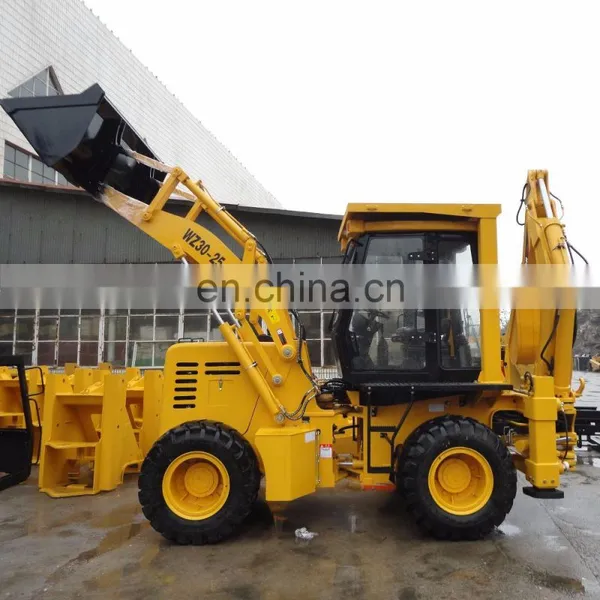

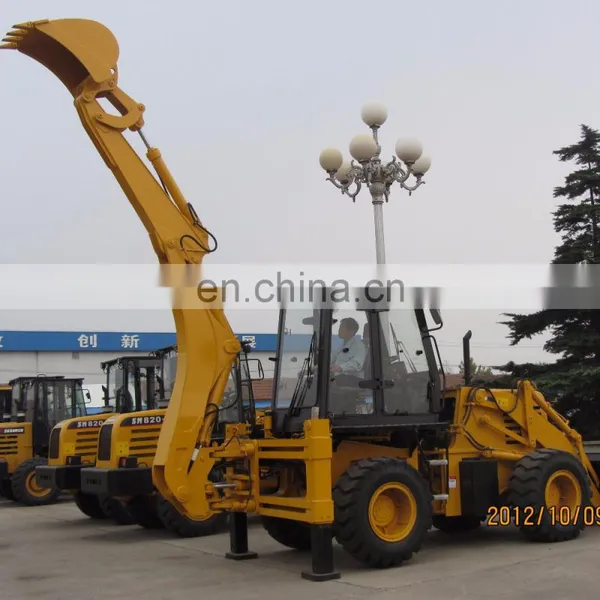

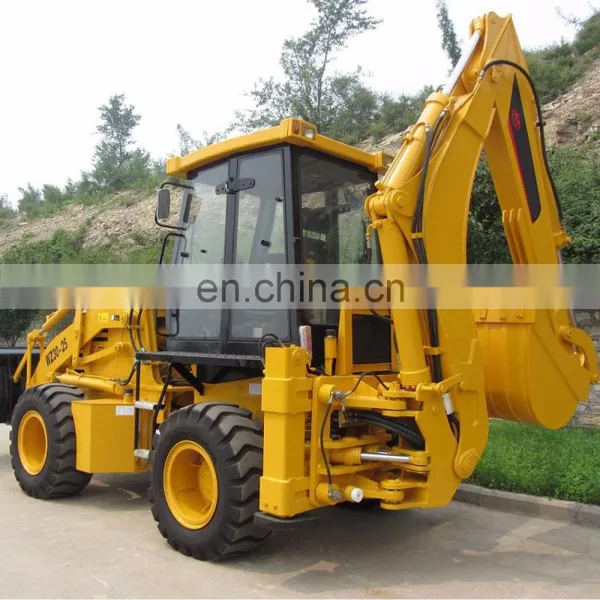

2015 MAP Factory Supply WZ30-25 Backhoe loader
Backhoe loader 1.Engine:R4105G
Backhoe loader 2.Rated power:55KW
Backhoe loader 3.Backhoe bucket capacity:0.3-0.4m3
Backhoe loader 4.Weight:7600KG
Backhoe loader
1.0 DIMENSION | |
1) Rated loader bucket capacity |
1.1m3 |
2) Rated excavator bucket capacity |
0.3-0.4 m3 |
3) Operating weight |
7600KG |
4) Dimensions (L x W x H) |
5900X2340X3750mm |
5) Wheel base |
2250mm |
6) Cab roof height |
2790mm |
7) Minimum ground clearance |
310mm |
8) Bucket indicator |
Yes |
2.0 ENGINE | |
1) Engine model |
R4105G |
2) Type |
Diesel Engine(4-Cylinder engine, water cooled 105x125MM) |
3) Rated power |
55KW |
4)Total displacement |
4.33L |
5) Min fuel consumption |
239g/Km.h |
6) torque |
600N.m |
7) Rated revolving speed |
2200r/min |
3.0 TRANSMISSION SYSTEM | |
1) Model |
CBGJ2040 |
2)Type |
4 speed ,power shift, electrical controlled |
3)Torque converter type |
Single Stage or Dual Phase |
4) Max. travel speed |
25km/h |
4.0 HYDRAULIC SYSTEM | |
1) System pressure(backhoe) |
25000Kpa |
2) System pressure(loader) |
2070Kpa |
3) Flow rate of excavator system |
136L/min |
4) Flow rate of loading system |
106L/min |
5) Digging force, crowed cylinder |
36.0KN |
6) Hydraulic pump |
Gear Pump Tandem |
7) Bucket self-leveling ability |
yes |
8) Elec. clutch-cut-off switch |
yes |
9) Raising time of full height |
4.9s |
10) Bucket lowering time |
1.9s |
11)Bucket dumping time |
1.1s |
5.0 BRAKES | |
1)Service brake |
Fully sealed wet disc, free adjust type |
2) Parking Brake |
Electronic control |
Spring applied, hydraulically released | |
3) Emergency Brake |
Electric control |
Spring applied, hydraulically released | |
6.0 SERVICE REFILLING CAPACITIES | |
1) Engine Coolant |
16L |
2) Engine Oil |
8.5L |
3) Transmission |
15L |
4) Rear Axle |
16L |
5) Front Axle |
85L |
6) Model of Front Axle |
MS-2025(ZF-German) |
7) Model of Rear Axle |
MT-2075(ZF-German) |
8) Front Axle |
Mechanical front wheel drive, limited slip |
9) Rear |
with differential lock elec. Controlled |
10) Front Type |
19.5-24,8PR R4 |
11) Rear Type |
12.5/80,10PR |
7.0 STEERING SYSTEM | |
1) Type |
Power Steering |
2) Min Turning Radius |
5682mm |
Backhoe loader
