Home > Products > Backhoe loader > 5000WZ Backhoe Loader With Price, Chinese Backhoe Loader, Used Backhoe Loader

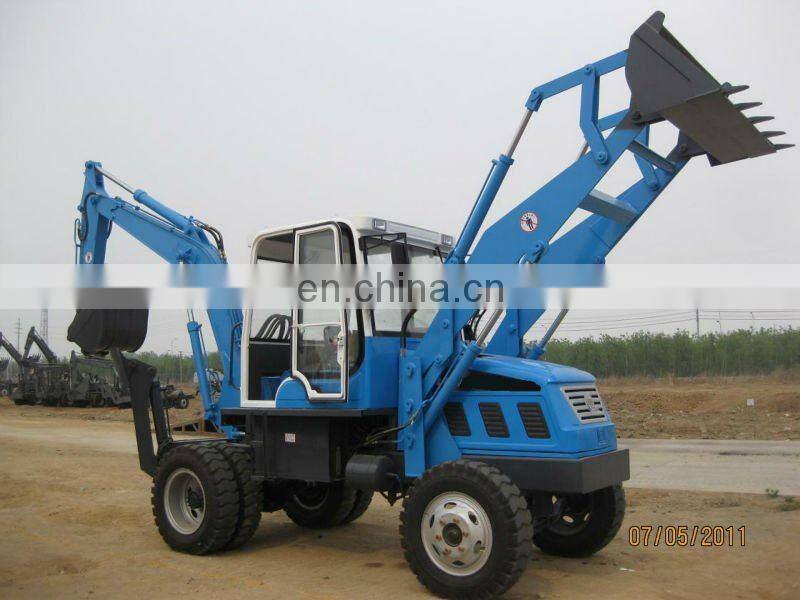

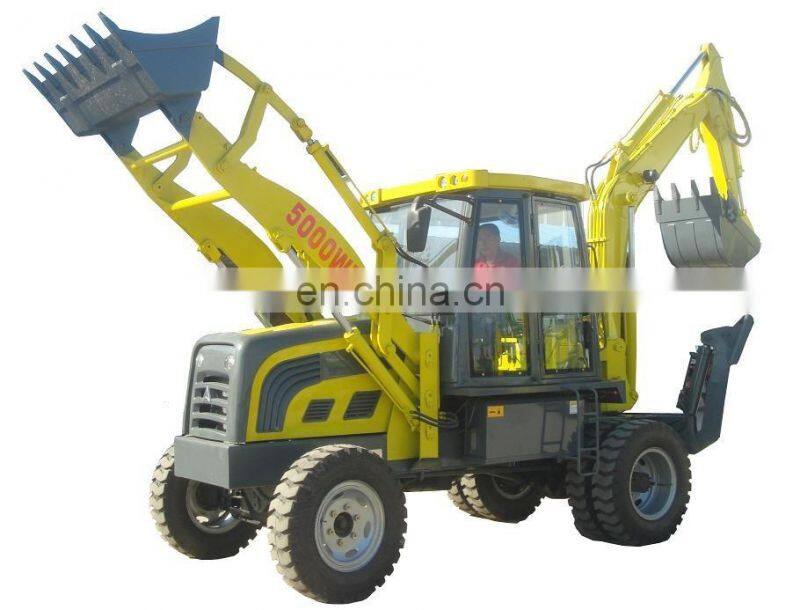

5000WZ Backhoe Loader With Price, Chinese Backhoe Loader, Used Backhoe Loader
- Qingdao
- T/T Credit Card
You May Like
-
WZ30-25 Front Loader and Backhoe Loader With Cheaper Price
-
WZ30-25 Backhoe Loader With Cheaper Price
-
WZ30-25 Backhoe Loader With Price Chinese Backhoe Loader
-
WZ30-25 Construction Machinery Front Loader and Backhoe Loader
-
WZ30-25 Hot Sales Backhoe Loader With Frond End Loader and Backhoe
-
WZ30-16 Backhoe Best Price in India, Multifunction Backhoe Loader
Product Details
| Brand Name | MAP | Place of Origin | Shandong, China | |
| Model Number | 5000WZ | Type | Backhoe Loader | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 year after arrived at destination port | Condition | New | |
| Dimension(Long * Breadth * High) | 2206mm*1160mm*1233mm | Moving Type | Wheel Loader | |
| Rated Load | mm |
Product Description
5000WZ compact multi-use backhoe loader
Product Description
5000WZ nulti-use backhoe loader is good product of MAP POWER.It's widely used in engineering construction.We receive hige praise from our customer.
| Engine Specifications | |
| Engine Model | YTO4105 Turbo |
| Engine power | 110HP(83KW) |
| Rated Speed | 2400r/min |
| Working Range(mm) | |
| Boom length | 3100 mm |
| Arm length | 2100 mm |
| Max digging radius | 5800 mm |
| Max digging depth | 3400 mm |
| Max dumping height | 6080 mm |
| Max discharge height | 4390 mm |
| Backhoe bucket capacity | 0.2-0.3m3 |
| Loading height | 3300 mm |
| Dump clearance | 2500 mm |
| Loading bucket capacity | 05-06.m3 |
| Rotation angle | 180 degree |
| Hydraulic System | |
| Main pump type | Variable piston pump |
| Main pump max flow | 63L/min |
| Pilot pump type | Gear pump |
| Pilot pump max flow | 18L/min |
| The main overflow valve(boom/arm/bucket) | 240kgf/cm |
| Dimensions(mm) | |
| Cabinet width | 1650 mm |
| Cabinet height | 2800 mm |
| Ground clearance | 240 mm |
| Whell base | 2880 mm |
| Tread | 1100 mm |
| Whole length | 4370 mm |
.
Company information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.
What we sell is not only the good product,but also the good sercice.
If there any question,feel free to contact me .
