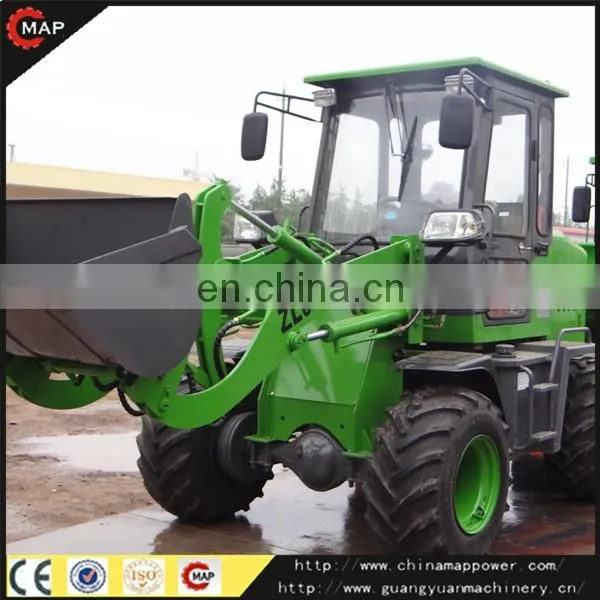

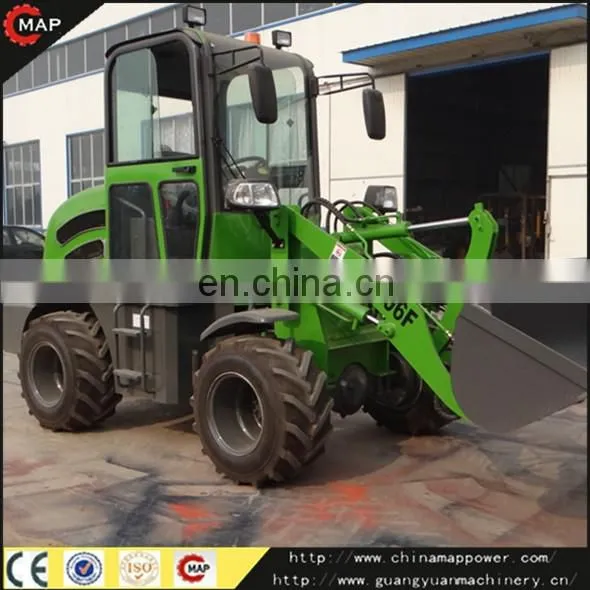

China Map ZL06 Mini Wheel Loader With CE
US$ 1 - 2
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Model Number:
ZL06
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sugar Cane Loaders China ZL12 4x4 Small Sugar Cane LoadersUS$ 8,615 - 9,345MOQ: 1 Unit -
ZL30 Large Wheel Loader Electric Motor 220v Mini Tractor Backhoe LoaderUS$ 22,990 - 24,919MOQ: 1 Unit
-
Wheel Electric Motor 220v Backhoe Loader for SaleUS$ 22,990 - 24,919MOQ: 1 Unit
-
ZL30 Large Wheel Loader Electric Motor 220v Wheel Loader Spare PartsUS$ 22,990 - 24,919MOQ: 1 Unit
-
ZL30 Large Wheel Loader Electric Motor 220v Loader ArmUS$ 22,990 - 24,919MOQ: 1 Unit
Brand Name
Map Power
Place of Origin
Shandong, China
Model Number
ZL06
Type
Mini Loader
Certification
CE, CE
After-sales Service Provided
Overseas service center available
Warranty
one year
Condition
New
Dimension(Long * Breadth * High)
4480X1500X2200mm
Moving Type
Wheel Loader
Rated Load
600KG/0.6Ton
Product Description
Main Descriptions for Mini Wheel Loader Series
- Streamlined appearance, beautiful and elegant, and can attach different tools such as: wooden fork, pipe fork, grass fork, stone bucket, and to realize multifunction.
- Bucket that can be set level automatically, computer is adopted to optimize design, single tipping bucket cylinder,"Z" type turning bucket structure, to realize the enormous shovel digging forces.
- Cabin made by double-layer1.4mm steel plate with strong steel frames inside.
- Fully hydraulic steering system, 4 x 4 wheeled drive. Hydraulic Joystick optional, makes flexibility, smooth, and comfortable operation.
- Central articulated frame and load sensing hydraulic steering gear, short turning radius, so it has sound off-road performance, good traffic ability and larger traction.
- A fully enclosed cabin and the seats have the functions of vibration reduction and easy adjustment from 4-6 directions, offers the driver a comfortable and wide view.
Engine Details | |
Model |
CHANGCHAI ZS1105 |
Engine type |
In-line arrangement, water-cooled, single cylinder diesel Engine |
Rated Power |
18kw, (24HP.) |
Rated Speed |
2200 r/min |
Min.ful consumption |
269 g/kw.h |
Bucket | |
Bucket Capacity |
0.3m3 |
Bucket type |
Heavy-duty bolt on teeth |
Rated Load |
600 kg |
Operating Weight |
1800 kg |
Overall Dimensions | |
Overall Length |
4480 mm |
Overall Height |
2200 mm |
Overall Width |
1500 mm |
Max. discharge height |
2200 mm |
Wheel base |
1620 mm |
Tread |
1160 mm |
Operating Specifications | |
Steering System |
Articulated Frame with hydraulic power steering |
Min Turning Radius |
3000 mm |
Transmission System |
Manual clutch |
Brake System | |
Service Brake |
Four Wheel Hydraulic spread-shoed brake |
Parking Brake |
Hand operated |
Tyre |
6.10-16 |

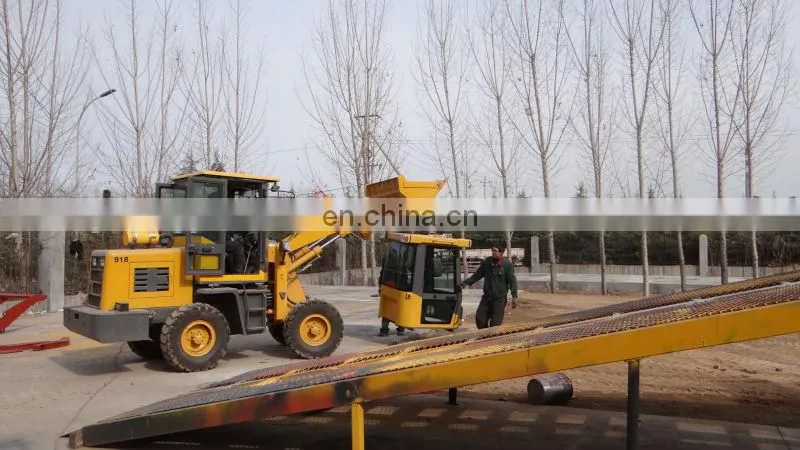

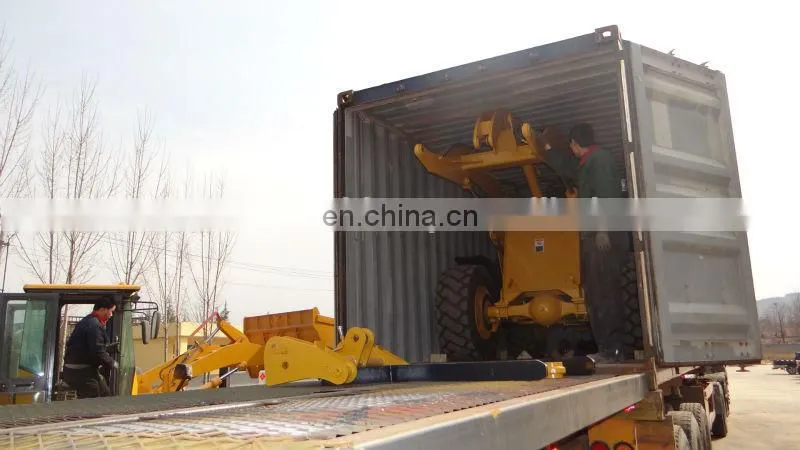

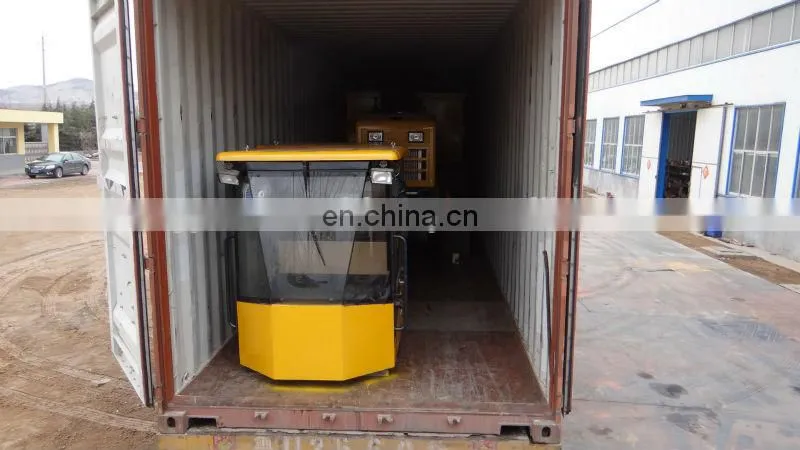

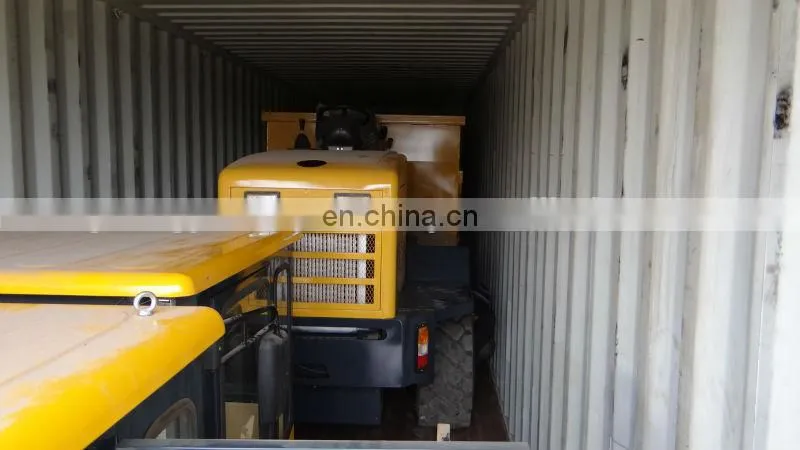

Packaging & Shipping
Our Services
Quality Assurance
- Have established and implemented a standard procedure for quality management system and product certification.
- QA/QC inspectors work independently form the production lines
- Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
- A procedure to conducting random inspection after final packaging.
- A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
- Tool case and partly consumable accessories attached with shipment meanwhile
- After-sales and Quality Warrant Contact for every purchase order
