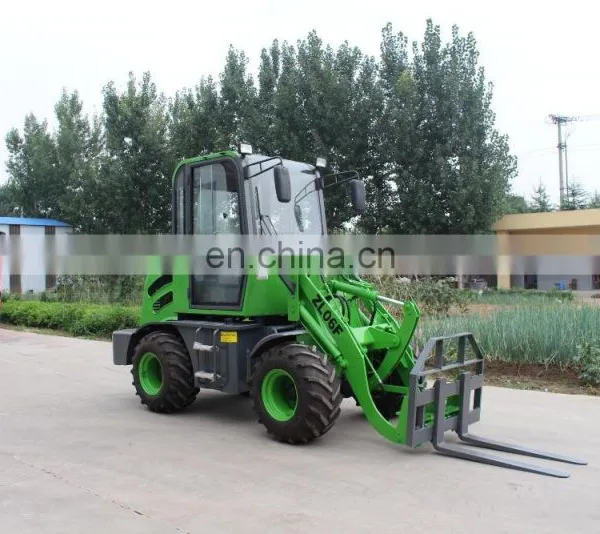

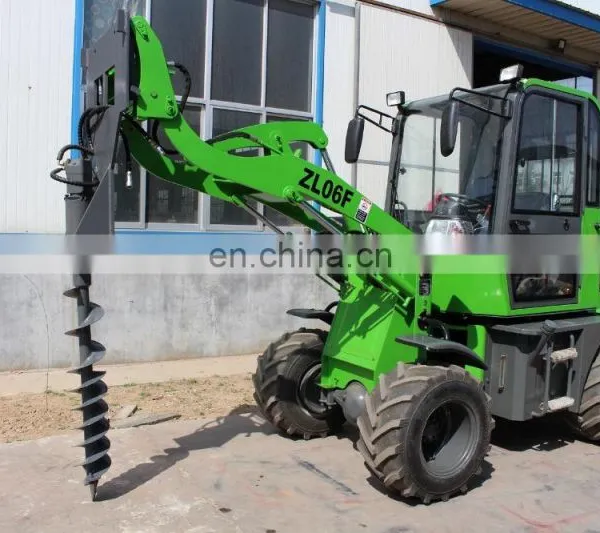

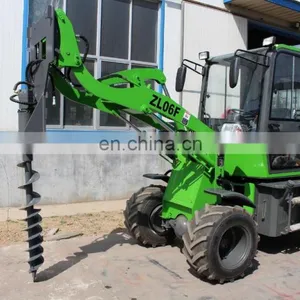

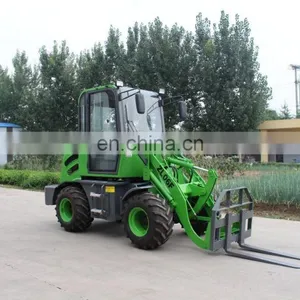

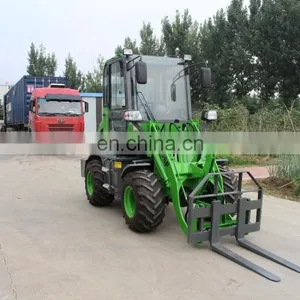

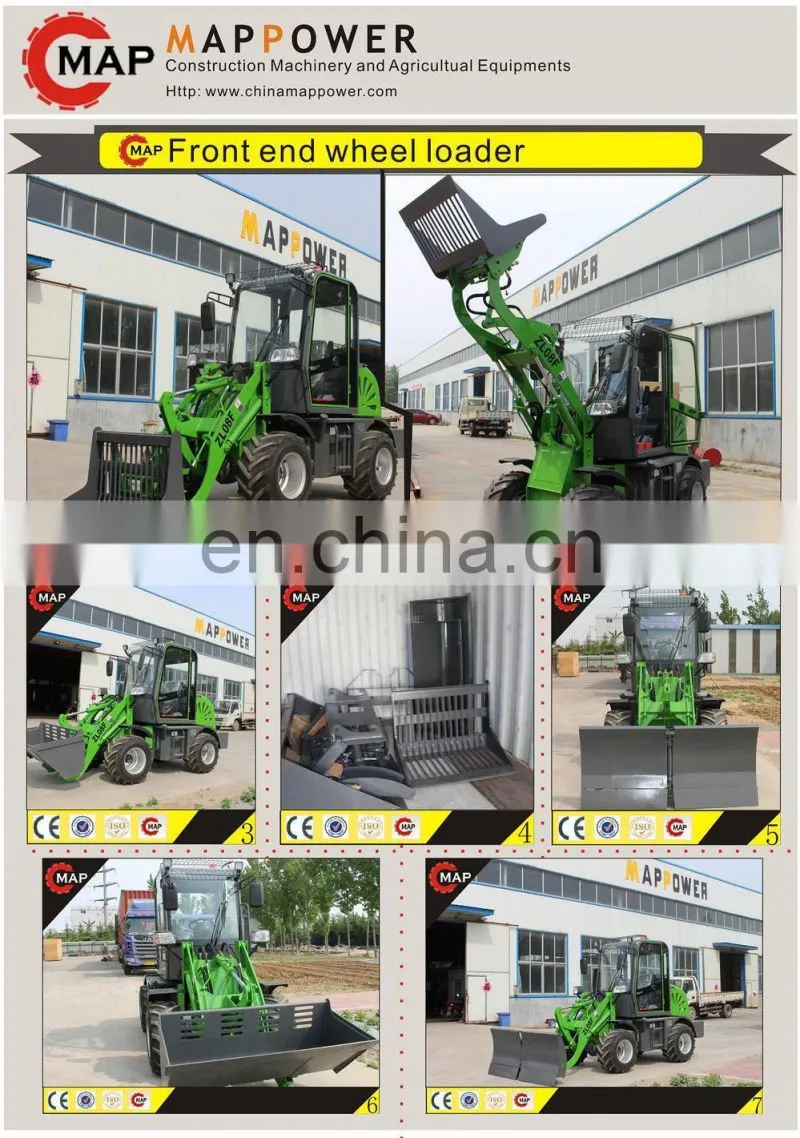

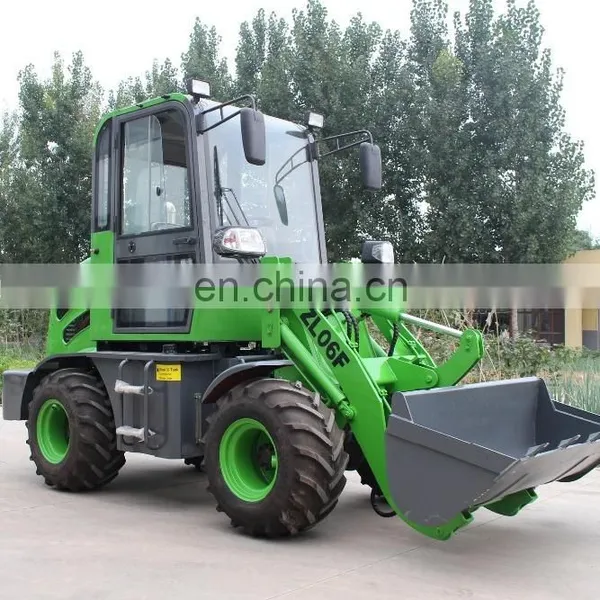

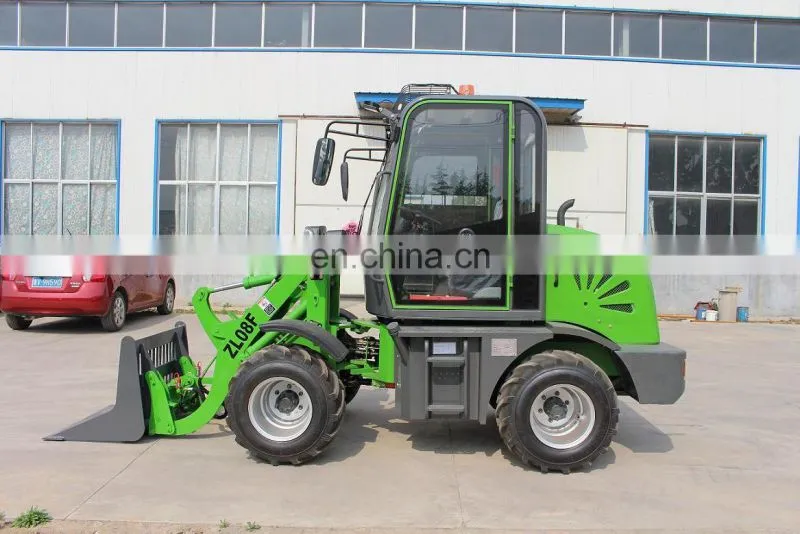

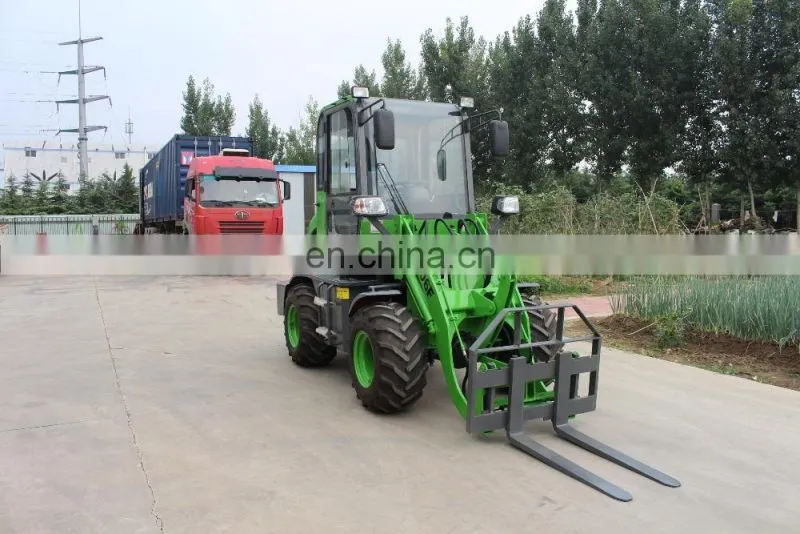

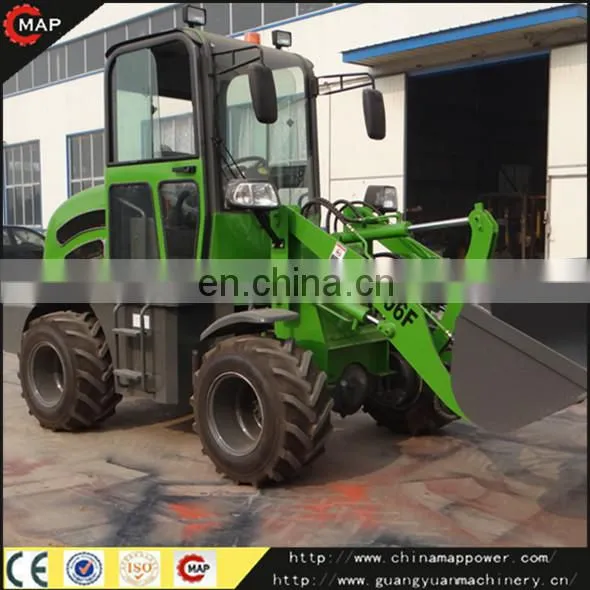

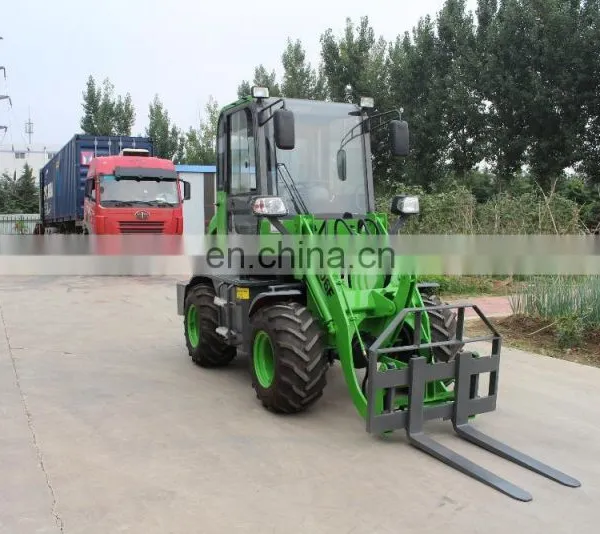

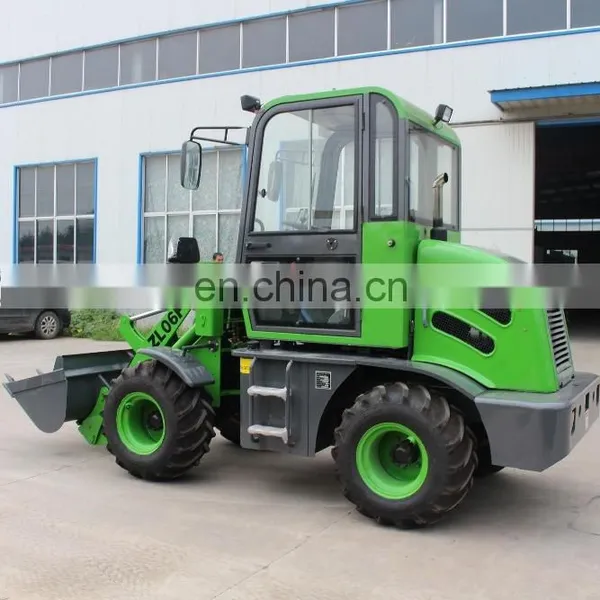

Front end wheel loader, ZL08F, Hydraulic Small wheel loader for sale
Multifunctional mini articulater loader ZL08F
1.KM385

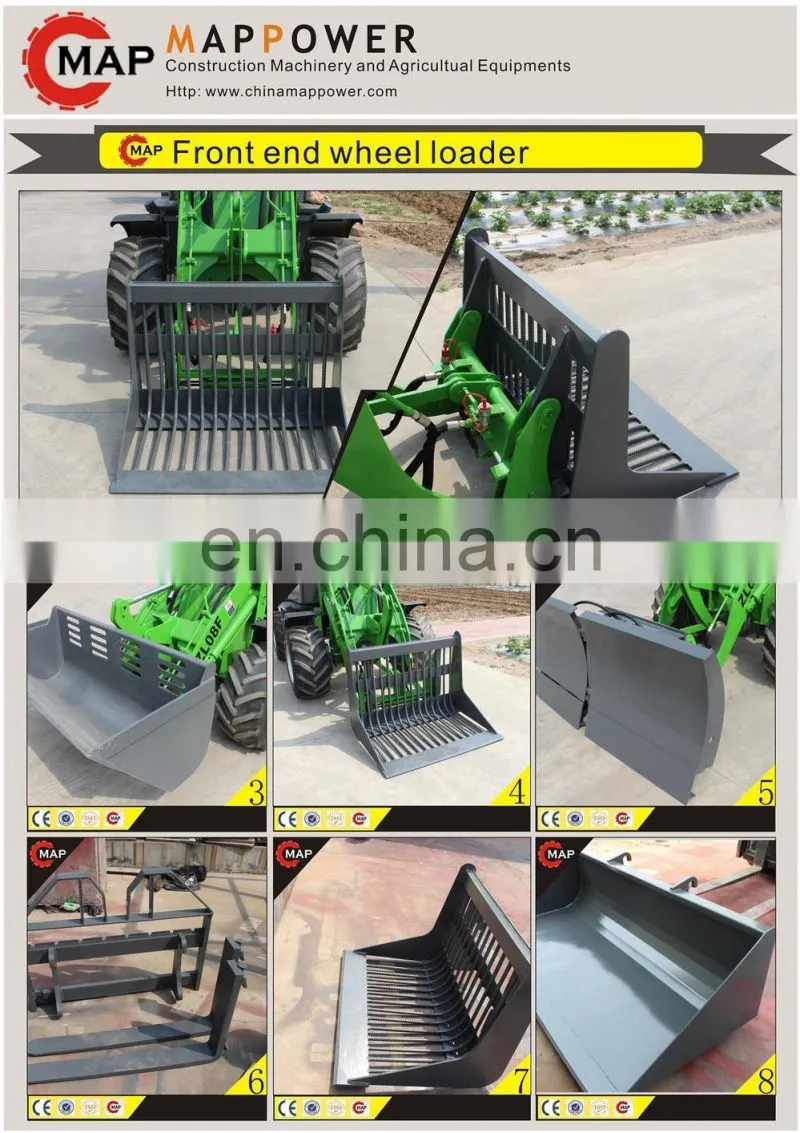

2. Quick hitch
3.Small working radius
4. Hydrostatic system or clutch system
Multifunctional mini articulater loader ZL08F
ow Price
Multifunctional mini articulater loader ZL08F with CE
l ) 3 cylinders engine features low energy consumption and environmental protection.
2) The closed hydrostatic system has the feature of lower energy consumption.
3) Simple quick-change construction can meet multipurpose operation of users.
4) The integrated multi-functional control handle makes operation simple.
5) The monitor has the LED showing of fuel level by stages.
6) The unique frame hinge type is compacted and durable.
7) The widely applied broad-face tyre and damping seat is safe and comfortable.
Small working radius, mobile and flexible
Wheel loader model |
ZL08 |
|
Specification |
overall weight(kg) |
2000 |
L×W×H(mm) |
4700×1200×2280mm |
|
rated bucket capacity(m3) |
0.4 |
|
Rated load(kg) |
800 |
|
dump height (mm) |
2350 |
|
Dump distance |
700mm |
|
Wheelbase |
2100mm |
|
Thread |
1400/1405mm |
|
Total time |
11s |
|
Engine |
Model |
Changchai CZ2102
|
Type |
direct injection, horizontal, water-cooled, four stroke, 2 cylinders |
|
Rated power(KW) |
25KW |
|
Rated speed(r/min) |
2400 |
|
Working system |
Transmission System |
Manual clutch |
Distribution of work valve |
DF15.2C |
|
Working pump |
CBF32 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
350±1 |
|
Min turning radius(mm) |
3400 |
|
Tires |
Standard tires |
750-16 |
Optional tires |
28X9-15 tires, 31*15.5-15 |
|
