1.2ton shovel loader with snow blower
Performance and characteristic
I, Equipped with Changchai 4L68 engine, optional Xinchai 498 (Euro Ⅲ) engine.
II,The international CE certification provides an assurance in performance and safety of wheel loader.

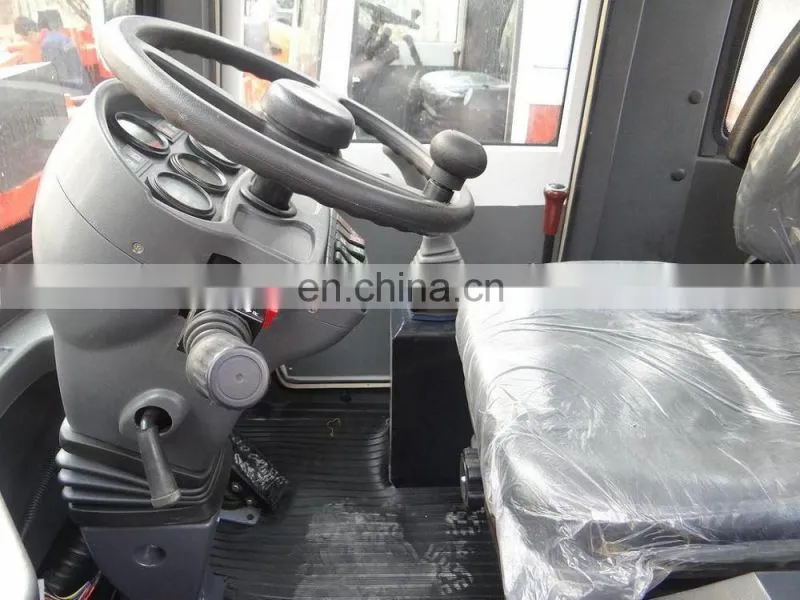

III,Joystick makes for supreme user comfort and easy control of the wheel loaders.
IV,Hydraulic quick change device, attached various optional tools to solve different tough work.
V,Strengthened and reliable hydraulic transmission, drive axle.
VI,Optimized and choose the best quality Hydraulic component which increase the productivity ,sealing reliabilit
VII,Articulated frame with box structure.
VIII,Option attachment: wooden fork, pipe/pallet fork, grass fork, rock bucket, bigger bucket, long arm
electric gear shift, snow blade,snow blower and etc.
Earth moving machine small front wheel loader ZL12F specifications
|
Basic Parameters |
Overall weight(kg) |
3100 |
Overall dimension(LxWxH)(mm) |
4800X1770X2720 |
|
Rated capacity(CBM) |
0.4 |
|
Rated weight(kg) |
1200 |
|
Max.breakout force(kn) |
36 |
|
Max.drawbar pull(kn) |
2587 |
|
Max.grade ability |
60º |
|
Total of three time:Lifiting,Dumping,Lowering(s) |
8.5 |
|
Max.dump reach |
1020 |
|
Max.dump height |
2650 |
|
Min.ground clearance |
8.5 |
|
Wheel base |
2005 |
|
Performance of bucket being set level |
Yes |
|
Min.turning radius(outside of bucket)(mm) |
4500 |
|
Time of raise |
4 |
|
Wheel distance |
1400 |
|
|
Engine |
Model |
Changchai 4L68 |
Pattern |
In-line arrangement,Water cooling,four-stroke |
|
Number of cylinders-internal diameter*strokes |
4X95X100 |
|
Max.torsion |
167 |
|
Rated power(kw) |
37 |
|
Min.fule consuming rate |
3000 |
|
Specified rotational speed(r/min) |
2200 |
|
Driven System |
Model of torque device |
YJ240 |
Pattern |
Single-phase single-stage radial-inward turbine triples |
|
Pattern of gearboxes |
Fixed-spindle power shift |
|
Number of gear shift |
4 |
|
Max.travel speed |
16 |
|
Tyre Parameters |
Tyre size |
1100-16 |
Front tyre pressure |
4.5 |
|
Rear tyre pressure |
3.5 |
|
Steering System |
Pattern |
Steering |
Steering angle(each direction) |
35º |
|
Working Hydraulic System |
Valve distributing working |
ZL15 |
Working pumps |
CBG2040 |
|
Fuel capacity(L) |
45 |
|
Pressuer of working hydraulic system(Mpa) |
16 |

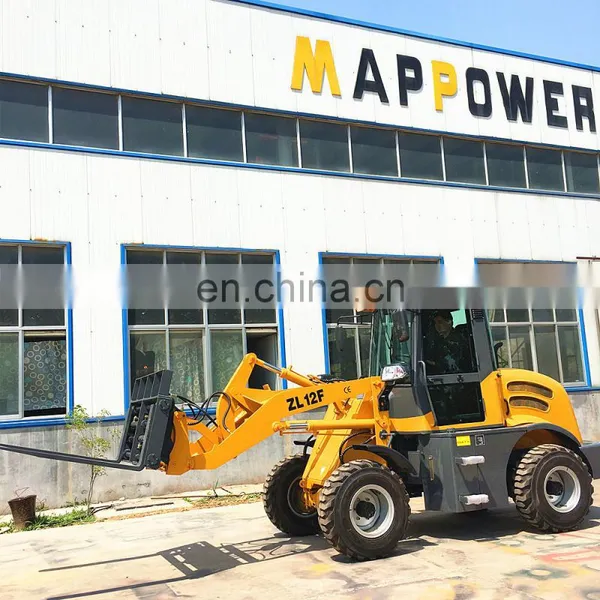

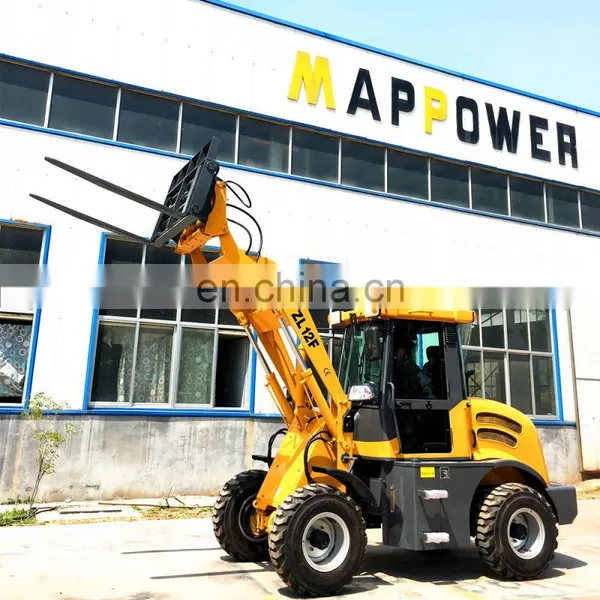

Attachments photos

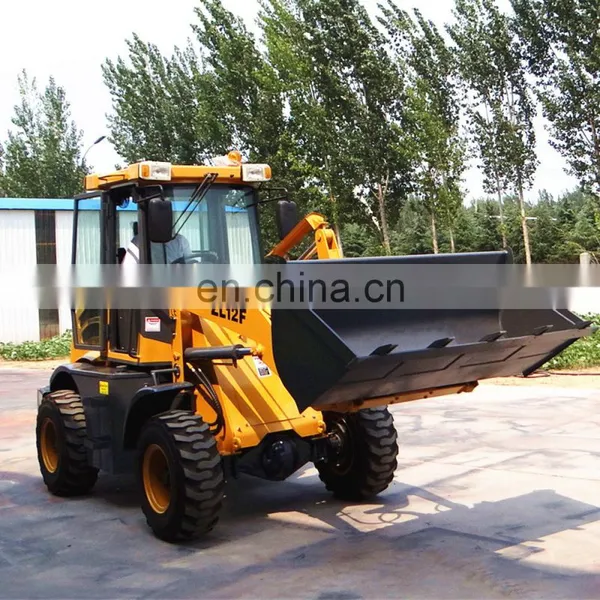

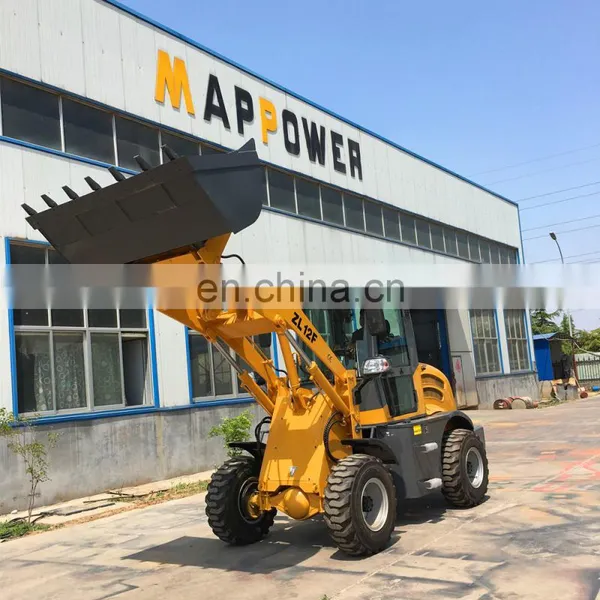

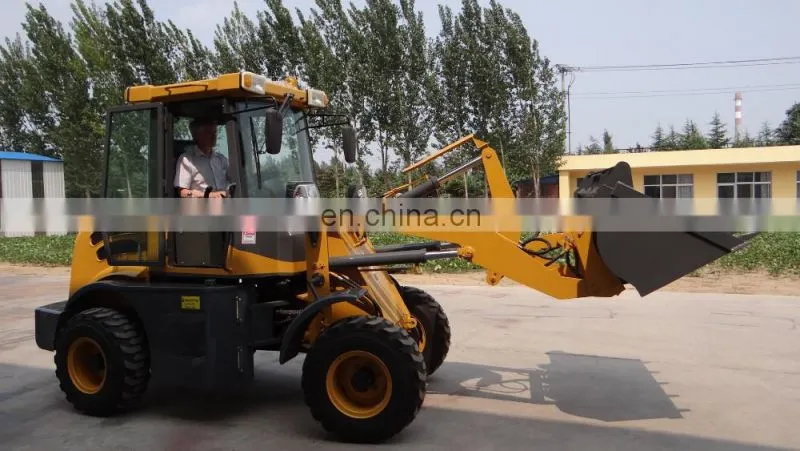

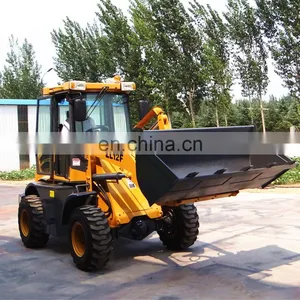

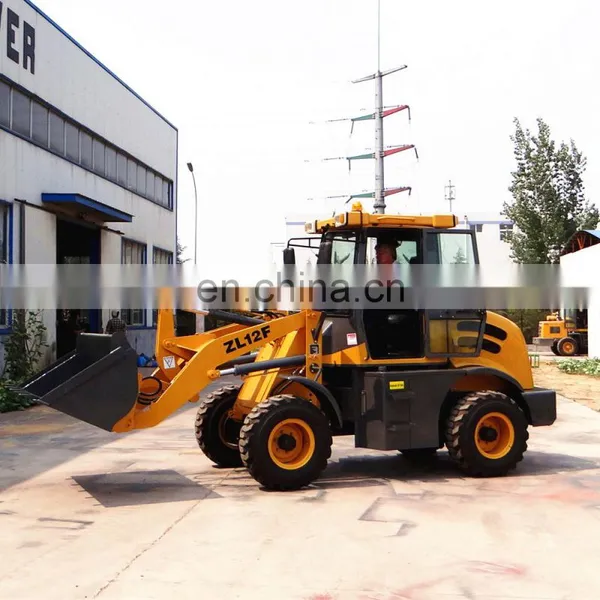

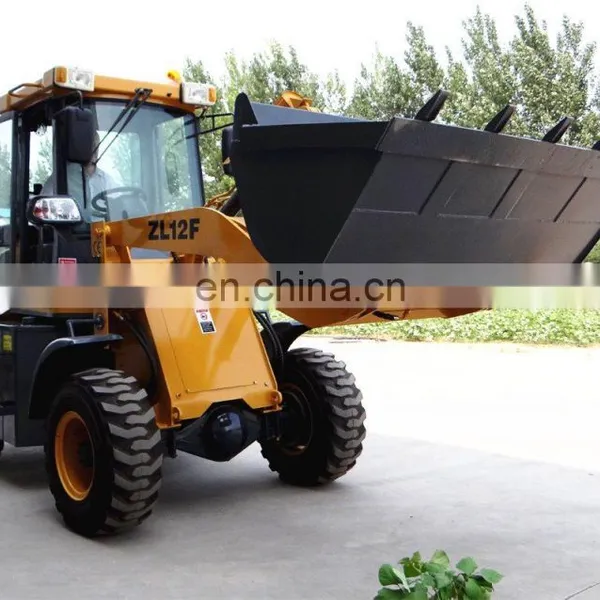

Earth moving machine small front wheel loader ZL12F photoes

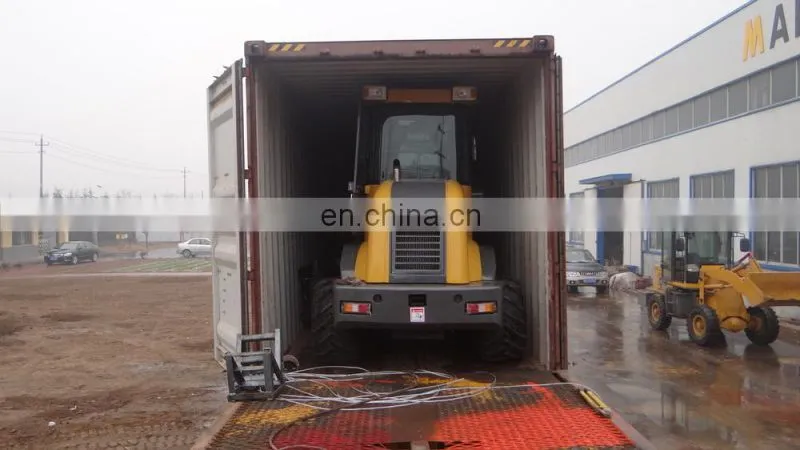

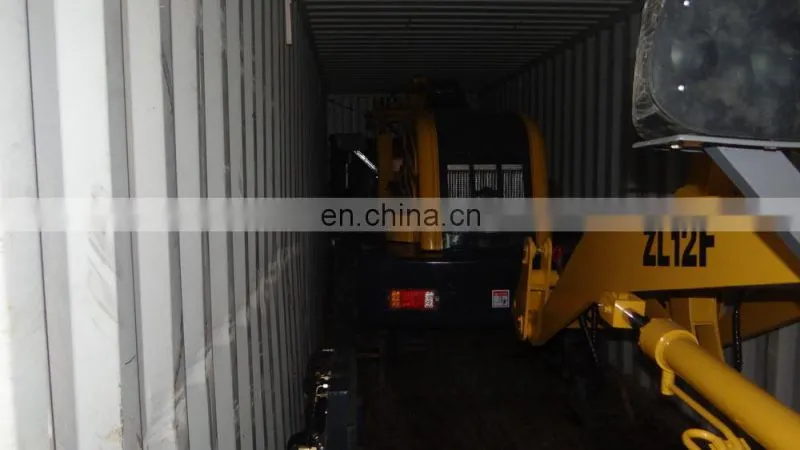

Loading container. 2-3 pcs for a 40' container well fixed .
Lead time. 15 -20 working days after get the deposit.
Company information
Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.
If there have any question,please feel free to contact me .
