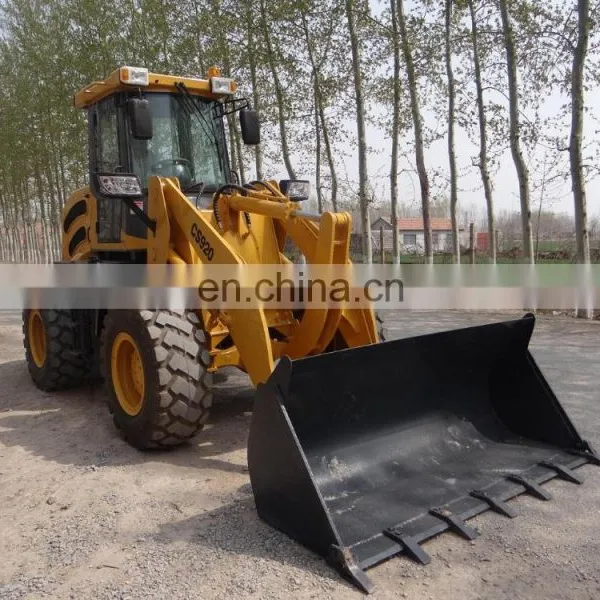

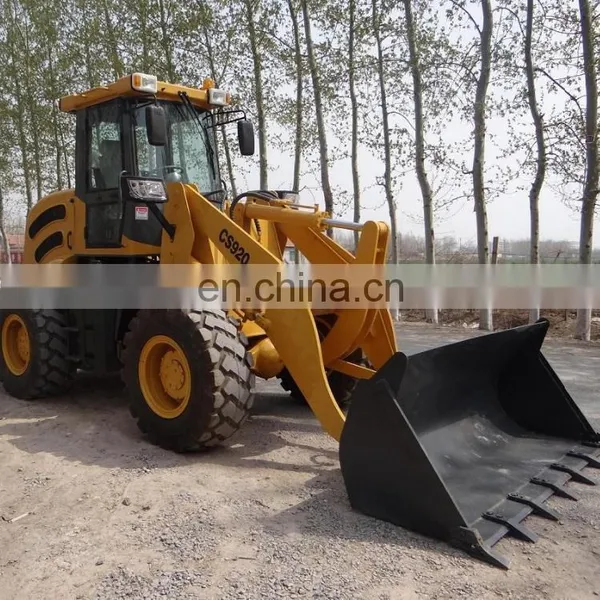

Wheel Loader 920 WITH CE
1.Streamlined engine hood design, elegant and generous
2.Bucket that can be set level automatically.
3.The body is longer and body is heavier.
4. The system of changing direction with load sensing, complete hydraulic, enlarged coaxial flow make it light operation and effectual energy-conservation.
5.Dual pump meeting hydraulic system can economize on oil 10%,fast rise and lift, high working efficiency.
6.The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.
Detailed Specification:
Performance |
1 |
rated loading |
2000kg |
2 |
overall weight |
5800kg |
|
3 |
rated bucket capacity |
1.1m3 |
|
4 |
maximum tractive force |
54KN |
|
5 |
maximum breakout force |
45.4KN |
|
6 |
maximum grade ability |
30 |
|
7 |
maximum dump height |
3000mm |
|
8 |
maximum dump reach |
752mm |
|
9 |
overall dimension (L×W×H) |
5633×2120×2712mm |
|
10 |
minimum turning radius |
5251mm |
|
Engine |
11 |
model |
4108 |
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4105×125mm |
|
14 |
rated power |
60kw2200r/min |
|
15 |
maximum torque |
270N.m |
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ280A |
18 |
gearbox mode |
Countershaft power-shift |
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
20 |
maximum speed |
24km/h |
|
Drive axles |
21 |
main reducing spiral
|
Circular Arc Bevel gear, single stage |
22 |
decelerating mode |
Single stage planetary type |
|
23 |
wheel base (mm) |
2400mm |
|
24 |
wheel tread |
1640mm |
|
25 |
ground clearance |
310mm |
|
Hydraulic system |
26 |
system working pressure |
16MPa |
27 |
boom lifting time |
4.8s±0.2s |
|
28 |
total time |
9.2s±0.5s |
|
29 |
fuel tank capacity |
80L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air assist disc brake on 4 wheels |
32 |
parking brake |
flexible shaft operated external drum |
|
Tyre |
33 |
type specification |
16/7020 |
34 |
front tyre pressure |
0.22Mpa |
|
35 |
rear tyre pressure |
0.18Mpa |
