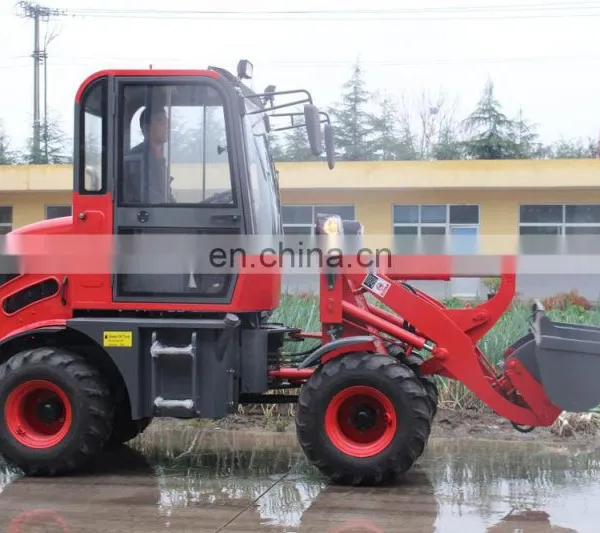

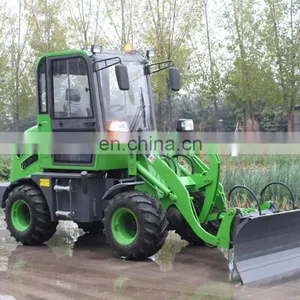

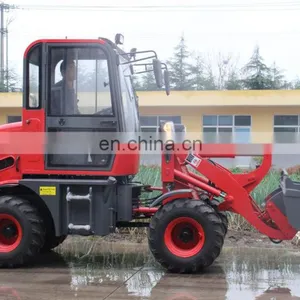

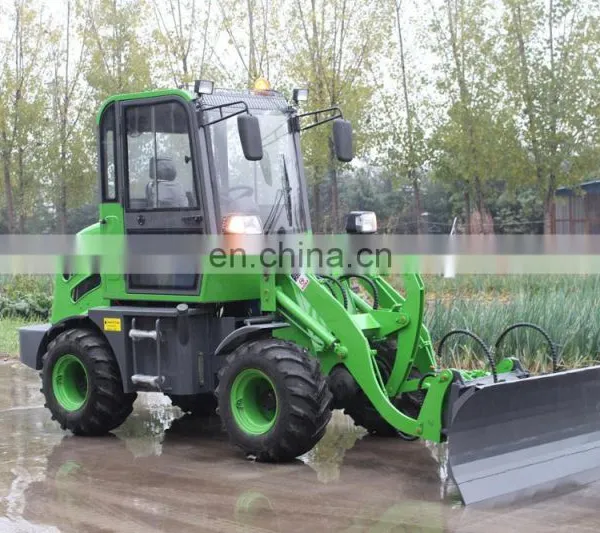

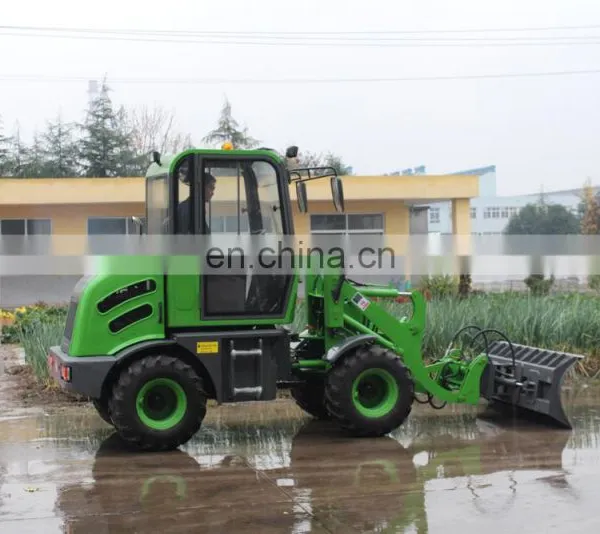

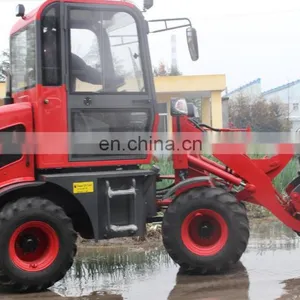

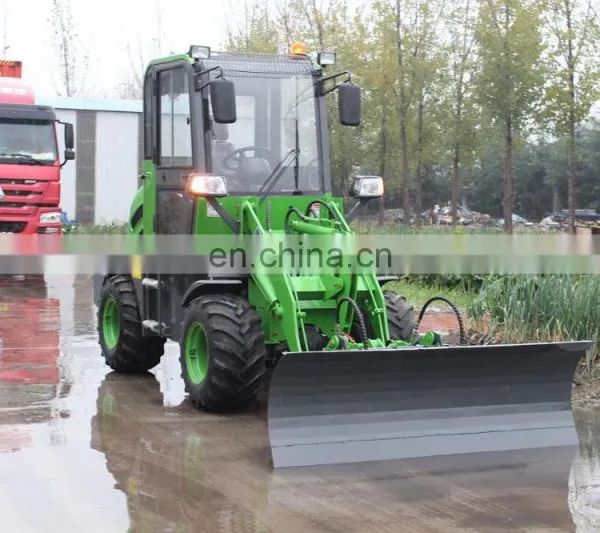

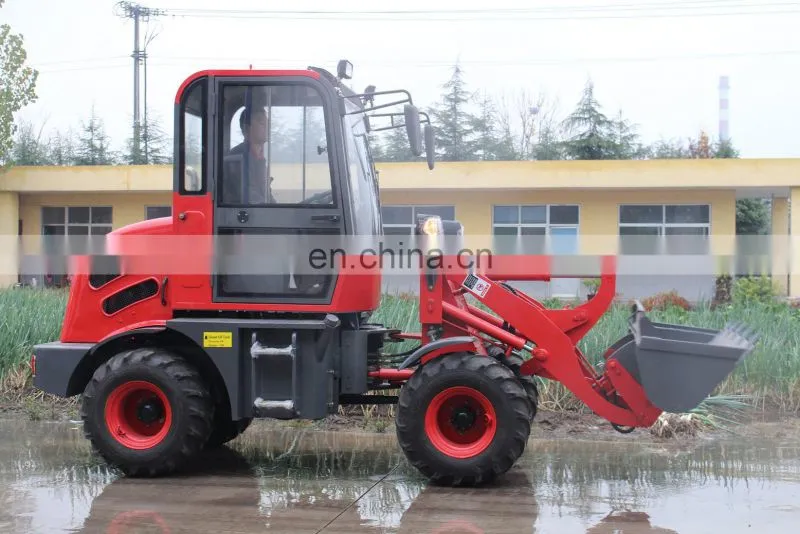

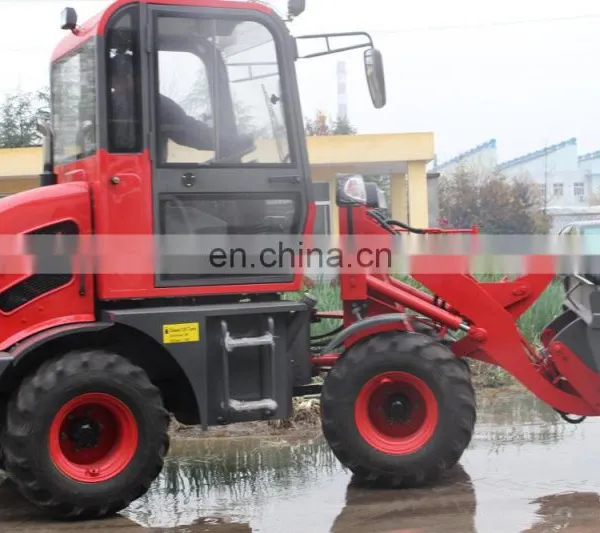

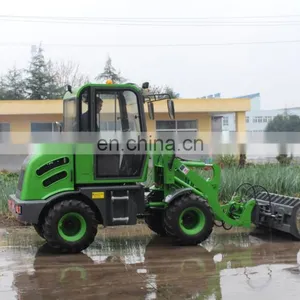

Wheel loader Loader ZL08
Mini Wheel loader
Wheel loader *Payload:800kg
Wheel loader *2 cylinders engine

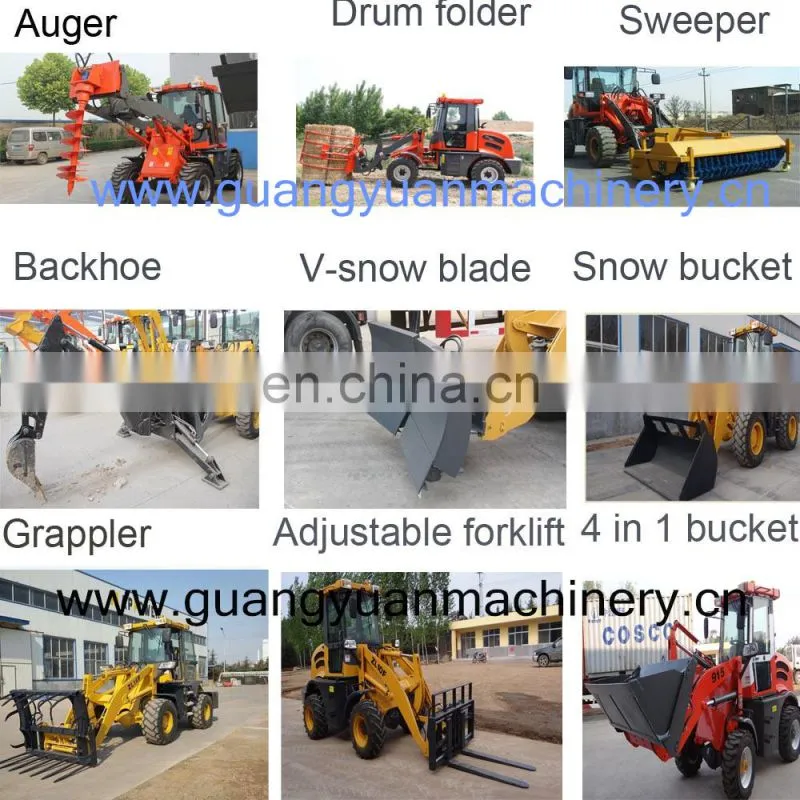

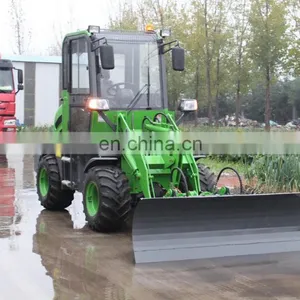

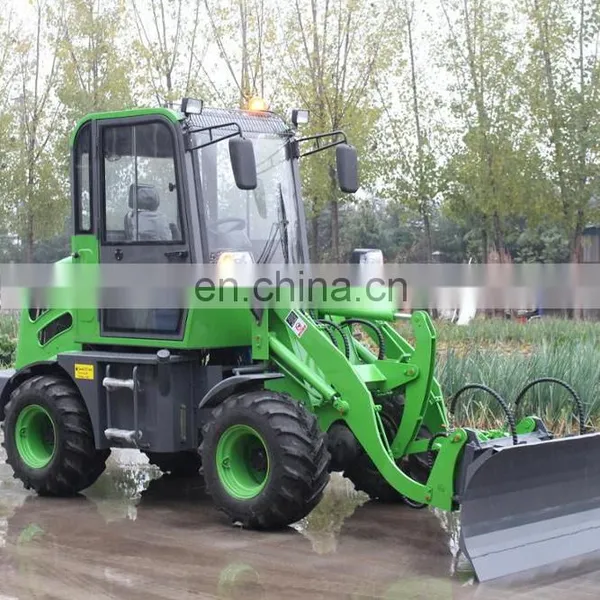

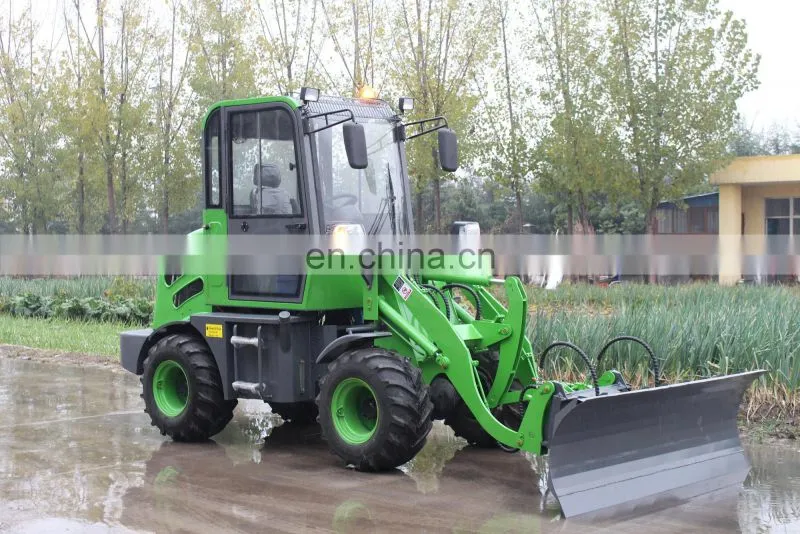

Wheel loader *with different attachment
Wheel loader *Hydraulic quick change
Wheel loader *Payload:800kg
Wheel loader *2 cylinders engine
Wheel loader *with different attachment
Wheel loader *Hydraulic quick change
Multifunction Wheel Loader ZL08
Specification
Wheel loader
Wheel loader ZL08F Specifications | ||
Engine Details |
Model |
L28 |
Engine type |
In-line arrangement, water-cooled , Single Cylinders diesel Engine |
|
Rated Power |
28HP |
|
Rated Speed |
2200 r/min |
|
Min.ful consumption |
235 g/kw.h |
|
Bucket |
Bucket Capacity |
0.40 m3 |
Bucket type |
Heavy-duty bolt on teeth |
|
Rated Loading weight |
800 kg |
|
Total Weight |
2200 kg |
|
Overall Dimensions |
Overall Length |
4050 mm |
Overall Height |
2550 mm |
|
Overall Width |
1600 mm |
|
Max. discharge height |
2300 mm |
|
Wheel base |
1580 mm |
|
Tread |
1400 mm |
|
Operating Specifications |
Steering System |
Articulated Frame with Hydraulic steering |
Min Turning Radius |
3900 mm |
|
Transmission |
Manual clutch |
|
Brake System |
Service Brake |
Four Wheel Hydraulic spread-shoed brake |
Parking Brake |
Hand operated |
|
Tire |
8.25-16 |
|
Wheel loader
