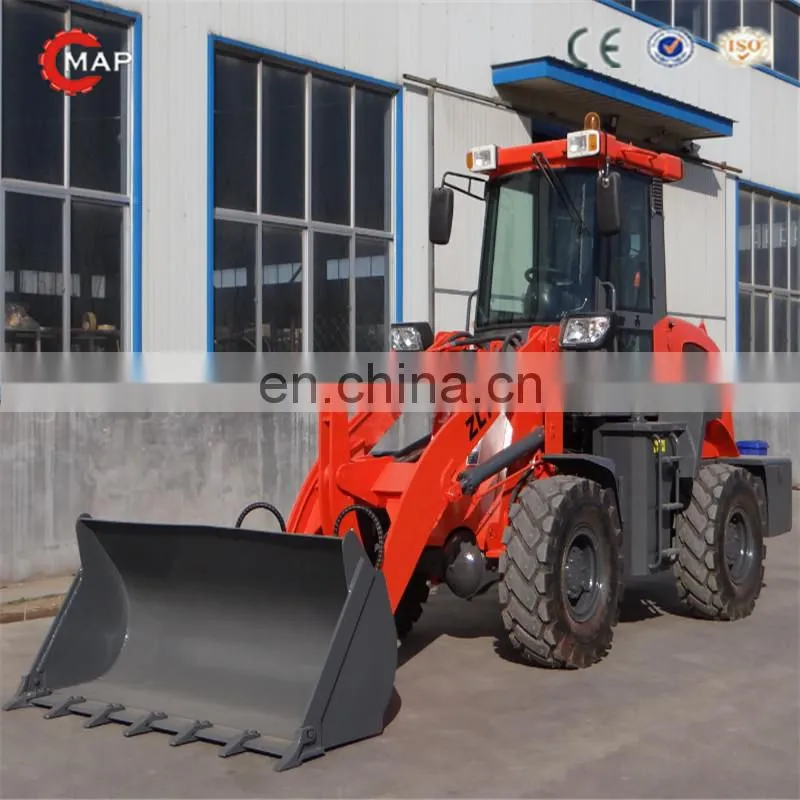

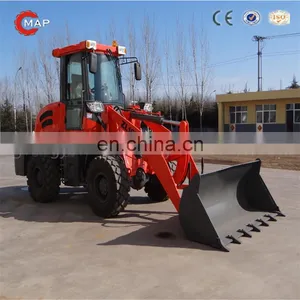

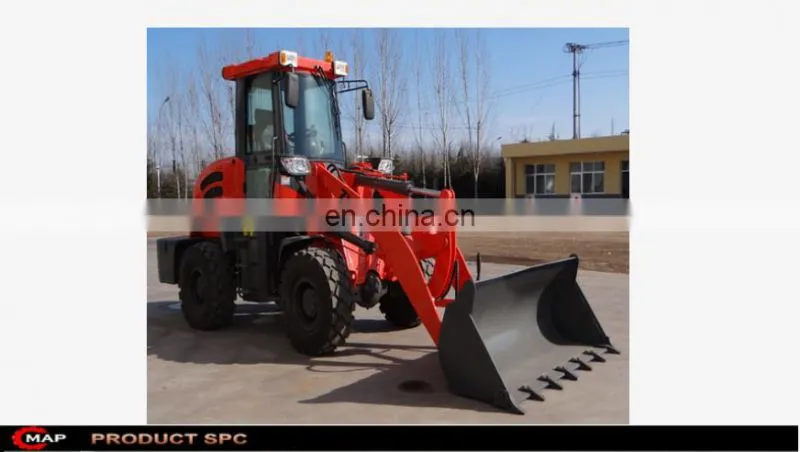

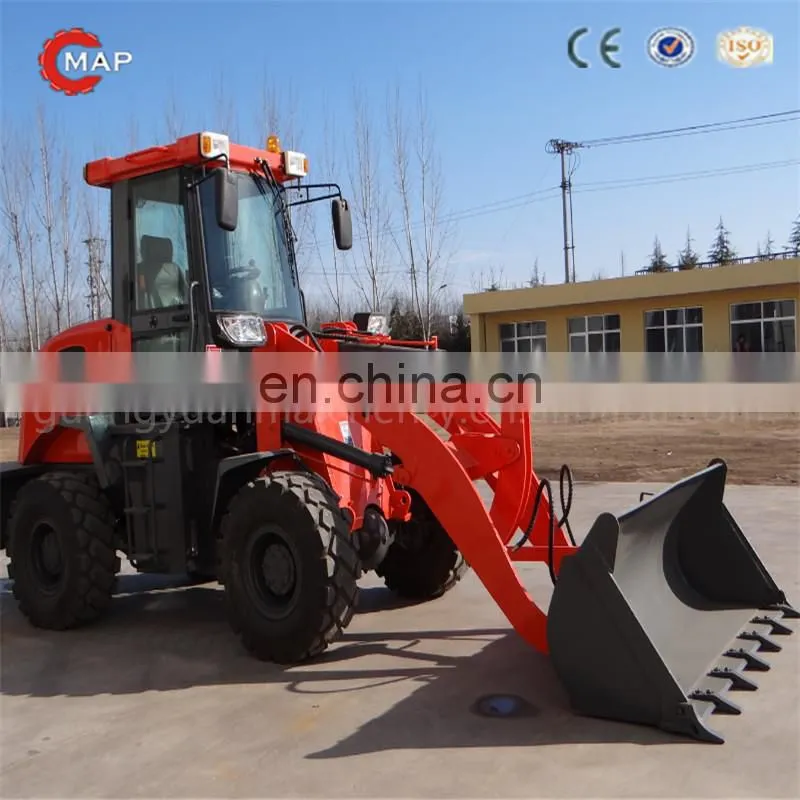

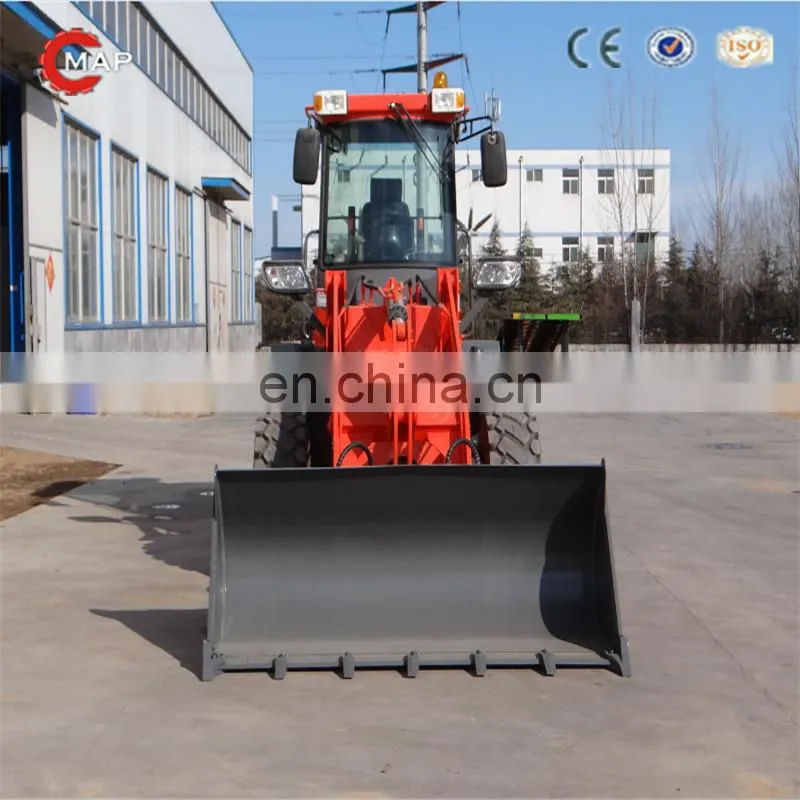

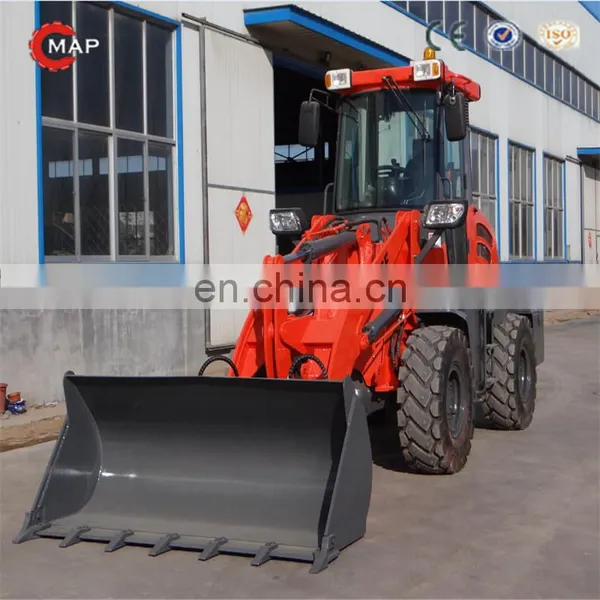

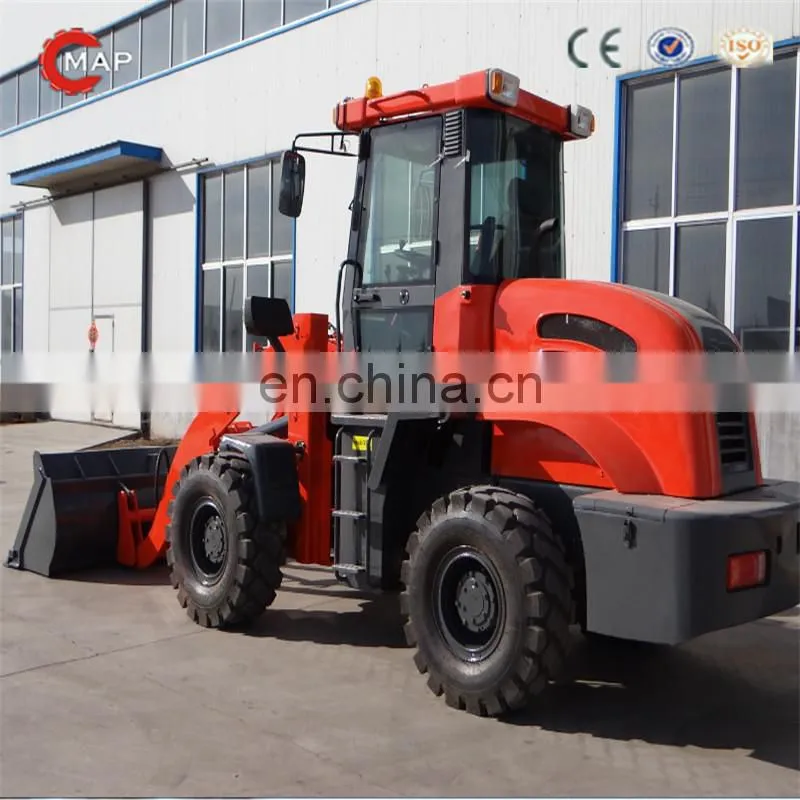

Mappower factory ZL16F 1.6ton mini wheel loader with front end loader
1. Using direct injection diesel engine as power, with easy startup and low oil consumption

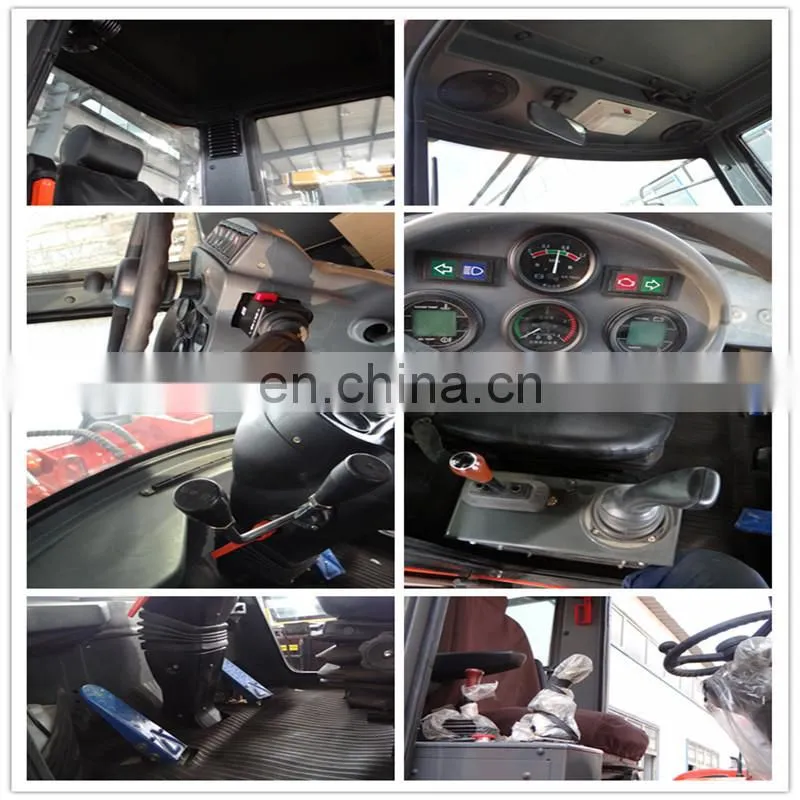

2. Integral new luxury cab, excellent visibility, safety and reliability.
3. Using special drive axle, with strong ability to overcome obstacle
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
ZL16F--Wheel loader Main Specifications
1.Engine:4102 WEICHAI HUAFENG Direct injection. 4 Cylinders Water cooling
2. rated load 1600kg, bucket capacity 0.9cbm ;Rated output :47KW
3. Rated speed :2200(r/min)
4. steering: hydraulic power steering
5.Tires:20.5/70-16
5. optional accessories: quick hitch, forks, snow bucket.ect
loader model
Overall Dimension | ||||||||||||
Length(with bucket on ground) |
4850(mm) |
|||||||||||
Bucket width |
2050(mm) |
|||||||||||
Height(To the top of the cab) |
2750(mm) |
|||||||||||
Wheel base |
2150(mm) |
|||||||||||
Tread |
1500(mm) |
|||||||||||
Min. ground clearance |
362(mm) |
|||||||||||
Main Technical Specification | ||||||||||||
1 |
Rated load |
1600(Kg) |
||||||||||
2 |
Operating weight |
4800KG |
||||||||||
3 |
Rated bucket capacity |
1.0(CBM) |
||||||||||
4 |
Max. breakout force |
45KN |
||||||||||
5 |
Max. dump clearance |
2700 (mm) |
||||||||||
6 |
Dump reach |
960(mm) |
||||||||||
7 |
Dump angle at any position |
≤40 |
||||||||||
8 |
Digging depth(with bucket bottom horizontal) |
146(mm) |
||||||||||
9 |
9 Max. turning radius |
|
||||||||||
|
(1) Outside of bucket |
4250(mm) |
||||||||||
(2) Outside of rear wheel |
4075(mm) |
|||||||||||
10 |
Pivot angle frame |
38+ |
||||||||||
11 |
Oscillating angle of rear axle + |
±11° |
||||||||||
12 |
Lifting time of bucket |
≤5.9(sec.) |
||||||||||
13 |
Lowering time of bucket |
≤2.8(sec.) |
||||||||||
14 |
Dumping time |
≤2.0(sec.) |
||||||||||
15 |
Traveling speed(Km/h) 2 forward and 2 reverse |
|
||||||||||
|
(1) 1st gear forward |
10.00 |
||||||||||
|
(2) 2nd gear forward |
24.00 |
||||||||||
|
(3) 1st gear reverse |
10.00 |
||||||||||
|
(3) 2nd gear reverse |
24.00 |
||||||||||
Diesel engine | ||||||||||||
1 |
Model |
4102 WEICHAI HUAFENG |
||||||||||
2 |
Type |
Direct injection. 4 Cylinders Water cooling |
||||||||||
3 |
Rated output |
47(kW) |
||||||||||
4 |
Inter-bore of cylinder/stroke |
100 (mm) |
||||||||||
5 |
Total exhaust of cylinder |
4(L) |
||||||||||
6 |
Voltage of starting motor |
24(V) |
||||||||||
7 |
Rated speed |
2200(r/min) |
||||||||||
8 |
Max. Torque |
330(N.M) |
||||||||||
9 |
Starting type |
Electric |
||||||||||
10 |
Min. specific fuel consumption |
251(g/Kw.h) |
||||||||||
11 |
Net weight |
380(kg) |
||||||||||
Transmission System | ||||||||||||
(A)Hydraulic Torque Converter | ||||||||||||
1 |
Model |
265 |
||||||||||
2 |
Type |
3-elements.single stage |
||||||||||
3 |
Torque ratio |
3.06 |
||||||||||
4 |
Cooling type |
Pressure oil circulating |
||||||||||
(B)Transmission case | ||||||||||||
1 |
Type |
power shift, spur gear constantly in mesh |
||||||||||
2 |
Gear shift position |
2 Forward and 2 reverse gears |
||||||||||
(C)Axle and Tire | ||||||||||||
1 |
Type of main reducer |
spiral bevel gear, single stage |
||||||||||
2 |
Gear ratio of main reducer |
5.83 |
||||||||||
3 |
Type of final reducer |
Single stage planetary |
||||||||||
4 |
Gear of ratio of final reducer |
5.6 |
||||||||||
5 |
Gear ratio |
32.66 |
||||||||||
6 |
Size of tire |
16/70-16 or 20.5/70-16 |
||||||||||
Working Device Hydraulic System | ||||||||||||
1 |
Model of oil pump |
CBG 1016 |
||||||||||
2 |
System pressure |
160(kgf/c) |
||||||||||
3 |
Model of distribution valve ZS |
ZS1-L20E-F-20 |
||||||||||
4 |
Priority-valve YX |
YX2-F160L-N |
||||||||||
5 |
(D*L)Dimension of lifting cylinder |
φ90*50*548(mm) |
||||||||||
6 |
(D*L)Dimension of tilting cylinder |
φ110*63*409(mm) |
||||||||||
Steering System | ||||||||||||
1 |
Type |
Middle articulated frame. Co-axis flow amp. Steering |
||||||||||
2 |
Model of steering pump |
CBG 2063 |
||||||||||
3 |
Model of steering gear |
BZZ5-250 |
||||||||||
4 |
System pressure |
125(kgf/c) |
||||||||||
5 |
Dimension of steering cylinder |
φ63*35*249(mm) |
||||||||||
Parking System | ||||||||||||
1 |
Type of traveling brake |
Assisted oil.4 wheel brake |
||||||||||
2 |
Air pressure |
5.9-7.9(kgf/cm) |
||||||||||
3 |
3 Type of parking brake |
inner expand hoof Automatic boosting. inner expand hoof |
||||||||||

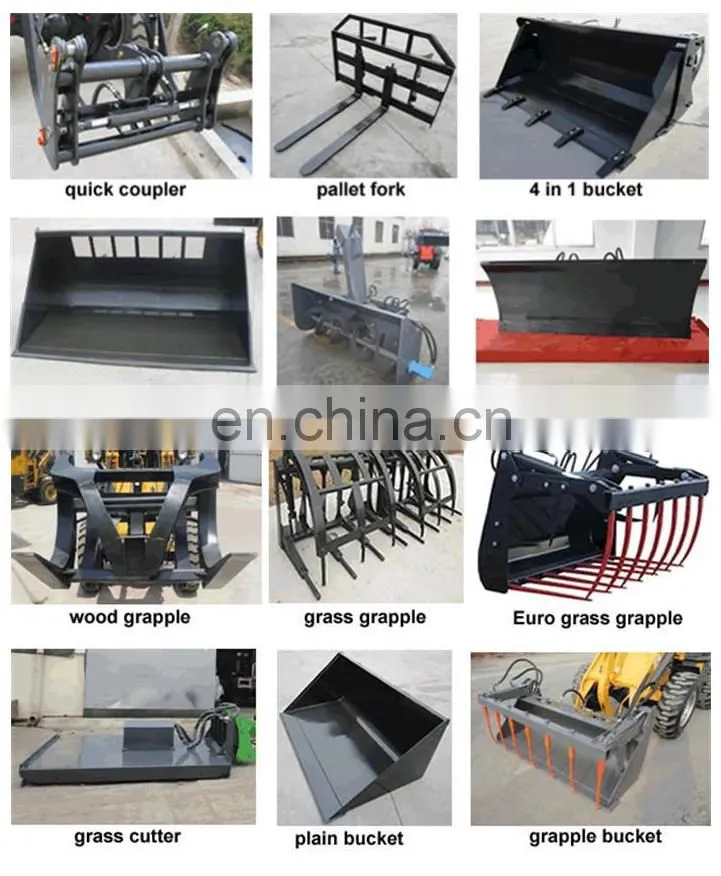

Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone bucket,
enlarged bucket,plow,fork etc,to meet different needs
Detail show
