3ton chinese wheel loader price list Construction Machinery
Weifang Map Power Company, supply wheel loaders cover 0.8Ton to 5.0Ton, with satisfied qulity and competitive price. Also we supply all kinds of implements for tractors, like forks, light bucket, snow bucket, snow blade.ect

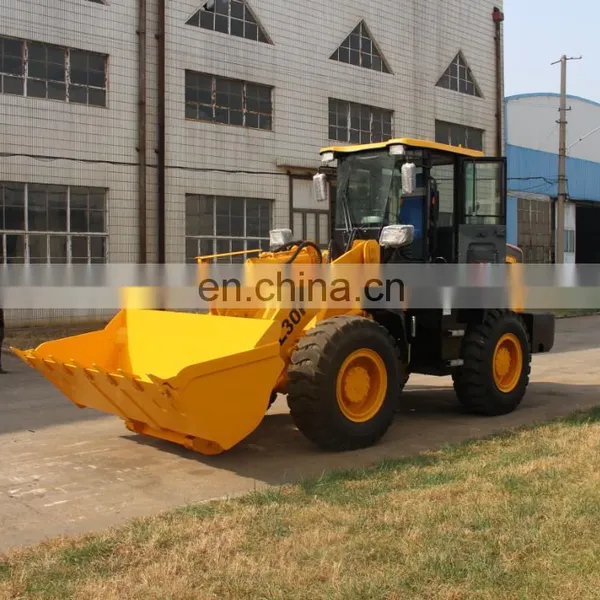

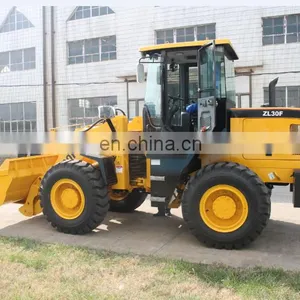

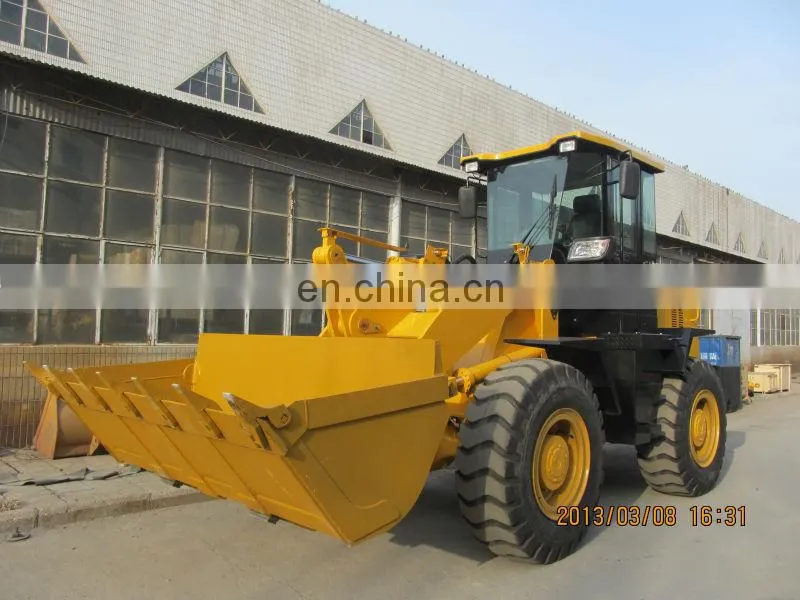

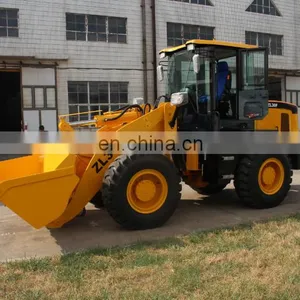

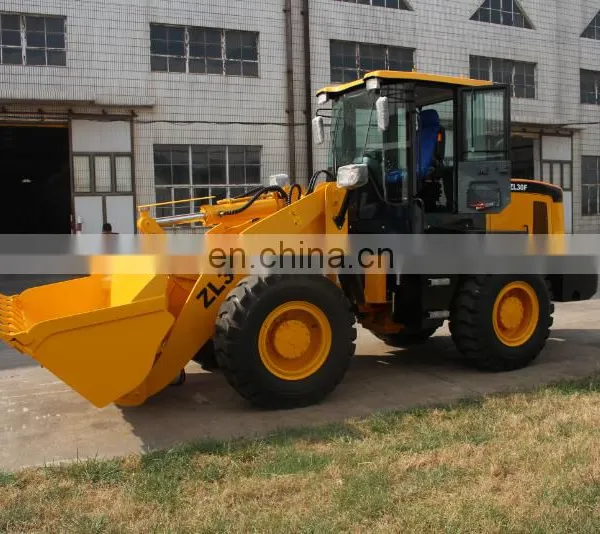

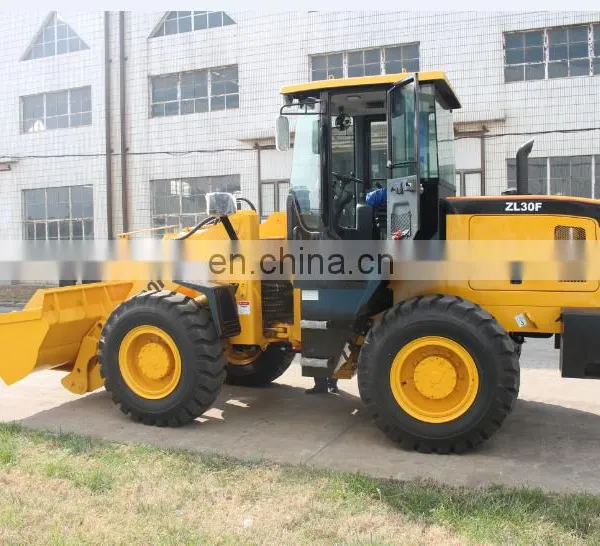

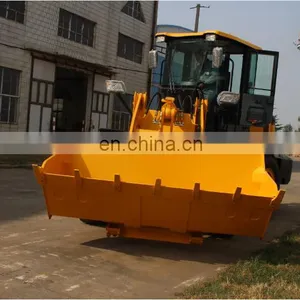

Features OF ZL30 wheel loader:
1. ZL30F wheel loader:streamlined appearance design, elegant and generous.
2. ZL30F wheel loader: bucket of working device can be set level automatically, computer is adopted to optimize design, high working efficiency
3. ZL30F wheel loader: sealed drivers cabin of new type, which may allocate conditioner, more comfortable operating environment
4. ZL30F wheel loader: torque device of single three components, gearbox of fixed axle type, more reliable performance
5. ZL30F wheel loader: Deutz TBD 226B-6G(92kw) diesel engine, powerful motive force, reliable performance, high efficiency and economizing on fuel
6. ZL30F wheel loader: can allocate many kinds of selectable assembly such as wooden forks, pipe forks, grass forks, stone bucket, enlarged bucket.ect to meet the needs of various working states.
ZL30F wheel loader specification:
Overall Dimension | ||
1 |
Length(with bucket on ground) |
7050(mm) |
2. |
Width(to outside of wheels) |
2430(mm) |
3 |
Height(To the top of the cab) |
3120(mm) |
4 |
Wheel base |
2760(mm) |
5 |
Tread |
1800(mm) |
Main Technical Specification | ||
1 |
Rated load |
3000(Kg) |
2 |
Operating weight |
9500KG |
3 |
Rated bucket capacity |
1.7(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
135kN |
6 |
Max. dump clearance |
3020(mm) |
7 |
Min. turning radius |
5700mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
4 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
Deutz TD226B/WP6G125E22/YUCHAI YC6B125-T10/WEICHAI R6105G20 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
92(kW) |
4 |
Inter-bore of cylinder/stroke |
105 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
860(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
162(g/Kw.h) |
Transmission System | ||
Torque Converter | ||
1 |
Model |
YJ320B-1 |
2 |
Type |
Full-powershift,countershaft type |
3 |
Cooling type |
Pressure oil circulating |
Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
4Forward and 2 reverse gears |
Axle and Tire | ||
1 |
Axle |
Xuzhou/Laiyang(China famous brand) |
2 |
Main reducer pattern |
Arc taper gear,modelration of first grade |
3 |
Pattern of wheel side moderation |
Single stage planetary |
4 |
Size of tire |
17.5-25 |
Hydraulic system | ||
1 |
Implement pump |
CBGV2100 |
2 |
Displacement |
100ml/r |
3 |
System working pressure |
27.5MPa |
4 |
Distribution device model |
DF25.2C |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Soft axle control, outside bunch drum type |
Steering System | ||
1 |
Pattern |
Articulated and hydraulic steering |
2 |
Min turning radius(outside of bucket) |
5700mm |
3 |
Max turning angle |
37+/-1 |
ZL30F wheel loader with kinds of attachments are available, like the 4 in 1 bucket, snow bucket, snow blade, joystick, quick hitch, pallet forks and so many others.
