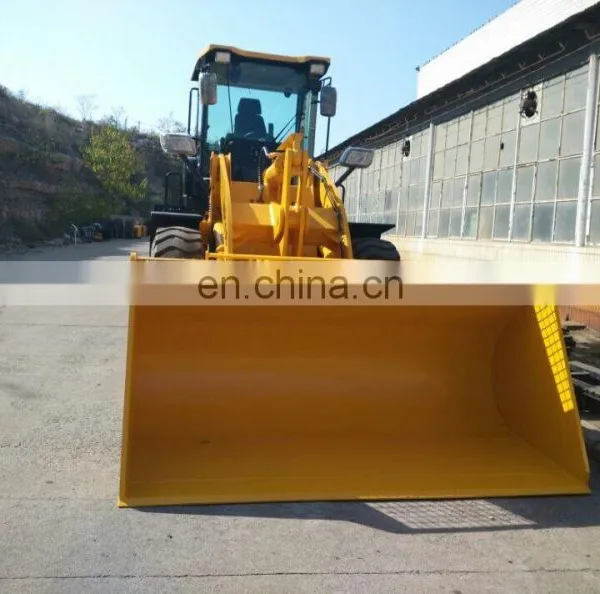

3 Ton Mini Wheel Loader Best Price 3ton ZL30G wheel loader
Best price Mini wheel Loader 936
1)Rated load: 3000kg
2)Rated bucket capacity:1.2CBM
3)Joystick A/C
4)Quick hitch

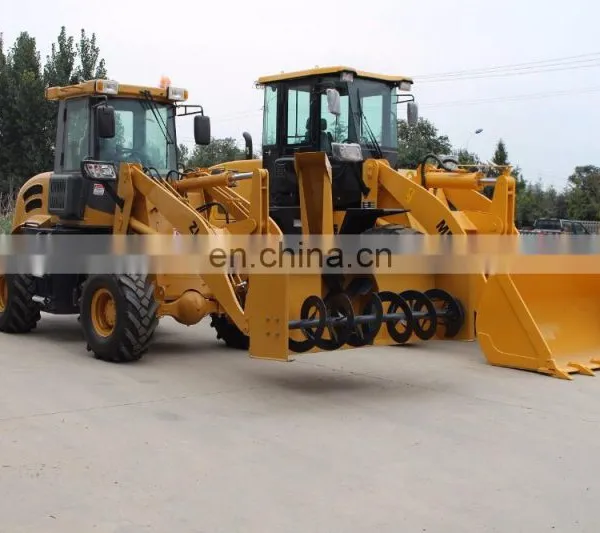

Multi-function Wheel Loader 3.0 Ton can be with Snow Blade, Snow bucket ,Pallet fork , Grapple fork ,4 in 1 Bucket ,Baler,
Grader, road sweeping machine,snow blower,light bucket ,auger and etc.
Wheel loader Usage
The ZL30 wheel loader is used for loading or transporting sands, coal ,sandstone and so on for road construction, environmental sanitation, small and medium-sized civil engineering, or in the station, warehouses and other places. The wheel loader can be combined with auto truck of 3-5tons to load and unload goods, and can conduct bulldozing, digging hoisting and other operations.
wheel loader ZL30 Specifications
Overall Dimension | ||
Length(with bucket on ground) |
7150(mm) |
|
Width(to outside of wheels) |
2430(mm) |
|
Height(To the top of the cab) |
3120(mm) |
|
Wheel base |
2760(mm) |
|
Tread |
1800(mm) |
|
Main Technical Specification | ||
Rated load |
2800-3000(Kg) |
|
Operating weight |
9800KG |
|
Rated bucket capacity |
1.7(CBM) |
|
Bucket type |
Heavy-duty bolt teeth |
|
Max. breakout force |
135kN |
|
Max. dump clearance |
3020(mm) |
|
Min. turning radius |
5700mm |
|
Driving system |
Hydraulic converter |
|
Traveling speed(Km/h) |
4 forward and 2 reverse |
|
Diesel engine | ||
Model |
DEUTZ TD226B |
|
Type |
In-line arrangement. Water cooling |
|
Rated output |
92(kW) |
|
Inter-bore of cylinder/stroke |
105 (mm) |
|
Rated speed |
2300(r/min) |
|
Max. Torque |
860(N.M) |
|
Starting type |
Electric |
|
Min. specific fuel consumption |
162(g/Kw.h) |
|

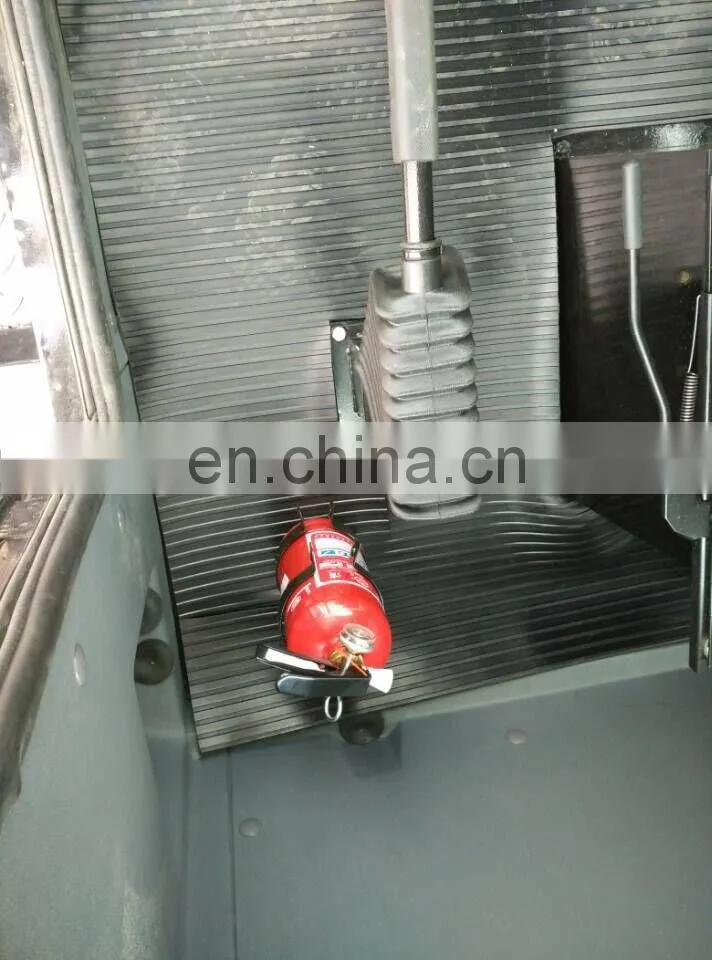

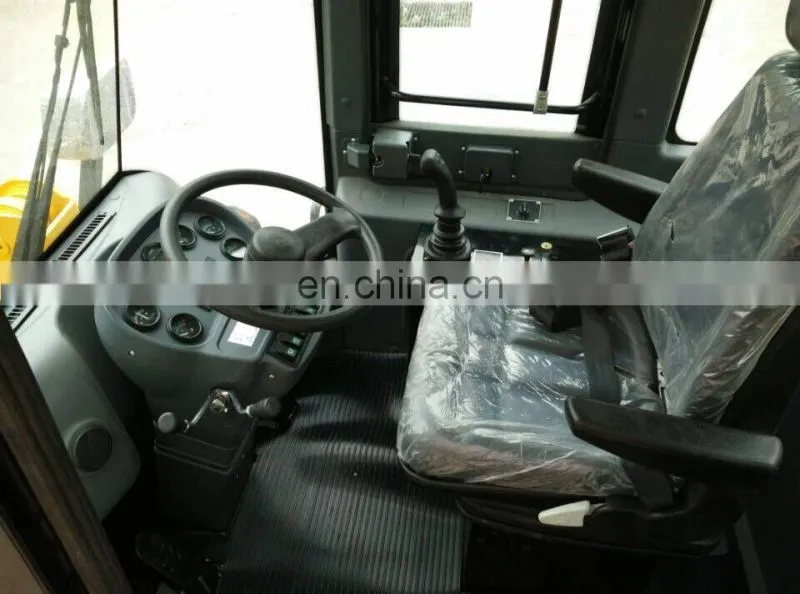

The ZL30 wheel loader with joystick,cabin photo

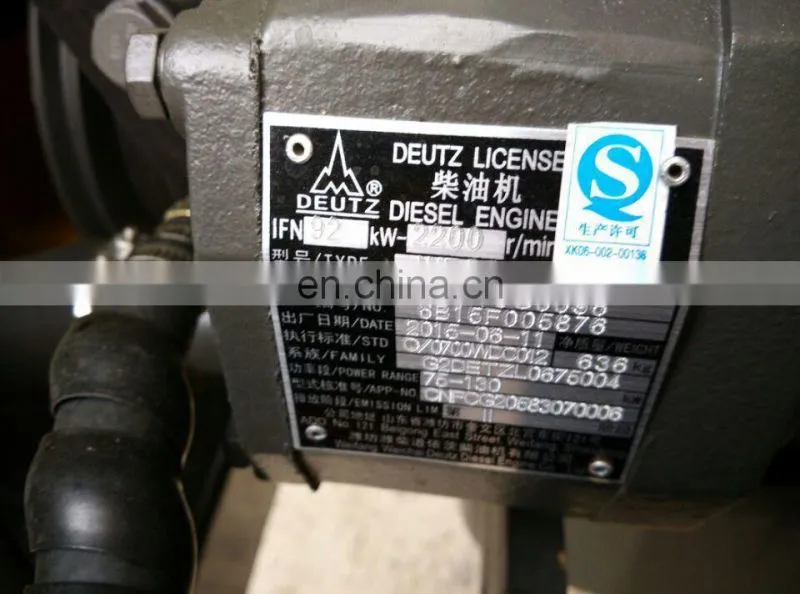

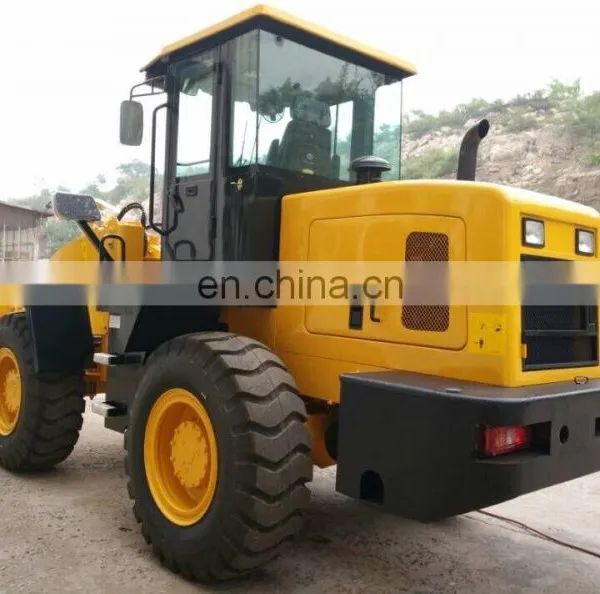

The ZL30 wheel loader with DEUTZ engine.
