Help Center1.6ton Front End Loader Mini Wheel Loader ZL16F
Related Products
-
915 HOT SALE 1.5ton Mini Front Wheel Loader With Snow BucketUS$ 10,000 - 12,000MOQ: 1 Unit -
2.0ton Earth Moving Machine Mini Wheel Loader ZL20F With CEUS$ 9,380 - 9,380MOQ: 1
-
Cheap Price Original Wheel Loader 950FUS$ 41990.00 - 15.00MOQ: 1 Unit
-
Chinese Cheap Zl20 Wheeled Front End Loader With CEUS$ 12890.00 - 15.00MOQ: 1 Unit
-
Sales Promotion!! Cheap 2.0ton 4 Wheel Drive Front Wheel Loader With CEUS$ 12890.00 - 15.00MOQ: 1 Unit
1.Tire 16.70/16
2.Loader bucket:0.9m3
3.Transmission:Hydraulic convertor
4.Wider tire optional
Performance |
1 |
rated loading |
1600kg |
2 |
overall weight |
4800kg |
|
3 |
rated bucket capacity |
0.9m |
|
4 |
maximum tractive force |
54KN |
|
5 |
maximum breakout force |
45.4KN |
|
6 |
maximum grade ability |
30 |
|
7 |
maximum dump height |
3000mm |
|
8 |
maximum dump reach |
752mm |
|
9 |
overall dimension (L×W×H) |
5633×2120×2712mm |
|
10 |
minimum turning radius |
5251mm |
|
Engine |
11 |
model |
R4102 |
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4105×125mm |
|
14 |
rated power |
49kw2200r/min |
|
15 |
maximum torque |
270N.m |
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ280A |
18 |
gearbox mode |
Countershaft power-shift |
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
20 |
maximum speed |
24km/h |
|
Drive axles |
21 |
main reducing spiral
|
Circular Arc Bevel gear, single stage |
22 |
decelerating mode |
Single stage planetary type |
|
23 |
wheel base (mm) |
2400mm |
|
24 |
wheel tread |
1640mm |
|
25 |
ground clearance |
310mm |
|
Hydraulic system |
26 |
system working pressure |
16MPa |
27 |
boom lifting time |
4.8s±0.2s |
|
28 |
total time |
9.2s±0.5s |
|
29 |
fuel tank capacity |
80L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air assist disc brake on 4 wheels |
32 |
parking brake |
flexible shaft operated external drum |
|
Tyre |
33 |
type specification |
16/70-20 |
34 |
front tyre pressure |
0.22Mpa |
|
35 |
rear tyre pressure |
0.18Mpa |

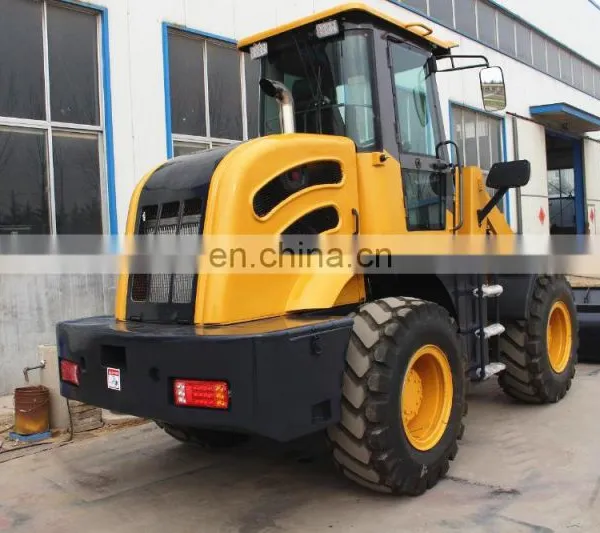

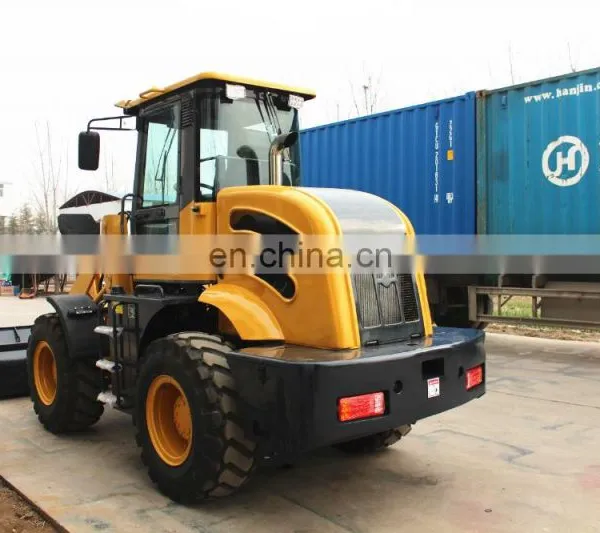

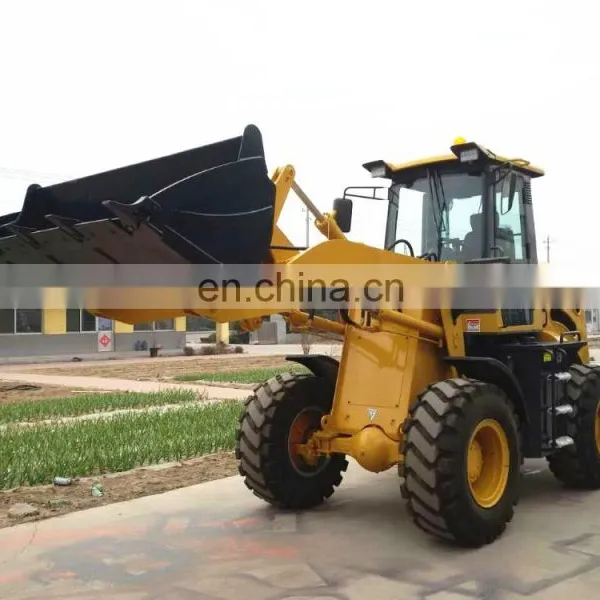

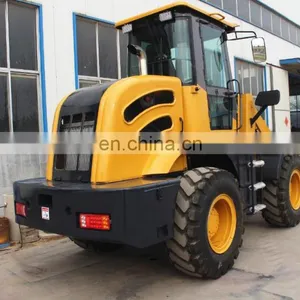

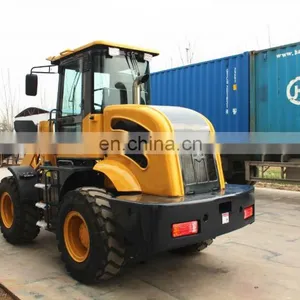

Sample pictures
Detailed High configuration pictures
one set with assemble the cabin in one 20GP container,2sets with disassemble in one 40HQ container
