China Cheap Heavy Equipment 920 Mini Wheel Loader
- Qingdao
- T/T Credit Card
You May Like
-
1.6ton 0.8m3 Hydraulic Transmission ZL16F Mini Shovel Wheel Loader
-
2015 Mini Compact Snow Mini Loader Torque Converter Loader
-
2015 New Popular Cheaper Mini Shovel ZL08
-
3 Cylinders Engine Mini Snow Shovel
-
Popular Style 4WD CE 910 Earth Moving Machinery Wheel Loader
-
New Style Machine for Small Business With Forward Reverse Gearbox
Product Details
| Brand Name | MAP | Place of Origin | Shandong, China | |
| Model Number | ZL20F | Type | Mini Loader | |
| Certification | ce, CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12months | Condition | New | |
| Dimension(Long * Breadth * High) | 5600X2100X2850MM | Moving Type | Wheel Loader | |
| Rated Load | 2000kgs |
Product Description

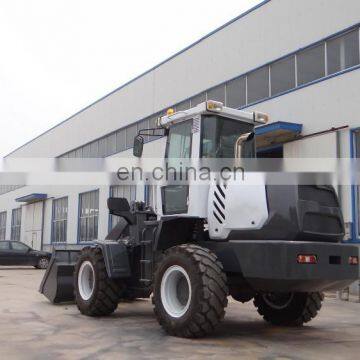

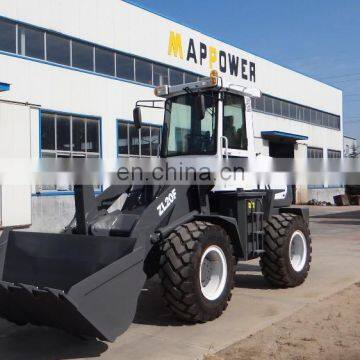

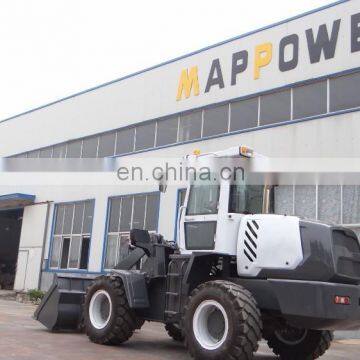

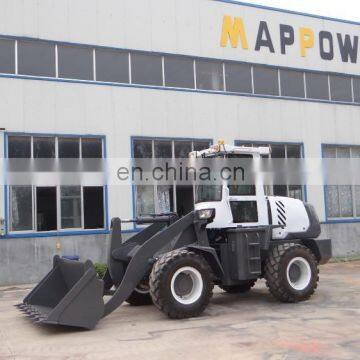

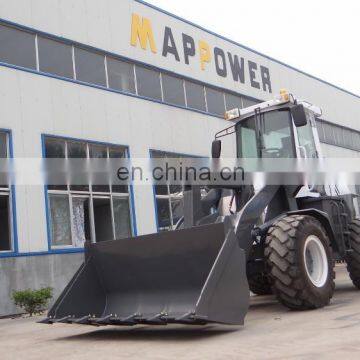

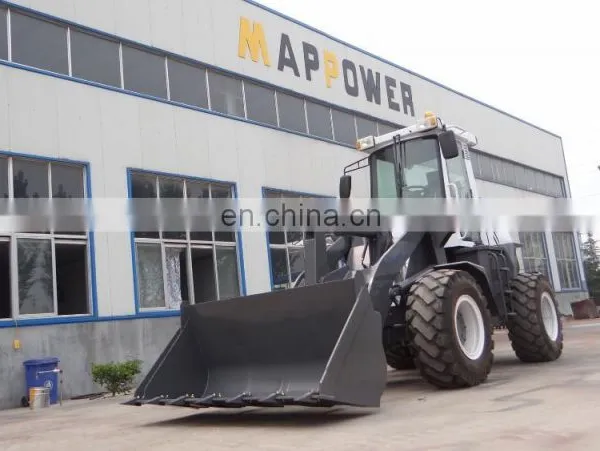

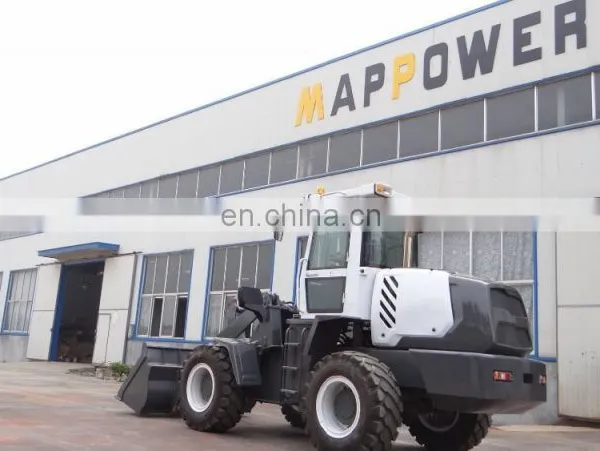

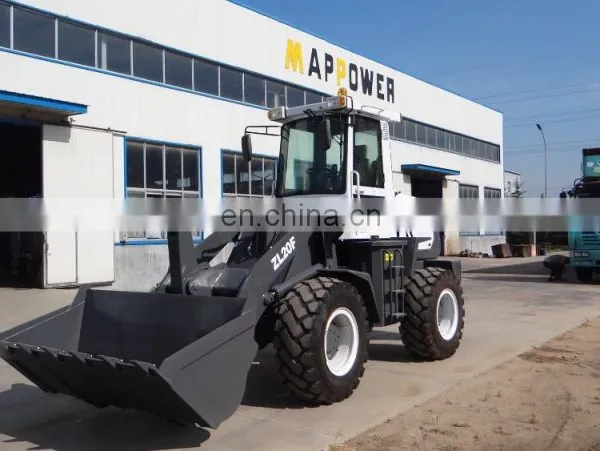

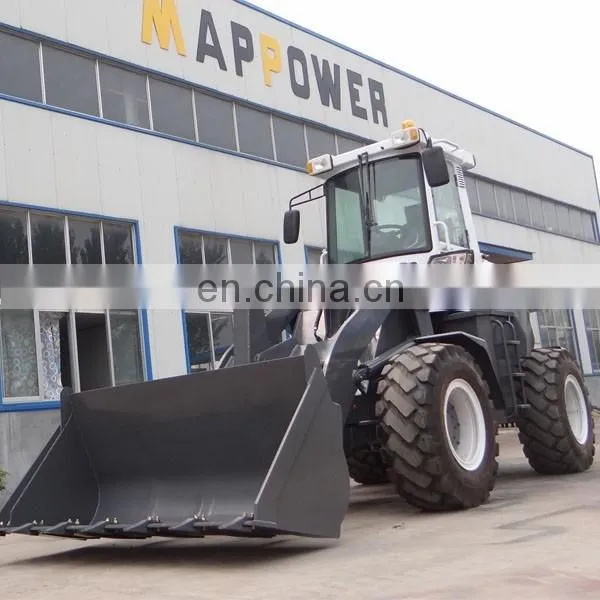

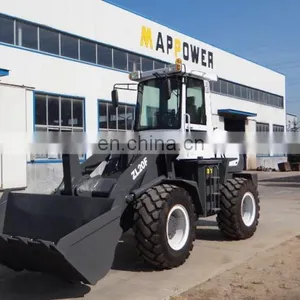

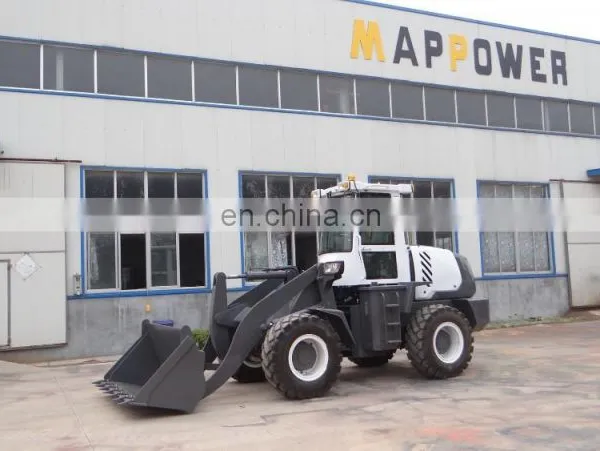

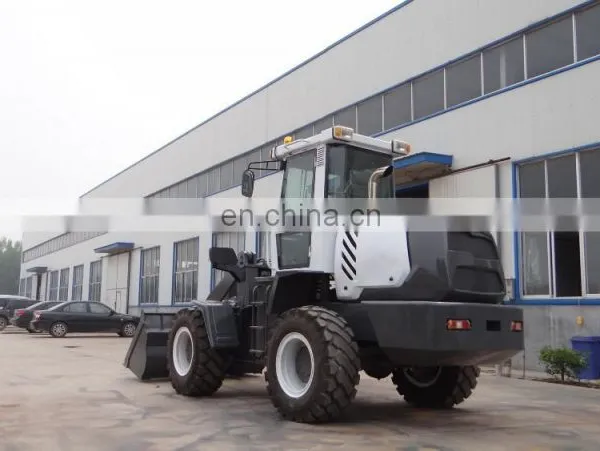

wheel loader ZL20F
1)Dumping height:3100mm
2)Loader Bucket :1.2CBM
3)17/16-20 Tire
4)Joystick and Pilot control
Wheel Loader CS920 WITH CE
Features 2.0 ton heavy machine tractor loader
*Fully hydraulic steering,power shift hydraulic operated working device.
*The full hydraulic steering system is smooth in operation, stable and reliable in performance
*Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.
*High boom lifting capacity for heavy duty handing jobs.
*The bucket is equipped with automatic leveling device, so that the operation is easier.
*Big tractive force and traction device at the rear end, which meet more needs.
Detailed Specification:
Performance | 1 | rated loading | 2000kg |
2 | overall weight | 5800kg | |
3 | rated bucket capacity | 1.2m3 | |
4 | maximum tractive force | 54KN | |
5 | maximum breakout force | 45.4KN | |
6 | maximum grade ability | 30 | |
7 | maximum dump height | 3000mm | |
8 | maximum dump reach | 752mm | |
9 | overall dimension (L×W×H) | 5600×2100×2850mm | |
10 | minimum turning radius | 5251mm | |
Engine | 11 | model | 4105 |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | No. of cylinder-bore/stroke | 4105×125mm | |
14 | rated power | 58kw2200r/min | |
15 | maximum torque | 270N.m | |
16 | min fuel-consume ratio | ≤243g/kw.h | |
Transmission system | 17 | torque converter | YJ280A |
18 | gearbox mode | Countershaft power-shift | |
19 | gear shift | 2 forward shift 2 reverse shift | |
20 | maximum speed | 24km/h | |
Drive axles | 21 | main reducing spiral
| Circular Arc Bevel gear, single stage |
22 | decelerating mode | Single stage planetary type | |
23 | wheel base (mm) | 2400mm | |
24 | wheel tread | 1640mm | |
25 | ground clearance | 310mm | |
Hydraulic system | 26 | system working pressure | 16MPa |
27 | boom lifting time | 4.8s±0.2s | |
28 | total time | 9.2s±0.5s | |
29 | fuel tank capacity | 80L | |
30 | function of leveling automatically | yes | |
Brake system | 31 | service brake | air assist disc brake on 4 wheels |
32 | parking brake | flexible shaft operated external drum | |
Tyre | 33 | type specification | 16/7020 |
34 | front tyre pressure | 0.22Mpa | |
35 | rear tyre pressure | 0.18Mpa |


| Why choose us? |
Main Features of WEIFANG Map Power :
1. more than 10 years production experience
2. own a super technical team, can finish some adjustment to adapt the using environment and the market
3. production capacity: 300 units/month
4. our site dumper are exported to many developed countries, and satisfied the customers
5. One hour reaches Qingdao port.
6. All the inquiries will be replied within 12 hours
The following is how we keep good quality and competitive prices for global valued customers.
Attachments avaliable
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Company Contact Information
Contact :Lina
| Company Name: | Weifang Map Power Import & Export Co., Ltd. |
| Operational Address: | Room 1-2-2007, No. 8580, Dongfeng East Street, Kuiwen Dist., Weifang, Shandong, China (Mainland) |
| Telephone: | 0086-536-8502890 |
| Website: | |
| Website on : | |
| Store: | /store/904969 |
Packing:Nude packing
Shipping: 2sets in 40HQ
SCANNING
Contact :Lina
cell086-1362636570
FAQ
1. Are you factory supplier?
A: Yes, we are real factory supplier for over 6 years, own a super technical team to serve adjusting design for customers
2. How about the products range do you produce ?
We are specilized in producing wheel loaders cover 0.6ton to 5tons. Model: ZL06, ZL08, D25, ZL10, ZL12, ZL15, ZL16, ZL20, ZL30, ZL50, producing site dumpers with 2tons, 3tons, 4tons, 5tons, 7tons and 10tons load capacity.
3. Can you supply site dumpers with adjustable design to adapt customers' using requirment ?
Sure, we have strong technology team, are able to do adjustment design for customers according to users' requirment and the using environment, like to change the transmission system, tires, bucket dimension, operation plate, cabin and so on.
4. Which brand engine do you have for site dumpers?
We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
5. What advantages of your products and company?
1) adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2) ROPS cabin, double-layer thick cab, more strong and resistant
3) adjusting steering wheel and adjusting seat, with fan, radio, heater and so on, more comforable drive environment for driver
4) All of our dumpers passed the strict test before sale to customers
5) More easy wear spare parts will be attached with the wheel loader for free
6) We serve 1 year warranty for customers, supply after-sale service for wheel loaders' whole life
7) we can do urgent order for customers, with the quality the same
