2.0ton Factory Direct Supply Dingo Mini Loader
- Qingdap
- T/T Credit Card
You May Like
-
New 0.8Ton Mini Skid Steer Loader, Mini Excavator, Mini Garden Loader
-
Popular Small Articulated Mini Loader
-
ZL12F 1.2ton Mini Hydraulic Hindustan Wheel Loader 2021 Price
-
2.0ton Factory Direct Supply Mini Wheel Loader
-
Hot Sale High Performance China Front Loader ZL16F With CE
-
0.8ton Mini Engineering and Construction Wheel Loader
Product Details
| Brand Name | MAP | Place of Origin | Shandong, China | |
| Model Number | ZL20F | Type | Mini Loader | |
| Certification | ce, CE | After-sales Service Provided | No overseas service provided | |
| Warranty | 12months | Condition | New | |
| Dimension(Long * Breadth * High) | 5600X2100X2850MM | Moving Type | Wheel Loader | |
| Rated Load | 2000kgs |
Product Description

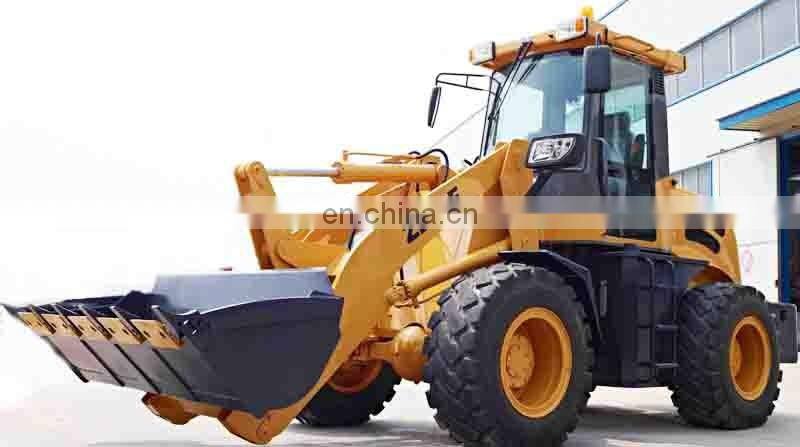

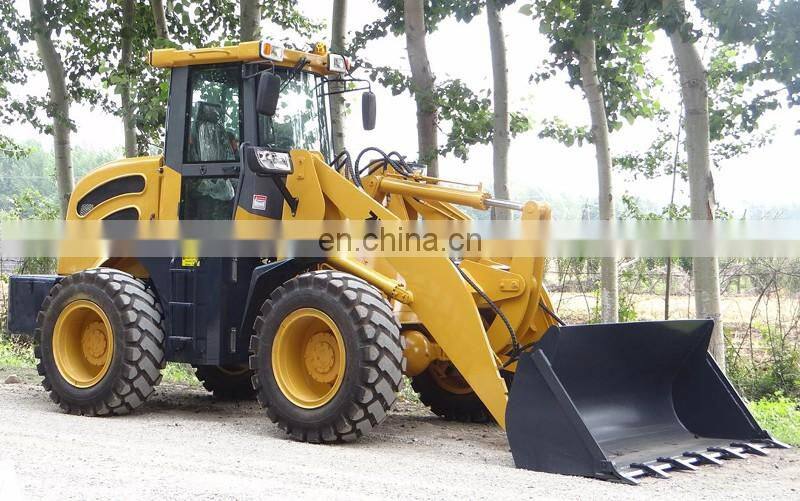

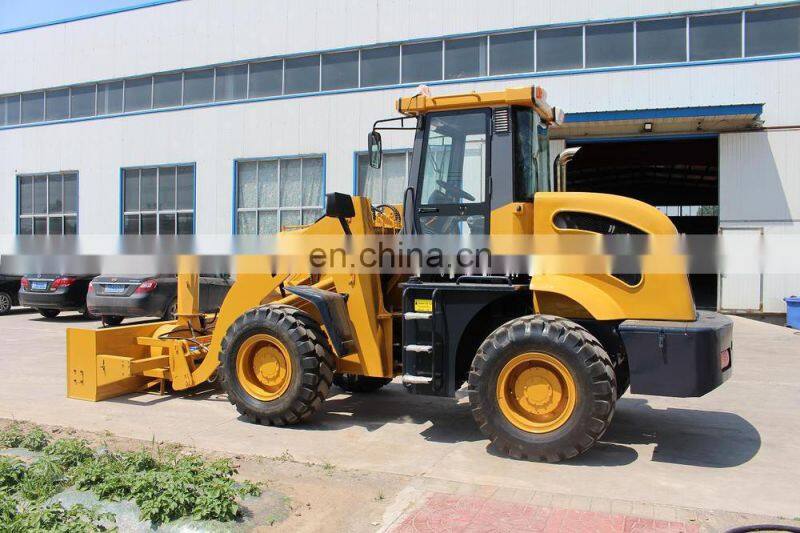

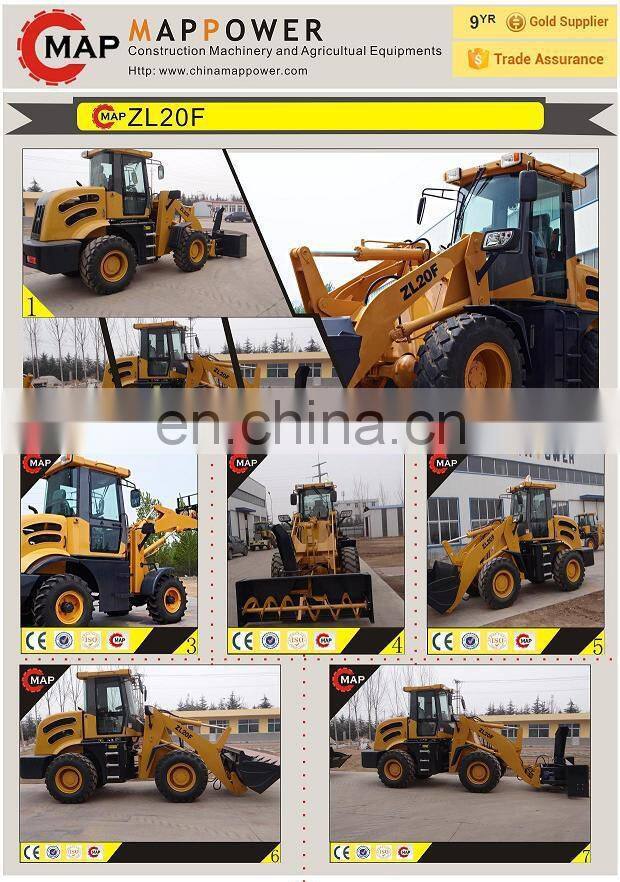

2.0ton factory direct supply dingo mini loader
Features 2.0 ton heavy machine tractor loader
*Fully hydraulic steering,power shift hydraulic operated working device.
*The full hydraulic steering system is smooth in operation, stable and reliable in performance
*Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.
*High boom lifting capacity for heavy duty handing jobs.
*The bucket is equipped with automatic leveling device, so that the operation is easier.
*Big tractive force and traction device at the rear end, which meet more needs.
Detailed Specification:
Performance | 1 | rated loading | 2000kg |
2 | overall weight | 5800kg | |
3 | rated bucket capacity | 1.2m3 | |
4 | maximum tractive force | 54KN | |
5 | maximum breakout force | 45.4KN | |
6 | maximum grade ability | 30 | |
7 | maximum dump height | 3000mm | |
8 | maximum dump reach | 752mm | |
9 | overall dimension (L×W×H) | 5600×2100×2850mm | |
10 | minimum turning radius | 5251mm | |
Engine | 11 | model | 4105 |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | No. of cylinder-bore/stroke | 4105×125mm | |
14 | rated power | 58kw2200r/min | |
15 | maximum torque | 270N.m | |
16 | min fuel-consume ratio | ≤243g/kw.h | |
Transmission system | 17 | torque converter | YJ280A |
18 | gearbox mode | Countershaft power-shift | |
19 | gear shift | 2 forward shift 2 reverse shift | |
20 | maximum speed | 24km/h | |
Drive axles | 21 | main reducing spiral
| Circular Arc Bevel gear, single stage |
22 | decelerating mode | Single stage planetary type | |
23 | wheel base (mm) | 2400mm | |
24 | wheel tread | 1640mm | |
25 | ground clearance | 310mm | |
Hydraulic system | 26 | system working pressure | 16MPa |
27 | boom lifting time | 4.8s±0.2s | |
28 | total time | 9.2s±0.5s | |
29 | fuel tank capacity | 80L | |
30 | function of leveling automatically | yes | |
Brake system | 31 | service brake | air assist disc brake on 4 wheels |
32 | parking brake | flexible shaft operated external drum | |
Tyre | 33 | type specification | 16/7020 |
34 | front tyre pressure | 0.22Mpa | |
35 | rear tyre pressure | 0.18Mpa |
Detailed information

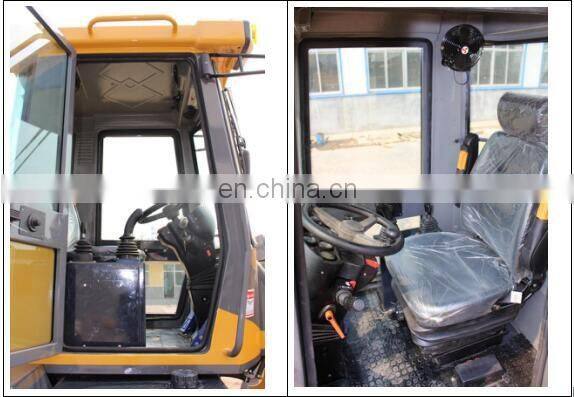

1.Spacious AC heater Cabin special designed with Europe Style,make the drive more comfortable.
2.Simple and clear control panel with all gauge for fuel,water,pressure,working time and so on,2 forward and 2 backward shift,easy to learn to operate.

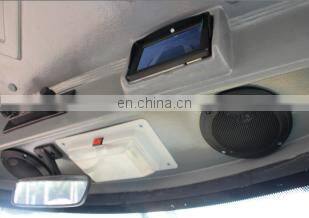

3.Reversing video system and and radio,More humane design for the driver
| Why choose us? |
Main Features of WEIFANG Map Power :
1. more than 10 years production experience
2. own a super technical team, can finish some adjustment to adapt the using environment and the market
3. production capacity: 300 units/month

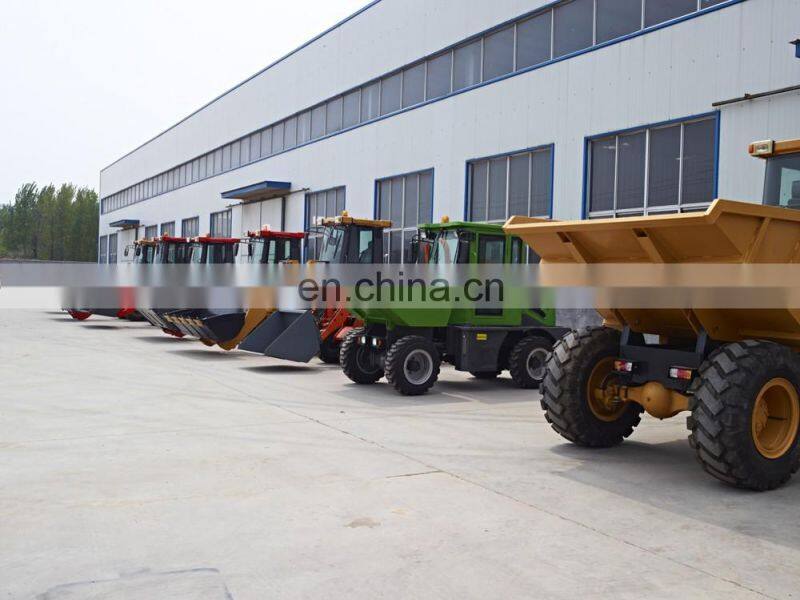

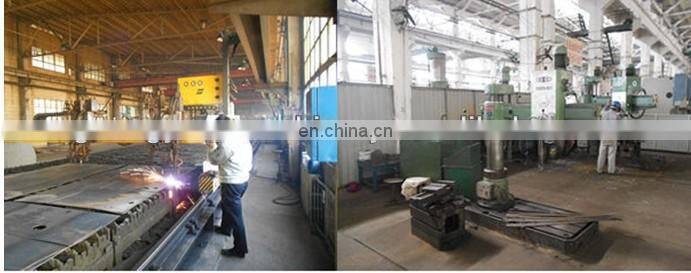

Factory overview

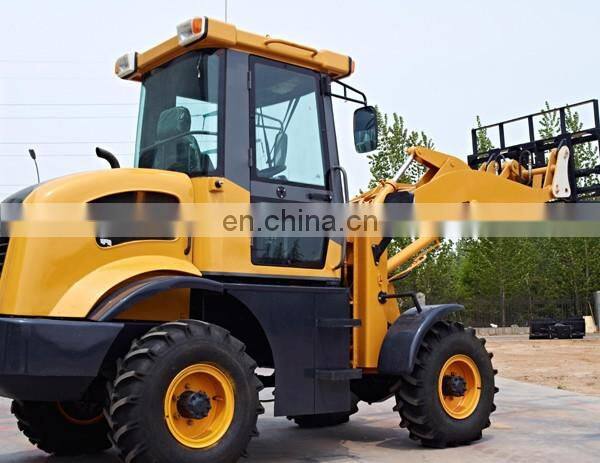

Attachments avaliable

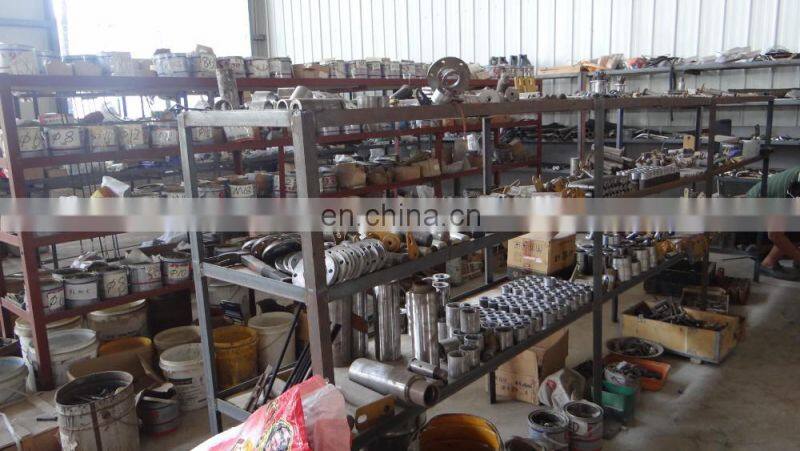

Top Quality Parts combined the Top Quality wheel loader
Packing:Nude packing
Shipping: 2sets in 40HQ,drive it into the container
FAQ
Q:Why we can not reduce our price,even though you said”someone offer me more cheaper price”?
1. About our Company: Weifang Map Import&Export Co., Ltd.,was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments,such as wheel loaders,site dumpers, farm tractors and wheel excavators.We have been exporting more than 8 years.We know very clearly of this market. And we believe that after 8 years,we still be there,to offer you the good quality machine!
2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality supplier. In addition, our machine have very good finishing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.
3.About our Delivery time: Our normally delivery time is within 25 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.
4.About our Shippment:
Factory direct delivery ,Very very careful inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use. You should know that some suppliers only ship the machine to you, they do not care whether the machine is right or not.
5.About our after-sales service:
1).Our factory supply 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you within 7 work days.
2).Easy-damaged part swill be prepared for you. To make sure your normal usage. Usually,these easy-damaged ones can operation 2000h because of our good job. So i think this is very important for your consideration.
3).We provide parts service at least 5 years after export date, We promise life-long services. we offer you the free consulting service. Any question any time,you can feel free to contact us.We will be very happy to help you.
