Product Details
| Brand Name | MAP | Place of Origin | Shandong, China |
Product Description
2. Quick hitch
3.Small working radius
4. Hydrostatic system or clutch system
Description and Feature

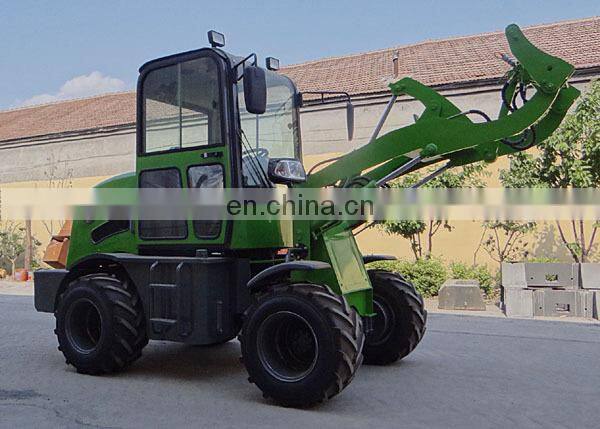

Multifunctional mini articulater loader ZL08 with CE
l ) 3 cylinders engine features low energy consumption and environmental protection.
2) The closed hydrostatic system has the feature of lower energy consumption.
3) Simple quick-change construction can meet multipurpose operation of users.
4) The integrated multi-functional control handle makes operation simple.
5) The monitor has the LED showing of fuel level by stages.
6) The unique frame hinge type is compacted and durable.
7) The widely applied broad-face tyre and damping seat is safe and comfortable.
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Qualifications
CE,ISO9001 CERTIFICATION,BV ASSESTMENT
Technical Data:
Wheel loader model | ZL08 | |
Specification | overall weight(kg) | 2000 |
L×W×H(mm) | 4700×1200×2280mm | |
rated bucket capacity(m3) | 0.4 | |
Rated load(kg) | 800 | |
dump height (mm) | 2350 | |
Dump distance | 700mm | |
Wheelbase | 2100mm | |
Thread | 1400/1405mm | |
Total time | 11s | |
Engine | Model | Changchai CZ2102
|
Type | direct injection, horizontal, water-cooled, four stroke, 2 cylinders | |
Rated power(KW) | 25KW | |
Rated speed(r/min) | 2400 | |
Working system | Transmission System | Manual clutch |
Distribution of work valve | DF15.2C | |
Working pump | CBF32 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 350±1 | |
Min turning radius(mm) | 3400 | |
Tires | Standard tires | 750-16 |
Optional tires | 28X9-15 tires, 31*15.5-15 | |
conveyance/Shipment qty
QTY/20 FCL :1 PCS
QTY/40 FCL:4PCS
Weifang Map Power co.,Ltd.
Tel:86-536-8502890
Fax:86-536-8502136
