1.5ton 4wd hydraulic mini dumper CS915 with CE
1)Engine:498BT1 EURO III Engine
2)Hydraulic quick change
3)Joystick

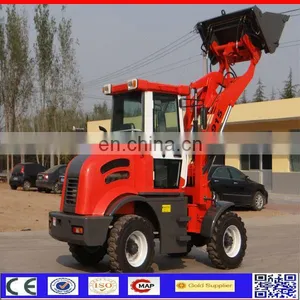

915F Small wheel loader
We are the professional manufacture and exporting company for wheel loaders, dumpers, excavators and backhoe loaders .
1. The wheel loader uses a hydromechanical transmission which can make full use of engine power, and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, and facilitates the operation, and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieves short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving).The wheel loader has the advantage of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
Detailed specification of CS915 Wheel Loader:
Rate load (kg) |
1500 |
Max. breakout force (kN) |
45 |
Bucket capacity (m3) |
0.65 |
Max. gradeability |
30% |
Wheel Track (mm) |
1626 |
Drive Means |
Four wheel Drive |
Wheel base (mm) |
1955 |
Operating weight (kg) |
4700 |
Min. Turning radius (mm) |
4020 |
Overall dimensions (Length*width*height) (mm) |
4850x1650x2727 |
Min. ground clearance (mm) |
272 |
||
Dump clearance(mm) |
2650 |
Engine Model |
XinChang engine |
Dump Reach (mm) |
982 |
Engine Rated power (kw) |
36.8 |
Lifting time of bucket (s) |
4.5 |
Engine Rated output (rpm) |
2400 |
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Company Contact Information
Contact :Lina
|
Company Name: |
Weifang Map Power Import & Export Co., Ltd. |
|
Operational Address: |
Room 1-2-2007, No. 8580, Dongfeng East Street, Kuiwen Dist., Weifang, Shandong, China (Mainland) |
|
Telephone: |
0086-536-8502890 |
|
Website: |
|
|
Website on : |
|
|
Store: |
/store/904969 |
Nude packing,one set in 1*20GP,3SETS in 1*40HQ
915 with front in 1 bucket(different attachments are avaliable)
Rear of the loader 915
915 Engine
Cabin inside
Rear Camero
Float
Attachments avaliable
Questions
1.The tire can be have the wirder for options?
The wirder tire 14-17.5 can be avaliable.
2.The preheat can be avaliable?
Yes,we can offer you the preheat
3.If I want more advanced machine,could you can do it for us?
Yes,we can do it according to your requirements,such as add the A/C,the float and so on,also we can do the special one for you
