Product Details
Brand Name: | MAP | Place of Origin: | Shandong, China | Type: | Front Loader |
Certification: | CE, CE | Warranty: | 1 Year | ||
Condition: | New | Dimension(Long * Breadth * High): | 5633*2121*2712 | Moving Type: | Wheel Loader |
Product Description

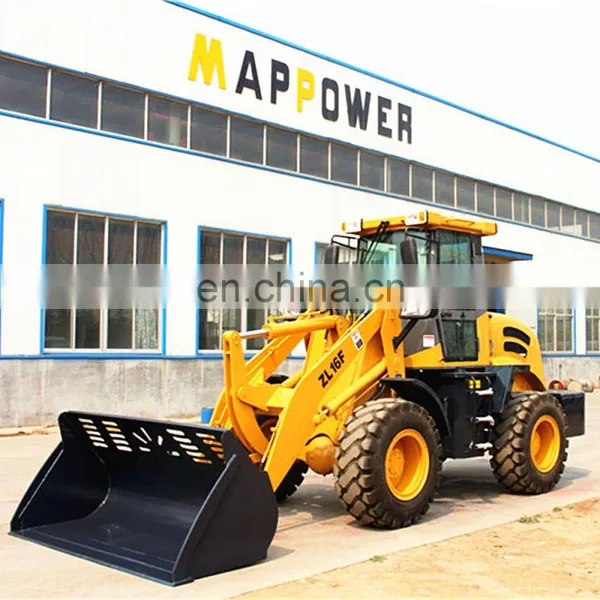

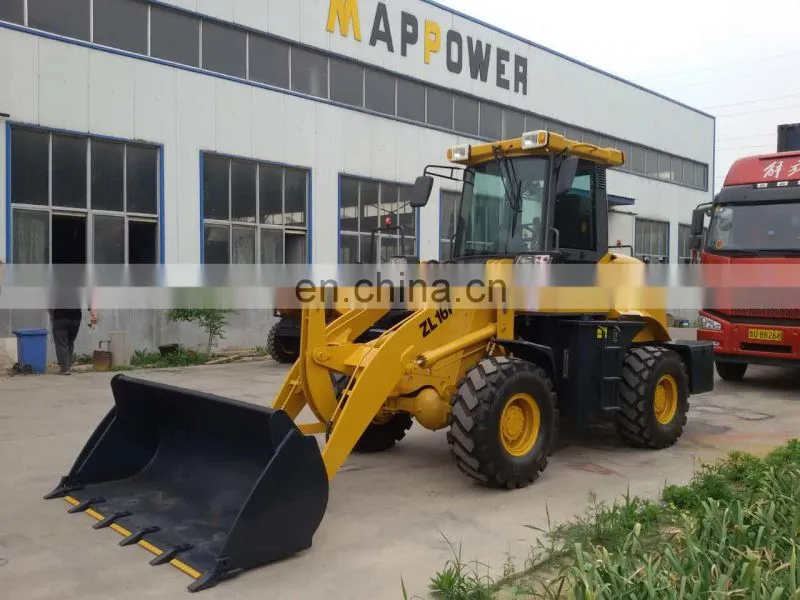

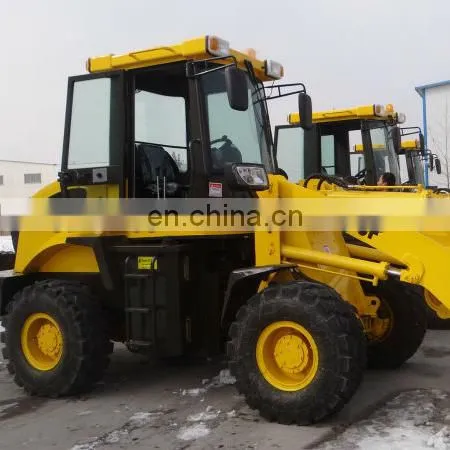

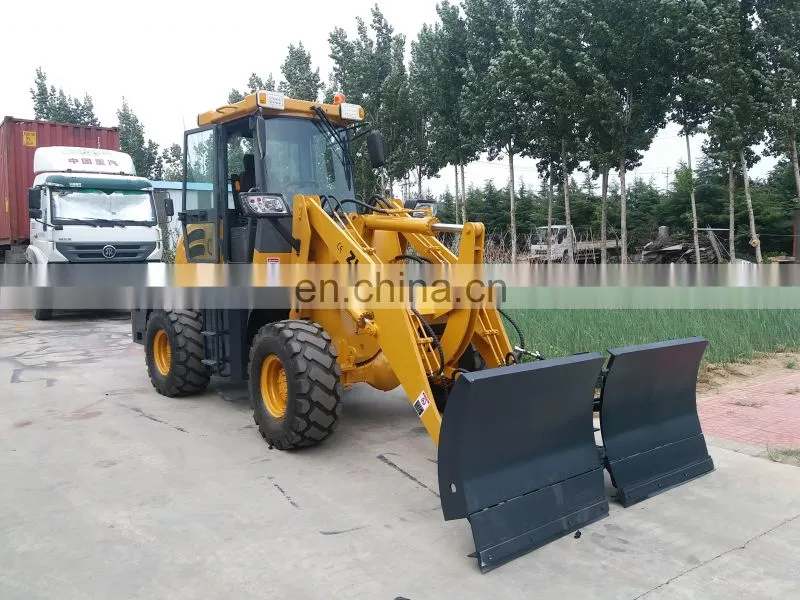

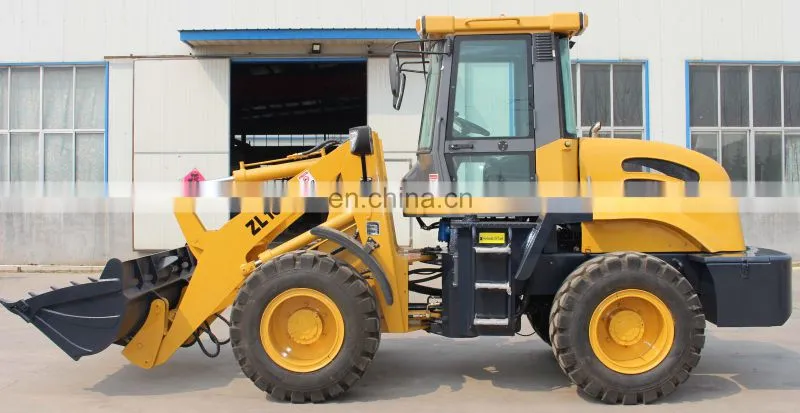

mini snow shovel blades
*Tire 16.70/16
*Loader bucket:0.9m3
*Transmission:Hydraulic convertor
Performance | 1 | rated loading | 1600kg |
2 | overall weight | 4800kg | |
3 | rated bucket capacity | 0.9m | |
4 | maximum tractive force | 54KN | |
5 | maximum breakout force | 45.4KN | |
6 | maximum grade ability | 30 | |
7 | maximum dump height | 3000mm | |
8 | maximum dump reach | 752mm | |
9 | overall dimension (L×W×H) | 5633×2120×2712mm | |
10 | minimum turning radius | 5251mm | |
Engine | 11 | model | R4102 |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | No. of cylinder-bore/stroke | 4105×125mm | |
14 | rated power | 49kw2200r/min | |
15 | maximum torque | 270N.m | |
16 | min fuel-consume ratio | ≤243g/kw.h | |
Transmission system | 17 | torque converter | YJ280A |
18 | gearbox mode | Countershaft power-shift | |
19 | gear shift | 2 forward shift 2 reverse shift | |
20 | maximum speed | 24km/h | |
Drive axles | 21 | main reducing spiral
| Circular Arc Bevel gear, single stage |
22 | decelerating mode | Single stage planetary type | |
23 | wheel base (mm) | 2400mm | |
24 | wheel tread | 1640mm | |
25 | ground clearance | 310mm | |
Hydraulic system | 26 | system working pressure | 16MPa |
27 | boom lifting time | 4.8s±0.2s | |
28 | total time | 9.2s±0.5s | |
29 | fuel tank capacity | 80L | |
30 | function of leveling automatically | yes | |
Brake system | 31 | service brake | air assist disc brake on 4 wheels |
32 | parking brake | flexible shaft operated external drum | |
Tyre | 33 | type specification | 16/70-20 |
34 | front tyre pressure | 0.22Mpa | |
35 | rear tyre pressure | 0.18Mpa |
