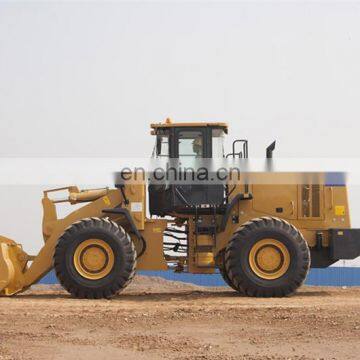

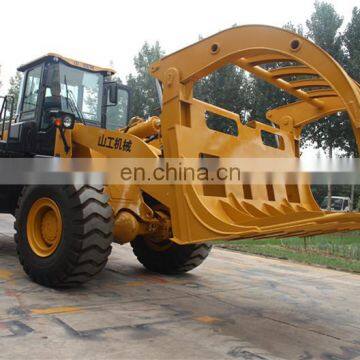

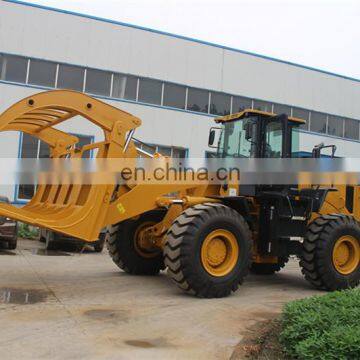

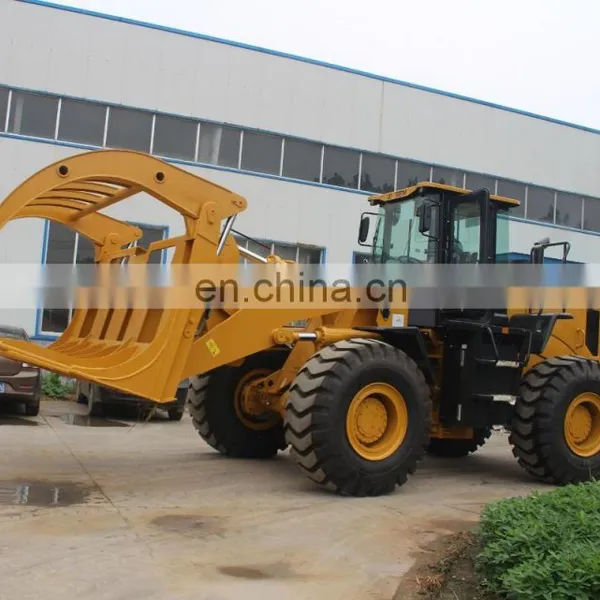

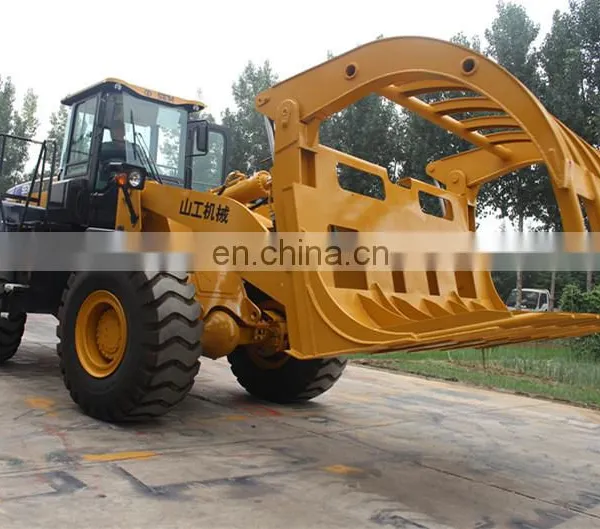

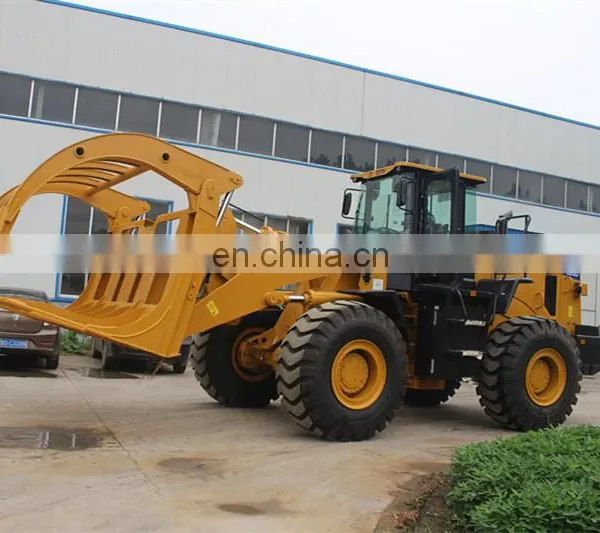

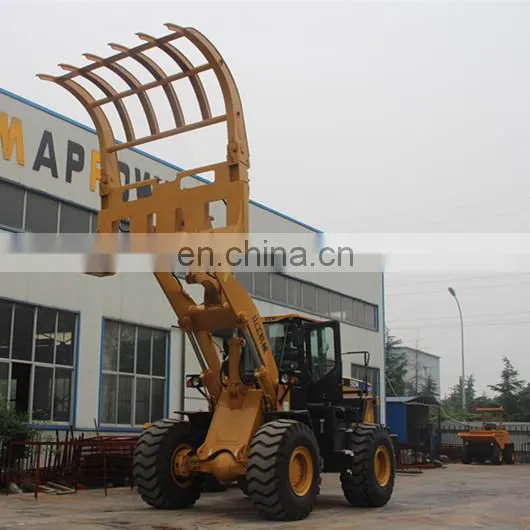

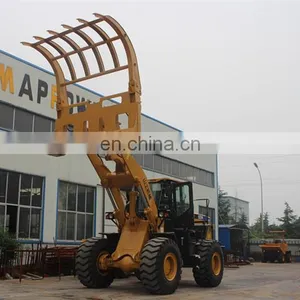

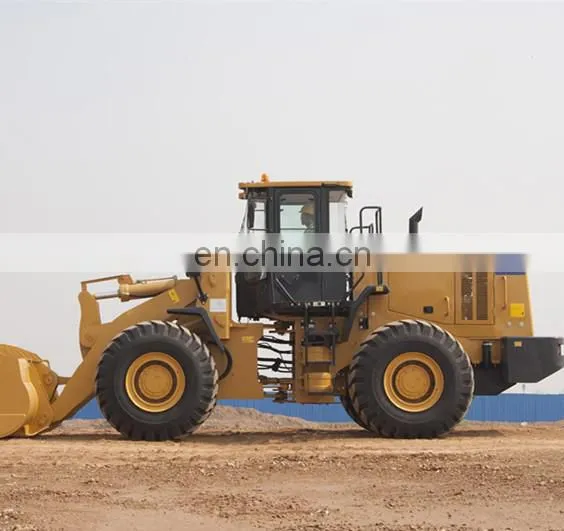

high quality 5.0ton wheel loader construction machine widely used
*Rated loading weight: 5,000kg
*Rated capacity:3.0
*WHEEL LOADER 5TON WITH DEUTZ engine optional
Wheel loader usages:
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Specification
Performance | |
Overall dimension(mm) |
7,836 x 3,010 x 3,300mm |
Rated loading weight(kg) |
5,000kg |
Overall weight |
17,100kg |
Rated bucket capacity(m3) |
3.0 |
Max breakout force(kn) |
172.6 |
Max. drawing force(kn) |
151.9 |
Maximum dump height |
3150-3550mm |
Max dump reach |
1300mm |
Min turnning radius |
7200mm |
Enigine | |
Engine Model |
WD10G220E22 |
Engine type |
inline, water cooled, direct injection |
Rated Power(kw) |
162 |
Rated Speed |
2200r/min |
Min.fuel consumption |
214g/kw.h |
Transmission system | |
Model of torque device pattern |
YJ375 |
Gearbox mode |
Power shift normally engaged straight gear |
Gear shift |
4 forward shift 4 reverse |
Max. travel speed |
38km/h |
Drive axles | |
Main reducing spiral |
Bevel gear grade 1 reduction |
Decelerating mode |
Planerary reduction,grade 1 |
Wheel base |
3200mm |
Tread |
2250mm |
Min ground clearance(mm) |
300 |
Tires |
23.5-25 |
Front tire pressure |
392KPa |
Rear tire pressure |
343KPa |
Steering angle(each direction) |
35+1 |
Fuel capacity |
320L |
Hydraulic system | |
System working pressure |
18Mpa |
Boom lifting time |
5.95+/-0.2s |
Total time |
1.091+/-0.5s |
Fuel tank capacity |
300L |
Function of leveling automatically |
yes |
Brake system | |
Packing brake |
Manual parking brake |
Service brake system |
air assisted oil disc tire four wheel brake |
Shipment: |
1 unit in 40'HQ |
| Why choose us? |
1. More than 200 workers.
2. With the occupying area of 2500 square meters.
3. More than 8 years experiences in the industry of construction machine and agricutural machine.
4. Competitive price and high quality.
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Company Contact Information
|
Company Name: |
Weifang Map Power Import & Export Co., Ltd. |
|
Operational Address: |
Room 1-2-2007, No. 8580, Dongfeng East Street, Kuiwen Dist., Weifang, Shandong, China (Mainland) |
|
Telephone: |
0086-536-8502890 |
|
Website: |
|
|
Website on : |
|
|
Store: |
/store/904969 |
| Packing and shippment |
Packing:Nude packing
Shipping:1SETS IN 40HQ container
