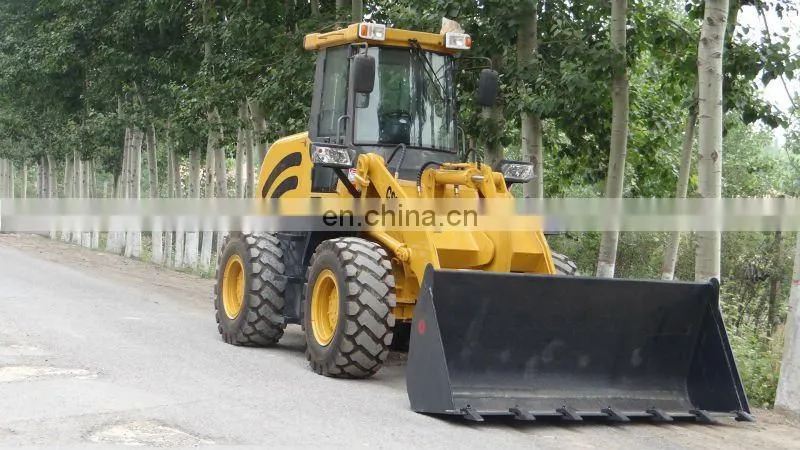

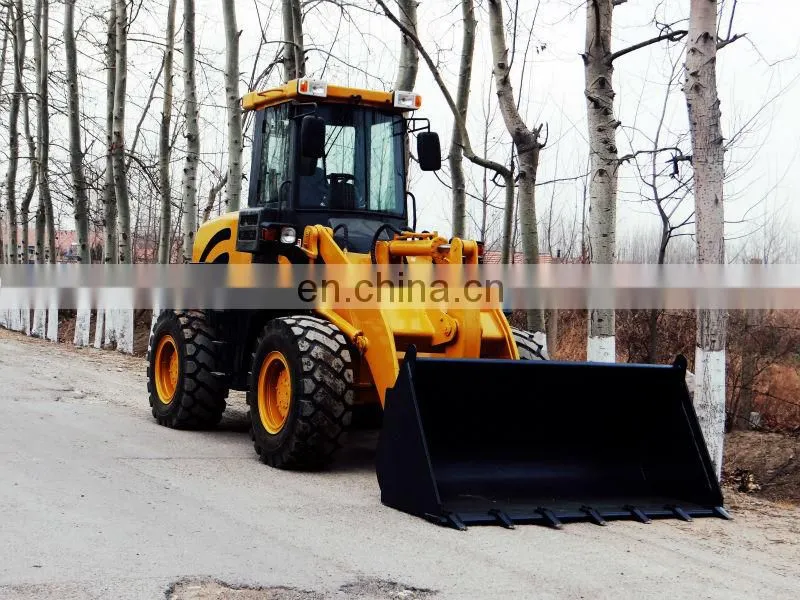

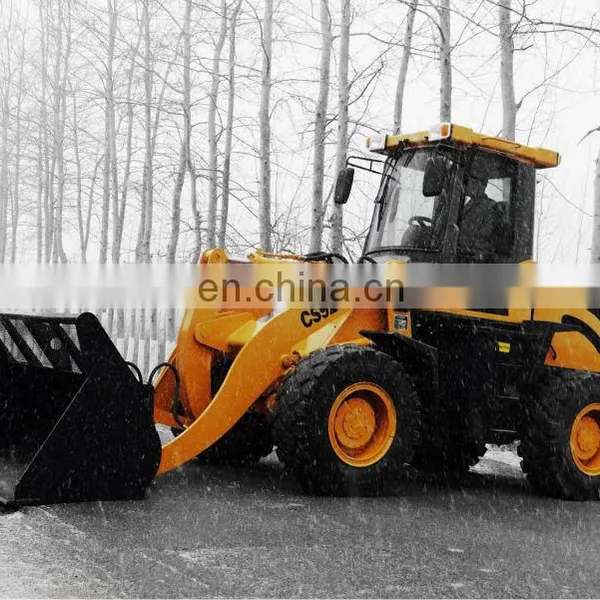

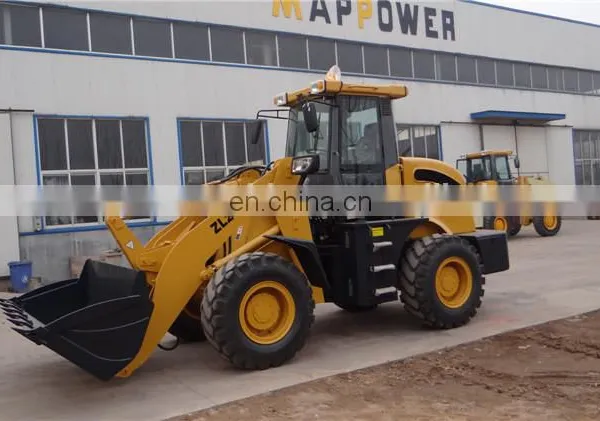

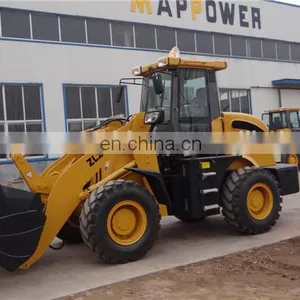

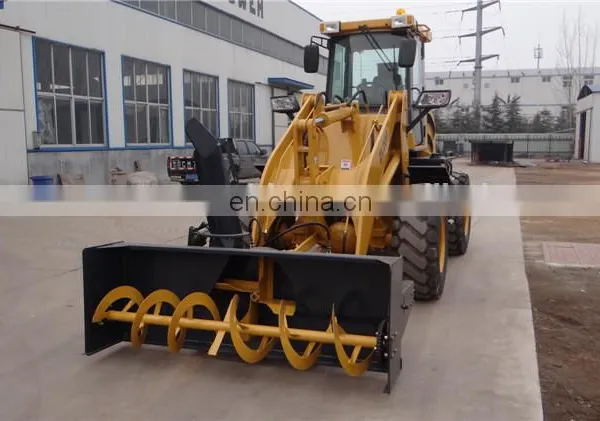

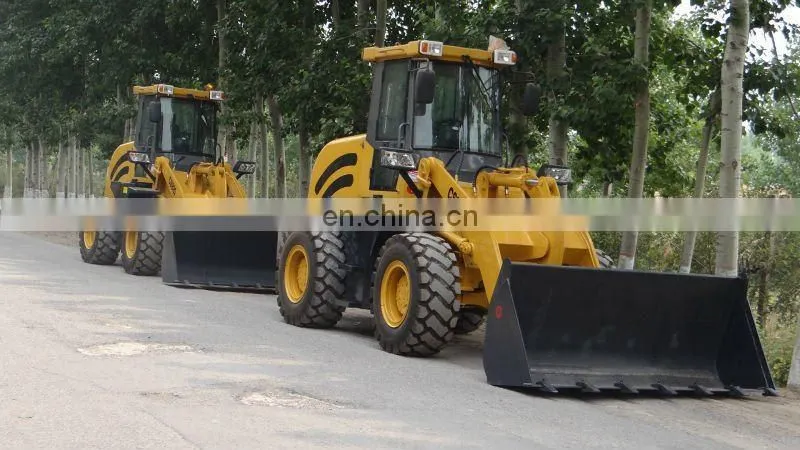

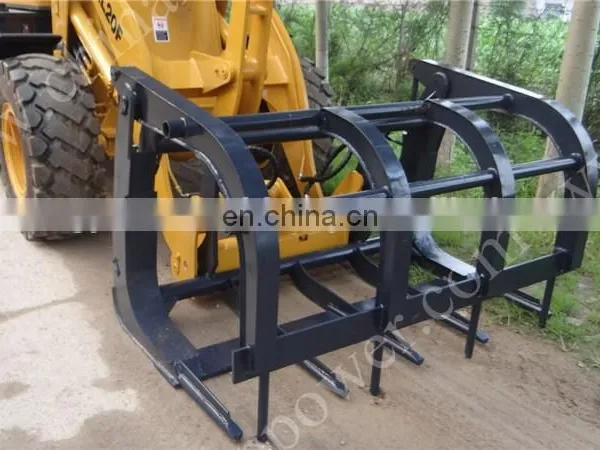

Help CenterCS920 NEW System Hydraulic Wheel Loader With CE
Related Products
-
ZL12 Mini Wheel Loader With CE,small Backhoe Loader for SaleUS$ 5,800 - 6,000MOQ: 1 Unit -

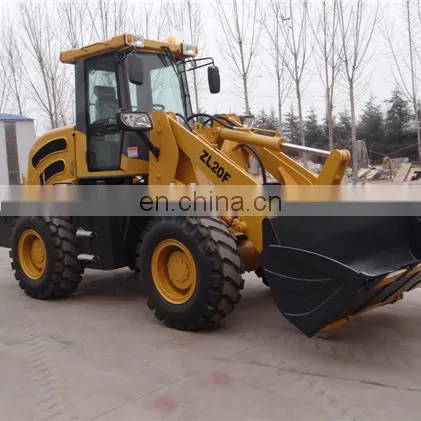

China Manufacture ZL20F Diesel Engine Wheel Loader Price,used Wheel LoaderUS$ 5,800 - 6,000MOQ: 1 Unit
-
ZL12F Construction Mini Loader, Wheel Loader for SaleUS$ 7,150 - 7,550MOQ: 1 Unit
-
Mini Loader 0.6ton Farming Tractor Mini Wheel Loader of Front LoaderUS$ 7,600 - 10,000MOQ: 1 Unit
-
ZL06F Multi Purpose Mini Wheel Loader Made in ChinaUS$ 7,600 - 10,000MOQ: 1 Unit
|
Wheel loader 920, best price mini loader, hot sell loader detailed spcification:
Overall Dimension | ||
1 |
Length(with bucket on ground) |
5850(mm) |
2. |
Width(to outside of wheels) |
1870(mm) |
3 |
Height(To the top of the cab) |
2860(mm) |
4 |
Wheel base |
2400(mm) |
5 |
Tread |
1640(mm) |
6 |
Min. ground clearance |
310(mm) |
Main Technical Specification | ||
1 |
Rated load |
2000(Kg) |
2 |
Operating weight |
5800KG |
3 |
Rated bucket capacity |
1.2(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
51kN |
6 |
Max. dump clearance |
2650(mm) |
7 |
Min. turning radius |
5251mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
Luoyang Dongfanghong YTO4108 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
60(kW) |
4 |
Inter-bore of cylinder/stroke |
108 (mm) |
5 |
Rated speed |
2400(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
235(g/Kw.h) |
Transmission System | ||
Torque Converter | ||
1 |
Model |
YJ280 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
20.5/70 16,16.70 20 for optional |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
