Large loader ZL50F front wheel loader zl50
(****For the ZL50F wheel loader,we offer you 1 year warranty time and life time technical support****)
Features:
Mini Site Dumper
Engine: Weichai4102
Rated Loading Weight: 5000kg
Rated bucket capacity : 2.0(CBM)
4*4 Drive
Brief Introduction of ZL50F wheel loader
Antirust paint with all color, streamlined appearance, beautiful and elegant, and can attach different tools such as: coal bucket, pipe fork, grass fork, stone bucket… to realize multifunction. Wildly used building site, coal mines, brickyard, stone materials factory, urban construction and so on.
Bucket that can be set level automatically, "Z" type turning bucket structure, to realize the enormous shovel digging forces.
Dual pump meeting hydraulic system can economize on oil 10%,
Central articulated frame and load sensing hydraulic steering gear, short turning radius and flexible turning, can work in narrow site and has sound off-road performance, good traffic ability and larger traction.
Cabin made by double-layer1.4mm steel plate with strong steel frames inside.
A fully enclosed cabin and the seats have the functions of vibration reduction and easy adjustment from 4-6 directions, offers the driver a comfortable and wide view.

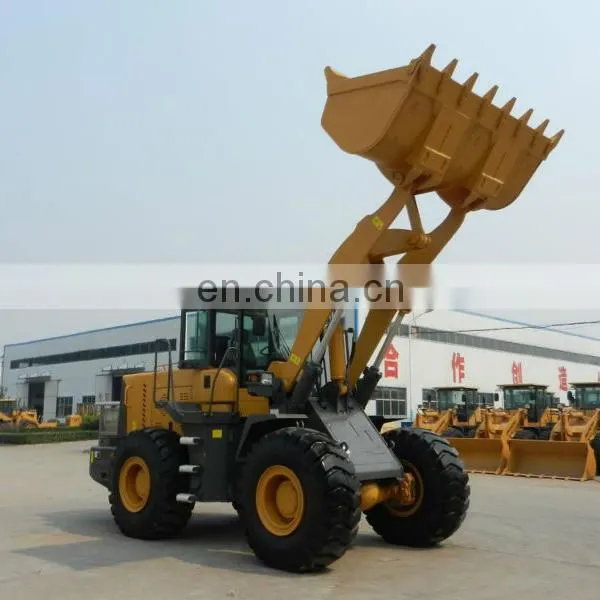

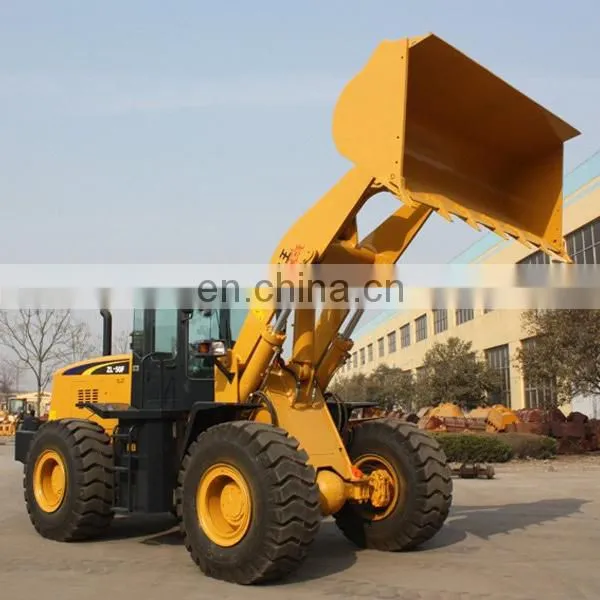

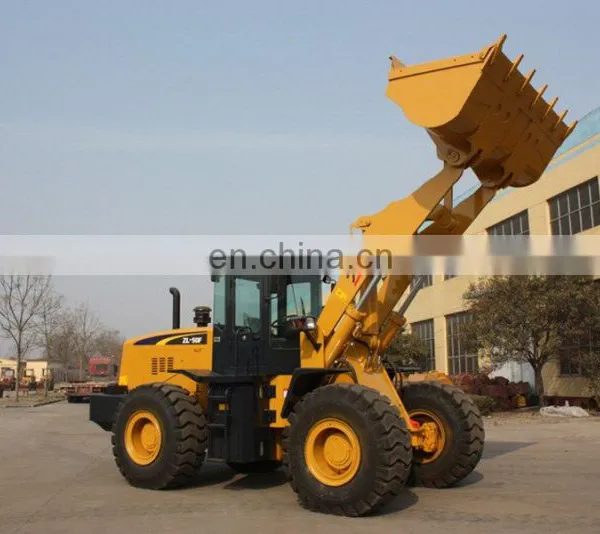

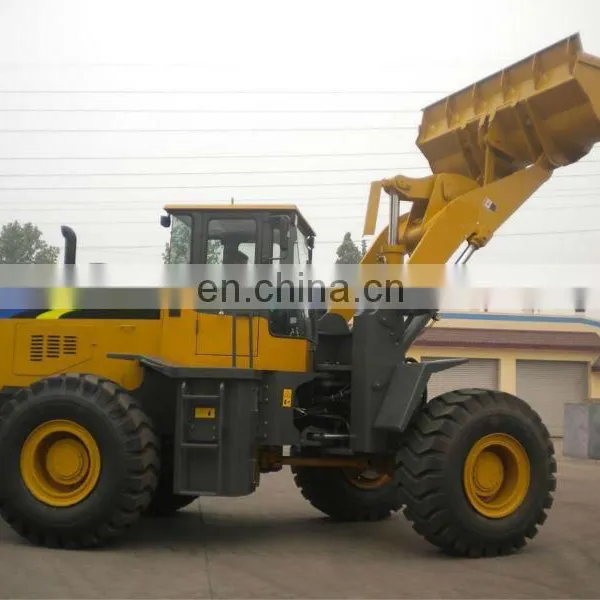

Detailed Pictures of ZL50F Wheel Loader
Company Information
Weifang Map Power is real factory to produce all kinds of wheel loaders CE, such as: 915, Multi-function Wheel Loader 1.6Ton can be with Snow Blade, Snow bucket, Pallet fork, Grapple fork, 4 in 1 Bucket, Baler, Grader, road sweeping machine, snow blower, light bucket, auger and etc. D25, ZL10, ZL12, ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50G Loader, Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader. Multi-function Wheel Loader 0.8Ton can be with Snow Blade, Snow bucket, Pallet fork, Grapple fork, 4 in 1 Bucket, Baler, Grader, road sweeping machine, snow blower, light bucket, auger and etc.
Parameters:
wheel loader ZL-50 specifications | ||
Engine Details |
Model |
Weichai sitaierWD61567G3-29 or as customer’s requirements |
Engine type |
In-line arrangement, water-cooled, four-cycle diesel Engine |
|
Rated Power |
162 KW |
|
Rated Speed |
2200 r/min |
|
Min.ful consumption |
214 g/kw.h |
|
Bucket |
Bucket Capacity |
3.0 m3 |
Bucket type |
Heavy-duty bolt on teeth |
|
Rated Loading weight |
5000 kg |
|
Total Weight |
16000 kg |
|
Overall Dimensions |
Overall Length |
7836 mm |
Overall Height |
3300 mm |
|
Overall Width |
3010 mm |
|
Max. discharge height |
3100 mm |
|
Wheel base |
3200 mm |
|
Tread |
2250 mm |
|
Operating Specifications |
Steering System |
Articulated Frame with hydraulic power steering |
Min Turning Radius |
7268 mm |
|
Driving System |
Hydraulic converter |
|
Brake System |
Service Brake |
Four Wheel Hydraulic spread-shoed brake |
Parking Brake |
Hand operated |
|
Tyre |
23.5-25 |
|
