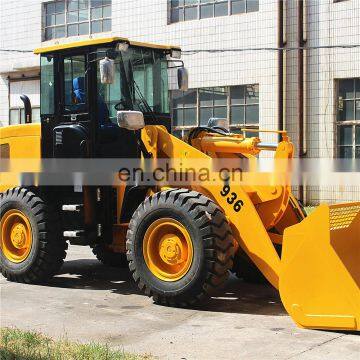

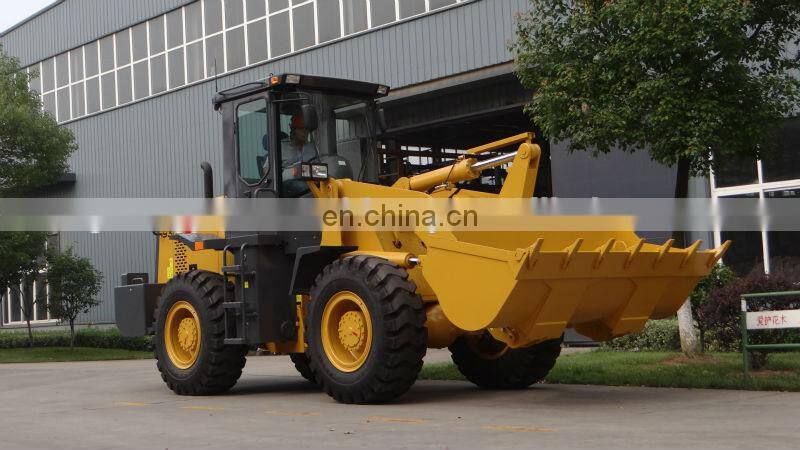

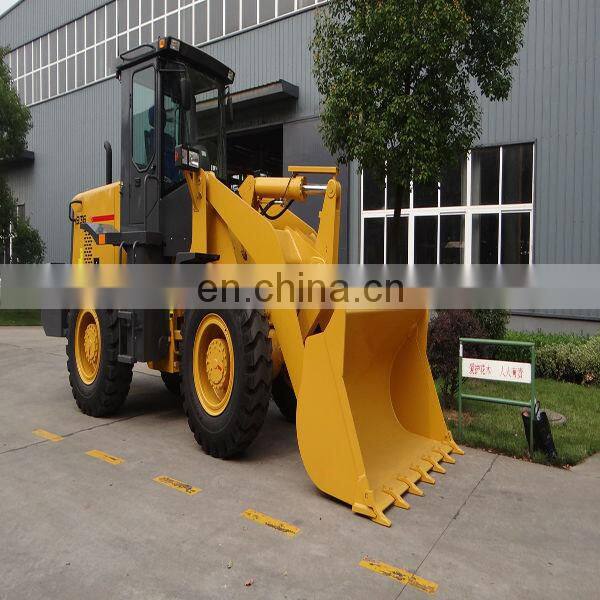

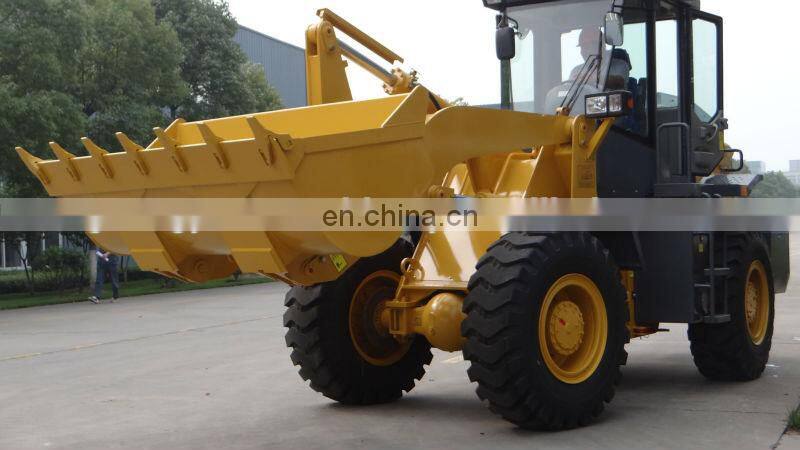

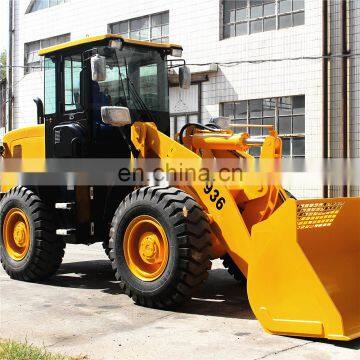

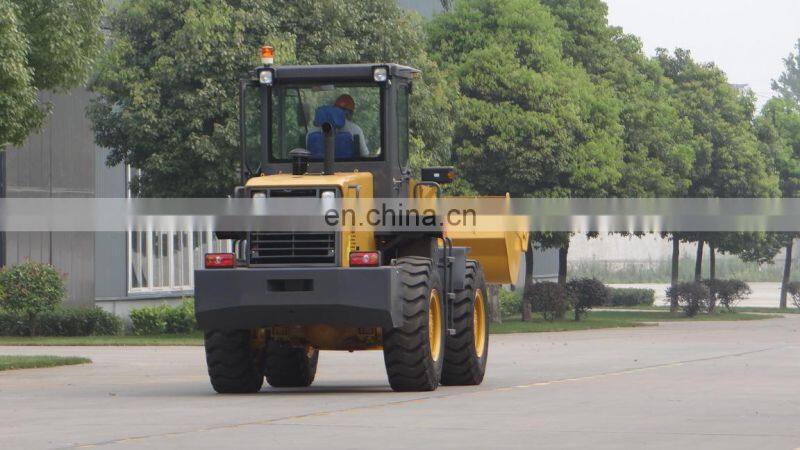

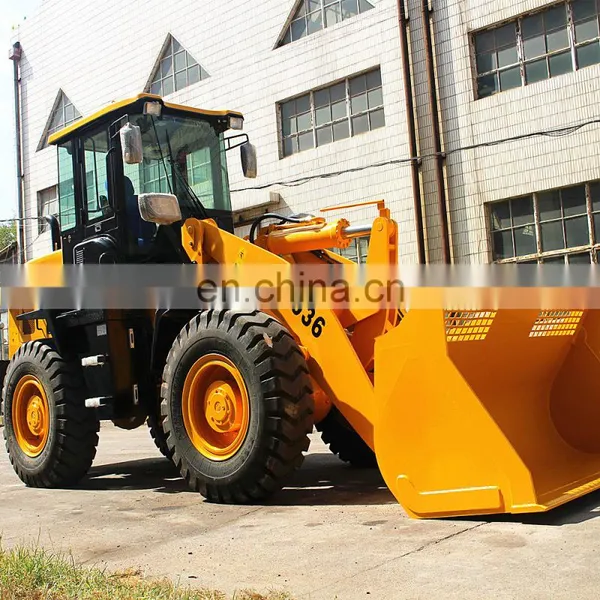

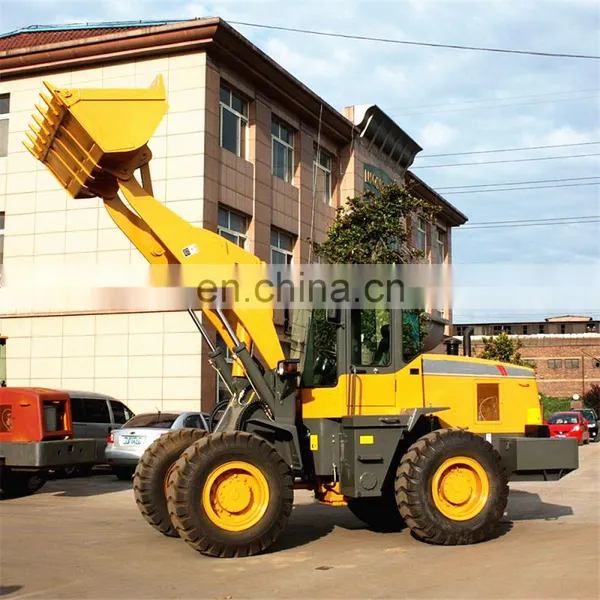

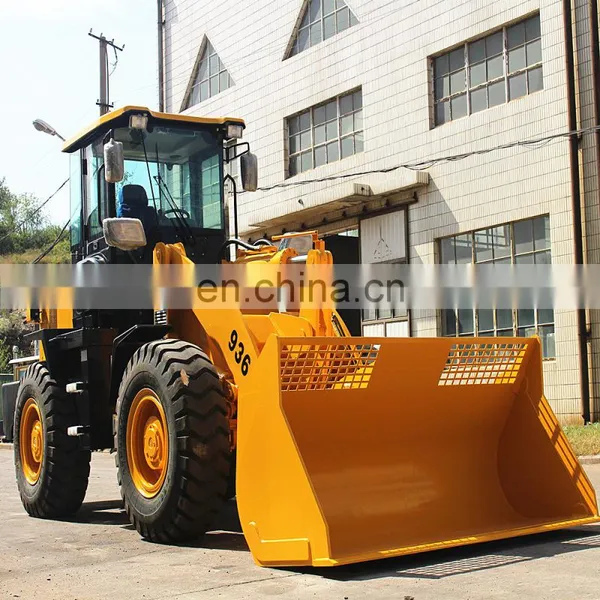

Chinese 3 Ton ZL30 Mini Small Wheel Loader For Sale
Weifang Map Power Co., Ltd.,was founded in 2006.We are a professional manufacture
and chain supplier specializing in construction machinery and agricultural equipments.such
as wheel loaders,site dumpers, wheel tractors,wheel excavators.
1. ZL30F wheel loader: streamlined appearance design, elegant and generous.
2. ZL30F wheel loader: bucket of working device can be set level automatically, computer is adopted to optimize design, high working efficiency
3. ZL30F wheel loader: sealed drivers cabin of new type, which may allocate conditioner, more comfortable operating environment
4. ZL30F wheel loader: torque device of single three components, gearbox of fixed axle type, more reliable performance
5. ZL30F wheel loader: Cummins diesel engine, powerful motive force, reliable performance, high efficiency and economizing on fuel
6. ZL30F wheel loader: can allocate many kinds of selectable assembly such as wooden forks, pipe forks, grass forks, stone bucket, enlarged bucket .ect
to meet the needs of various working states.
Items |
Parameter |
Items |
Parameter |
Overall working weight |
10700kg |
Max speed |
40km/h |
Rated bucket capacity |
1.8M3 |
Front and rear axles |
|
Rated load |
3000kg |
Main transmission type |
Spiral gear,first stage decelerate |
Max. tractive force |
≥96KN |
Final decelerate type |
First stage,planetary gear decelerate |
Max.breakout force |
≥96KN |
Tyre |
|
Max.grade ability |
30° |
Type Specification |
17.5-25 |
Max.dumping height |
3100mm |
Front pressure |
0.333-0.353MPa |
Dumping distance |
2100mm |
Rear tyre pressure |
0.275-0.294MPa |
Overall dimension(L*W*H) |
7270*2220*3170(mm) |
Steering system |
|
Engine |
Type |
Articulated load-sensing hydraulic steering system |
|
Model |
6BT5.9-C130 |
Steering angle |
36°each side |
Type |
Inline,water,,cooling,dry, cylinder,direct injection |
Min.turning radius |
Outside of bucket outside of rear wheel |
No. of cylinder-bore/stroke |
6-105*130(mm) |
Hydraulic system |
|
Max.torque |
510N.m |
System working pressure |
16Pa |
Rated power |
97KW |
Boom lifting time |
≤5.3s |
Rated speed |
2200r/min |
Total time |
≤9.2s |
Min fuel-consume ratio |
≤215g/KW.h |
Brake system |
|
Transmission system |
Service brake |
Ait over hydraulic disc brake on 4 wheels |
|
Torque converter |
Single plase,3 elements |
Parking brake |
Manual rose hoof type brake |
Modulus of converter |
3.25 |
Fill capacity |
|
Transmission |
Fixed axis type power shift |
Fuel |
140L |
Gear shift |
4 forward shift,3 reverse shift |
Hydraulic oil |
130L |
1A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries
and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service
1. How to order?
-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit.
For single set,

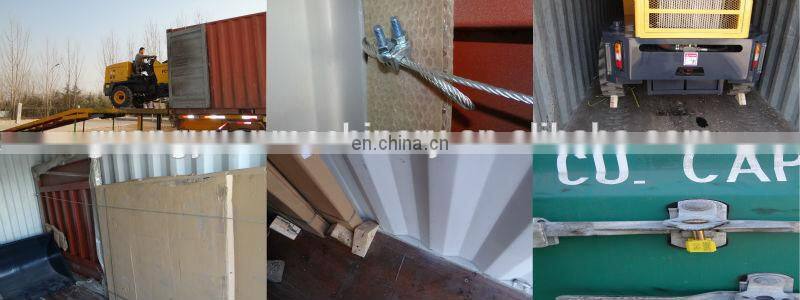

your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and
shipping under your allowance.
-If you still don't understand, please do not hesitate to ask me.
2. Related products?
ZL06F ZL08F ZL10F ZL12F ZL15F ZL16F ZL20F ZL30F ZL50F
3. How do we visit you and your factory?
-First of all, welcome you or any appointed agent to vist and inspect our factory.
-You can fly to Shanghai airport, then come from Shanghai railway station to Weifang city. (3 hours)
-You can fly to Qingdao airport, then come from Qingdao railway station to Weifang city. (45 minutes)
-We can pick up you at Qingdao airport or Weifang railway station.
-Please kindly let us know your schedule in details, so that we can arrange everything for you.
5. Why you choose us?
-As manufacturer, our products have excellent quality and competitive price.
-Good after-sales services and 24 months warranty are visible.
-Strictly testing and checking before shipping.
-8 years experience in manufacturing and 8 years exporting experience in Alibaba and Made-In-China.
6. How to contact with me?
-Direct sales: kimmy xie
-skype:mappowe1
-Address: Office add: R 2007 rongguanhuafu B Kuiwen, Weifang, Shangdong, China
Factory add: Shanshui Road,Changle,Weifang,Shangdong,China.
