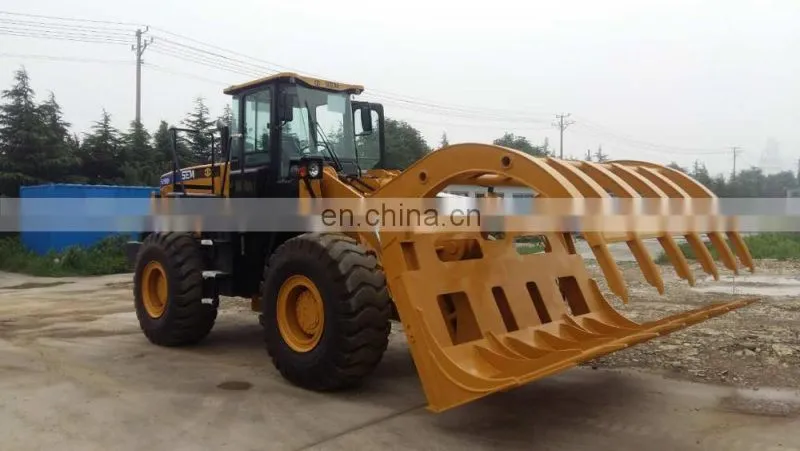

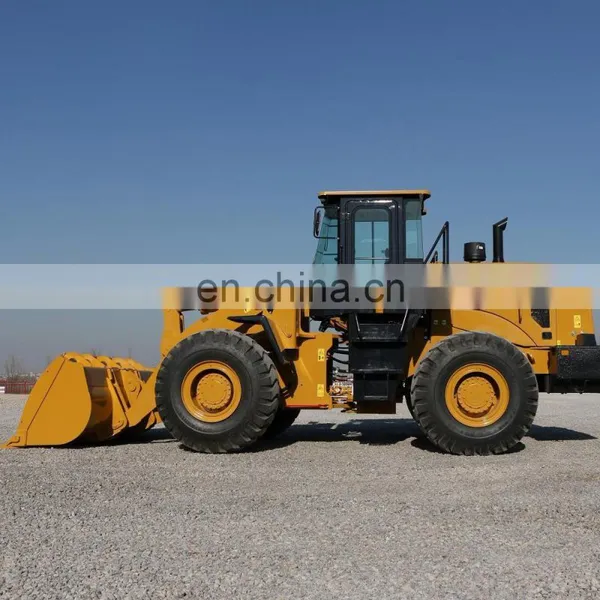

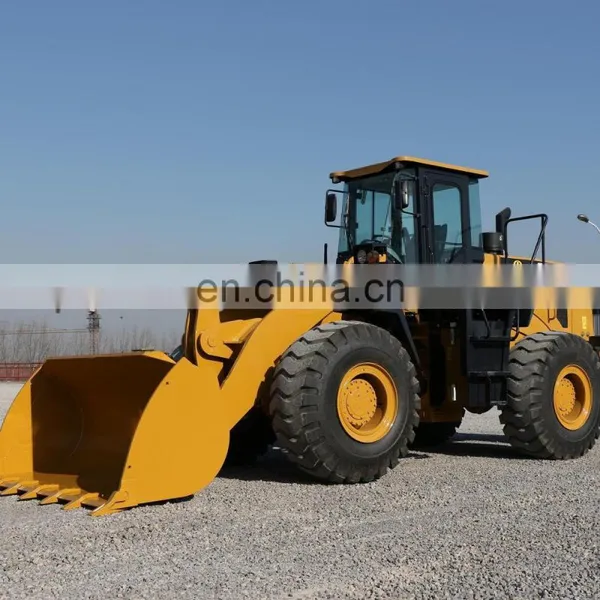

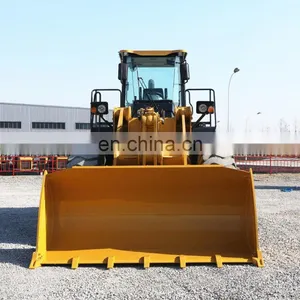

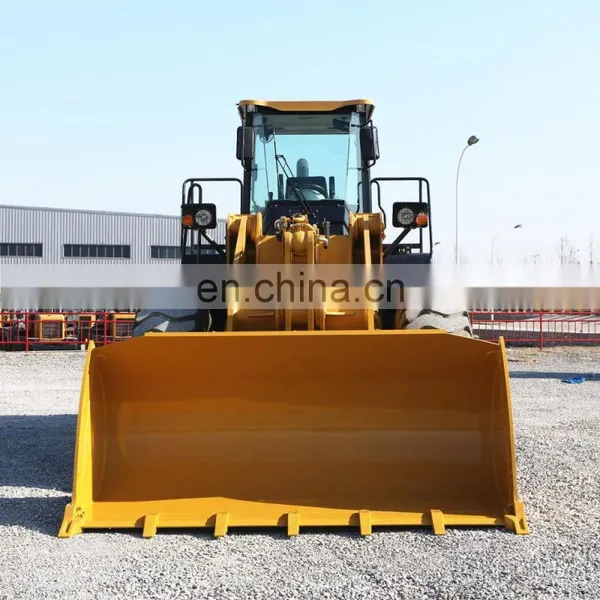

Heavy Duty Construction Machinery 5 ton SEM 655D loaders
*Rated loading weight: 5,000kg
*Rated capacity: 3.0cbm
SEM 655D Wheel loader Specifications | |
Rated Load |
5000 kg |
Operating Weight with Standard Bucket |
16700 kg |

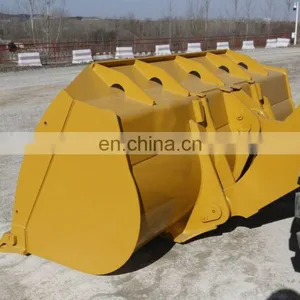

Bucket Capacity |
2.7-4.5 m³ |
Wheel Base |
3200 mm |
Overall Dimension (mm) |
8085*2963*3463 |

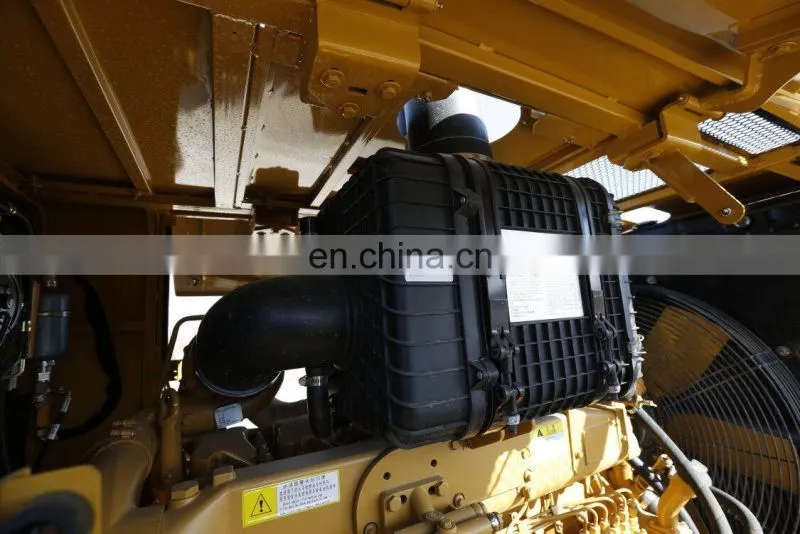

Engine | |
Model |
WD10G |
Rated Power |
162 kW |
Rated Speed |
2000 r/min |
Displacement |
9.726 L |
Operating Specifications | |
Breakout Force |
168 kN |
Dump Clearance |
3058 mm |
Articulated Angle |
38±1 ° |
Implement Hydraulic | |
Implement System Type |
Twin pump flow merging hydraulic system |
Boom Raise Time |
5.13 s |
Hydraulic Cycle Time |
9.5 s |
System Presure Setting |
17 Mpa |
Transmission | |
Transmission Type |
Countershaft, power shift |
Transmission Gears |
F4/R4 |
Torque Converter Type |
Sigle stage 3 elements |
Maker & Type |
SEM TR200 |
Forward I/ Reverse I |
7.8/7.8 km/h |
Forward II/ Reverse II |
15/15 km/h |
Forward III/ Reverse III |
22/22 km/h |
Forward IV/ Reverse IV |
39/39 km/h |
Brake System | |
Service Brake |
Dry & caliper, air to oil control |
Parking Brake |
Drum type shoe brake, |
Steering System | |
System Type |
Flow amplifying |
Steering Pump Type |
Gear pump |
System Presure Setting |
16 Mpa |
Steering Angle (L/R) |
38±1 ° |

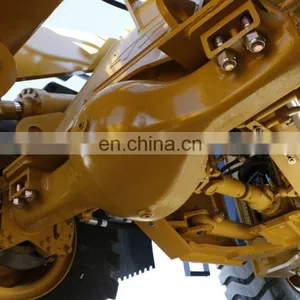

Axle | |
Main Drive Type |
Spiral bevel gear, single stage |
Final Drive Reduction Type |
Planetary type, singe stage |
Rear - Oscillating +/- |
±11 ° |
Tires | |
Size |
23.5-25 |

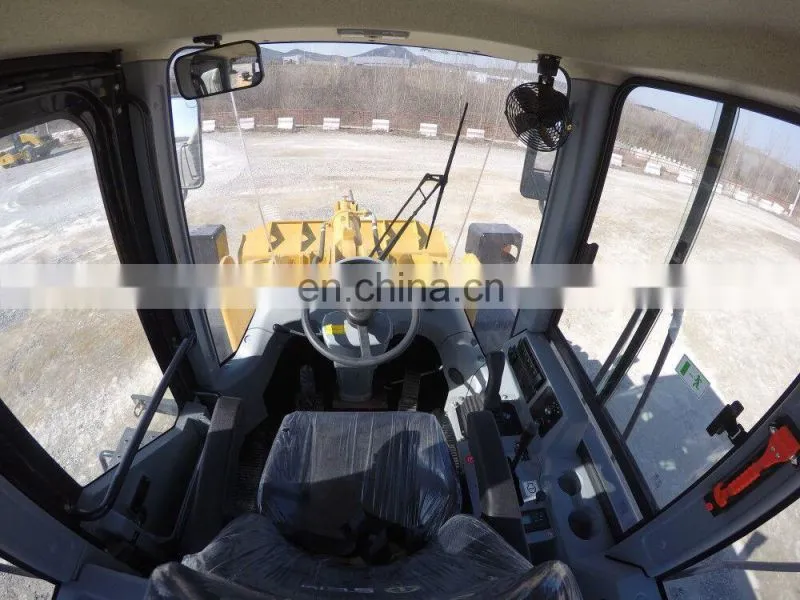

Cabin Inside Picture
