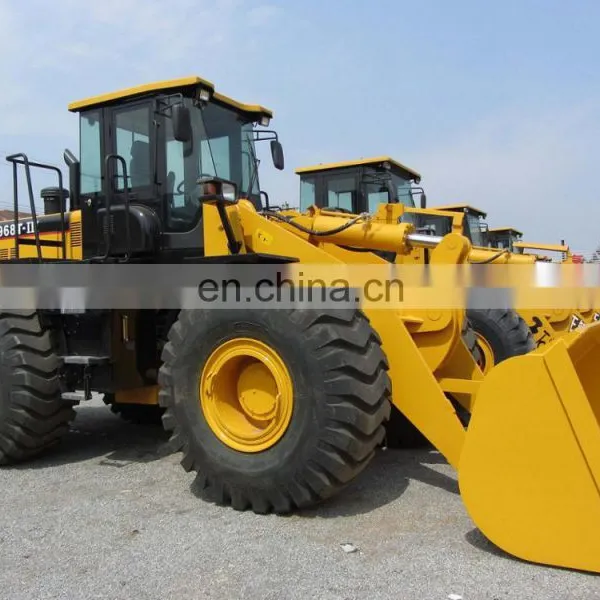

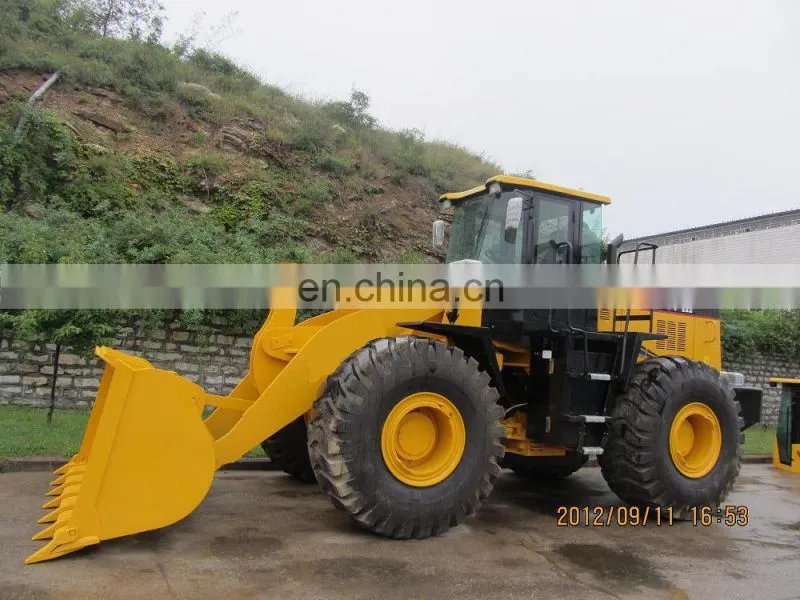

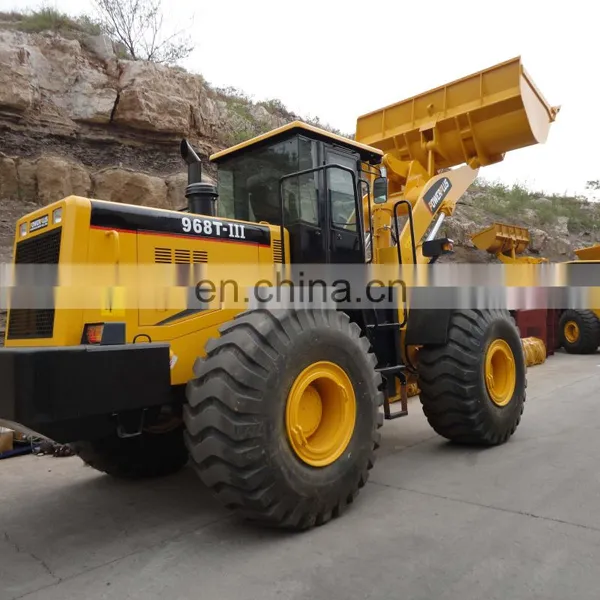

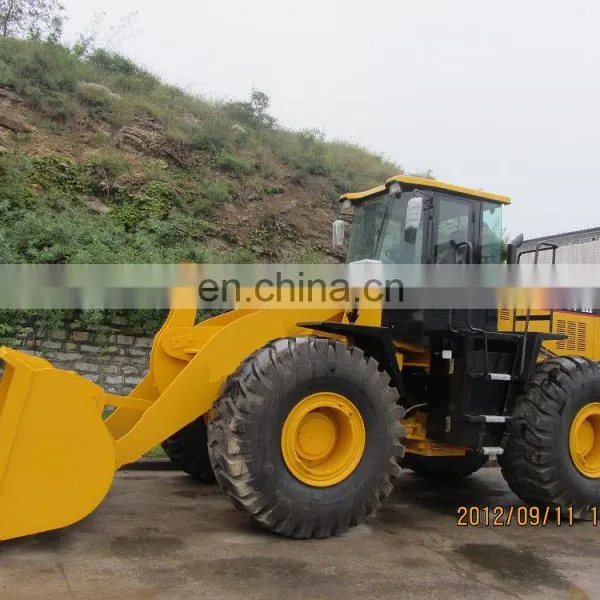

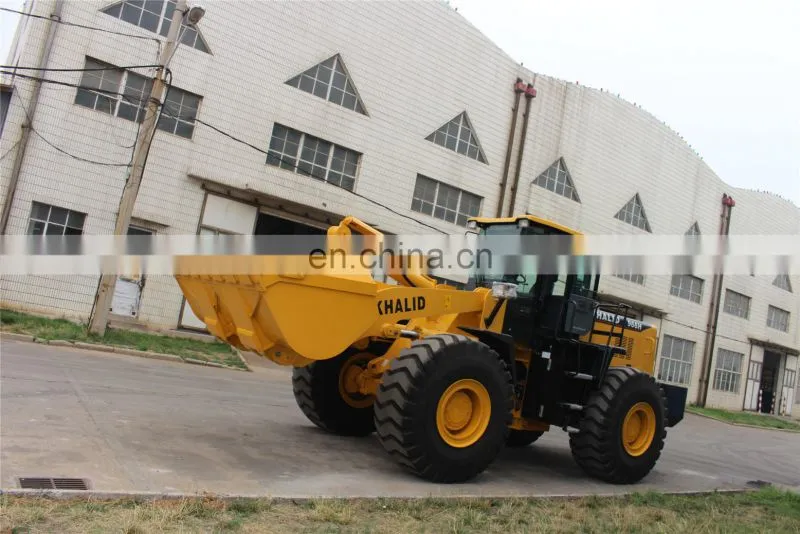

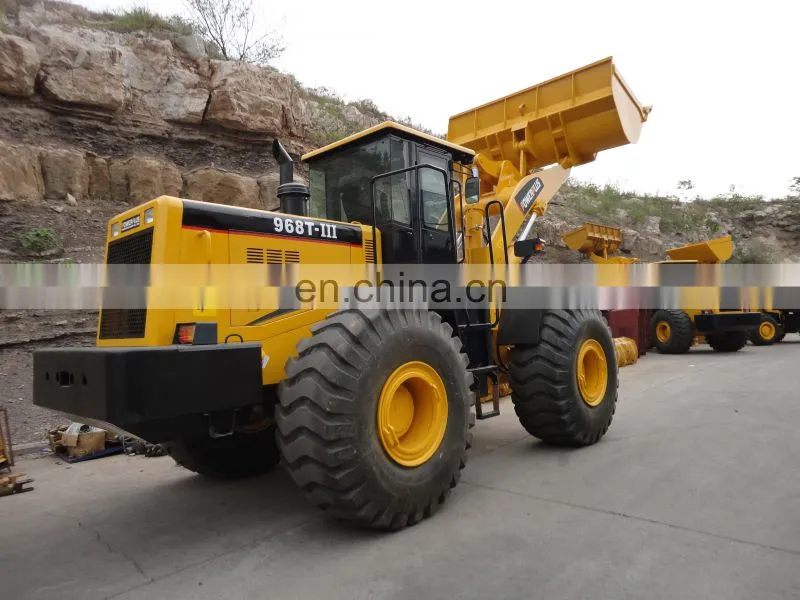

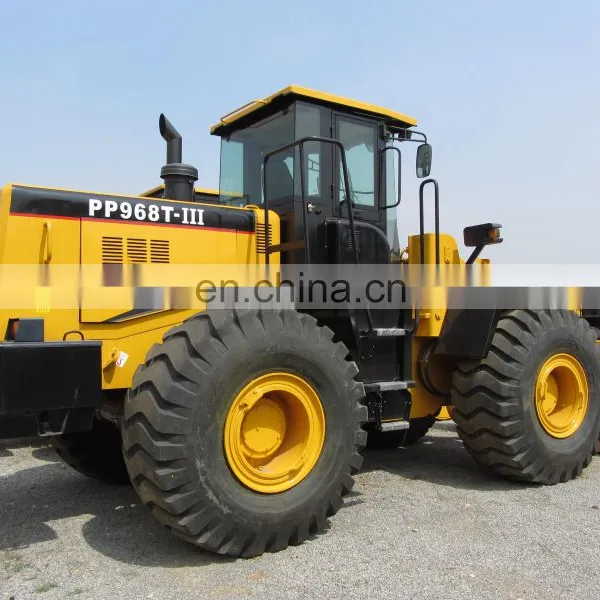

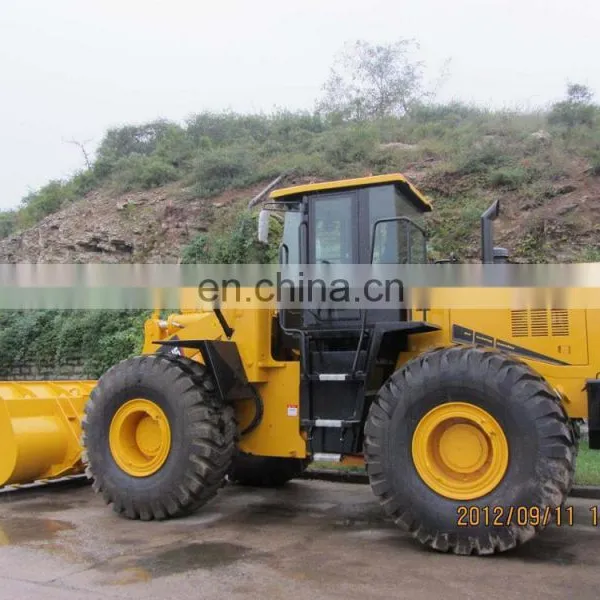

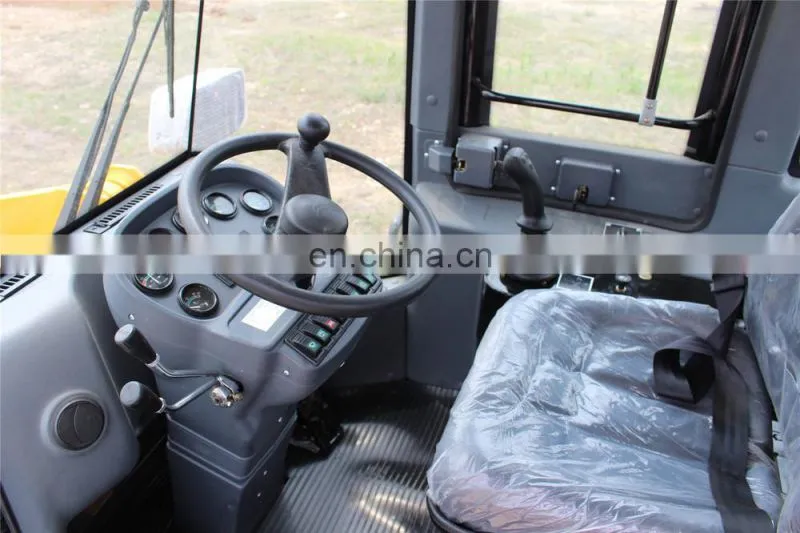

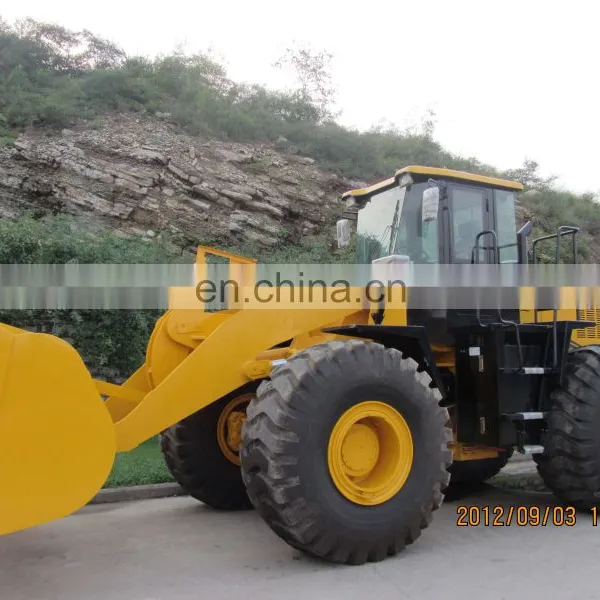

New Condition factory price New Condition factory 6 Ton 966 wheel loader
6.0ton wheel loader with Weichai or at engine ,CE and chinese
*Rated loading weight: 6,000kg
*Rated capacity:3.3
*WHEEL LOADER 6 ton WITH weichai engine
Wheel loader specification
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Overall dimension(mm) |
8,360 x 2,950 x 3,600 |
Rated loading weight(kg) |
6,000kg |
Overall weight |
19,800kg |
Rated bucket capacity(m3) |
3.3 |
Max. breakout force(kn) |
200 |
Max. dump height(mm) |
3350 |
Max. dump reach(mm) |
1255 |
Engine | |
Engine Model |
SC11CB240G2B1 |
Engine type |
Turbocharger, inline, water cooled, direct injection |
Rated Power(kw)/(ps) |
175 |
Rated Speed(r/min) |
2200 |
Max. torque(N.m) |
920 |
Max. torque speed(r/min) |
1200-1400 |
Lifting, unloading and descending total time(s) |
11.48 |
Displacement |
9.726 |
Transmission system | |
Model of torque converter |
YJ375 |
Pattern |
Single stage two phase four components |
Transmission type |
Power shift plant structure |
Number of gear |
2 forward, 1 reverse |
Max. travel speed |
38km/h |
Drive axle | |
Main reducer pattern |
Spiral bevel gear first reduction |
Pattern of wheel side moderation |
Single stage planetary |
Tire | |
Tires |
23.5-25PR |
Steering system | |
Pattern |
Full hydraulic steering system |
Max. turning radius (outside of bucket)(mm) |
7260 |
Max. turning angle |
35°±1 |
Hydraulic system | |
Implement pump |
P7600-F125 |
Displacement(L/min) |
275 |
System working pressure(Mpa) |
18 |
Distribution device model |
DF32 |
Pilot valve model |
DJS |
Brake system | |
Service brake |
Air assisted oil disc on four wheel |
Parking brake |
Soft control, disc type |
