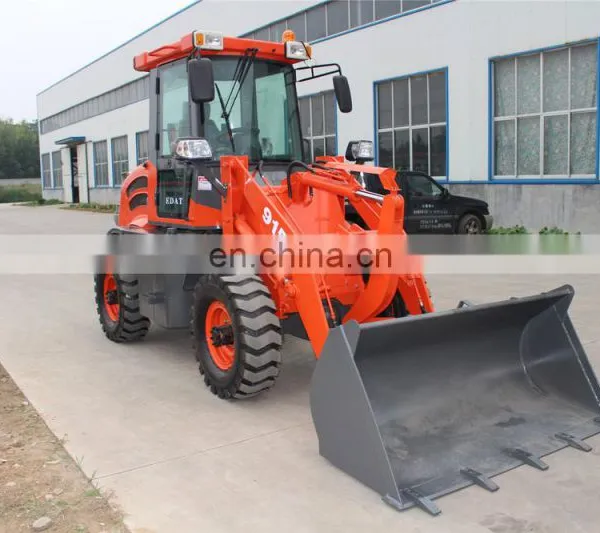

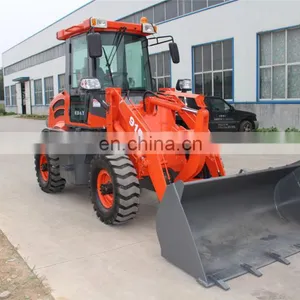

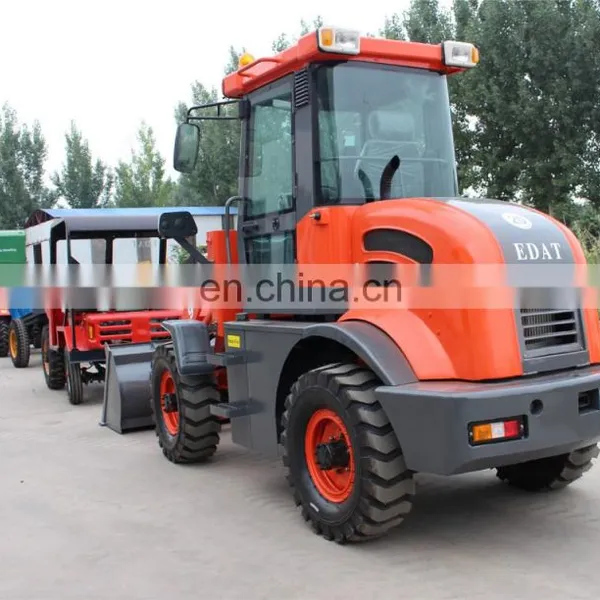

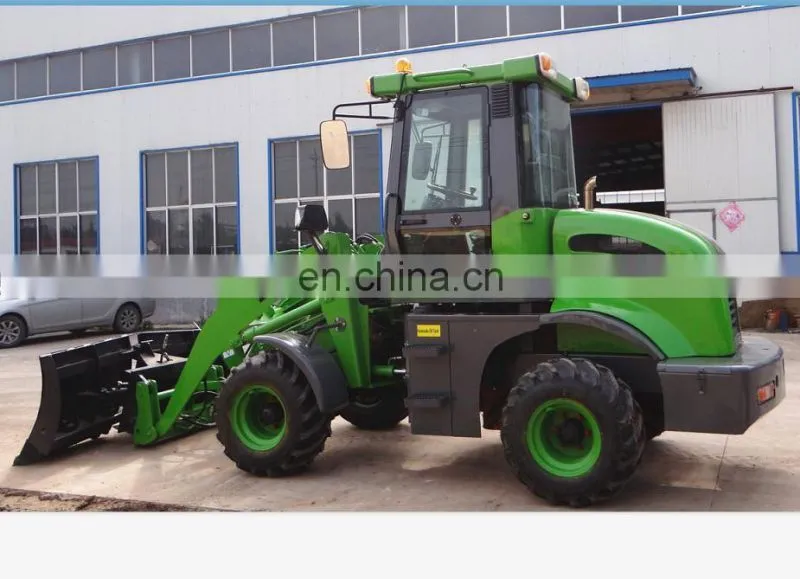

1 T CE Chinese Productive hydraulic gear pump ZL10F Small front loader

FOB Price

USD $8,523.5 - $9,235.6 / Unit

2 Units(Min.Order)

Supply Ability 500 Unit / Units per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	MAP	Place of Origin:	Shandong, China	Type:	Mini Loader
Certification:	CE, CE	After-sales Service Provided:	No overseas service provided	Warranty:	12 Months
Condition:	New	Dimension(Long * Breadth * High):	4200x1685x2500	Moving Type:	Wheel Loader
Rated Load:	1200kgs

Product Description

1 T CE Chinese Productive hydraulic gear pump ZL10F Small front loader

ZL10F Compact Wheel loader Compact Loader CE EURO 3 Engine'

Company Information

Weifang Map Power Company,

supply all kinds of construction machines like loaders, tractors, concrete mixer, forklifts, excavators and so on. We keep diverse products according to customer and market demand, and supply adjustable designed machine to adapt the using environment and

the market better.

Product Description

Equip with :3-valve pilot control,Euro III engine,adjustable steering

wheel,quick hitch,luxury seat,new cabin with heating and new engine

hood,wider tire 12-16.5

Fully hydraulic steering,power shift hydraulic operated working device.The full hydraulic steering
system is smooth in operation, stable and reliable in performance

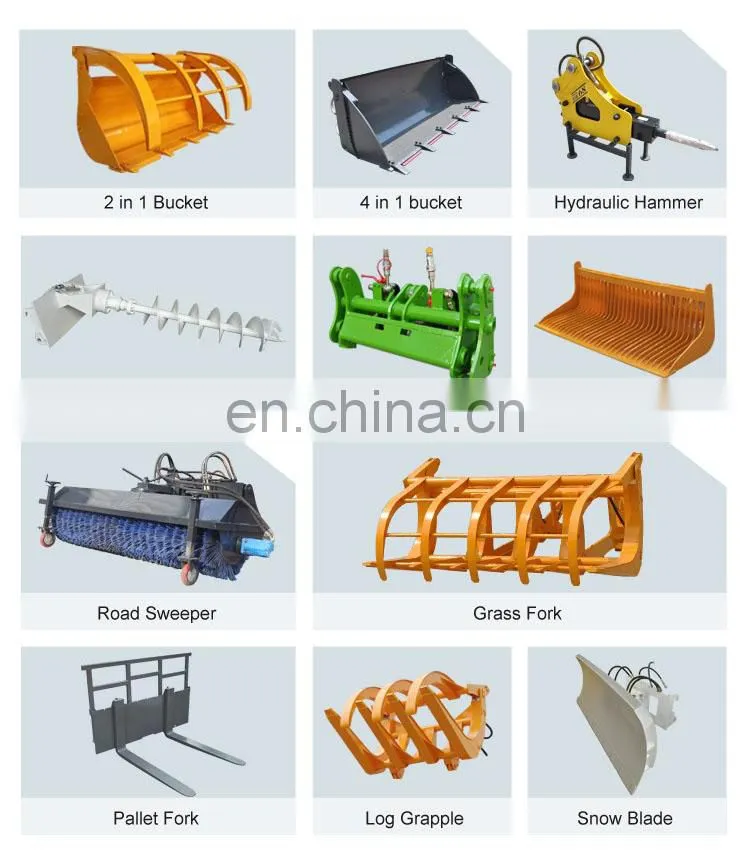

Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to allmaterials.The bucket is equipped with automatic leveling device, so that the operation is easier.
Big tractive force and traction device at the rear end, which meet more needs.

Wheel loader ZL10F
Overall Dimensions	Overall Length	4450mm
	Overall Width	1850mm
	Overall Height	2650mm
	Max.Discharge Height	2750mm
	Dump distance	1020mm
	Wheel Base	1400mm
	Tread(Alex-base)	2050mm
	Mini Distance to the ground	260mm
	Time of lifting	5.0s
Engine Details	Model	Changchai 4L68 or Xinchai A498(III)
	Engine Type	In-line arrangement,Water cooled
		4 cylinders diesel engine
	Rated Power	37KW
	Rated Speed	2400rpm
Transmission System	Torque converter Model	YJ240
	Gear box	2 forward+2 backward
	Alex	50 Drive Axle
Hydraulic system	Working Pump	CBGJ1045
	Hydraulic working pressure	16MPA
Steering System	Type	Articulated hydraulic steering
	Turning angle	30°+/- 1°
	Turning Radius(mm)	3000mm
Brake system	Brake Type	Oil break (Vacuum booster)
Tyres	Standard tyre	14/90-16
Tyres	Option wider tyre	12-16.5
Bucket	Bucket Capacity	0.60m ³
	Bucket Type	Heavy-duty bolt on teeth
	Rated Load	1200kg
	Total Weight	3200kg
Drive	Drive type	4x4 wheel drive

Lead time:20 days

Payment terms:30% T/T deposit,balance before shipment.

Packaging & Shipping

1 Packaging Details: wheel loaders are nude packed, 3 units for one 40'HQ

2 Delivery Detail: within 20 workdays after receipt the wheel loader deposit

Advantages to work with us:

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service

FAQ

1. How to order?

-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea.

-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.

-If you still don't understand, please do not hesitate to ask me.

2. Related products?

ZL06F ZL08F ZL10F ZL12F ZL15F ZL16F ZL20F
