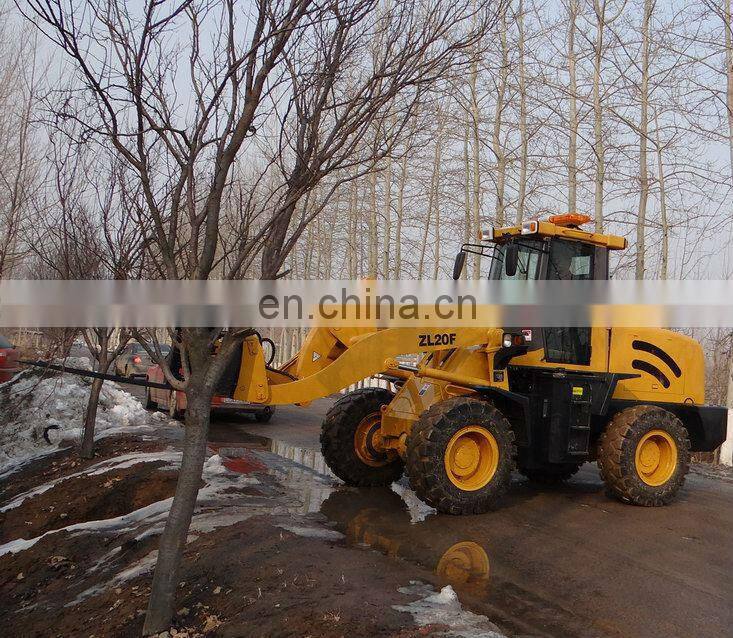

(****For the ZL20F Wheel Loader,We Offer Your One Year Warranty Time And Whole Life Technical Support****)

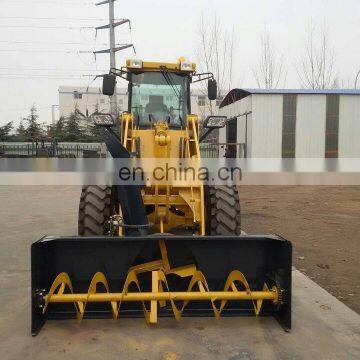

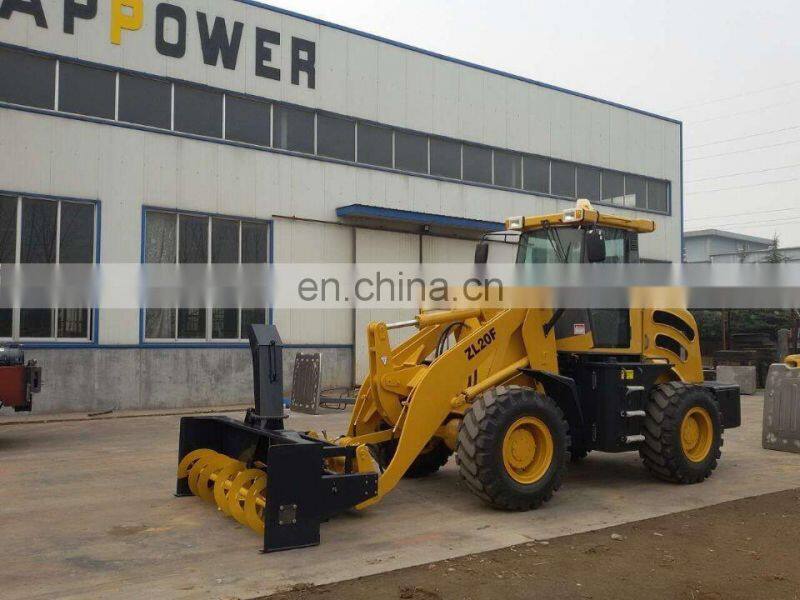

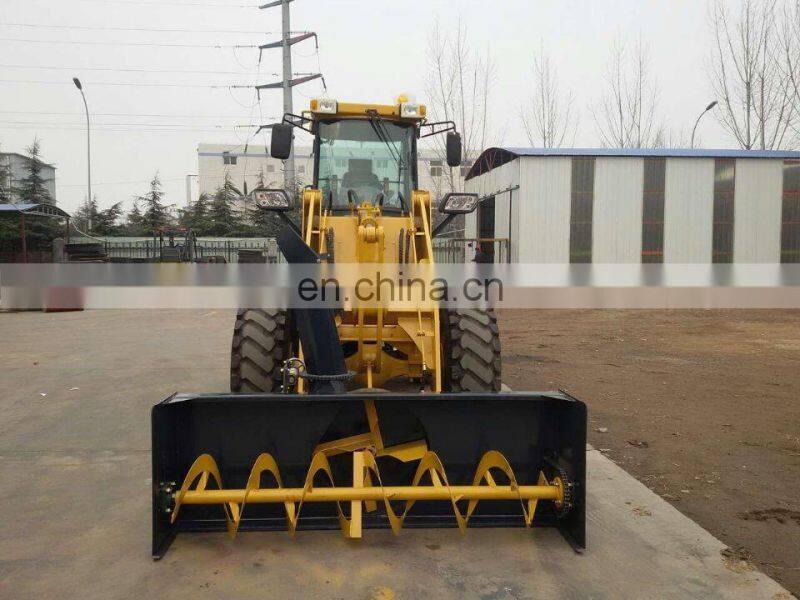

Multi-function Wheel Loader 2.0 Ton can be with Snow Blade, Snow bucket ,Pallet fork , Grapple fork ,4 in 1 Bucket ,Baler,
Grader, road sweeping machine,snow blower,light bucket ,auger and etc.

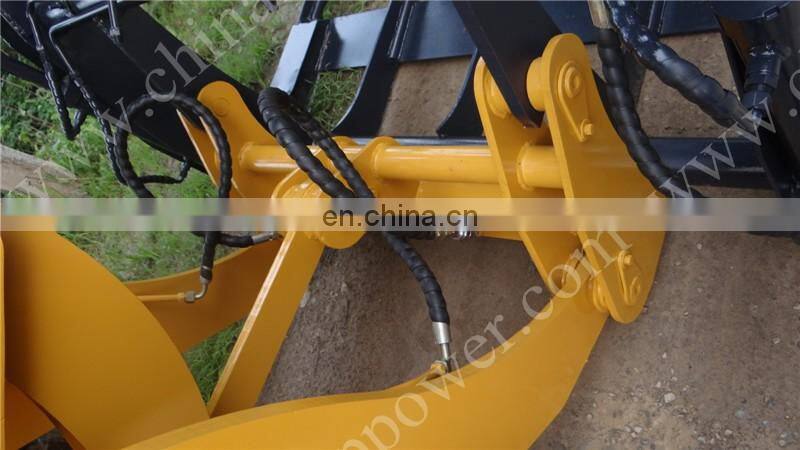

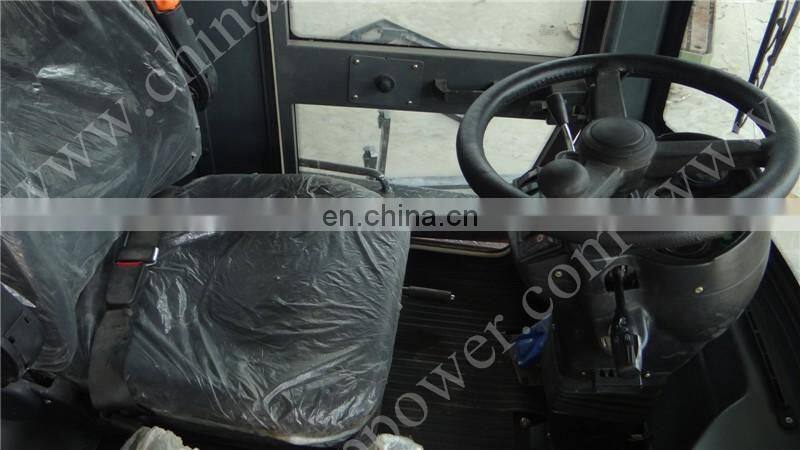

Wheel loader 2.0Ton equip with :hydraulic 280 torque converter,3-way pilot control,adjustable steering wheel,quick hitch,

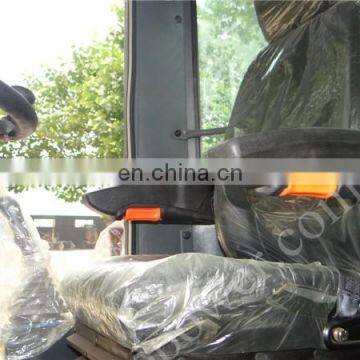

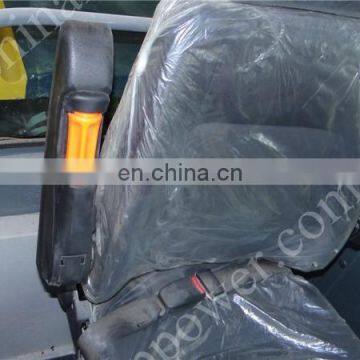

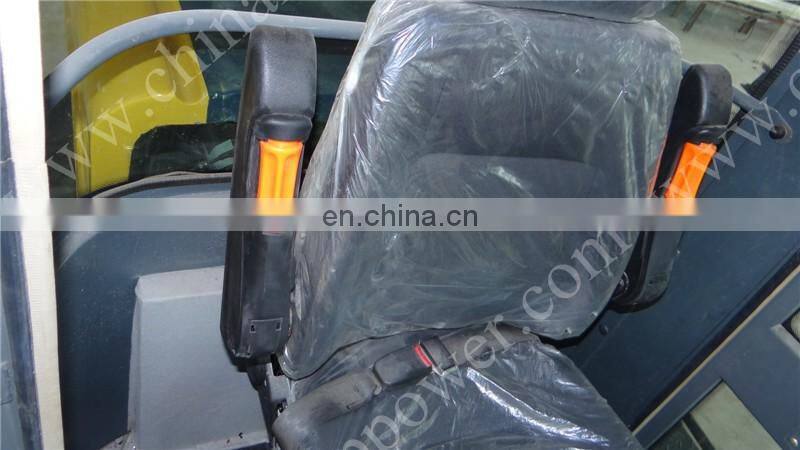

luxury seat,new cabin with warm and new engine cover,bigger tire.

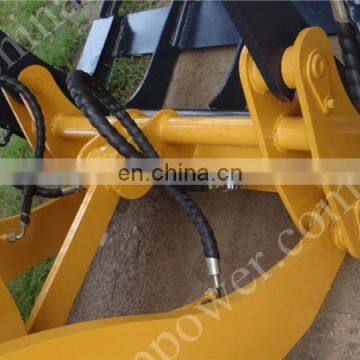

Spare Parts of ZL20F Wheel Loader
Packaging & Shipping
1 Packaging Details: wheel loaders are nude packed, well fixed, accessories are available. 3units/40'HQ
2 Delivery Detail: 20 workdays after receipt the wheel loader deposit

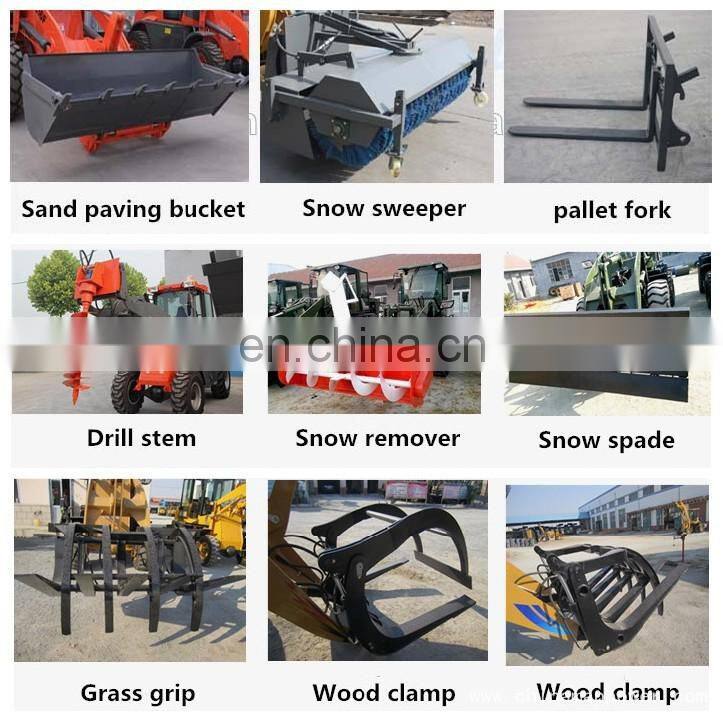

With Different Equipment Can Do Different Works
Why choose us ?:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service
FAQ
1. Are you a factory?
A: Yes, we are real factory supplier for over 10 years, own a super technical team to serve adjusting design for customers
2. How about the products range do you produce ?
We are specilized in producing wheel loaders cover 0.6ton to 5tons. Model: ZL06, ZL08, D25, ZL10, ZL12, ZL15, ZL16, ZL20, ZL30, ZL50, producing site dumpers with 2tons, 3tons, 4tons, 5tons, 7tons and 10tons load capacity.
3. Can you supply site dumpers with adjustable design to adapt customers' using requirment ?
Sure, we have strong technology team, are able to do adjustment design for customers according to users' requirment and the using environment, like to change the transmission system, tires, bucket dimension, operation plate, cabin and so on.
4. Which brand engine do you have for ?
We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
5. What advantages of your products and company?
1) adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2) ROPS cabin, double-layer thick cab, more strong and resistant

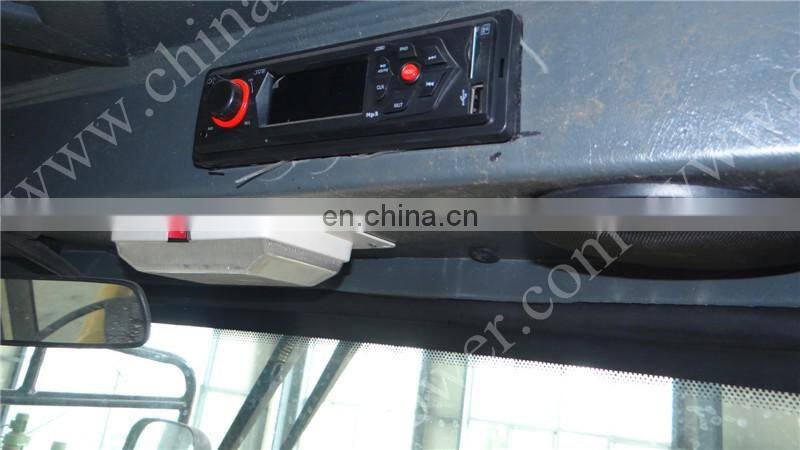

3) adjusting steering wheel and adjusting seat, with fan, radio, heater and so on, more comforable drive environment for driver
4) All of our dumpers passed the strict test before sale to customers
Parameters:
| verall Dimension | ||
| 1 | Length(with bucket on ground) | 4900(mm) |
| 2. | Width(to outside of wheels) | 1830(mm) |
| 3 | Bucket width | 1700(mm) |
| 4 | Height(To the top of the cab) | 26500(mm) |
| 5 | Wheel base | 2060(mm) |
| 6 | Tread | 1400(mm) |
| 7 | Min. ground clearance | 210(mm) |
| Main Technical Specification | ||
| 1 | Rated load | 2000(Kg) |
| 2 | Operating weight | 3350KG |
| 3 | Rated bucket capacity | 0.5 (CBM) |
| 4 | Bucket type | Heavy-duty bolt teeth |
| 5 | Max. breakout force | 36kN |
| 6 | Max. dump clearance | 2650(mm) |
| 7 | Min. turning radius | 4500mm |
| 8 | Driving system | Hydraulic converter |
| 9 | Traveling speed(Km/h) | 2 forward and 2 reverse |
|
|
(1) 1st gear forward | 5.75 |
|
|
(2) 2nd gear forward | 23.86 |
|
|
(3) 1st gear reverse 5.85 | 5.85 |
|
|
(3) 2nd gear reverse | 24 |
| Diesel engine | ||
| 1 | Model | A498 BT1 EURO 3 |
| 2 | Type | In-line arrangement. Water cooling |
| 3 | Rated output | 37 (kW) |
| 4 | Inter-bore of cylinder/stroke | 95 (mm) |
| 5 | Rated speed | 2300(r/min) |
| 6 | Max. Torque | 275(N. M) |
| 7 | Starting type | Electric |
| 8 | Min. fuel consumption | 230(g/Kw. h) |
| 9 | Net weight | 240(kg) |
| Transmission System | ||
| A Torque Converter | ||
| 1 | Model | YJ240 |
| 2 | Type | Fixed-spindle power shift |
| 3 | Cooling type | Pressure oil circulating |
| B Transmission case | ||
| 1 | Type | Power shift, spur gear constantly in mesh |
| 2 | Gear shift position | 2 Forward and 2 reverse gears |
| C Axle and Tire | ||
| 1 | Type of main reducer | spiral bevel gear, single stage |
| 2 | Size of tire | 12-16.5 |
| Brake system | ||
| 1 | Service brake | 4 wheel hydraulic brake |
| 2 | Parking brake | Hand operated |
| Steering System | ||
| 1 | Type | Middle articulated frame with hydraulic power steering |
