General Description:

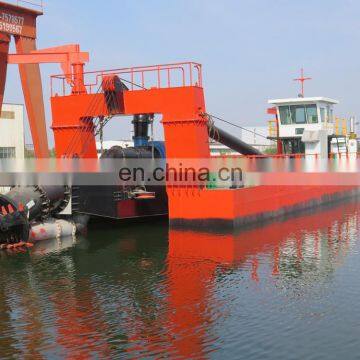

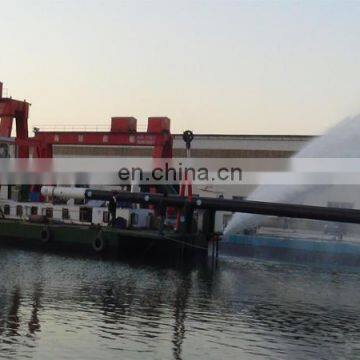

Cutter Suction Dredger is self-propelled or non-self-propelled, portable cutter suction
dredger. Hull can be dismantled and re-assemble eas ily with box structure . equipped
with horizontal shifting devices, cutter ladder lifting devices, spud devices, deck crane and
so on. Widely used in sand-excavating, river dredging, desilting, reclamation for channels
and land, port construction, etc.
Advantage:
Reliable and Efficient
The key component like engine, pump and hydraulic system are adopted the
international brand.

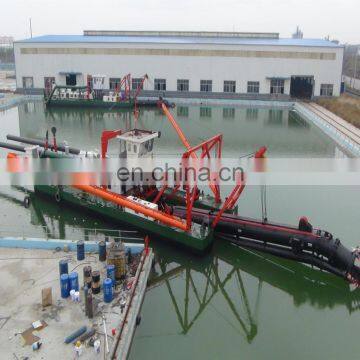

Tested in pool before delivery.
Quality testing for each dredger before delivery to ensure all function working properly.
Services --experienced engineers to guide installing and training lo- cal workers. 24/7
technical support standby. Free spare parts in the first year, low cost for services.
HL500 (20 inch4000m³/h) | |
Dredger LOA | 36.5m |
Hull size(L×B×H) | 27.0×8.5×2.5m |
Main pontoon(L×B×H) | 15.4×3.5×2.5m |
Side pontoon (L×B×H) | 24.0×2.5×2.5m |
Structure | box-strucure |
Main engine brand & power | Cummins 895kw /Jichai900kw / Weichai 900kw |
Auxiliary engine brand & power | Cummins 298kw / Jichai330kw / Weichai 300kw |
Harbor generator | Cummins 40kw / Jichai40kw / Weichai 40kw |
Total power | Cummins 1233kw / Jichai1270kw / Weichai 1240kw |

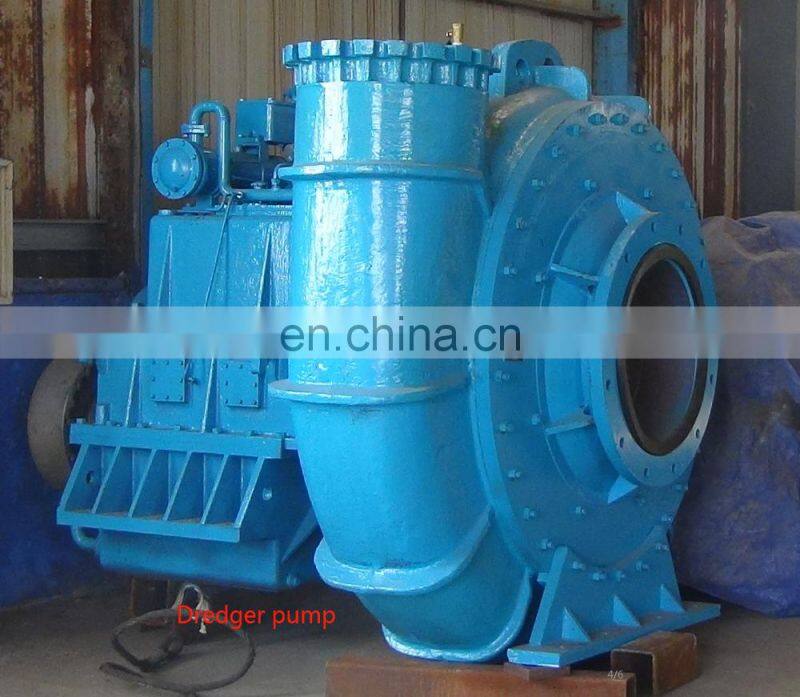

Dredging pump | |

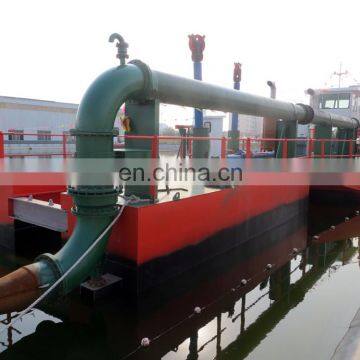

Discharge pipe inner Dia. | 500mm |
Head | 54m |
Max. dredging depth | 15m |
Water flow | 4000m³/h |
Solid sand capacity | 800m³/h |
Discharge distance | 2000m |
Cutter head Dia. | 1700mm |
Cutter power | 130kw |
Draught | 1.7m |
Displacement | 296T |
Hydraulic control system | PLC Siemens |

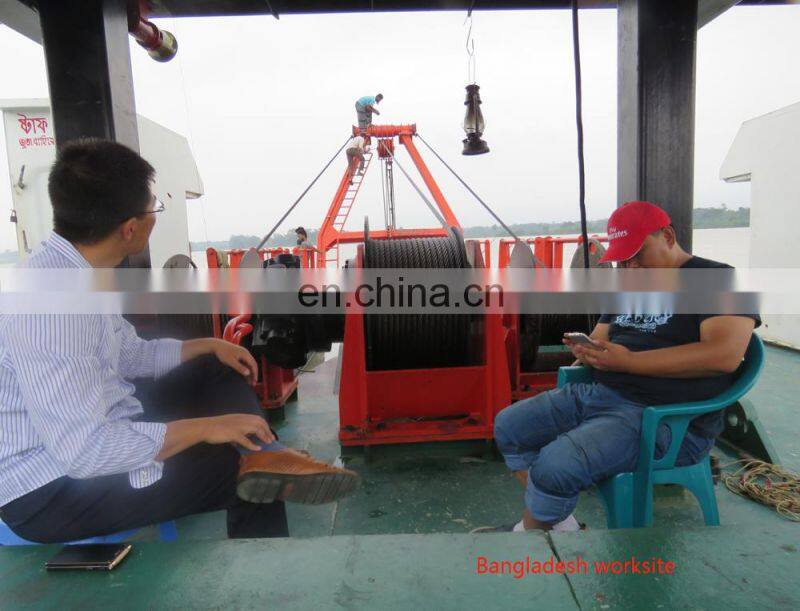

Wire rope pulling force (Lifting winch )*Quantity | 80KN *1 |
Wire rope pulling force (Traversing winch )*Quantity | 80KN *2 |
Operation room | Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights |
Total weight | 180T |
Total fuel oil consumption | 179L/H |
