7T Tipper Dumper for Sale Used in Farm

7T Tipper Dumper for Sale Used in Farm thumbnail-1
7T Tipper Dumper for Sale Used in Farm thumbnail-2

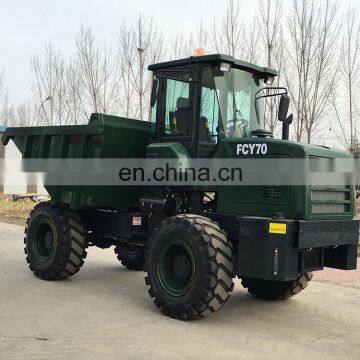

7T Tipper Dumper for Sale Used in Farm photo-1
7T Tipper Dumper for Sale Used in Farm photo-2
US$ 12,000 - 18,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Condition:
New
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Map Power
Place of Origin Shandong, China
Condition New
Transmission Type Automatic
Gross Vehicle Weight 3000
Fuel Type Diesel
Emission Standard Euro 3
Drive Wheel 4x4
Dimensions (L x W x H) (mm) 5250x2250x2700mm
Engine Capacity 4 - 6L
Capacity (Load) 1 - 10t

7T tipper dumper  for sale used in farm

    As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.

7T tipper dumper for sale used in farm

Product Advantages



FCY70---7Ton site dumper

7T tipper dumper for sale used in farm
  • Mini dumper 7 ton,4*4drive,Hydraulic steering,can unload materials smoothly by strong hydraulic pressure unloading syst   As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on. .
  • Low walking speed,short-distance transport of bulk materials.
  • Easy operation,small turning radius can be used in a narrow environment.
  • Off road wider types as option ,can work in muddy and bumpy roads.



7T tipper dumper for sale used in farm



7T tipper dumper for sale used in farm

Product Description

SPECIFICATIONS OF MINI DUMPER FCY-70

General

NO.

Item

Specifications

1.

Payload

7000kg

2.

Operating weight

4550 kg

3.

Hopper capacity

3.5m3

4.

Maximum speed

25 km/h

5.

Handbrake available on grade

18%

6.

Max grade ability

251%

7.

Distance of road after brake

≤2.5m with load and speed 10km/h

8.

Minimum turn radius

4 m

9.

Ground clearance

248 mm

10.

Noise level

≤102 db(A)

11.

Loading discharge angle

48.40

12.

Time of discharge

6s

13.

Hydraulic pressure

16 Mpa

14.

Wheel base

2200 mm

15.

Wheel tread

1580 mm

16.

Engine power

60KW

17.

Dimensions (LxWxH)

5250x2250x2700 mm

B. Engine

1.

Model/Maker

4108 – YC

2.

Type

Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled

3.

Bore x stroke piston

100 x 102 mm

4.

Power

60KW

5.

Speed

2400 R/Min

6.

Max t

120@2100v/p

7.

Weight

350 kg

8.

Fuel consumption

248 g/kWh

C. Drive System

1.

Clutch

Single disc, dry type, constant.



Diameter

254 mm

2.

Transmission:

Hydraulic type

3.

Drive shaft:

Tubular-type, open-type, rigid needle-bearing universal joint

4.

Driving axle:

Main drive type: single-stage hyperbolical bevel gear dive

5.

Final driving

full floating



Different:

hyperbolical bevel gear dive

D. Frame

1.

Frame:

Channel steel welding type, two-section articulated connection

2.

Tire:

20.5/70-16

3.

wheel ring:

9.75H

E. Steering system

1.

Type

Control by wheel, full hydraulic system, two cylinders double acting.

2.

Angle steering each direction

± 300

F. Bake system

1.

Operating brake

Hydraulic shoe system, four wheel mounted.

2.

Handbrake

mechanically-pirated central sport-type disc

G. Hydraulic system

1.

Hydraulic pump:

Gear pump



7T tipper dumper for sale used in farm





FAQ



 1.Why chose you?

a.We are manufacturer, our products have excellent quality and competitive price.
b.We have good after-sales services,you can find us at per 24 hours.
c.Strictly testing and checking before shipping.
2.How to deal the order?
a.Payment terms: T/T 30% as deposit, and 70% before delivery.
b.We'll show you the photos of the products and packages before you pay the balance.
3.Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
4.What is your warranty policy?
We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
5.How do you make our business long-term and good relationship?
a.We keep good quality and competitive price to ensure our customers benefit.
b.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
6.What are the hot products of your company?


7T tipper dumper for sale used in farm 7T tipper dumper for sale used in farm 7T tipper dumper for sale used in farm
site dumper wheel loader  Automobile crane
7T tipper dumper for sale used in farm 7T tipper dumper for sale used in farm 7T tipper dumper for sale used in farm
 Excavator  Backhoe loader  forklift
Company Information

Weifang Yishan Heavy Machinery Co., Ltd is a professional manufacture of wheel loaders,dumpers,tractors,implements and whole solution supplier specializing in construction machinery and agricultural equipment.

  We can also design new products according to customer and market demand.We have more than 10 years experiences in professional manufacturing.And successfully sold equipment to around 40 countries and areas.We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in future.
