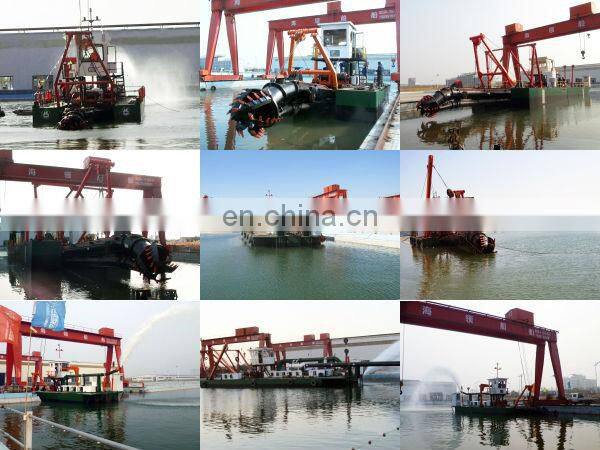

1. China dredger Sand dredger Mud dredger
1) Hydraulic system.
2) Cummins engine or DEUTZ-MWM engine.
3) Operation by one man from spacious and low noise operating cabin.
4) New highly effective cutter drive system.
5) Heavy duty side winches, ladder winch and spuds.
6) Fresh water cooling system.
7) Highly efficient fuel consumption and minimum overall operation costs.
8) Very simple and fast assembly and dis-assembly, afloat of onshore.
9) Tested before ex-factory.
10) Standard design ensures delivery time.
11) The design, construction, quality inspection is according to the standards and regulations of CCS.
12) Dredging, conveying and discharging of mud and sand. Desilting, reclamation for channels and land, and building roads.
13) Soil conditions: Relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on.
14) Working environment of sand dredger: sea, river, lake, port, and so on.
2. Specification of HLC450 sand dredger
| Specifications of HLC450 sand dredger | |
| Total Length | 36m cutter head is included |
| Total Weight | 180T |
| Hull Lenght | 27m cutter head is not included |
| Hull Width | 8.5m |
| Hull Depth | 2.5m |
| Working Capacity | 700cbm/h |
| Max. Dredging Depth | 15m |
| Discharge Distance | 1500m |
| Water Flow | 3500m3/h |
| Main Engine Power | 895kw |
| Auxiliary Engine Power | 298kw |
| Diameter of Discharge Pipe | 450mm/18inch |
| Diameter of Suction Pipe | 600mm/24inch |
| Diameter of Cutter Head | 1.7m |
| Diameter of Spud Pile | 510mm |
| Oil tank capacity | 60000L |
| Max. oil consumption | 284L/h |
| Continuous operation time | 211h |

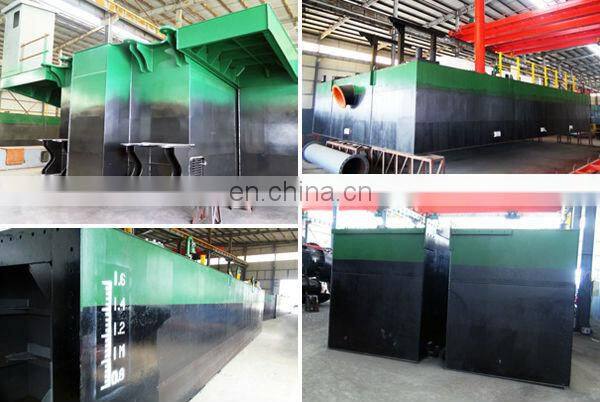

3. Pontoons of sand dredger
There are 3 pontoons in dredger, which including 1 main pontoon and 2 side pontoons. And also pontoons are dismantle type can be different parts in order to transported convenient by truck, then installation at working site.

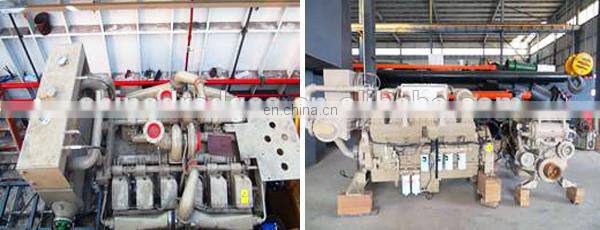

4. Cummins engine
5. Cutter head of sand dredger

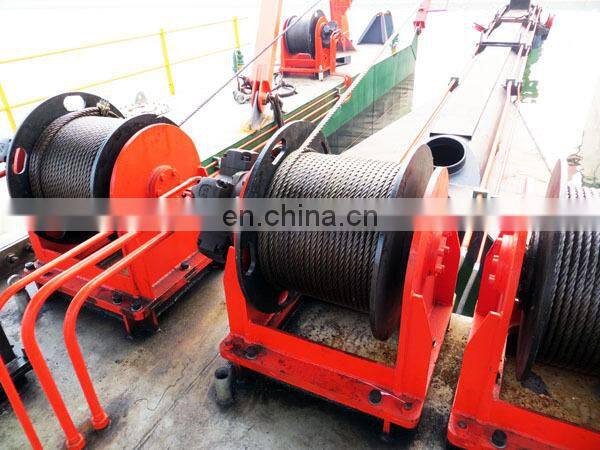

6. Hydraulic Winch

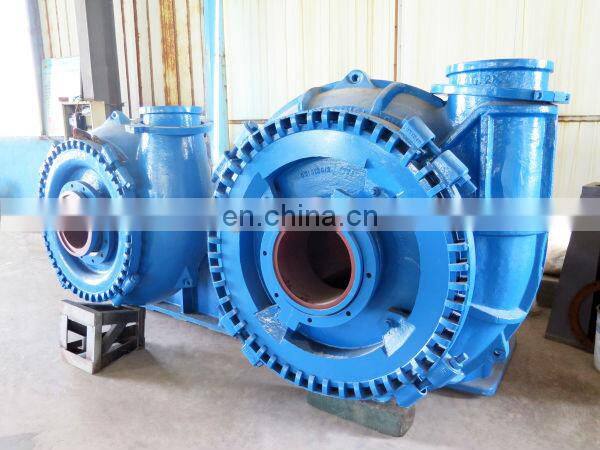

7. Pump of sand dredger
8. Customers visiting
We have signed primary agency agreements with trade companies in more than ten countries such as Brazil, Argentina, Benin, Egypt, Poland, Nigeria, Ukraine, Indonesia, and North Korea.
Based on honest, mutural benefit and development, we welcome customers warmly both from home and abroad to visit our company and talk over with us.
9. Company Profile
China Shandong Leading Dredging Equipment and Machinery Co., Ltd. was established in 1992. Over years of development, Our company has been the largest production center of cutter suction dredgers, sand mining machinery and gold dredging machinery all over the country. The company owns blanking workshop, gold panning machinery processing workshop, machining workshop, anti-corrosion workshop, general assembly workshop, product debugging and testing center before ex-factory.
We have professional R&D department, CAD drawing design center, quality control department and after-sales service department. Our company has more than over 500 employees, including 5 professional senior engineers on dredger building and researching, 16 designers on machinery construction, 8 engineers on quality inspecting and controlling and 10 after-sales service engineers.
Engineers are committed to the development and innovation of products. All the products are with different sizes for customer’s choices. We can also design and produce special type of machinery according to your requirements.
In order to expand market and provide better services to customers, we have built after-sales offices overseas. We are at your services.

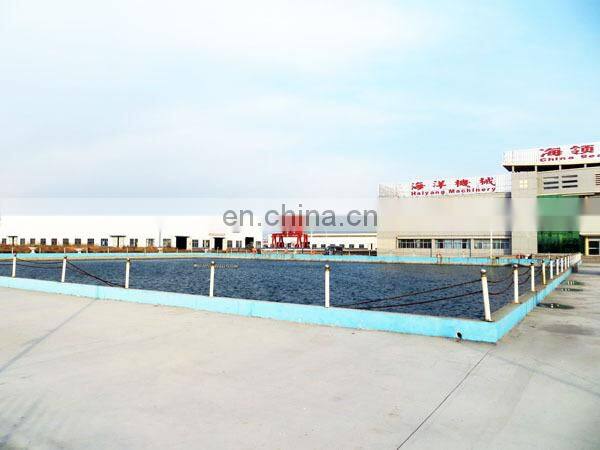

10. Testing center for ex-factory test
In order to guarantee good performance and safety of our cutter suction dredger, all our products will be tested in the testing center before ex-factory. It is tested like the machine working in the customer's working site.
| Different model list of sand dredger for your reference | |||||
| Model | Inch | Water flow | Solid capacity | Dredging depth | Discharge distance |
| HLC150 | 8/6 | 550m3/h | 110cbm/h | 6m | 600m |
| HLC200 | 10/8 | 800m3/h | 160cbm/h | 8m | 600m |
| HLC250 | 12/10 | 1100m3/h | 290cbm/h | 10m | 1000m |
| HLC250A | 12/10 | 1450m3/h | 290cbm/h | 10m | 1100m |
| HLC300 | 14/12 | 2500m3/h | 500cbm/h | 12m | 1200m |
| HLC450 | 24/18 | 3500m3/h | 700cbm/h | 15m | 1500m |
| HLC500 | 26/20 | 6000m3/h | 1000cbm/h | 16m | 2000m |
| HLC600 | 30/24 | 8000m3/h | 1600cbm/h | 18m | 2500m |
| Sand dredger can be custom made for your requirements | |||||
