1.About Highling:
Shandong Highling Group, was established in 1992. Over 20 years development,we own three subsidiaries: Shandong Highling Dredging Equipment and Machinery Co., Ltd.,Shandong Haiyang Ore Machinery Manufacturing Co.,Ltd. and Shouguang Yongde Shipping Manufacturing Co.,Ltd., Group covers an area of 1500 acres,with more than 800 employees. Annual turnover achieve 60 million dollars,The products are of a great variety, including 500-20000m³/h large scale dredging and sand mining equipments, gold panning ship, sand transportation ship,multi-function service work boat etc, which widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting,reclamation for channels and land, port construction etc. All the products can be customized according to client’s requirements, formed a complete ship machinery industry chain.Quality Certification:Our company have been through ISO 9001 Quality System Certification and CE Certification .The design, construction, quality inspection is according to the standards and regulations of CCS. And we have obtained 26 types of Certificate of Utility Model Patent and 23 types of Certificate of Design Patent. Products are exported to more than 50 countries such as Bangladesh,Pakistan,India ,Brazil,Argentina,Benin,Egypt,Poland,Nigeria,Ukraine,Indonesia,Korea,etc. By virtue of advanced technology, stable&reliable quality, Our company has gained great honors from the domestic and foreign enterprises.
2.Product introduction:

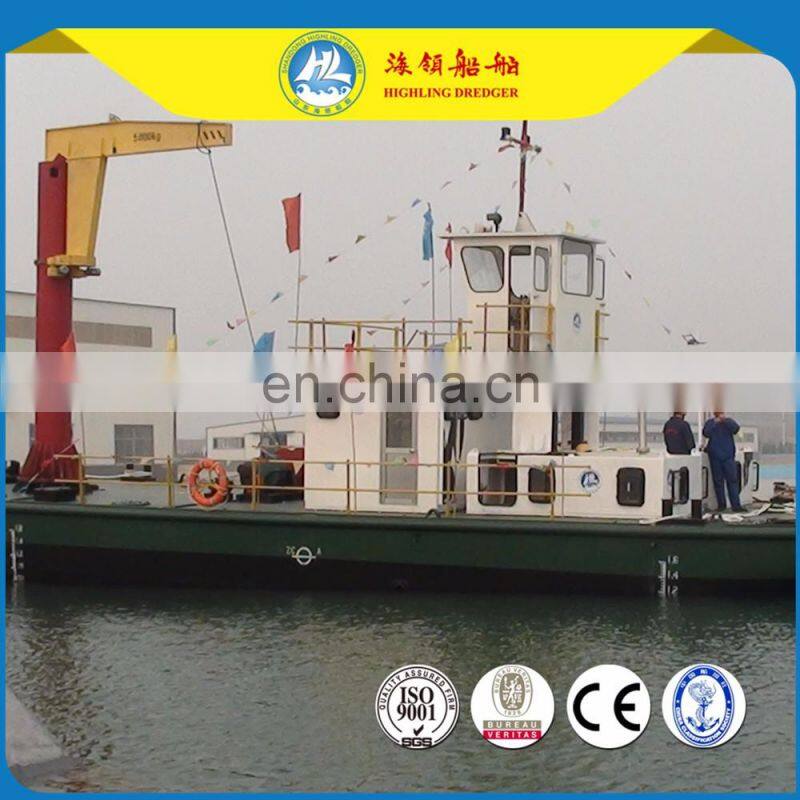

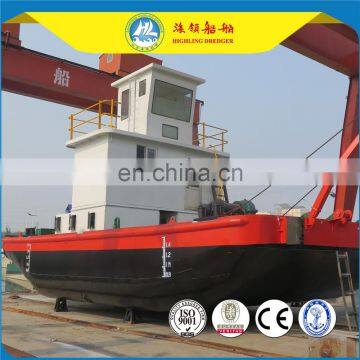

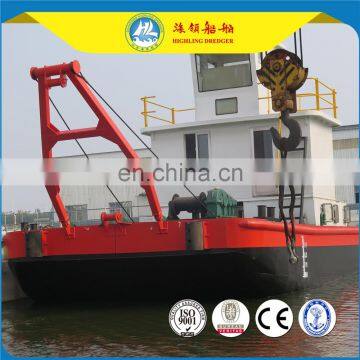

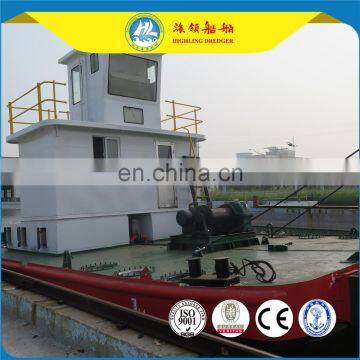

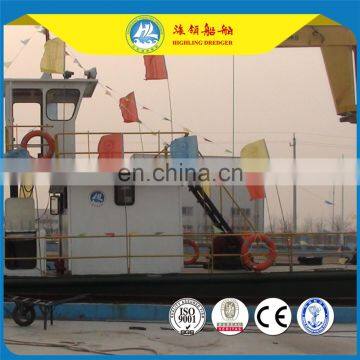

Multi-function Service Work Boat is used for cutter suction dredger in regular operation and maintenance, the standard option including wheelhouse, deck crane and also can be customized. The new type work boat is widely used for transporting dredging workers,diesel oil and hydraulic oil etc.
3.Main Function:
1. Transport the dredgers and dredging equipment
2. Anchor handling
3. Towing
4. Floating pipeline handling
5. Providing the commuting and accommodation
6. Maintenance support
4.Our team:
5.Case:
:
6. Marine Diesel Engine:
Multi-function Service Work Boat HL-S380 | |
Hull size(L×B×H) |
16.0*6.0*2.0m |
Pontoon size (L×B×H) |
(16.0*3.0*2.0m)X2 |
Hull material thickness |
10mm/8mm/10mm |
Draught |
1.5m |
Displacement |
130T |
Fuel oil capacity |
30m3 |
Fresh water capacity |
5T |
Deck crane lift |
2T |
Speed |
15kn/h |
Anchor weight & QTY. |
70kgx2 |
Volume in bulk |
280m3 |
Main engine brand |
Cummins / Sinotruck |
Main engine model |
6CTA8.3-M188/WD615.67C03N |
Main engine RPM |
2200r/min |
Main engine power |
376HP |
Engine quantity |
2pcs |
Gearbox maker |
Hangchi |
Gearbox model |
MB242 |
Gearbox QTY. |
2pcs |
Generator power |
30kw |
Generator model |
X2105BCF |
Total fuel oil consumption |
41L/H |

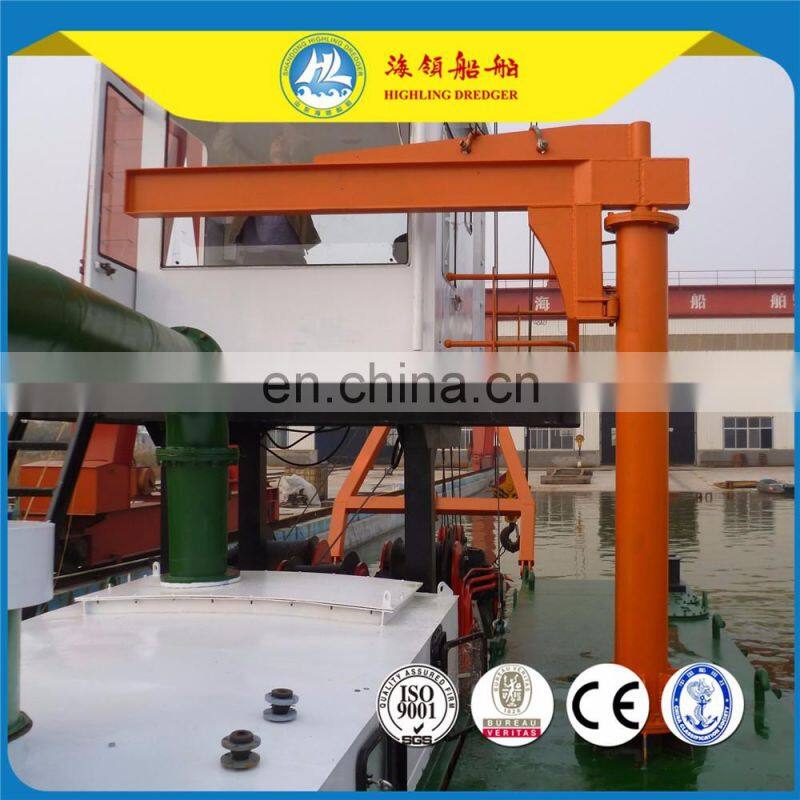

7.Deck Crane:
ItemParametersNoteLifting power20KN (2tons) Outreach2.5m Amount1 setOne deck crane is to be provided fro maintenance of dredge pump and other components with manual chain tackle/other suitable mechanism.

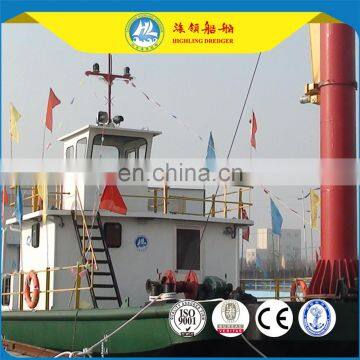

8. Operation Cabin :
One single control cabin is provided on the front side of the main pontoon with glass windows overall which allow the operator to have an overview on all components on the deck and on the ladder.

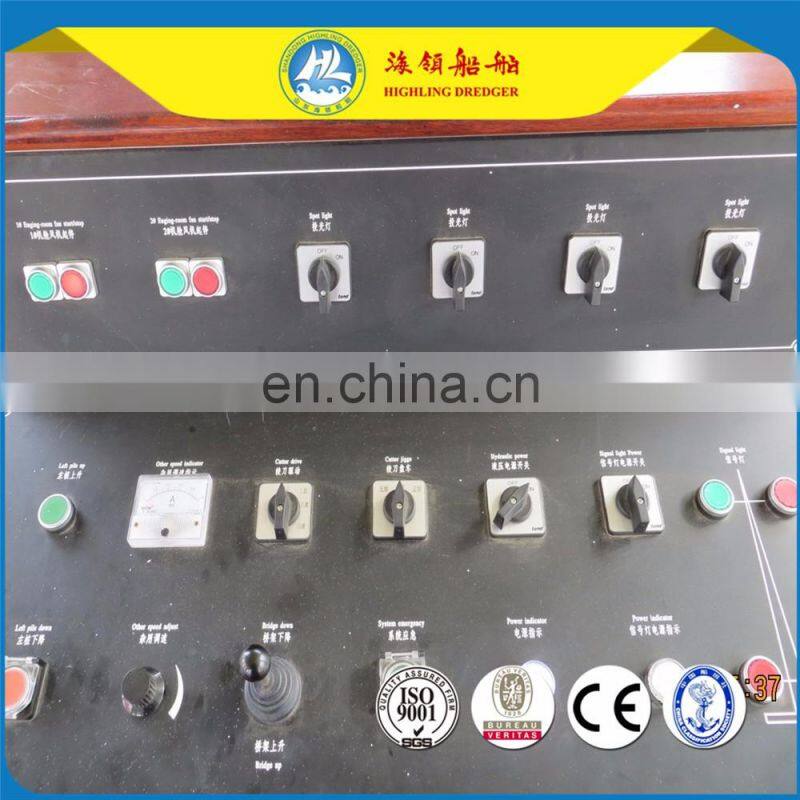

One door on each side of cabin. Two operation tables installed, all necessary instruments for operating the dredger, monitoring the dredge operations warnings are equipped on the operation table.
Adjustable leather chair for dredger master
A/C sockets equipped ,
Air conditioner equipped
8.Our Service:
l * Professional technician can be provided to service the machinery overseas
l * After-sales service department with 10 service engineers are available for 24 hours.
l * Overseas after –sales service office built year by year.
l * real dredger in factory, customer visit factory any time.
l * Every dredger tested before ex-factory.
* Customer invited to watch test. Video and pictures will email to buyer.

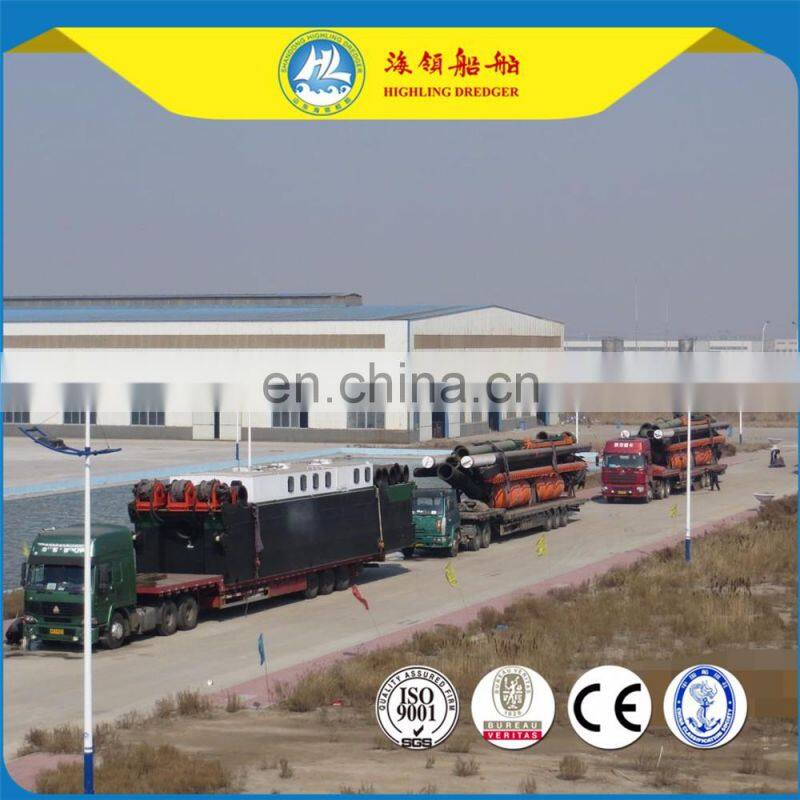

9.Deliver:
10. Contact:
Based on honest, mutual benefit and development, We warmly welcome you visit our company and cooperate with each other.
