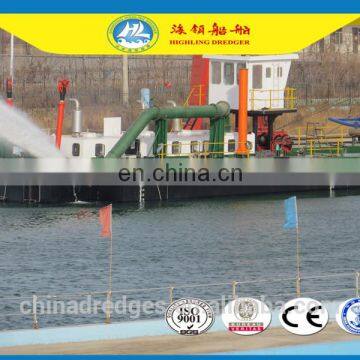

China Highling HL450 18-inch 3000m3/h Sand Dredger in Stock for Sale with Low Price
- 10 Set / Sets per Month
- Tianjin port
- T/T Credit Card
- HL-250 Cutter Suction Dredger(1000m3/h)
- HL600 Hydraulic Cutter Suction Dredger( 24inch 5500m3/h)
- 550mm 22inch river sand dredger
- Highling HL650 26-inch 6000m3/h dredging machinery for Bangladesh market with good overseas service
- HL800 Cutter suction Dredger( 32inch 7500m3/h)
- HL-S240 Multi-function Service Work Boat
Product Details
Brand Name: | HLC | Place of Origin: | Shandong, China | Model Number: | HLC450 |
Certification: | ZC or according to requirement | After-sales Service Provided: | Engineers available to service machinery overseas | ||
Warranty: | 1 year | Weight: | 180T | Dimension(L*W*H): | 36x8.5x2.5m |
Power Type: | Diesel | Condition: | New | Draught: | 170 cm |
Dredging Depth: | 15 m |
Product Description
1.General Description:
Advantage:
1. Highling Dredger Reliable and Efficient
The key component like engine, pump and hydraulic system are adopted the International brand.
2.Tested in pool before delivery
We do quality test for every dredger before delivery to assure every part function properly.
3. Services --experienced engineers who will be to guide installing and training local workers.24/7 technical support standby. Free spare part in the first year ,low cost for services.
4. Dismantled for transport

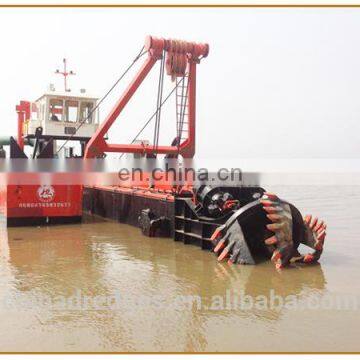

HL450 18inch 3000m3/h hydraulic cutter suction dredger | |
Dredger LOA | 34.0m |
Hull size(L×B×H) | 23.0*7.5*2.5m |
Main pontoon(L×B×H) | 13.8*3.5*2.5m |
Side pontoon (L×B×H) | 22.0*2.0*2.5m |
Structure | Can be dismantle and re-assemble easily ,box structure, lower delivery cost |
Main engine brand & power | Cummins /596kw |
Auxiliary engine brand& power | Cummins /224kw |
Harbour generator | Cummins/30kw |
Dredging pump | Warman Technology |
Discharge pipe inner Dia. | 450mm |
Head | 48m |
Max. dredging depth | 14m |
Water flow | 3000m³/h |
Solid sand capacity | 600m³/h |
Discharge distance | 1500m |
Cutter head Dia. | 1500mm |
Cutter power | 80kw |
Draught | 1.7m |
Displacement | 224T |
Hydraulic control system | PLC Siemens |
Wire rope pulling force (Lifting winch )*Quantity | 80KN *1 |
Wire rope pulling force (Traversing winch )*Quantity | 80KN *2 |

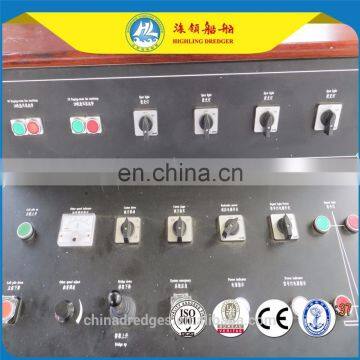

Operation room | Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights |
Total weight | 130T |
Total power | 820kw |
Total fuel oil consumption | 123L/H |
2.Main component

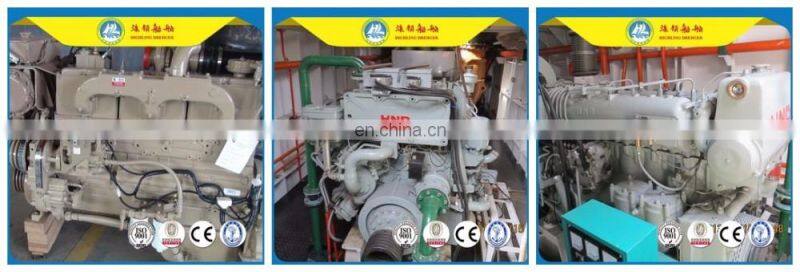

1).Main engine Every Highling Dredger is equipped with the following world class disel engine, such as Cummins , Caterpillar, DEUTZ MAN-WMW, Weichai and so on, which can be guaranteed the after-sale service all over the world. Customers can choose any one according to their requirements!

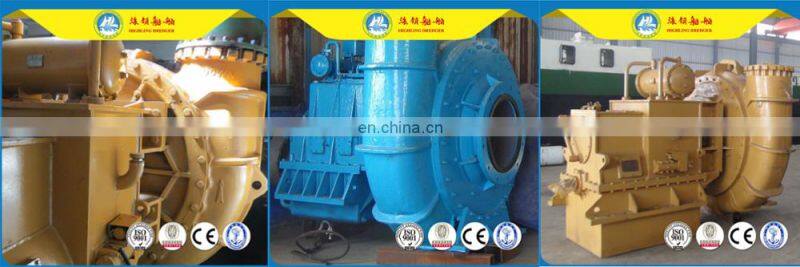

2).Dredging pump The dredge pump is high efficiency made from wear resistant casting impeller and liners fitted on heavy duty shaft and high quality roller bearings. The impeller is fitted on the shaft by trapezoid thread directly machine on the shaft end. The shaft sealing is a water cooled sealing that can be replaced after wear life

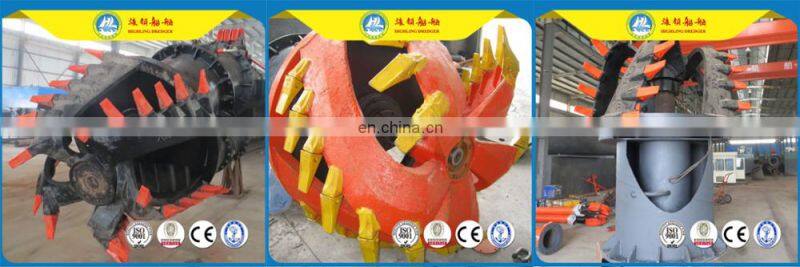

3).Cutter Head The cutter motor is hydraulic driven low speed and high torque heavy duty design. The cutter motor is mounted on the cutter front piece on the ladder end. A special cover is provided to protect the motor from damage due to sand, rocks and debris. The cover can be removed for easy inspection and maintenance.

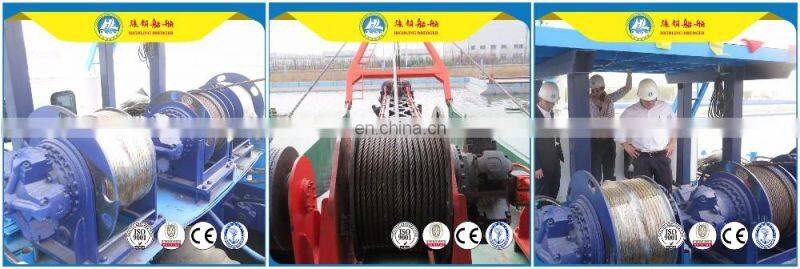

4).Hydraulic Winches For hosting the ladder, a lift winch is provided on the front of the main pontoon mounted on a stiffened foundation. For ladder side pull, two winches are provided on the front of the main pontoon mounted on a stiffened foundation.The winch is hydraulically driven through a reduction gearbox build in the winch structure. The winch has a disc brake which is automatically activated in case of pressure drop. The winch is operated from the control cabin and has one fixed speed.

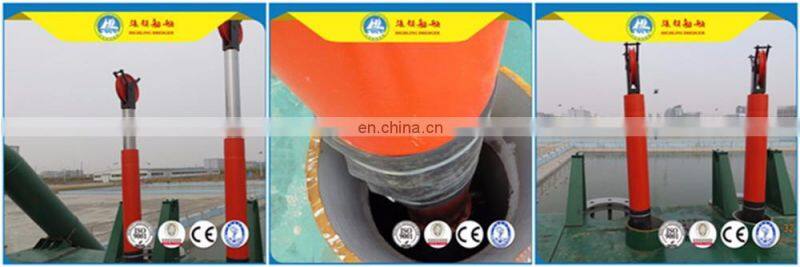

5). Hydraulic Spud Lifting Cylinders
For each spud one spud lifting cylinder is provided with a steel cable for lifting the spud and repositioning the dredge. Each cylinder is connected to the main pontoon by ball bearing. The cylinder is kept vertically by a cylinder holder allowing the free movement of the cylinder. On top of each cylinder a sheave is provided for guiding the spud hoisting cable.

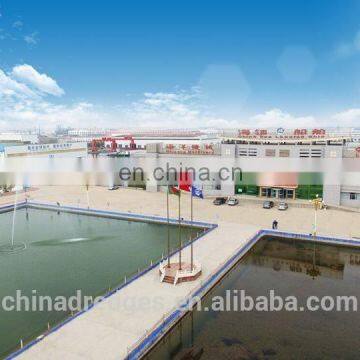

Shandong Highling Dredging Group, established in 1992, Over 20 years development,We owe three subsidiaries: Shandong Highling Dredging Equipment and Machinery Co., Ltd., Shandong Haiyang Ore Machinery Manufacturing Co.,Ltd. and Shouguang Yongde Shipping Manufacturing Co.,Ltd., Group company covers an area of 1500 acres,with more than 800 employees. Annual turnover achieve 60 million dollars,The products are of a great variety, including 500-20000m³/h large scale dredger, Iron&Gold Mining Machinery, sand transportation ship, multi-function service work boat etc, which widely used in sand-excavating, river dredging, channel maintenance and broaden, desalting, blow fields stretched, port construction, etc. All the products can be customized according to client’s requirements, formed a complete dredging machinery industry chain.
1. Pre-sale services:
Select proper equipment model; Design and manufacture products according to clients' special requirement; Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
2. After-sale services:
Assist clients to prepare for the first construction scheme; Install, debug and examine the equipment; Train technical personnel the first-line operators; Provide technical exchanging;
Offer spare parts at a best price for long term.
