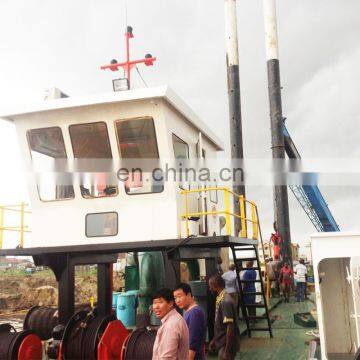

Non-self Propelled Portable River Suction Dredger Sale at Cheap Price
US$ 100,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jin Meng Dredger
Place of Origin:
Shandong, China
Type:
Cutter Suction Dredger
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China 14inch Cutter Dredger Vessel for Sand MiningUS$ 500,000 - 3,000,000MOQ: 1 Set -
New China Cutter Dredger Hot Sale With Low Price for DredgingUS$ 1,000,000 - 1,300,000MOQ: 1 Set
-
5000m3 Huge Capacity Canal Dredging Equipment With Cutter Head Made in ChinaUS$ 100,000 - 1,000,000MOQ: 1 Set
-
2000m3 China Cutter Suction Sand Dredger Boat Low PriceUS$ 100,000 - 1,000,000MOQ: 1 Set
-
3500m3 River Dredger With Double Dredging PumpUS$ 100,000 - 1,000,000MOQ: 1 Set
Brand Name
Jin Meng Dredger
Place of Origin
Shandong, China
Type
Cutter Suction Dredger
Certification
ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
24 Months
Weight
130T
Dimension(L*W*H)
30X7.2X2.0m
Power Type
Diesel
Condition
New
Draught
120 cm
Dredging Depth
12 m
| 1. Weifang Jin Meng Dredger Co., Ltd.---dredger manufacture since 2000 |
| 2. JMD450 2000M3/H RIVER SUCTION DREDGER |
| Specifications for 18inch 2000m3 river suction dredger |
| JMD450 18inch river suction dredger | |||
|
Dredging Pump |
Dia. Discharge pipe | 450mm | |
| Head | 48m | ||
| Max. Working capacity | 600m3/h | ||
| Discharge distance | 1200m | ||
| Dredging depth | 12m | ||
|
Diesel Engine |
895KW | Cummins | |
| Emergency Generator | 30KW | Cummins | |
| Total power | 925KW | ||
| Oil Consumption | 139L/H | ||
| Hull Dismension | LOA*W*D | 30m×7.2m×2m | |
| Hydraulic system | Hydraulic pump | VICKERS America (Joint-venture) | |
| Hydraulic Motor | Italy SAI technology(Joint-venture) | ||
| Valves | REXROTH Germany (Joint-venture) | ||
| Operating system | SIEMENS PLC(Imported from Germany) | ||
| Ladder winch | Tension | 80KN | |
| Swing winch | Tension | 80KN | |
| Cutter Head | Crown-like | Φ1500mm | |
| Power | 100KW | ||

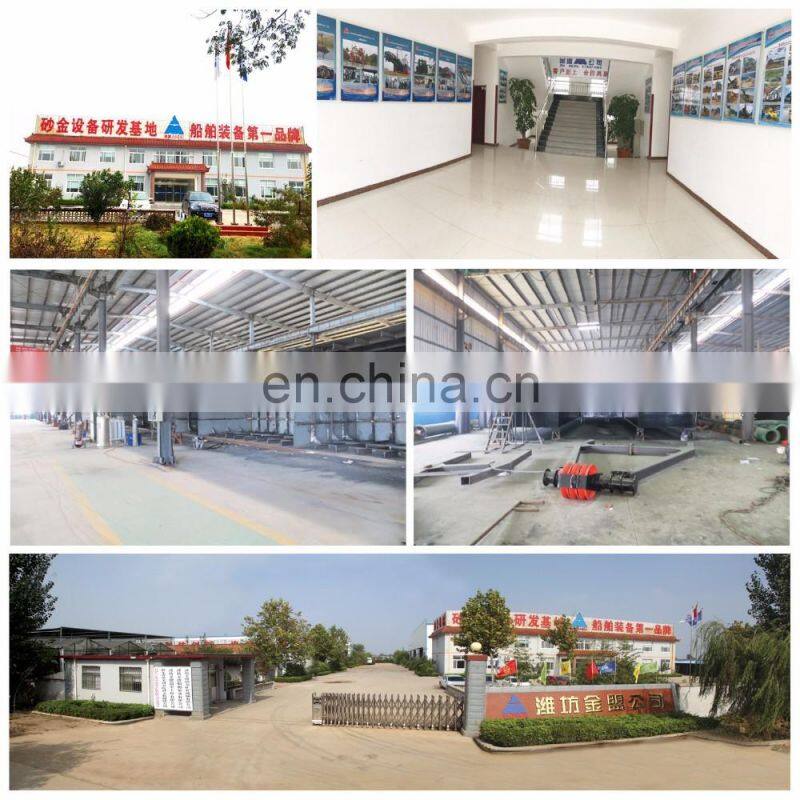

| 3. Workshop for river suction dredger |
| 4. Main parts of river suction dredger: cutter head, diesel engine, dredging pump and Hydraulic system |

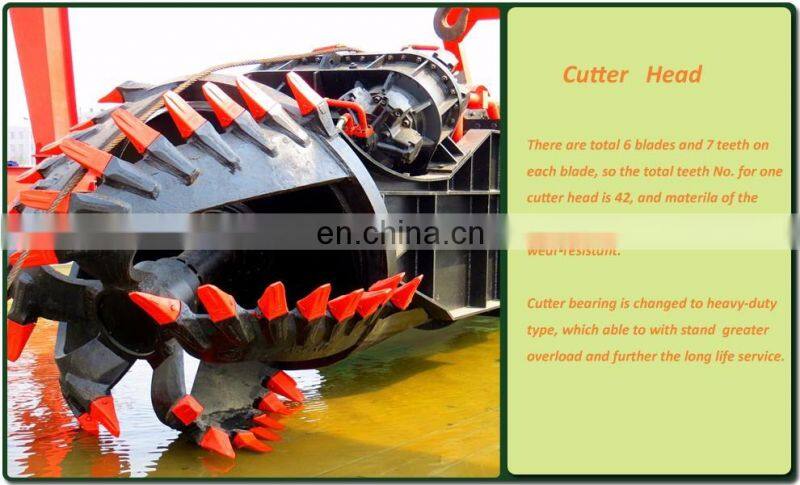

| Cutter head |

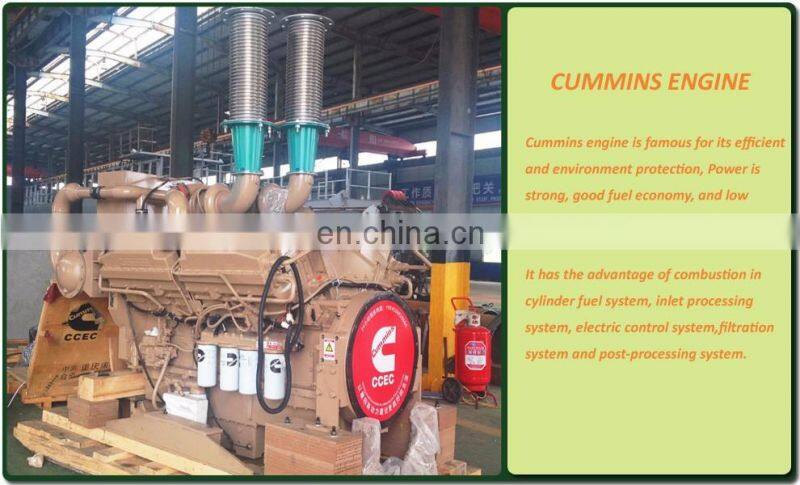

| Diesel engine-Cummins |

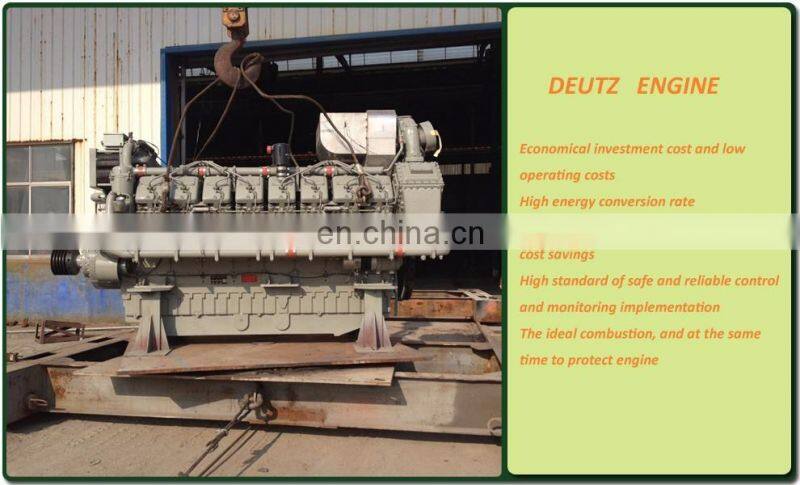

| Diesel engine----DEUTZ |

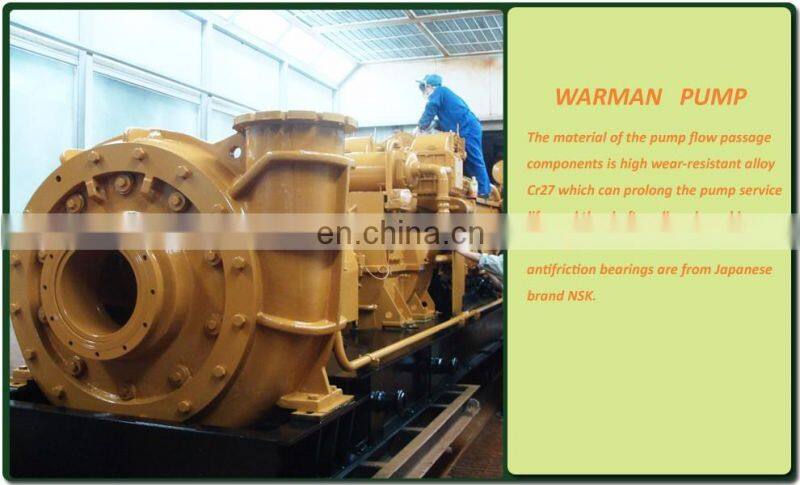

| Dredging pump----KINDA |

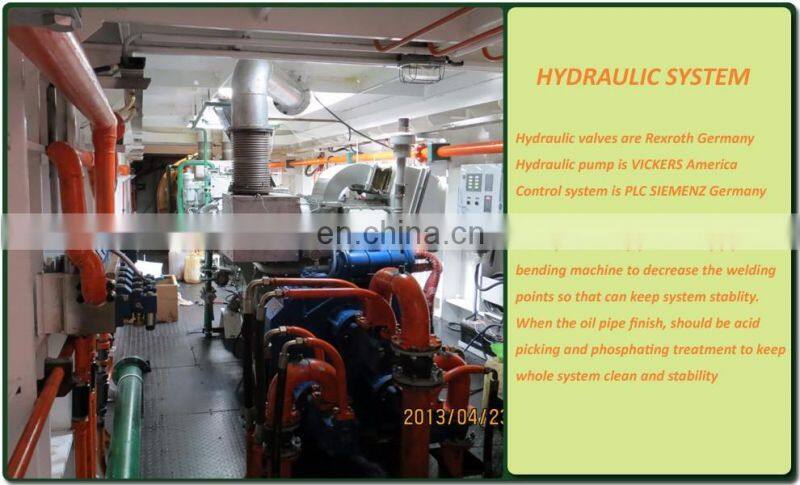

| Hydraulic system---Rexroth |
| 5. River suction dredger test before ex-factory |

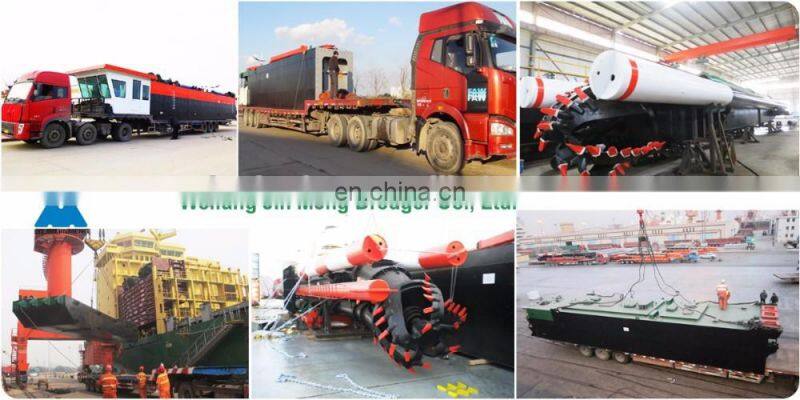

| 6. River suction dredger packaged in bulks and transported by trucks to sea port |

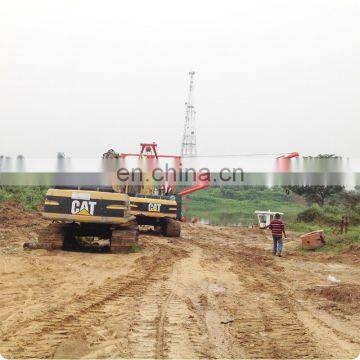

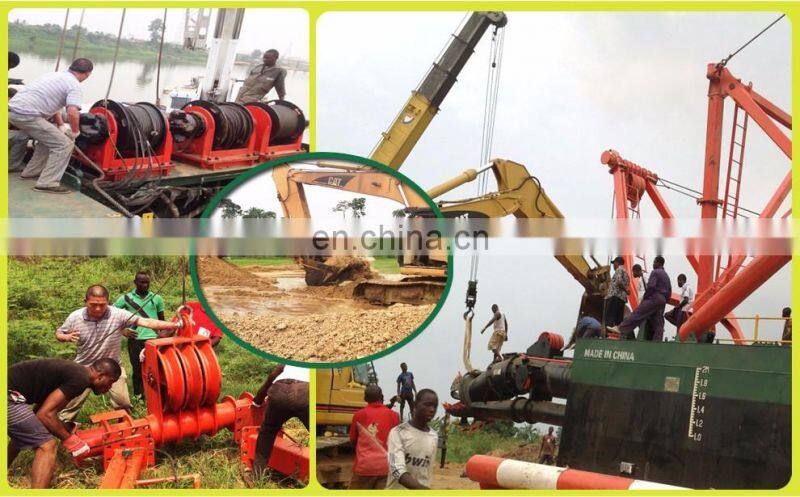

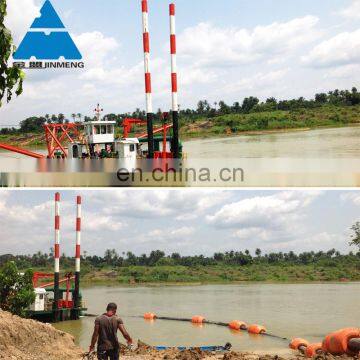

| 7. Assembly and installation work at customer's working site and two experienced engineers for over seas service |

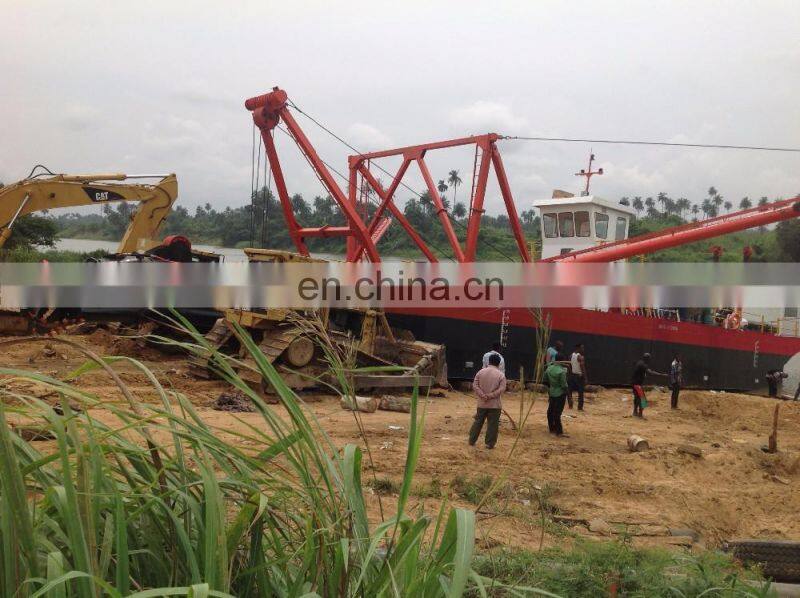

| River suction dredger lanuching |

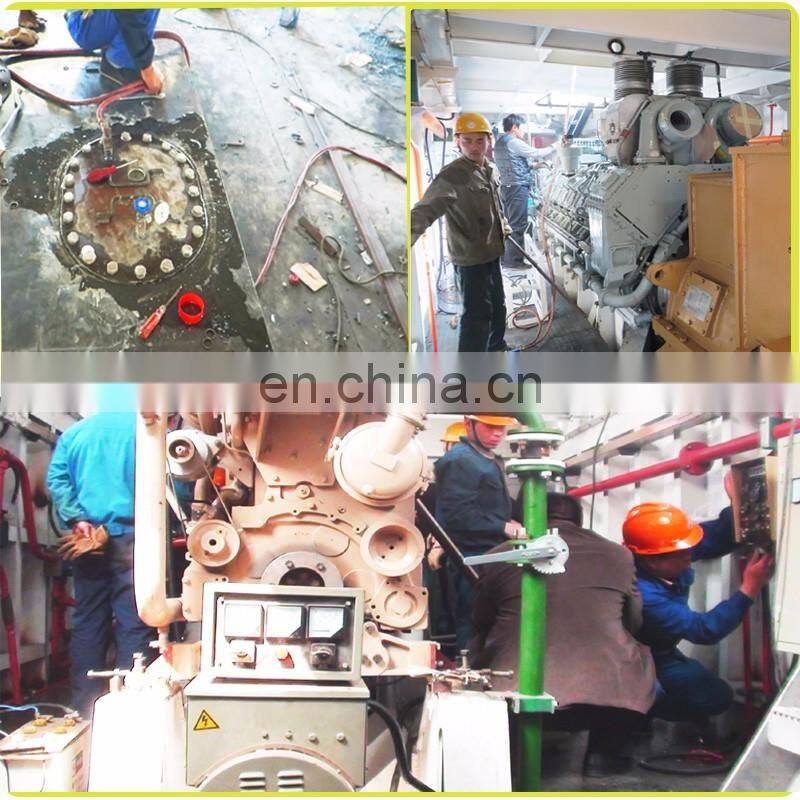

| 8. Work momery on afetr sale service and customers' visit for river suction dredger |

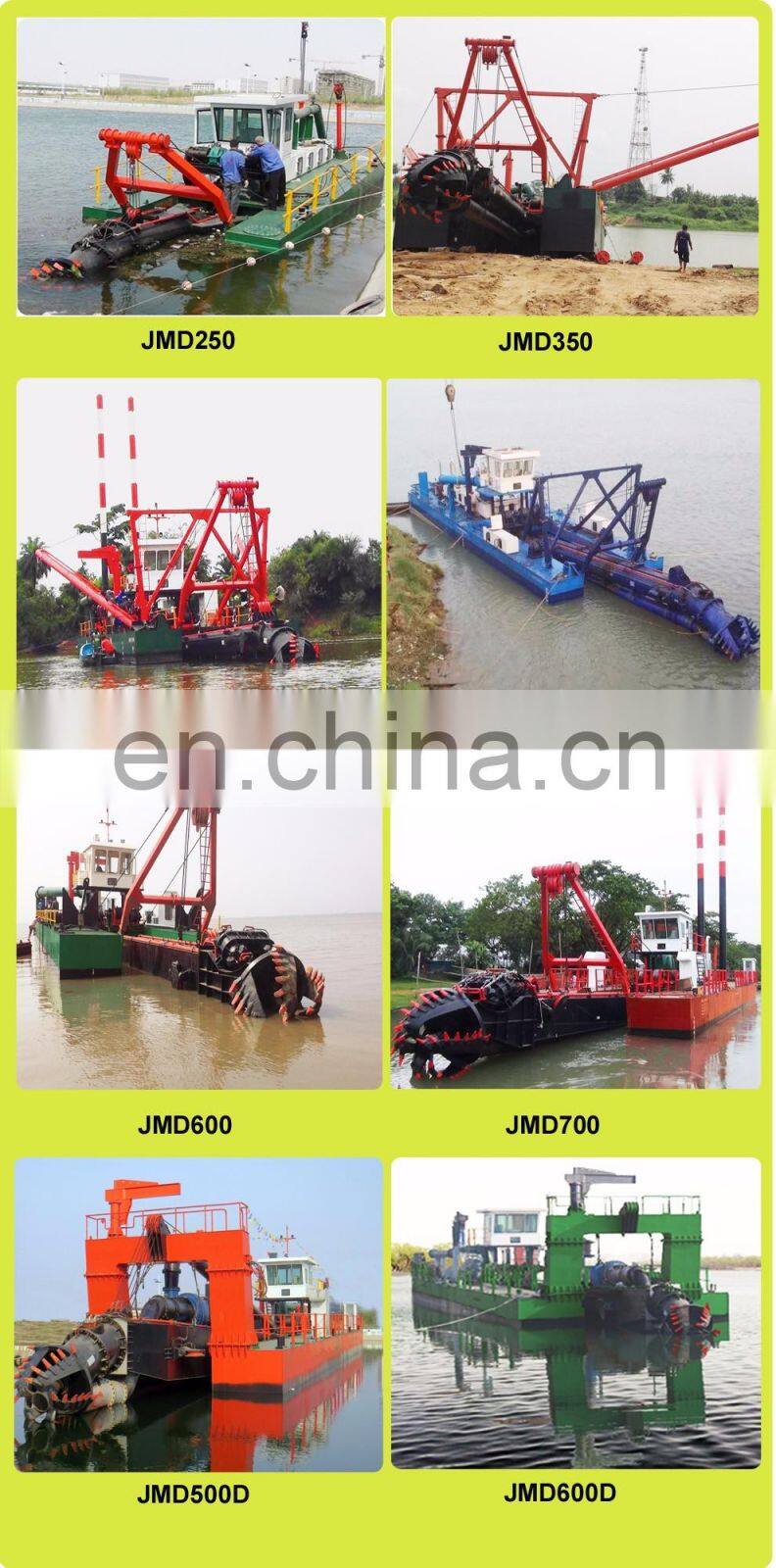

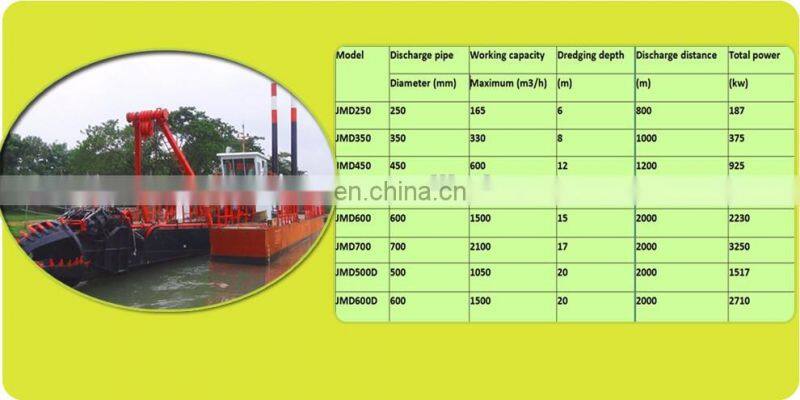

| 9. Other models of river suction dredger for your reference |

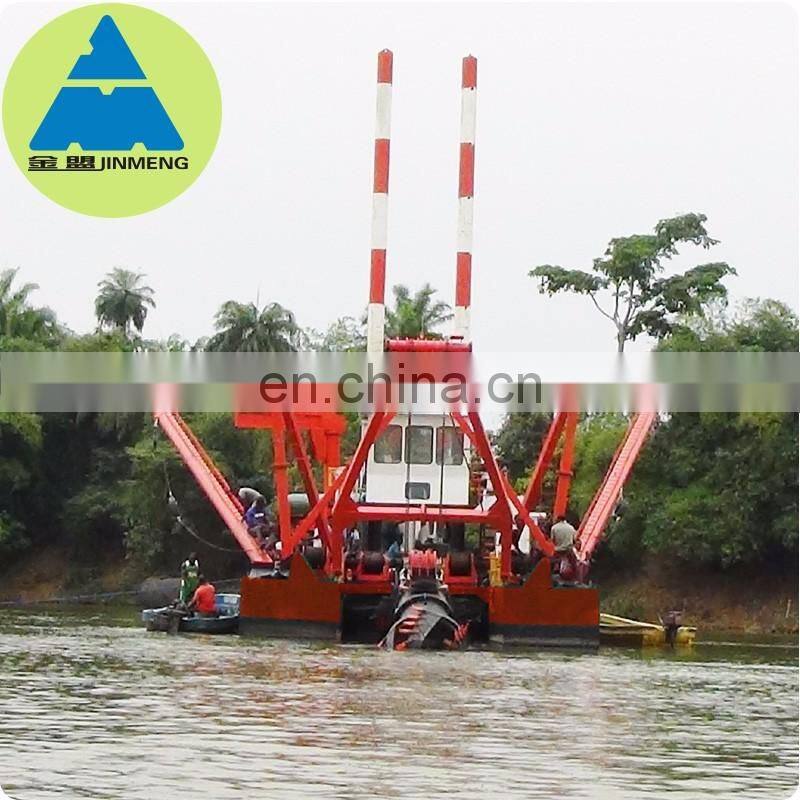

| 10. Different models pictures for river suction dredger |
