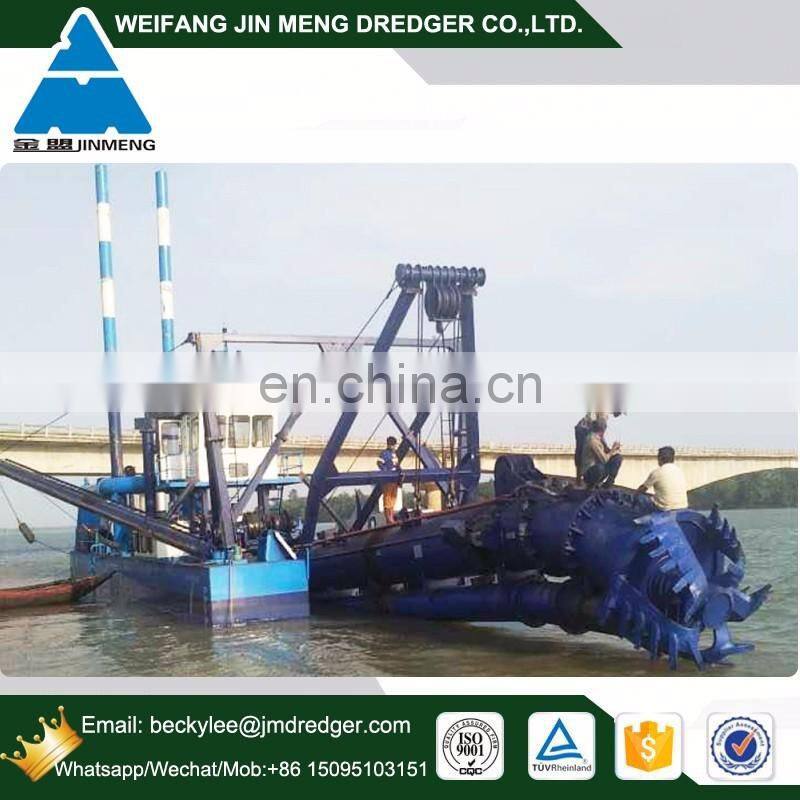

| 3500m3 Cutter Suction Dredger for Sand Dredging |
|
Sand dredger suction dredger with cutter head Design__Cutter suction dredger design meets the requirements and regulations of CCS, BV and ABS , which are belonging to IACS. The technology refer to Holland IHC, and dredger can be custom made according to customers' requirements. Research--Chief engineer Gan attended the “Local cutter dredger design study on IHC Beaver” in 2000. Steel plate__ Raw material is marine use material which meets the requirements of CCS., and all plates are under sand blasting process. Hydraulic system__Hydraulic oil pipes made by pipe bending machine to decrease the welding points so that can keep system stability. When the oil pipe finish, should be acid picking and phosphating treatment to keep whole system clean and stability. Dredging pump__flow passage components use High wear resistant alloy Cr27 to prolonged the pump service life, pump shaft seal use packing seal which is easy to maintain , and anti-friction bearings are from Japanese brand NSK. |
| JMD500 3500m3 Cutter sand dredger for sale | |||
|
Dredging Pump |
Dia. Discharge pipe | 500mm | |
| Head | 54m | ||
| Max. Working capacity | 1050m3/h | ||
| Discharge distance | 1500m | ||
| Dredging depth | 15m | ||
|
Diesel Engine |
895KW | Cummins | |
| Hydraulic Auxiliary engine | 298KW | Cummins | |
| Emergency Generator | 30KW | Cummins | |
| Total power | 1223KW | ||
| Oil Consumption | 183L/H | ||
| Hull Dismension | LOA*W*D | 36m×7.9m×2.2m | |
| Hydraulic system | Hydraulic pump | VICKERS America (Joint-venture) | |
| Hydraulic Motor | Italy SAI technology(Joint-venture) | ||
| Valves | REXROTH Germany (Joint-venture) | ||
| Operating system | SIEMENS PLC(Imported from Germany) | ||
| Ladder winch | Tension | 100KN | |
| Swing winch | Tension | 100KN | |

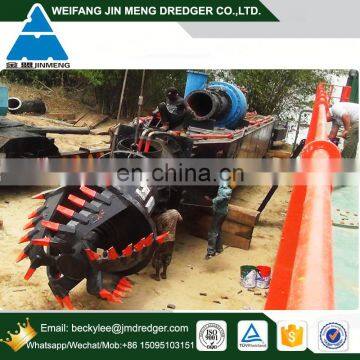

| Cutter Head | Crown-like | Φ1750mm | |
| Power | 170KW | ||
|

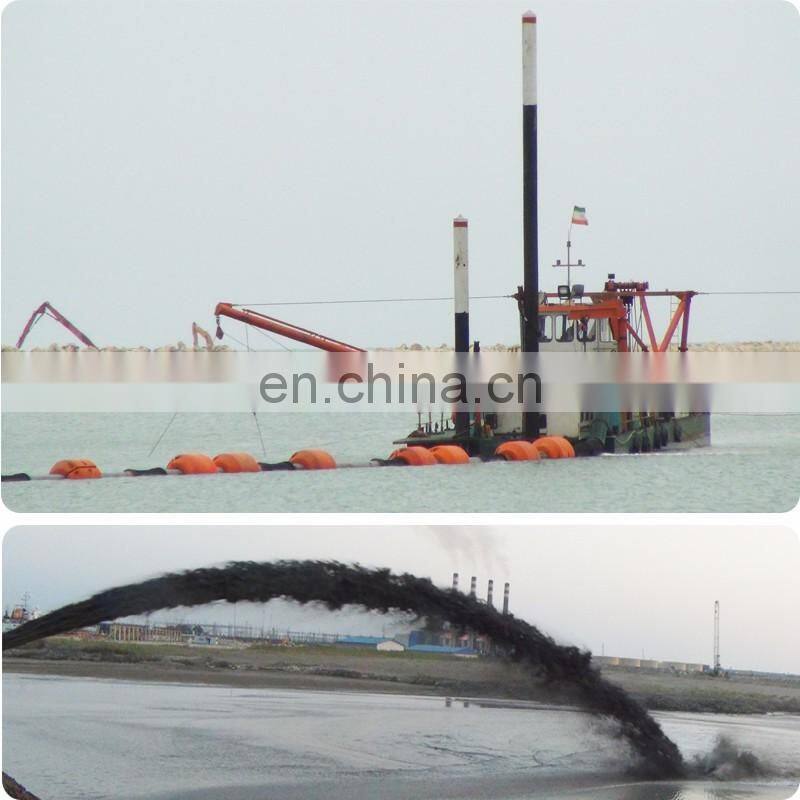

Functions of sand dredger: dredging river, dredging sand, desilting, reclamation for channels and land, and building roads. Working site of cutter suction dredger: sea, port, lake, and river. Soil conditions: relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on. |
|

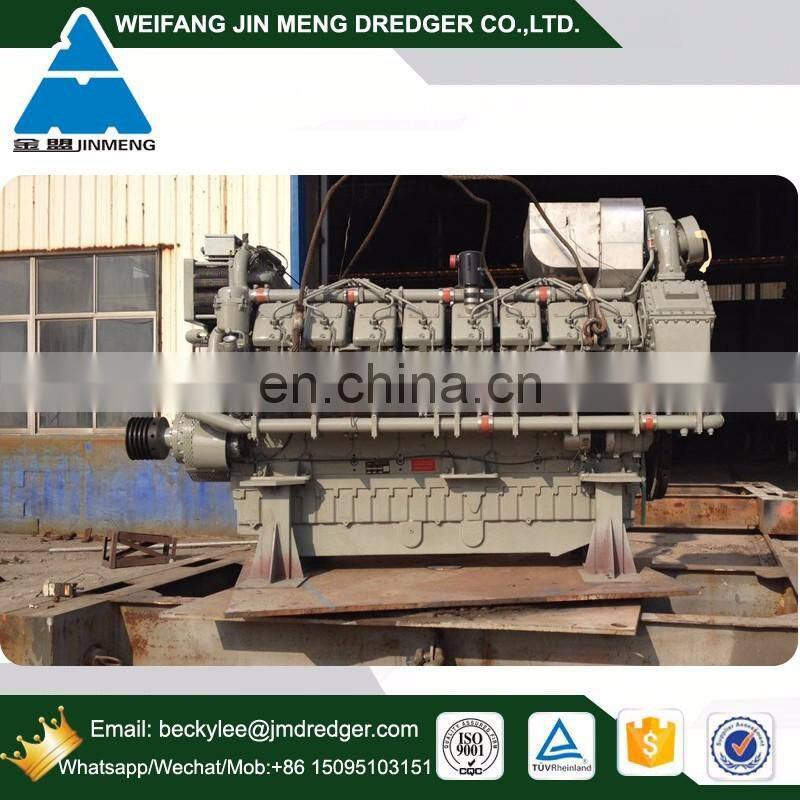

DEUTZ Engine -----Economical investment cost and low operating costs. -----High energy conversion rate -----Long cycle maintenance to save further cost. -----High standard of safe and reliable control and monitoring implementation -----The ideal combustion, and at the same time to protect engine. |
| PLC Control system---SIEMENS Germany |
|

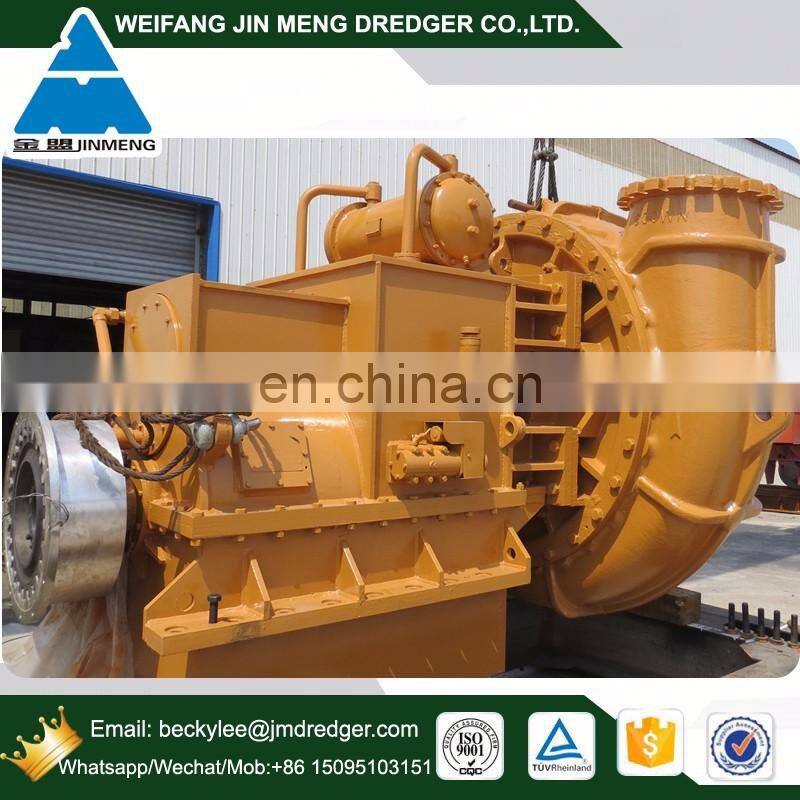

Dredging pump---KINDA he material of the pump flowing through components is Cr 27, high wear-resistant alloy which can prolong the pump service life, and the shaft sealing is packing sealing which is easy to maintain, and anti-friction bearings are from Japan NSK |
|

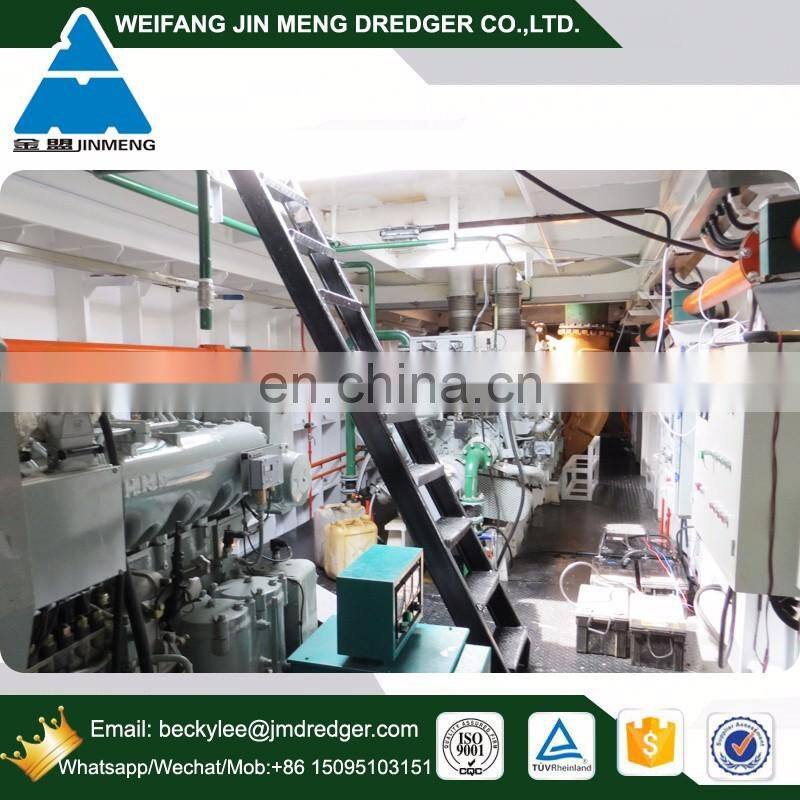

Engine room Our sand dredger hull size is designed to be enough space in the engine room which can do helpful for daily work and maintainence. |
|

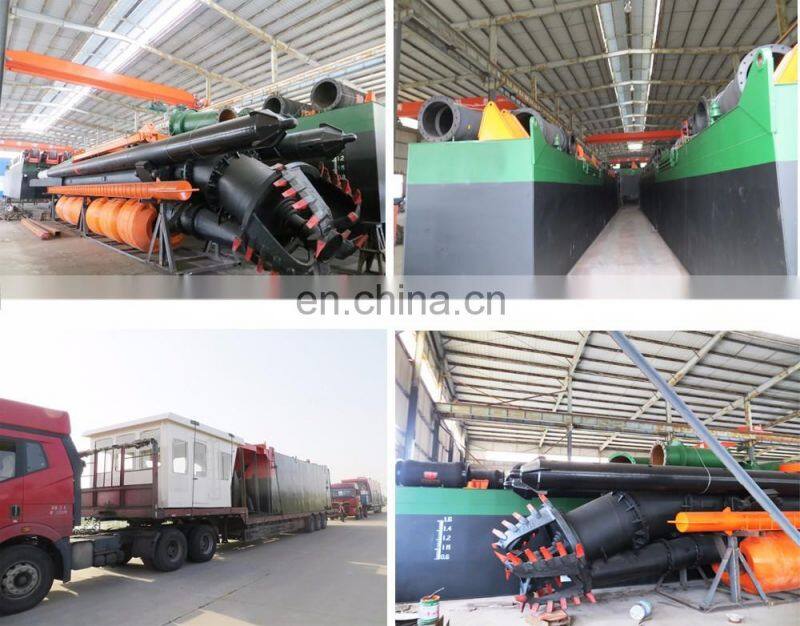

Sand dredger under pordution in the workshop A. Hull Weld 1. Steel plates- Rust removal ,Antiseptic treatment. 2. Carbon-dioxide arc welding and Submerged-arc welding. 3. Tightness test and inspection B. Deck machinery installation C. Main engine and auxiliary engine location installation. D. Hydraulic system installation 1. The pickling , phosphating treatment of the hydraulic pipes. E. The electrical installation F. The Whole machine test |
|
How is the cutter sand dredger transported? Answer: There are two ways for river sand dredger being transported, if the sand dredger size smaller than JMD350, it is easy to transported by containers; if the sand dredger size is larger than JMD350, it will be transported by bulks. The river sand dredger structure is dismuntable and assembled so that can be easy transported by trucks on road. |
|
Engineers are available for overseas service After arrive sand dredger arrive at clients' working site, we will send two experienced engineers for river sand dredger body assembly and native workers' training. With the assist of ancillary equipment like excavators and cranes , the river sand dredger assembly can be finished within 10days and training can be in one week. |
|

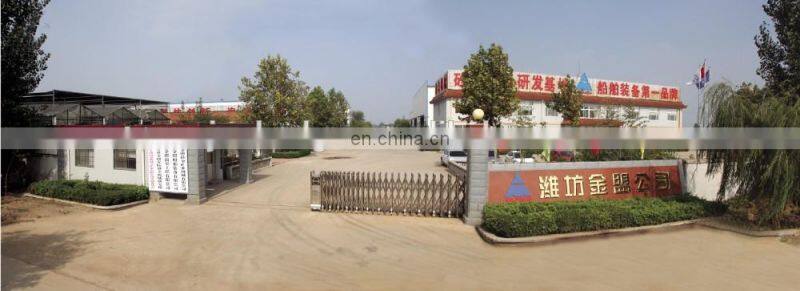

Culture : Integrity Profession Innovation Weifang Jin Meng Dredger Co.,Ltd. located in Qingzhou, Weifang City, is a manufacturer for sand dredger, work boat and gold dredging equipment,which is specialized in dredger researching, designing, production and sales. We have professional R&D department, CAD drawing design center, quality control department and after-sales service department. Our company has more than over 500 employees, including 5 professional senior engineers on dredger building and researching, 16 designers on machinery construction, 8 engineers on quality inspecting and controlling as well as 10 after-sales service engineers. |
