Best Manufacture Hammer Lug Union Figure 1003

    Figure 1003 hammer union have a ball seat, can provides positive seal with up to 7.5° misalignment , the total misalignment angle is 15° And the replaceable O-ring on male sub provides primary seal. These union recommended service air , water , oil ,gas , mud service and for high pressure connections where lines cannot be aligned . It’s service 10000psi cold working pressure for 3’’ , 7500psi cold working pressure for 4’’ and 5’’ .

    Figures and the details for fig1003 :

u Working pressure :  3’’ 10000psi  4’’ and 5’’ 7500 psi

u Replaceable O-ring on male sub provides primary seal

u Available with threaded or butt weld ends

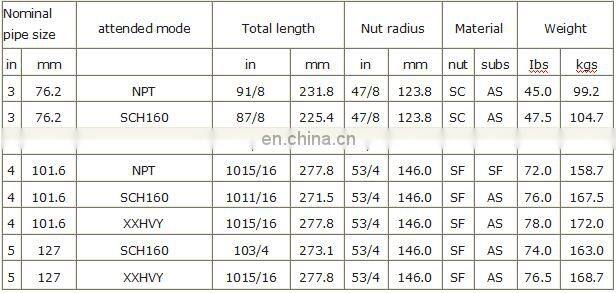

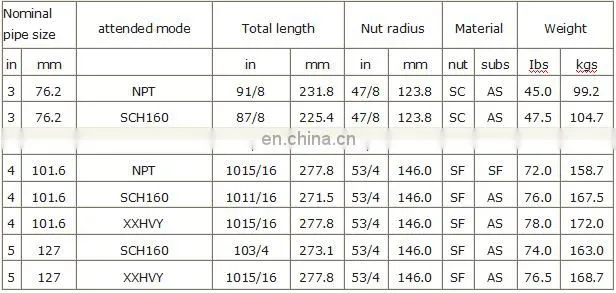

Products Specification :

   Hebei Huayu Special Rubber Co., Ltd. We have many years experience to produce the unions also have advanced equipment and skilled workers to control the product quality and we have been focusing on research and development the best products in recent years . With our best service attitude and the good products ,we have established long term cooperation relationship with many large companies and we have exported our union products to many countries.

We are the leading manufacturer of complete union products, such as fig 100 hammer union , fig 200 hammer union ,fig 206 hammer union ,fig 207hammer union , fig 400 hammer union , fig 602 hammer union ,fig 1002 hammer union , fig 1003 hammer union , fig 1502 hammer union . They are used pipe line and high pressure equipment connection ,they have different cold working pressure and structure but our union are easy installation and uninstall .
