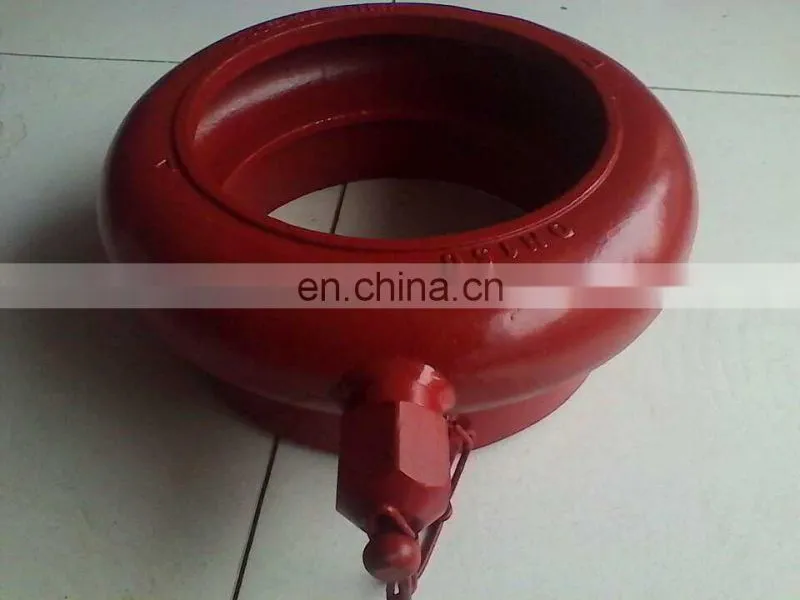

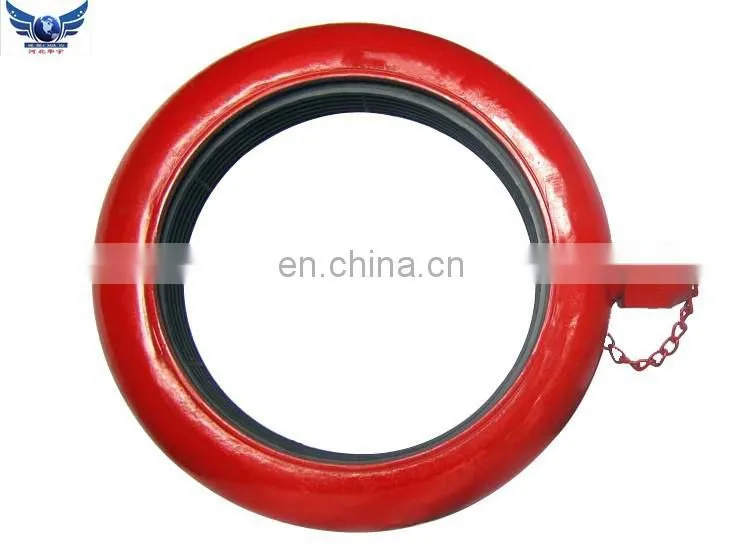

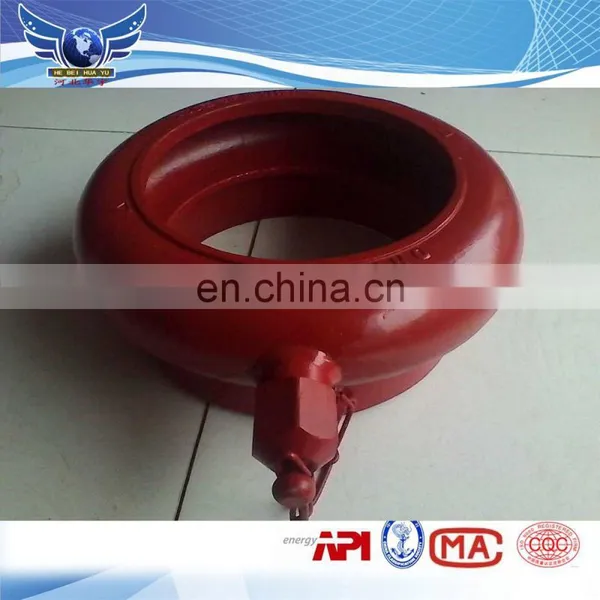

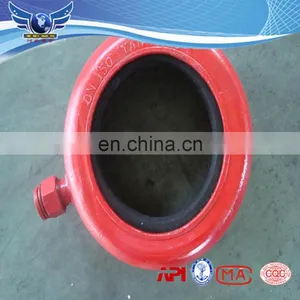

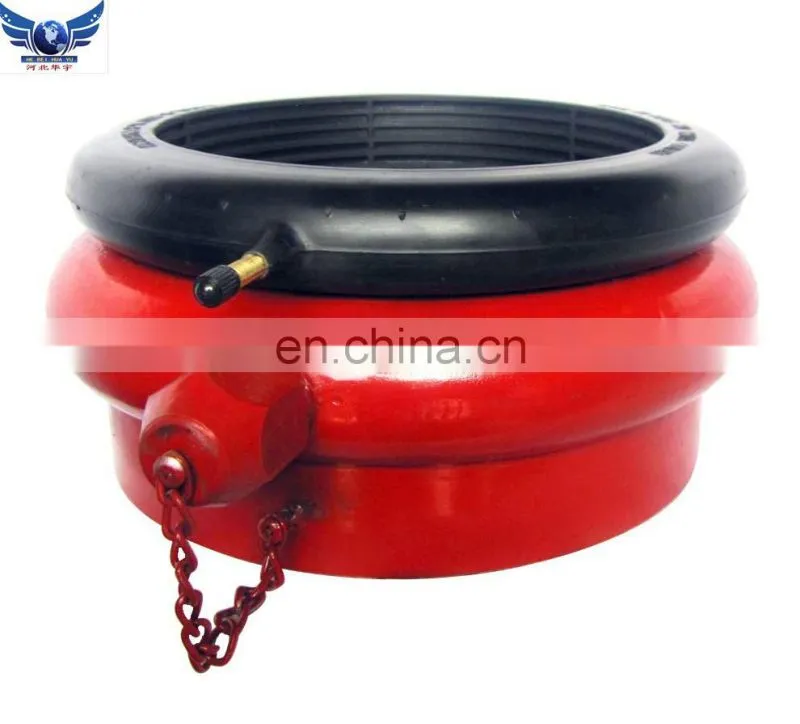

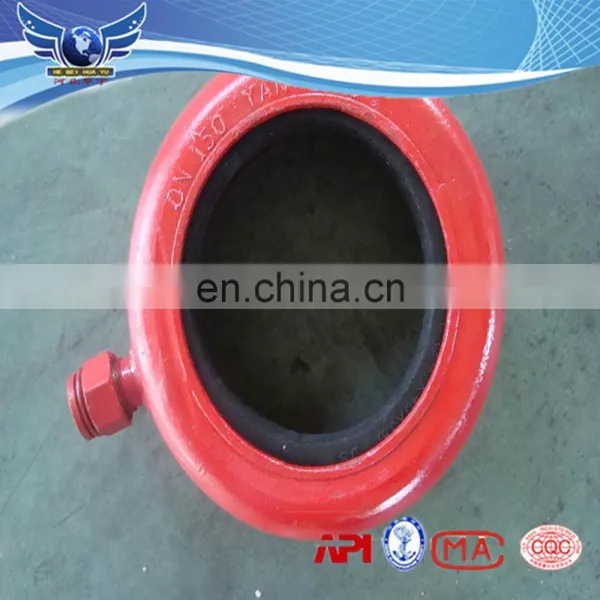

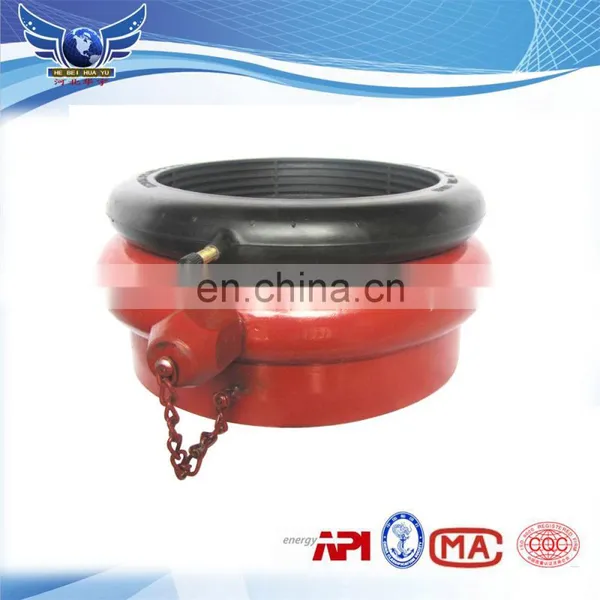

Air Grip Unions

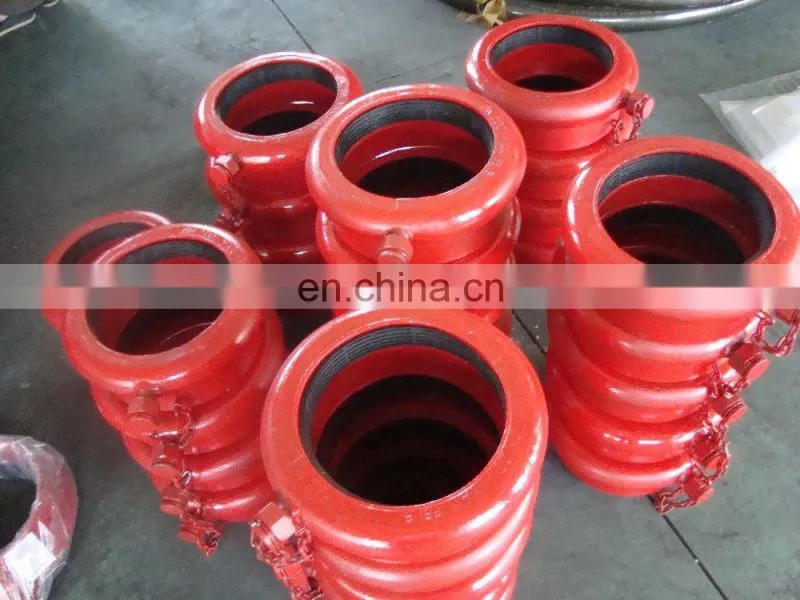

Air Girp Union is widely applied in driling fluidpipelines,with features of low-pressure,large pipesize,big pipe misalignment ,frequent installation and uninstall.Especially, in connecting mud tanks, mud suction and return lines in solid control system.
150psi maximum line pressure,4,6,8,10,12,14 and16 inch sizes.
Features:
• Shot of rig air inflates tube to seal around pipe
• Fast, easy make-up without close alignment
• Allows pipe expansion or misalignment without breaking the seal
• No nuts, bolts, or wrenches required
Normal Pipe Size(mm) |
4” (100) |
6” (150) |
8” (200) |
10” (250) |
12” (300) |
14” (350) |
16” (400) |
Tube I.D.(mm)A |
114 |
171 |
222 |
278 |
329 |
384 |
413 |
Body I.D.(mm)B |
117 |
176 |
227 |
283 |
333 |
388 |
416 |
Butt-weld I.D.(mm)C |
129 |
203 |
257 |
308 |
340 |
409 |
441 |
Butt-weld I.D.(mm)D |
141 |
219 |
273 |
324 |
356 |
425 |
547 |
Body O.D.(mm)E |
168 |
260 |
311 |
368 |
419 |
476 |
503 |
Height(mm)F |
80 |
102 |
102 |
108 |
108 |
108 |
108 |
Wt.(kgs)-Air bag |
0.3 |
0.65 |
0.8 |
1.0 |
1.2 |
1.5 |
1.7 |
Wt.(kgs)-Assembly |
5.5 |
8.2 |
9.2 |
12 |
13.5 |
15 |
20 |
