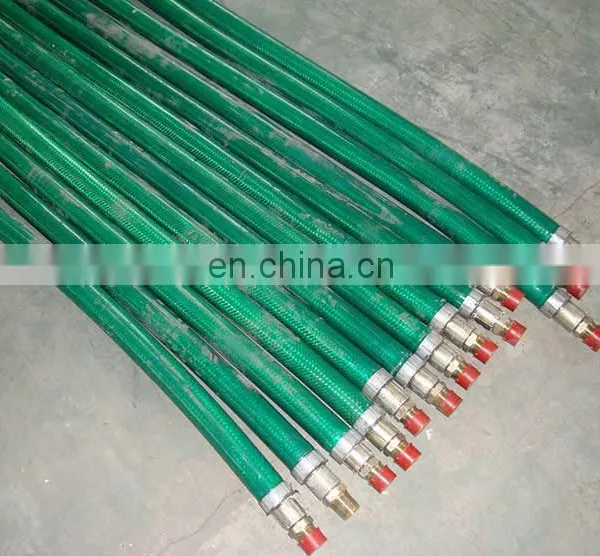

Flame Resistant Hose

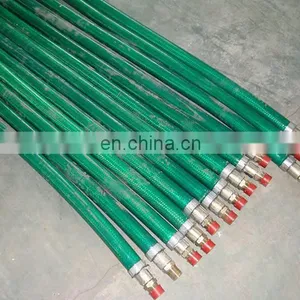

Flame Resistant Hose thumbnail-1
Flame Resistant Hose photo-1
US$ 2 - 2.5 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
Hua Yu
Place of Origin:
Hebei, China
Model Number:
Customer Requirement
Contact Supplier Request Quote Chat Now
Composite Flexible Hose Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hua Yu
Place of Origin Hebei, China
Model Number Customer Requirement

PRODUCT DESCRIPTION

Whether your business features automotive robotics, power tools or shop air lines, flame resistant hose should be considered the hose of choice for demanding applications. Most durable abrasion resistant, flame retardant multi-purpose hose. Cover is made of high quality, flexible polyurethane and provides the ultimate in abrasion and weld-spatter resistance. This tough, flame-resistant hose combines superior design with quality materials to deliver reliable, lasting performance. Although lightweight, the hose features a strong, bonded construction, providing excellent kink resistance while minimizing hose fatigue. For your convenience, vast selection of Push-Lok and crimp fittings and is available in a variety of cover colors and long lengths.

Features:

-Weld spatter resistant

-Excellent abrasion resistance

-Extreme flexibility

-Compact bend radius

-Specially formulated polyurethane tube

-Twin-line or multi-line constructions available

Applications

General purpose air and water hose often used in robotic welding applications

Construction

Tube: Specially formulated polyurethane

Reinforcement: Fiber

Cover: Polyurethane

Operating Parameters

Temperature Range:

-20°F to +200°F (-29°C to +93°C)

Change in working length @ Rated WPSI: ±2%

Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)

Nominal Bore

(mm)

External Diameter (mm)

Working Pressure(Mpa)

Burst Pressure
       (Mpa)

Min.Bend Radius
       (mm)

Threaded Connection

750°working time(min)

Normal

The Limit

Φ6.3

24

35

105

130







NPT



LP









10









25

26

70

180

Φ8

28

35

105

140

32

70

180

Φ10

30

35

105

160

34

70

180

Φ12.5

37

35

105

210

43

70

180

Φ16

41

35

105

260

47

70

180

Φ19

44

35

105

280

50

70

180

Φ22

47

35

105

320

53

70

180

Φ25

50

35

105

360

56

70

180

Φ31.5

56

35

105

460

62

70

180

Φ38

63

35

105

560

69

70

180
