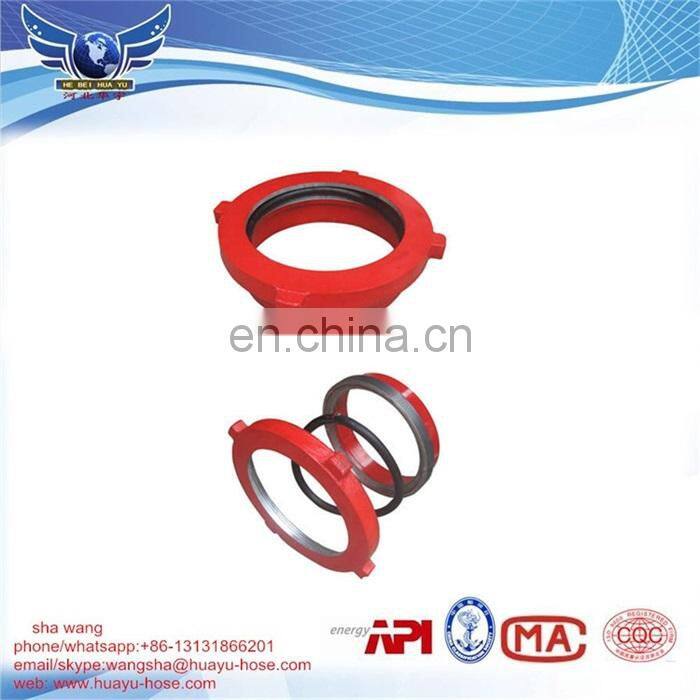

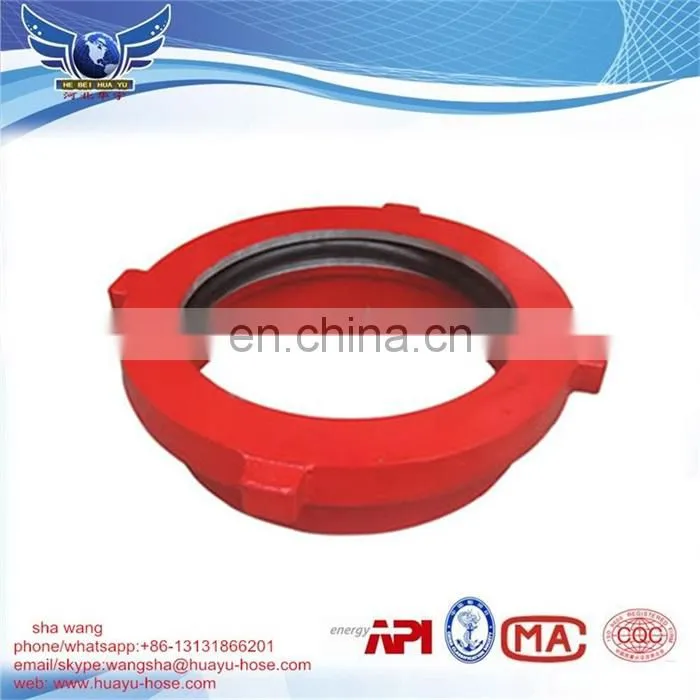

Mud Tank Union
These are manufactured for a maximum line pressure of 150 PSI. The nitrile seal provides compressive seal, the crosssection of the seal designed to provide greater sealing surface. The union is designed to take a maximum of 7° misalignment on the pipe. Sizes which are catered for are 6", 8", 10" and 12", 6", 8" and 10" sizes can be socket welded to pipe or butt welded to tubing. 12" size requires butt weld.
Features
• Elongated cross-section of seal ring ensures greater sealing surfacewhen in contact with the pipe
• Makes up with hammer
• Molded nitrile seal provides a compression seal
• Tank union accepts up to 7° pipe misalignment
• Available in 6, 8, 10, and 12 inch sizes
• 6”, 8”, 10” union s may be socket welded or butt welded to piping. 12" union s require butt-weld only
• Large diameter, medinm-low voltage and frequently dismantling, rapid installation.
Technical parameter:
1. Medium available: mud, oil, water
2. Medium temperature: 0°C~90°C
3. Ambient temperature: -30°C~50°C
4. Medium presssure: 0.6Mpa

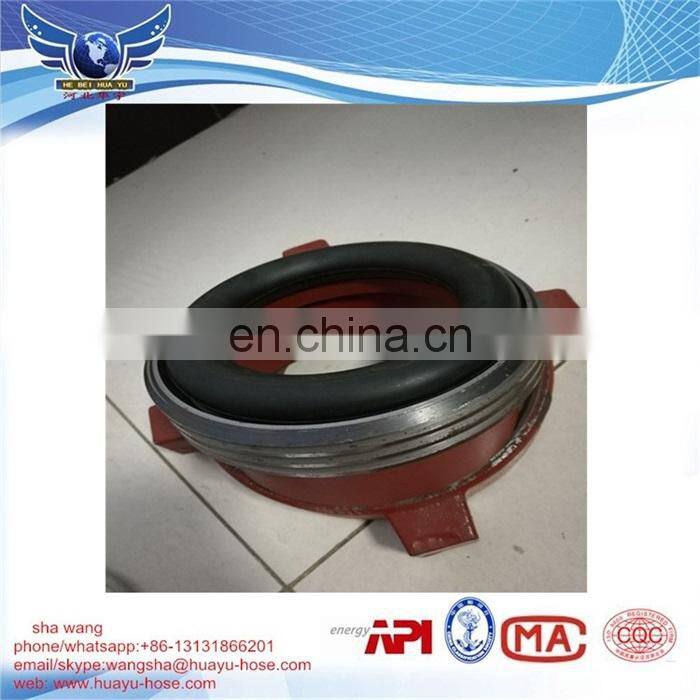

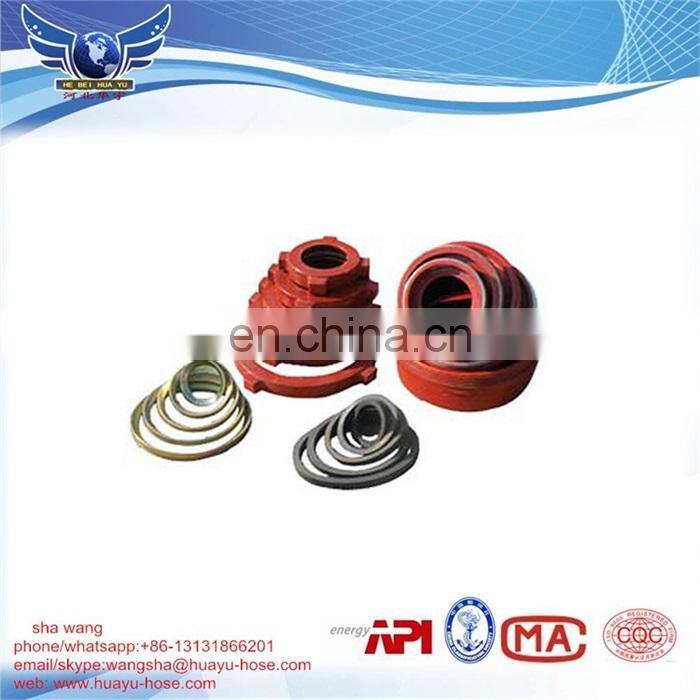

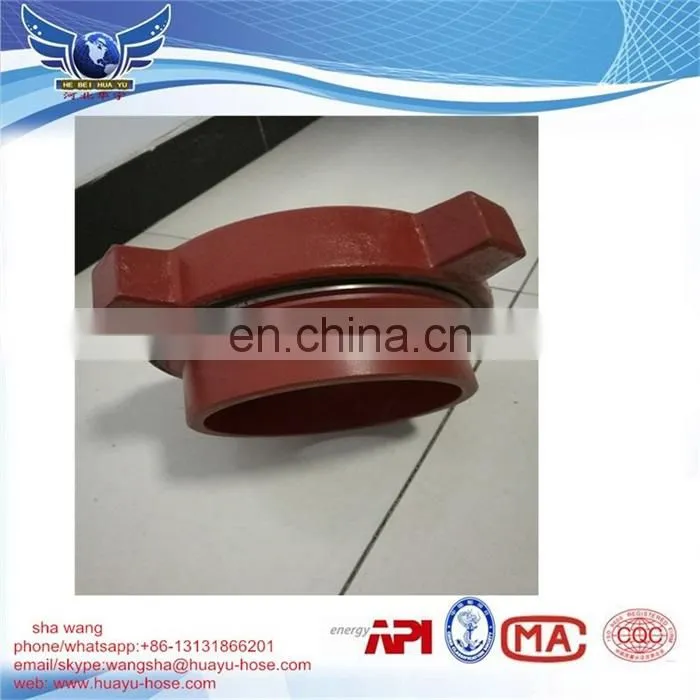

products show:
We Offer Wooden Packing Or As Your Require

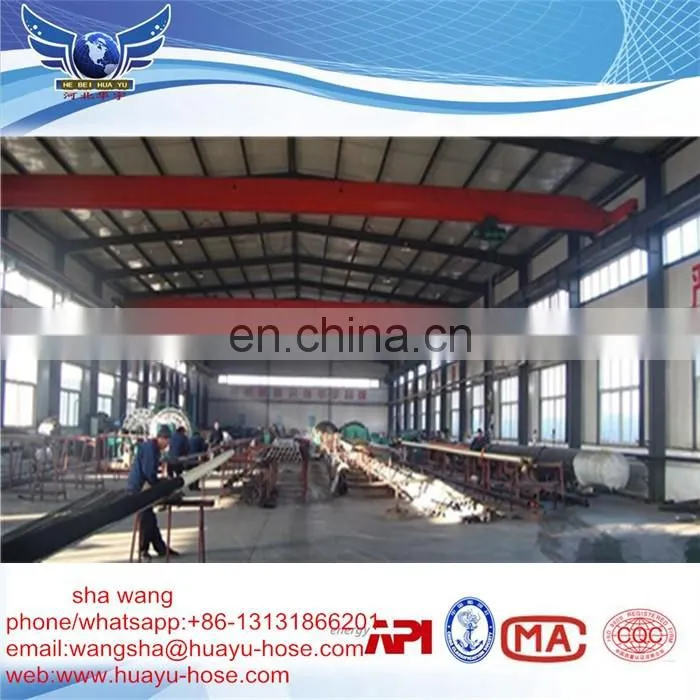

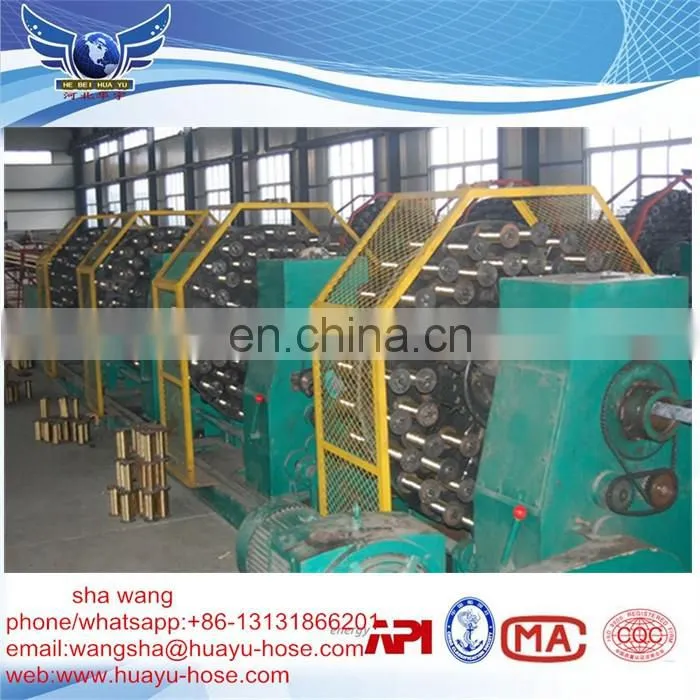

Factory Show:
Certification :
Q:Are you the manufacturer?
A:Yes, we are.
Q: Can you produce customized goods ?
A: Yes, the size, diameter and length can be produced as your requirements.
Q: Where is your nearest loading port ?
A: Tianjin Xingang, China.
Q:Can you give me your quatation sheet?
A:Yes, I'll e-mail to you.
Q: After-sale services
A: Every customer will be recorded, we will solve the problem at once, once have question.
