PRODUCT DESCRIPTION

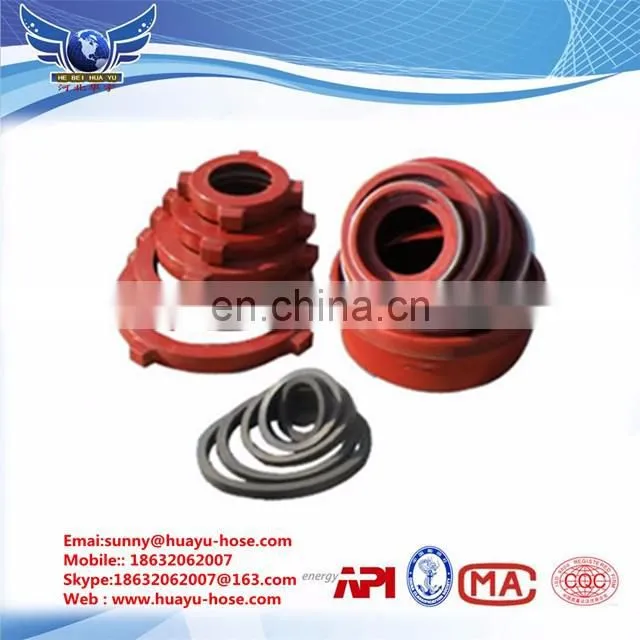

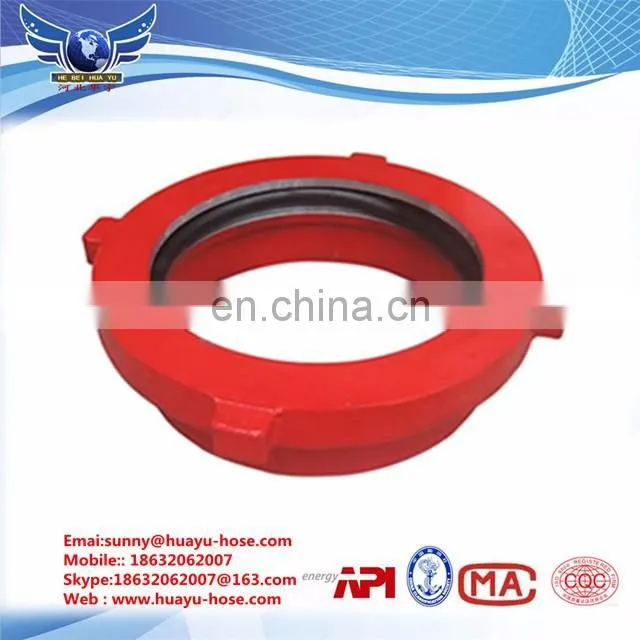

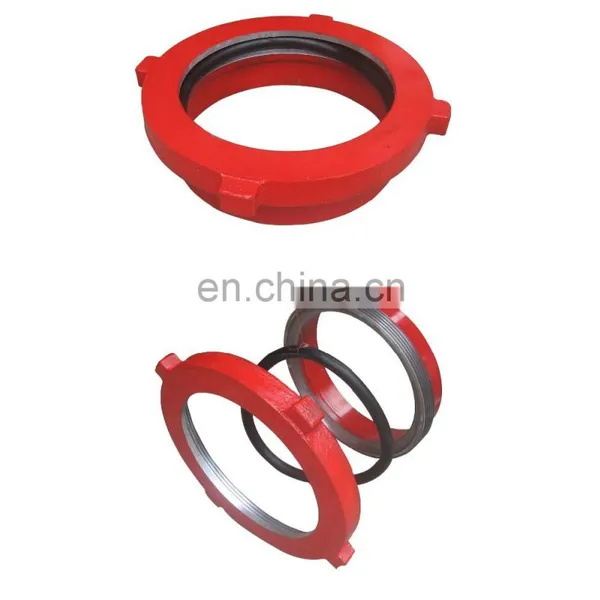

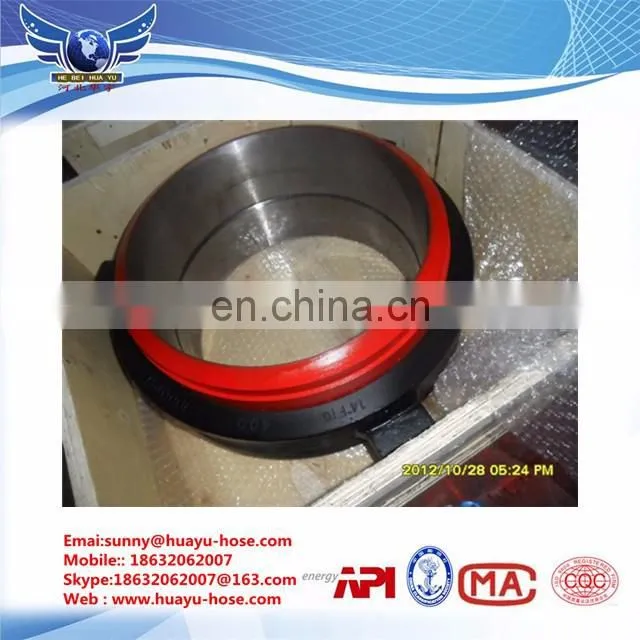

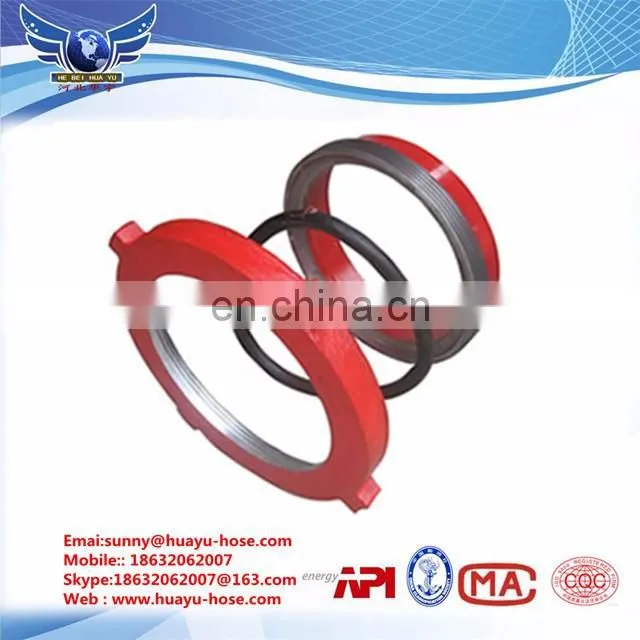

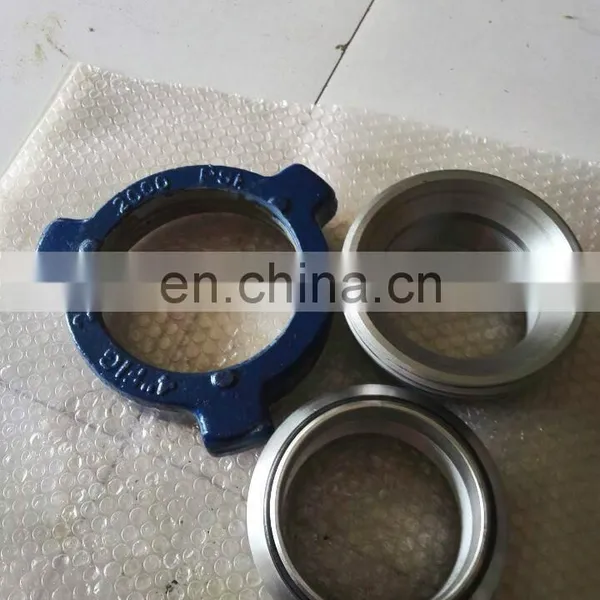

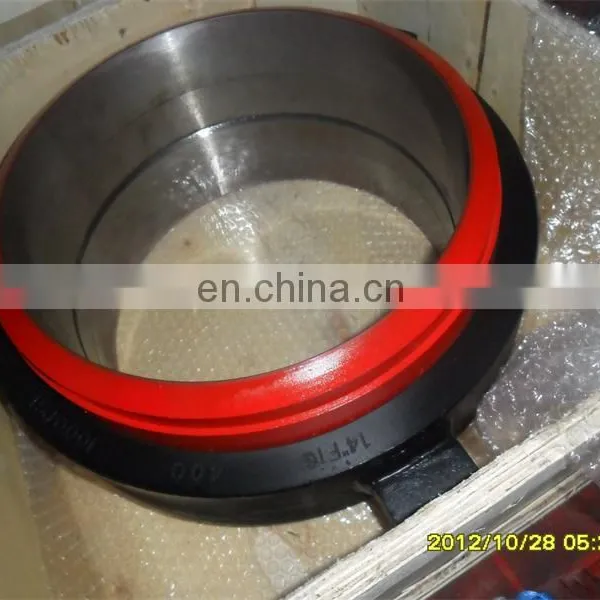

Manufactures and supplies union is for mud tanks, mud tank connecting lines and pump suction flanges. These are manufactured for a maximum line pressure of 150 PSI. The nitrile seal provides compressive seal, the crosssection of the seal designed to provide greater sealing surface. The union is designed to take a maximum of 7° misalignment on the pipe. Sizes which are catered for are 6", 8", 10" and 12", 6", 8" and 10" sizes can be socket welded to pipe or butt welded to tubing. 12" size requires butt weld.
Features
• Elongated cross-section of seal ring ensures greater sealing surfacewhen in contact with the pipe
• Makes up with hammer
• Molded nitrile seal provides a compression seal
• Tank union accepts up to 7° pipe misalignment
• Available in 6, 8, 10, and 12 inch sizes
• 6”, 8”, 10” union s may be socket welded or butt welded to piping. 12" union s require butt-weld only
• Large diameter, medinm-low voltage and frequently dismantling, rapid installation.
Technical parameter:
1. Medium available: mud, oil, water
2. Medium temperature: 0°C~90°C
3. Ambient temperature: -30°C~50°C
4. Medium presssure: 0.6Mpa
Features of mud tank union:

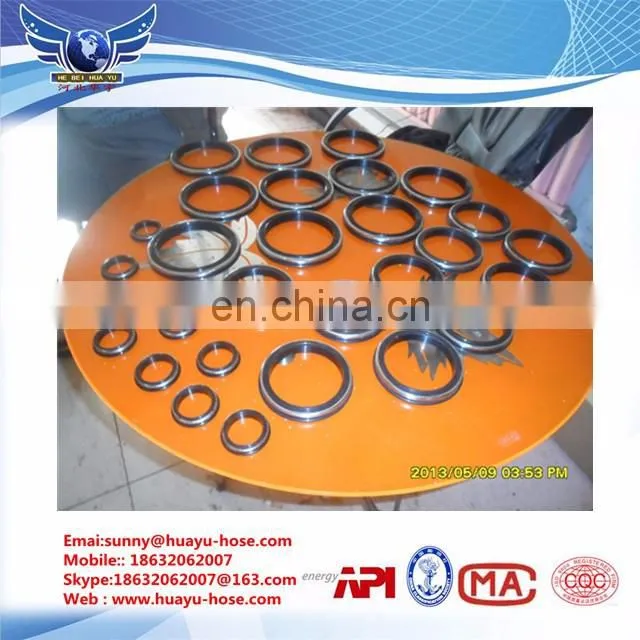

Elongated cross-section of nitrile seal ring provides greater sealing surface.
Nitrile seal ring supplies compressive sealing.
It allows up to 7° pipe misalignment.
Mud tank unions of 6, 8 and 10 inch can be socket welded or butt welded to pipe, and 12 inch union can be butt welded only.
Suitable for the pipeline connection which features low pressure, large diameter, large misalignment and fast and frequent installation and dismantlement.
The details of mud tank union:
Media available: water, drilling fluids (containing oils, acids and alkalis).
Media temperature: 0 °C to 90 °C.
Environment temperature: -30 °C to +50 °C.
Max sealing pressure (fluid pressure): 0.6 MPa.
Available sizes: 6", 8", 10" and 12".

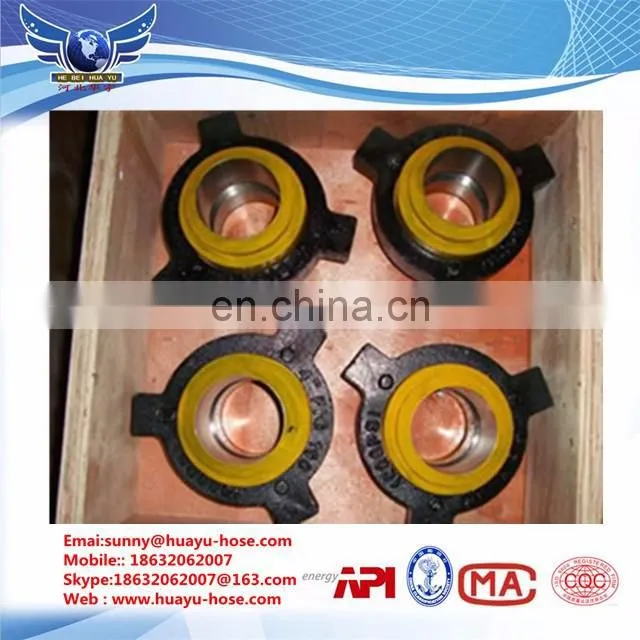

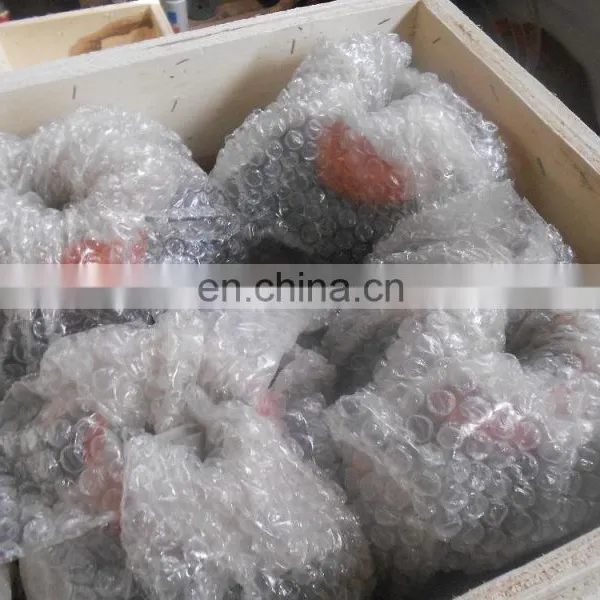

Packing Details : High pressure pipe fittings stainless steel fmc weco figure 200 fig206 fig400 hammer union for oil drilling stantard export package or as per customer's request.
Delivery Details : 15 days after receive customer advance payment
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
