Sand high temperature pressure transducer
Description Sand high temperature pressure transducer
High temperature melt pressure transducer,pressure transducer manufactureradopts strain type priciple, can measure the liquid pressure below 500 degree.
Melt pressure transmitter is widely used in the plastic extrusion industry pressure measurement, such as chemical fiber equipment, plastic and rubber manufacturing equipment, polyester, petrochemical and high temperature fluid pressure measurement and control. Can be used with intelligent digital pressure instruments and control instruments supporting the use of pressure and temperature display and control.

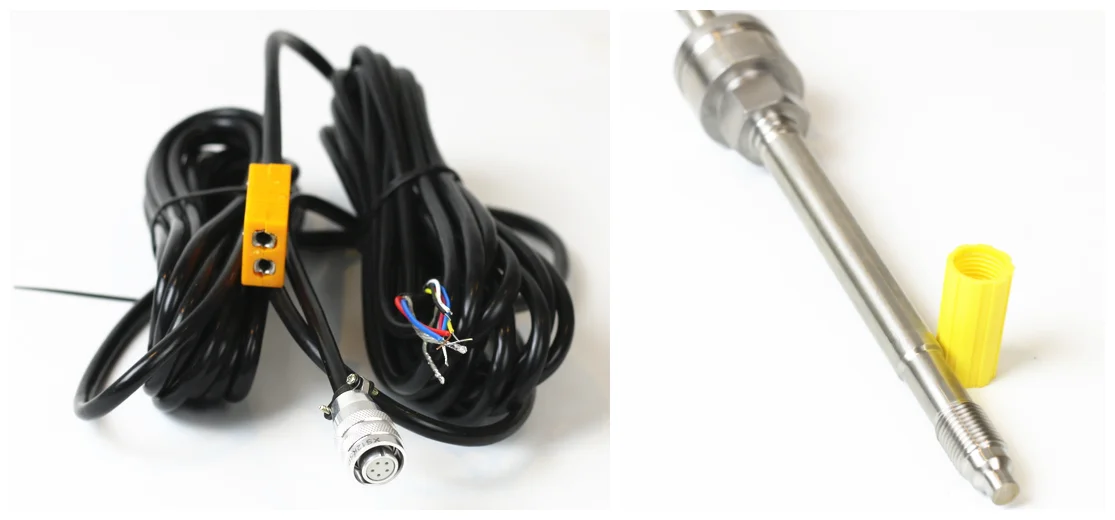

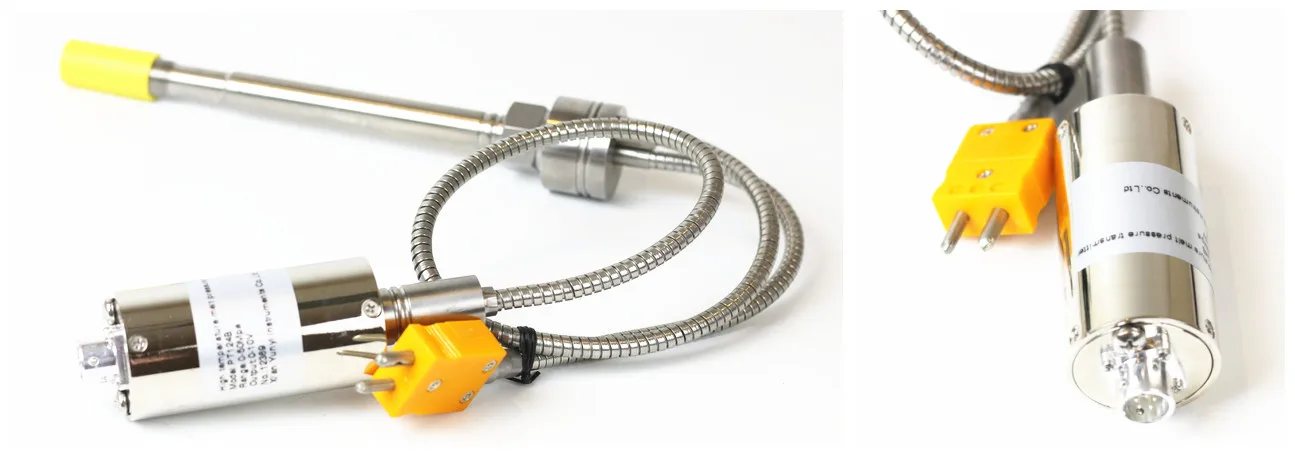

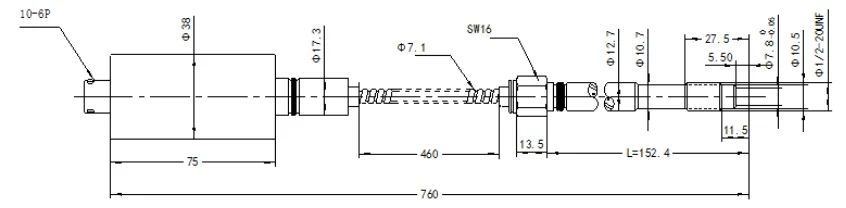

Detailed Images Sand high temperature pressure transducer
Parameter China OEM high temperature Melt Pressure Sensor
Sand high temperature pressure transducer
Pressure Range: 0~1-300MPa
Accuracy: 0.25%FS; 0.5%FS
Output: 2.0mV/V;4~20mA;0~5V;1~5V;0~10V
Calibration signal: 80%FS calibration; zero and full scale adjust
Working Temperature:0~450°C
Power supply: Sensor:10VDC(6-12VDC) Transmitter:24VDC(9~36 V)
Long stability: 0.1%FS/year
Insulation resistance: more than 2000M Ω 100VDC
Vibration influence: For the mechanical vibration of 20HZ-1KHZ, the output change is less than 0.1%FS
Seal grade: IP65
Signal extraction: 5pin
Thread connection: M14X1.5(general); M16X1.5; M18X1.5; M20X1.5; M22X1.5(general); Other threads can be designed according to user requirements.
