Used Taiwan Microcut HBM-6T Boring-mill Machin

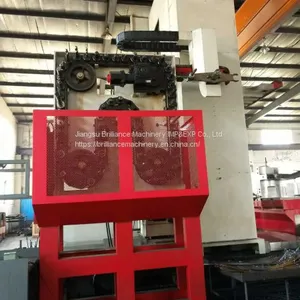

Used Taiwan Microcut HBM-6T Boring-mill Machin thumbnail-1

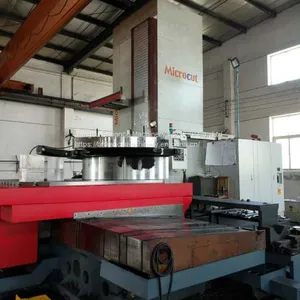

Used Taiwan Microcut HBM-6T Boring-mill Machin thumbnail-2

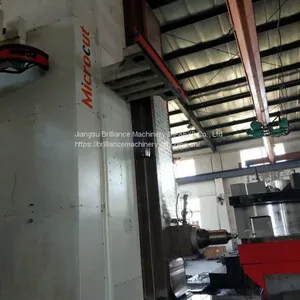

Used Taiwan Microcut HBM-6T Boring-mill Machin thumbnail-3

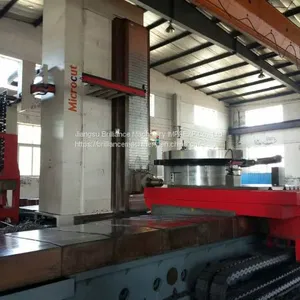

Used Taiwan Microcut HBM-6T Boring-mill Machin thumbnail-4

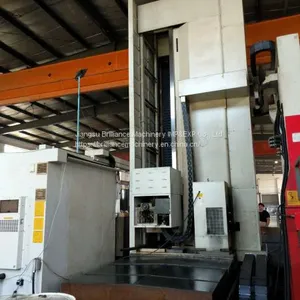

Used Taiwan Microcut HBM-6T Boring-mill Machin thumbnail-5
Used Taiwan Microcut HBM-6T Boring-mill Machin photo-1

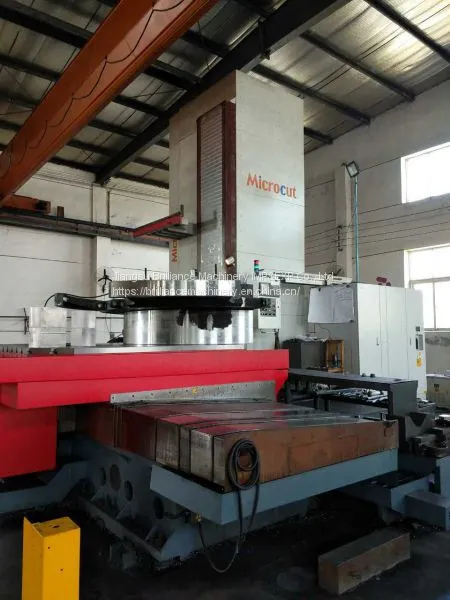

Used Taiwan Microcut HBM-6T Boring-mill Machin photo-2

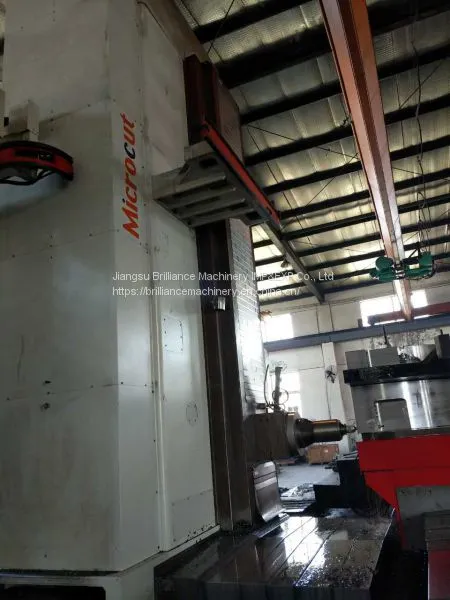

Used Taiwan Microcut HBM-6T Boring-mill Machin photo-3

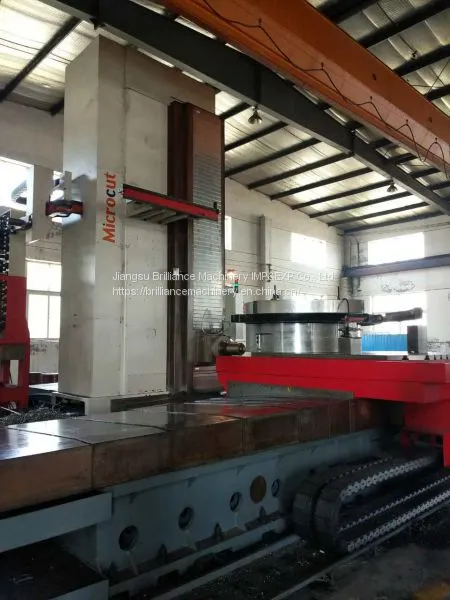

Used Taiwan Microcut HBM-6T Boring-mill Machin photo-4

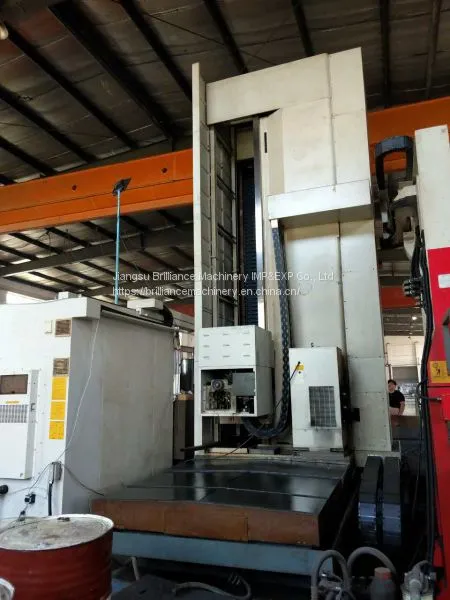

Used Taiwan Microcut HBM-6T Boring-mill Machin photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Microcut
Place of Origin:
China
Model Number:
HBM-6T
Contact Supplier Request Quote Chat Now
Jiangsu Brilliance Machinery IMP&EXP Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Ningbo or Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Microcut
Place of Origin China
Model Number HBM-6T
Type Other, Turning Center
After-sales Service Provided No overseas service provided
Weight 55000kg
Condition Used

Specification:



Table size 2500*2500mm

Table height 1400

T shaped groove size (w/pitch/no) 28H8*160*15mm

Table load 20t(standard) / 30t(optional)

Table index 0.01 degree

Rotary Table position accurancy sec.15

Rotary Table repeat accurancy sec.4

Rotary Table decoder accurancy sec.±5


Travel distance

X axis (standard) 4500mm

X axis (optional) 5500mm

Y axis 3200mm

Z axis (standard) 2000mm

W1 axis 700mm

Distance between spindle nose and table center 250-2950mm


Spindle Taper ISO50, gear

Spindle speed 35-3000rpm

System Fanuc

Main motor power 37/45(standard);22/30(optional)

Spindle torque (continuous / 30mins) 1942/2362(standarad); 1976/3002(optional)

Variation range of spindle speed: 2

Bore axis (W) 130mm

Spindle bearing inner diameter 170mm

Feeding rate (X/Y/Z/W) 10/10/10/8m/min

Cutting feed rate(X/Y/Z/W) 10/10/10/5m/min

B axis cutting feed rate 1.5rpm

ATC (optional)

Tool capacity 60

Outline dimension

Length 9055mm (Z2000)

Width 8500(X4500) / 9720(X5500)

Height 8115mm

Machine weight 55000kg


Product Tags: cnc vertical machining center , boring-mill machin , Used boring-mill machin
