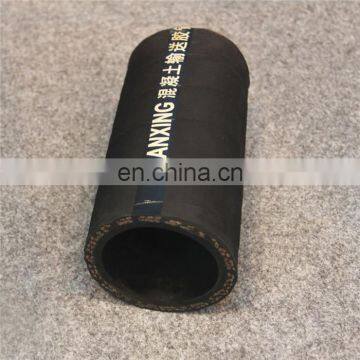

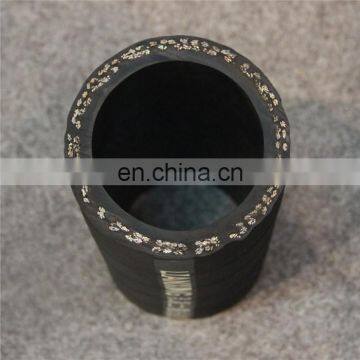

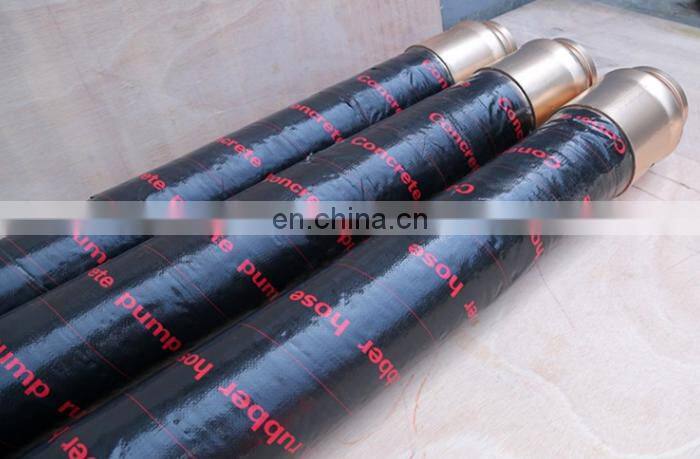

Heavy Duty Concrete Pump Hose / Wire Spiraled Rubber Hose
Construction of Concrete Pump Hose
Inner Tube: NR/SBR/BR, black, smooth, antistatic, abrasion resistant
Reinforcement: 4 PLies of Spiraled steel wire
Outer Cover: SBR, black, anti-static, cloth impression
Features of Concrete Pump Hose / Wire Spiraled Rubber Hose
1)Specially developed premium hose for conveying concrete using concrete pumps. Suitable for conveying highly abrasive media such as concrete, cement and plaster.
2)Long service life due to abrasion resistant tube.
3)Flexible and easy to handle, with good kink resistance due to a special hose design.
4)Suitable for reverse pumping, for easy cleaning.
5)Temperature range: -35°C / +80°C
6)Safety factor 2:1
Specification of Concrete Pump Hose / Wire Spiraled Rubber Hose
Specification |
ID |
Inner rubber layer thickness |
OD |
No. of wire plies |
WP |
Safety Coefficient |
Bending Radius |
Weight |
mm |
mm |
mm |
mm |
|
Bar |
Bar |
mm |
Kg/m |
2" |
51±0.7 |
4.0±0.5 |
68±1.5 |
2 |
85 |
2.5 |
200 |
2.80 |
2.5" |
64±0.8 |
4.2±0.5 |
85±1.5 |
2 |
85 |
2.5 |
250 |
4.30 |
3" |
76±1.0 |
5.5±0.5 |
102±1.5 |
4 |
85 |
2.5 |
270 |
6.00 |
3.5" |
89±1.0 |
5.5±0.5 |
116±1.5 |
4 |
85 |
2.5 |
290 |
7.50 |
4" |
102±1.0 |
5.5±0.5 |
130±1.75 |
4 |
85 |
2.5 |
300 |
9.10 |
4.5" |
114±1.0 |
5.5±0.5 |
143±2 |
4 |
85 |
2.5 |
320 |
10.5 |
5" |
127±1.0 |
5.5±0.5 |
158±2 |
4 |
85 |
2.5 |
360 |
12.8 |
6" |
150±1.0 |
5.5±0.5 |
186±2 |
4 |
85 |
2.5 |
570 |
17.0 |
Packing details: woven bag packing or according to customer's requirment
Delivery detail: within 15 days after receive the deposit
Hebei Lianxing Rubber and Plastic Co., Ltd. is located in Hengde Industrial Park, at the junction of Shandong and Hebei. We currently employ 89 people, including 3 managers, 30 engineering technicians (including 3 senior engineers and 16 engineers). Our company covers an area of 51000m2, including 17000 m2 for work shops. Now we have a total assets of 60000000 yuan, including 40000000 yuan in fixed assets. We are an innovative company integrating research and development, production, technology innovation and sales.
We have more than 100 sets of safety production equipment including knitting machine, winding machine, flat vulcanizing machine, rubber and plastic pressure kneading machine, vulcameter without rotator, tensile testing machine, testing equipment, etc.
The main products of our company are: high pressure wire braided hose, super high pressure wire spirally-wound hose, hydraulic hose, coal mine hydraulic support hose assembly, expansion hose (water injection hole sealing device), drilling hose, hose connectors, wear-resistant sand blast hose, cloth inserted hose, heat-resistant steam hose, rubber water hose, large diameter hose, metal hose and various kinds of hose assembly.
Q1. Why to choose us?
With over 20 years’ production and exporting experience,We have been one of the biggest of hydraulic hose manufacturer in Gucheng County, Hebei province, China. Our factory always keep the leading position in scale, equipment, technology, and so on.
Q2. What’s the advantages of your products?
Our products have been certified by ISO quality management system. With over 20 years’ produce experience, our products have got a good reputation of “good quality and reasonable price”, sells far to Saudi Arabia, Canada, Russia, and so on.
Q3. Can you provide OEM services?
Yes, we have been offering OEM services since the beginning of our factory was built, so we got rich experience in this service.
Q4. How long does my order take to be delivered?
Big orders by sea usually takes 30 days, if your requested quantity is not very big, within 10 days can get any corner of the world with air freight. So it generally depends on the quantity of your order and our storage.
Q5. What about your production capacity?
We are OEM factory,we have more than 30 production lines and top class equipments and machines to assure our bulk quantity production, usually we can supply 100000meters within one month.
