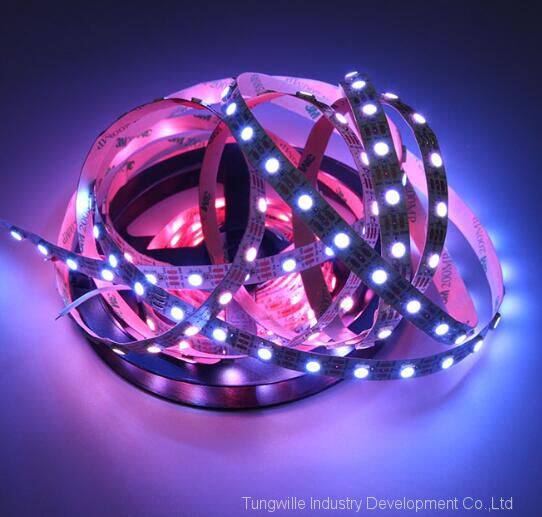

Magic Digital Dmx RGBW Led Strip SK6812 60Leds/M, 5050 SMD

Tungwille Industry Development Co.,Ltd
Magic Digital Dmx RGBW Led Strip SK6812 60Leds/M, 5050 SMD thumbnail-1
Magic Digital Dmx RGBW Led Strip SK6812 60Leds/M, 5050 SMD photo-1
US$ 1 - 10 MOQ: 1 Roll
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
TW-6812-5050
Certification:
CE, ROHS, UL
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number TW-6812-5050
Certification CE, ROHS, UL
Lamp Body Material PVC
Emitting Color Changeable
Color Temperature(CCT) 2000-6500K
Lamp Luminous Flux(lm) 20-22LM
Input Voltage(V) DC12V/24V
Working Lifetime(Hour) 50000
CRI (Ra>) 70
Working Temperature(℃) minus20, 50
Lamp Power 14.4W/M
LED Light Source LED5050
Type Flex LED Strips
Product NameAddressable RGBW led strip
Model NumberSK606812
Led Qty60leds per meter
Voltage(V)DC5V
Power20±1W
IC Chip SK6812 IC
IP RateIP20 ,IP65 (Full silicon waterproof)
PCB ColorWhite Color
PCB Width10mm
LED SingalSPI
View Angle120°
Connector3PIN JST female and male connectors
Warranty2 years

SK6812 Addressable LED Strip

Color:Full Color RGB

LED Quantity: 60 leds per meter

Size:  5000*10*2.5(mm)

View angle:120°

Working Input Voltage: DC5V

Drive Mode:Constant Voltage

More options: SK6812 5050 30led/m,SK6812 5050 72led/m,SK6812 5050 144led/m.

Even SK6812WWA digital white 1800-7000K,

SK6812 digital Pure white(warm white,nature white,and white)

SK6812RGBW 4CH addressable RGBW 4in1 led strip.


SK6812 is a new type of 3 wire IC for color dimming,the SK6812 integrated SMD LED is good new choice for digital rgb full color led strip and pixel module light.which is lower voltage drop and high brightness,and the controller system


  • IC Type:SK6812 Built-in IC


  • LED Type:High Brightness SK6812 5050 RGB SMD LED,


  • LED Qty :60 LED/m,


  • IC Qty: 60 IC/m,


  • 16.4 ft / 5m Reel,


  • 60 Pixels per meter,


  • Current:each chip is 20mA,60mA/LED,0.3W Max Power/led,


  • 1 Pixel Per 5050 High Quality RGB LED,


  • Viewing angle:120 degree,


  • Gray Scale:256.


  • PCB:2.5 ounce thickness board,2 ounce copper wire inside,white or black PCB


  • 3 cables:Black :GND,Green :DATA,Red :+5V.






  • Dimension:




  • 5000*10*2.5mm (non-waterproof),




  • 5000*10*3.5mm (IP65 waterproof),




  • 5000*12*4mm (IP67/68 waterproof),





  • Waterproof IP grade:IP20 Non-waterproof with 3M sticker on the back,


  • IP65 waterproof is silicone gel or epoxy on the surface,


  • IP67: silicone tube,


  • IP68: silcone gel(or epoxy) inside silicone tube.


Features:


  • Each led individual controlled,every led can be cut.


  • Operating Voltage 5 Voltage DC.


  • SPI signal control system, DVI video control system,DMX console controllable.


  • Madrix Software available (work with some special controllers).


  • High intensity video screen,video wall,water running effect,breathing effect,color chasing,ect.


Product Tags: SK6812 led strip 60led/m , Magic Digital Dmx RGBW Led Strip SK6812 , SK6812 addressable RGBW 60leds/m led flexible strip , SK6812 addresssable LED strips
