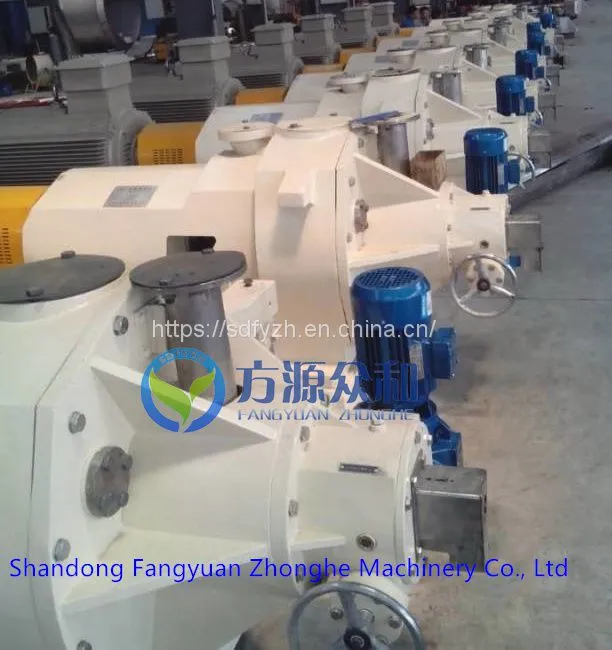

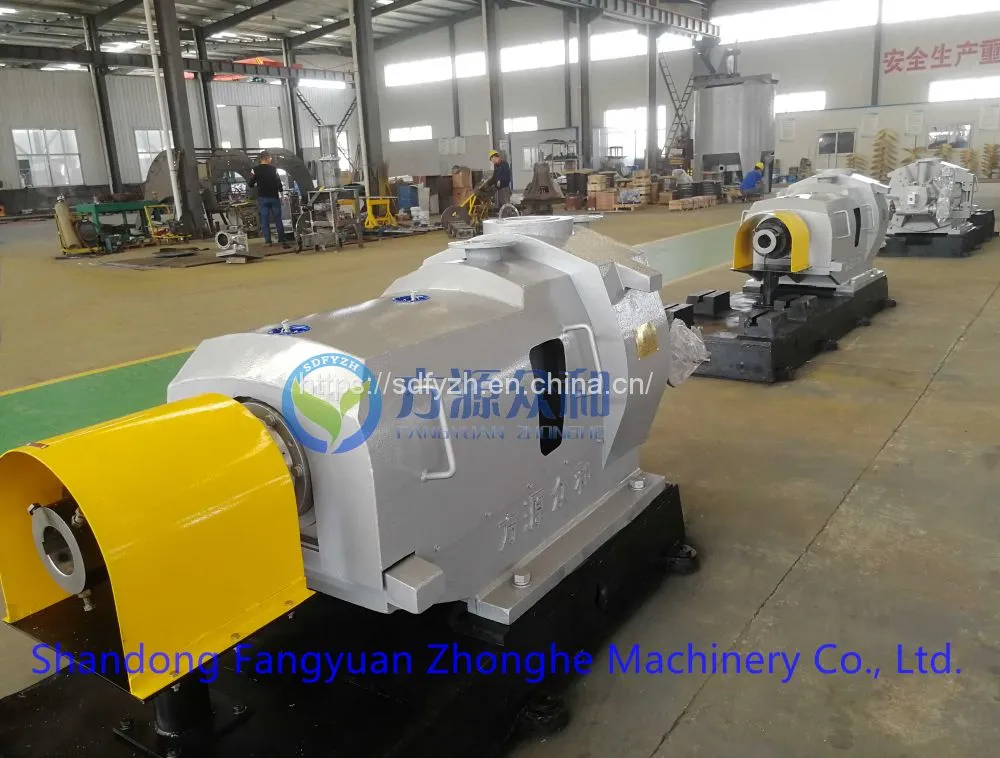

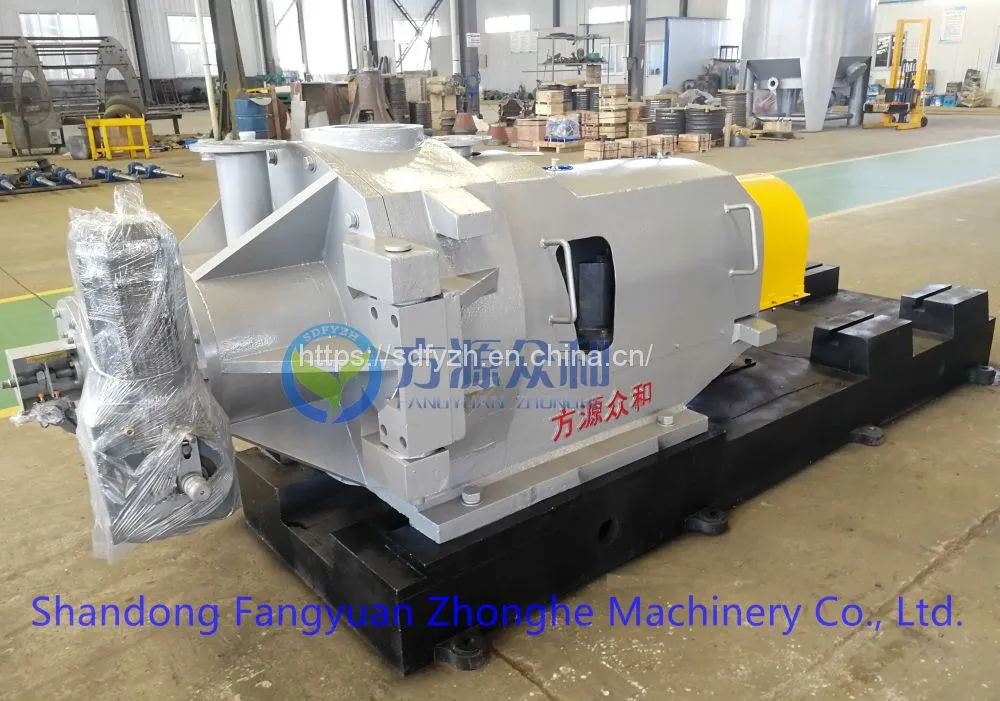

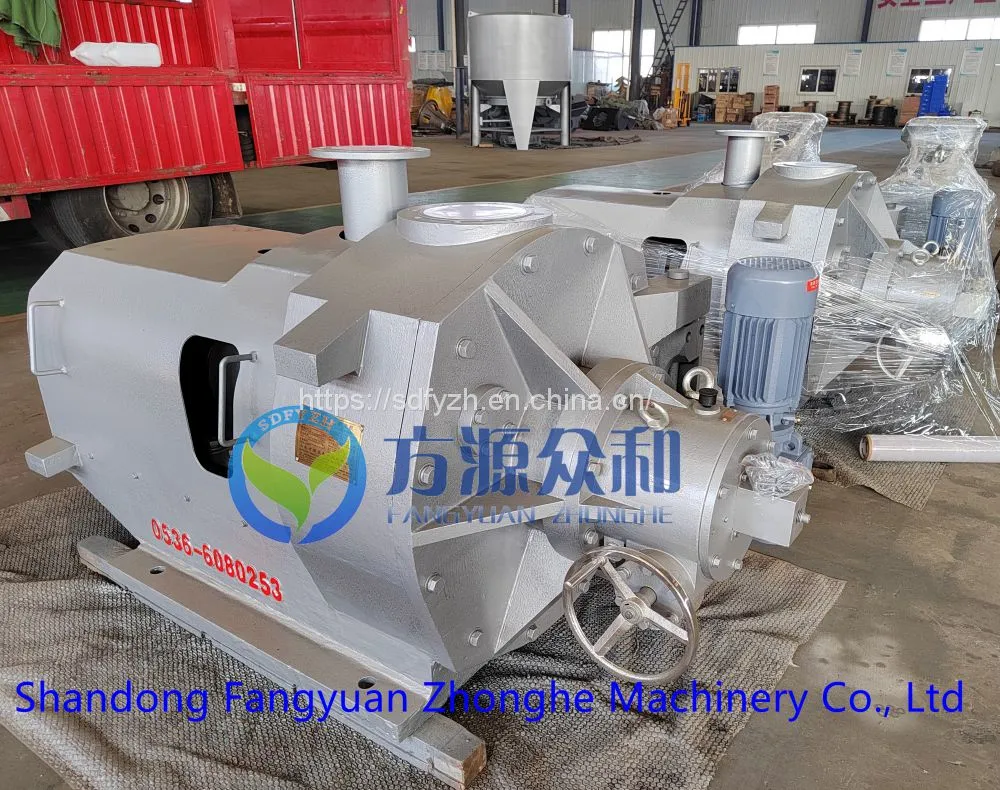

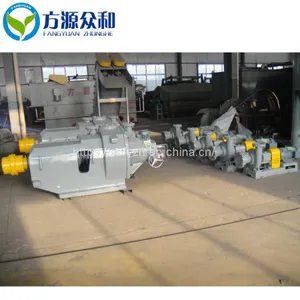

High Performance Double DISC Refiner for Paper Pulp Making Machine
- 100 Set / Sets per Month
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
-
Double Disc Refiner for Paper Pulp Making Mill
-
Single Disc Refiner for Paper Pulp Making Mill
-
Conical Refiner for Paper Pulp Making Equipment
-
Large Conical Refiner for Recycling Paper Pulp
-
High Consistency Energy Saving Refiner for Paper Pulp
-
Medium Concentration Hydraulic Pressure Refiner for Paper Pulp
Product Details
| Brand Name: | Fangyuan Zhonghe | Place of Origin: | China | Model Number: | FDD |
| Certification: | CE/ISO:9001 | Type: | Pulping Equipment | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | One Year | Weight: | 3-10T | Dimension(L*W*H): | As your choice |
| Condition: | New | Voltage: | 380-415V/50-60HZ | Power(W): | 132-1000KW |
| Computerized: | No |
Product Description
FDD double refiner is widely suitable for the beating of straw pulp, waste paper pulp, hardwood pulp and softwood pulp. It is equipped with manual and electric operating devices to realize manual and electric operation, or equipped with automatic control system to realize the beating of constant energy consumption control mode or constant power control mode to guarantee the stable beating results.
Model | FDD~500 | FDD~550 | FDD~600 | FDD~660 | FDD~720 | FDD~900 |
Diameter of grinding disc(mm) | φ500 | φ550 | φ600 | φ660 | φ720 | φ900 |
Speed of grinding disc(r/min) | 980 | 980 | 980 | 750 | 750 | 750 |
Range of capabilities(T/D) | 10~100 | 10~120 | 12~150 | 15~200 | 15~250 | 20~400 |
Range of power(kw) | 132~200 | 160~250 | 200~315 | 220~500 | 250~800 | 315~1000 |
Adaptive concentration(%) | 3~5 | |||||
Maximum operating pressure(Mpa) | ≤0.6 | |||||
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Company Information
Shandong Fangyuan Zhonghe Machinery Co., Ltd. (formerly Zhucheng Fangyuan Machinery Co., Ltd.) is the backbone enterprise specializing in the production of environmental-friendly pulp and papermaking equipment, tissue paper machine and sewage treatment equipment. The main products include two categories, more than 50 series, sewage treatment equipment, pulp and papermaking equipment and crescent tissue paper machine. With the high technology content, it has reached the advanced level of the same industry in China.
A: Yes, we have been concentrating on this series of products for more than 20 years of experience
A: We can give you guide by video, voice, email af all kinds chatting APP
If there's still doubt, we can arrange the professinal engineer to install in your country
A: We have FDD-500, FDD-550,FDD-600, etc.
You can choose the model you need according to your parameters.
A: Normally as the export standard or as your needs
A: Qingdao port, etc.
Q6. Do you offer guarantee for the products?
A: Yes, under the right condition, we can offer time warranty for our products
