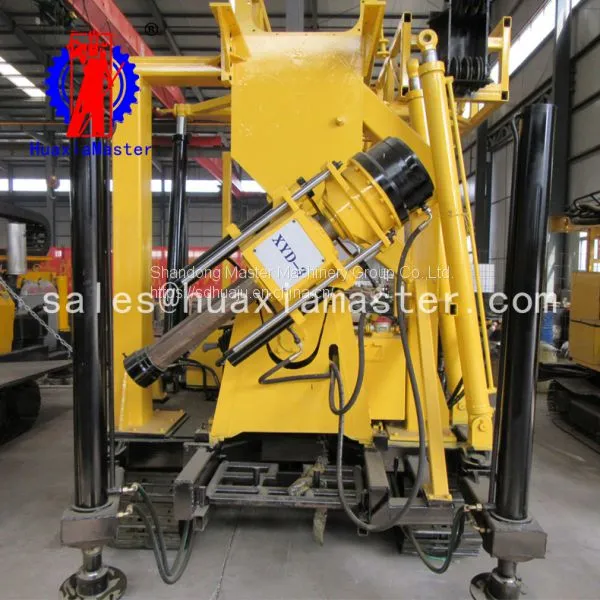

1. Characteristic of XYD-3 crawler core drilling rig
XYD-3 crawler drilling rig is mainly used for geological general investigation and exploration,road and tall building foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air-conditioner,ect.
a.The machine is equipped with crawler chassis device, easy to move with fast speed.
b.The crawler device is made of very resistan steel mill.
c.Hydraulic oil pressure feed device, improves drilling efficiency.
d.Pressure gauge display the condition of the bottom of the drill hole.
e.Drill mast controlled by hydraulic cyliner, improve the efficiency.
f.Diesel engine adopt the electric starter, to reduce the labor intensity.
2. Parameters of XYD-3 crawler core drilling rig
Drilling depth |
600m |
Max. open hloe caliber |
300mm |
End hole caliber |
75mm |
Drilling rod diameter |
60mm |
Drilling angle |
90°~75° |
Spindle | |
Spindle forward speed |
30-1050r/min |
Spindle reverse speed |
29-137r/min |
Spindle stroke |
600mm |
Spindle inner diameter |
96mm |
Main Winch | |
Single line lifting speed |
0.5,0.9,1.4,1.9m/s |
Diameter of wire rope |
12.5mm |
Brake width |
90mm |
Drum diameter |
300mm |
The biggest single rope hoisting capacity |
30KN |
Mud pump | |
Type |
Horizontal triples BW-250 Mud Pump |
Displacement |
250L/min |
Water inlet diameter |
75mm |
Water outlet diameter |
50mm |
Power | |
Diesle engine |
38KW |
Electric motor |
Y180L—4 22KW |
weight |
6500kg |
Size |
2500×900×1800mm |
