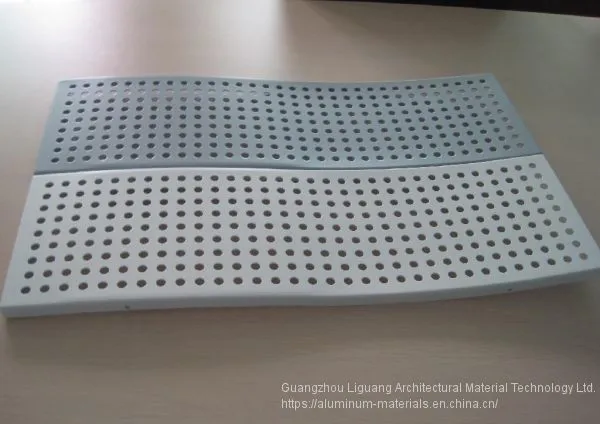

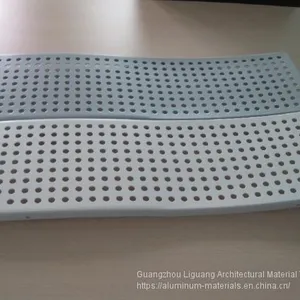

Aluminum Panel / Aluminum Veneer with Perforation for Wall Facade Decoration

Aluminum Panel / Aluminum Veneer with Perforation for Wall Facade Decoration

Product introduction

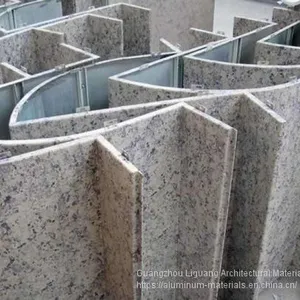

Single-aluminum panel is a kind of depth processing series among the modern aluminum building material, it has the advantage of light weight, fine rigidity, high strength; good weather and corrosion resistance; fine processing techniques, may weld strongly, can be made to flat shape, arc shape and sphere shape etc;wide optional colour, good decoration effect; super pollution resistance, easy to clean and maintain; easy to clean and maintain ; easy and quick to fit and can be recycled, good for protecting environment, it fits for decorating the exterior wall of high-building, girder and beam-column, balcony, clapboard, interior decoration etc. It is received deeply by the most customers.

Aluminum Composite panel(ACP)

1. Standard:

according to GB/T 17748-1999 standard

2. Material:
a) Front: aluminum alloy sheet coated with fluorocarbon resin
  (PVDF) and polyester resin (PE) roasting painting
b) Core: nontoxic polyethylene.
c) Back: aluminum alloy sheet coated with polyester resin painting
d) Surface finish: treated with PVDF and PE resin rolling roasting .
  coating
e) Surface coating thickness: 30um
f ) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm,
0.3mm, 0.4mm, 0.45mm, 0.5mm

3. Dimensions:
a) Thickness: 3mm, 4mm
b) Width: 1220mm 1500mm..
c) Length: 2440mm, 3200mm, 4000mm,5000mm (max: 6 meter)
d) Weight: 5.5kg/㎡ based on 4mm thickness.
e) Standard size: 1220 x 2440mm
f) Nonstandard sizes are available according to requirement of customers

4. Application scope:

1) Building exterior curtain walls..

2) Decoration and renovation additions for old buildings

3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

4) Shop door decorations

5) Advertisement board display platforms and signboards

6) Wall boards and ceilings for tunnels..

7) Industrial materials, materials for vehicles and boats
