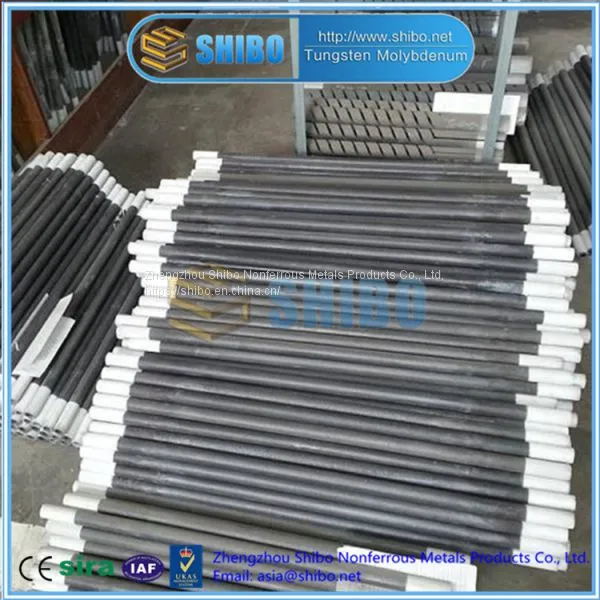

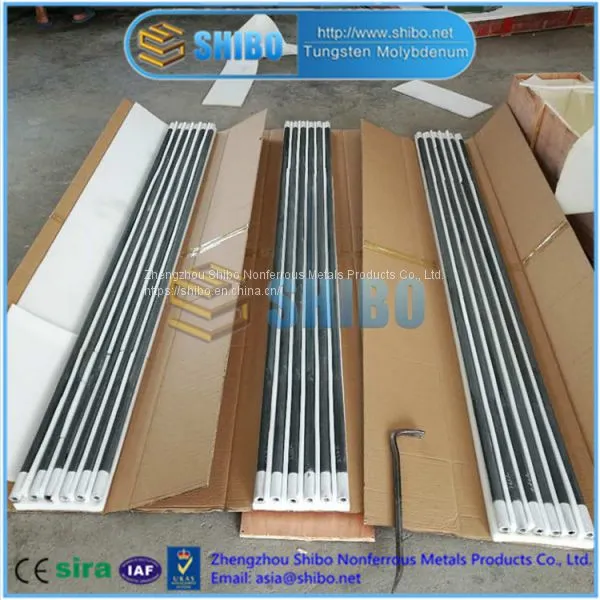

rod shape SiC heating elements
SiC heating elements are usually used as high temperature furnace heaters or kiln heaters. Working temperature is 600°C-1500°C. SiC heating elements are non-metal electric heating element made from SiC as its main raw material.
Applications
SiC heating elements are extensively used in the fields of metallurgy, ceramics, glass, machinery, analysis test, semiconductor, science & research and so on.
Advantage
It has some specific properties, such as low expansion coefficient, little deformation, stable chemical property, long service life, easy installation and maintenance, etc.
Service
Our prices are quite competitive, and since we have large quantity in stock. We can provide a very fast delivery.
Feature
1. Withstands as high as 1500°C (surface temperature)
2. Generate high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire.
3. High strength and excellent shock resistance.
4. Heat source is free of noise and air pollution.
When you inquiry, Please inform us
d ---- Outer diameter (OD)
l ---- Length of Hot zone (HZ)
m ---- Cold end length(CZ)
L ---- Length of Overall (OL)
Diameter (OD, mm) |
Hot zone (HZ, mm) |
Cold zone (CZ, mm) |
Overall length (OL, mm) |
Range of resistance (ohms) |
8 |
100-300 |
60-200 |
240-700 |
2.1-8.6 |
12 |
100-400 |
100-350 |
300-1100 |
0.8-5.8 |
14 |
100-500 |
150-350 |
400-1200 |
0.7-5.6 |
16 |
200-600 |
200-350 |
600-1300 |
0.7-4.4 |
18 |
200-800 |
200-400 |
600-1600 |
0.7-5.8 |
20 |
200-800 |
250-600 |
700-2000 |
0.6-6.0 |
25 |
200-1200 |
250-700 |
700-2600 |
0.4-5.0 |
30 |
300-2000 |
250-800 |
800-3600 |
0.4-4.0 |
35 |
400-2000 |
250-800 |
900-3600 |
0.5-3.6 |
40 |
500-2700 |
250-800 |
1000-4300 |
0.5-3.4 |
45 |
500-3000 |
250-750 |
1000-4500 |
0.3-3.0 |
50 |
600-2500 |
300-750 |
1200-4000 |
0.3-2.5 |
54 |
600-2500 |
300-750 |
1200-4000 |
0.3-3.0 |
