Insulation Paper Edge Folding Machine
USD $15000 - $18000
/ Piece
1 Piece(Min.Order)
- 200 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
You May Like
Product Details
Brand Name: | shuohao | Place of Origin: | China | Model Number: | ZBJ-800 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

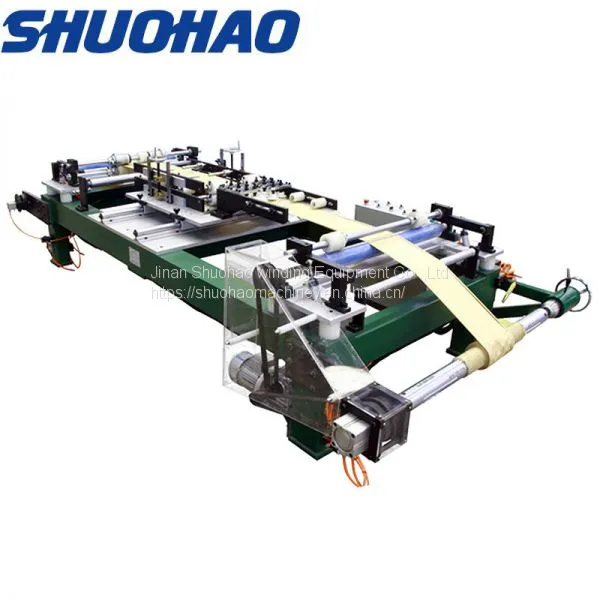

Insulation Paper Edge Folding Machine
Insulation layer edge folding machine is mainly used for insulation layer edge folding of transformer coil, which make an insulation structure in both side edge of insulation layer. Improved coil mechanical strength,efficiency of winding, and lower material cost.
Technical parameters:
Insulation paper roller specification | Inner hole:76mm |
Outer diameter:400mm | |
Shaped paper roller specification | Inner hole:76mm |
Outer diameter<=400mm | |
Insulation paper width | 160-800mm |
Insulation paper thickness | 0.1-0.21mm |
Edge folding layer quantity | 4 layers(including bottom layer is 5 layers) |
Edge folding width | 7mm/10mm(standard) |
Working efficiency | |
Speed of edge folding in shape | 0-20m/min(frequency without grade adjustment |
Knife outer diameter | 84mm |
Knife quantity | 8 pieces |
Power requirement | |
power | 1.1kw |
Electrical power | 3 phase 4 wire,380v,50hz |
Air supply | Air consumption 0.1M3/min |
Air tube | Air tube |
Whole machine covering area and size | 5000*2000*1100mm |
