APW cnc waterjet cutter
- 1000 Set / Sets per Month
- Dalian
- T/T Credit Card
Product Details
Brand Name: | APW | Model Number: | APW-waterjet cutter | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description
CNC Waterjet cutter machine are the most flexible and cost-effective cutting machine available. As the leader provier of waterjet cutting machine, APW's objective was to harness state-of-the-art technologies to make high-pressure abrasive jet machining practical, affordable, and easy to use.
All-powerful Science & Technology Stock Co.,Ltd, a sino-US joint venture, which was established at 2001 and located in the Export Processing Zone of Liaoning Provence, All-powerful is the largest new high-tech enterprise integrated the reserch and development of ultral-high pressure cnc waterjet cutter machine, and an important base for developing high-end ultral-high pressure water jet industry of china.
Our mission is to help our customers solve their manufacturing challenges and achieve their highest level of productivity,precision and accuracy.
Why Choose Us
1. Sino-Us joint venture company
2. Adopt American technology
3. 8 years Alibaba verified supplier
4. The china largest waterjet cutting machine manufacturing base
CNC waterjet cutter machine can cut almost any material. Pure water jets can quickly and accurately cut soft materials such as rubber, foam and other gasket material. Abrasive water jets can cut almost any other material over a very wide range of thichness:
The features for cnc waterjet cutter machine
1 It does not cause heat effect or detormation or tiny cracks
2 It can cut any complex and flat figures
3 Narrow kerfs
4 Smooth incision
5 Minimize dust and toxic fumes, provice healthier working environment
6 It can be adjested easily and quickly by the designs and materials
7 Low processing cost in unit time
8 Components are of high quality and spare parts are cheap
9 Drilling holes to avoid water permeate the composite materials
10 Reduce setting time and fixture cost
The cutting speed for cnc waterjet cutter machine
CNC waterjet cutter machine cutting speed varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration. Generally for APW waterjet, you could find the following speed just for your reference.
Material | Thickness(mm) | Cutting speed of 300Mpa pump(mm/min) | Cutting speed of 380Mpa pump(mm/min) |
Marble | 20 | 300 | 380 |
30 | 200 | 300 | |
Granite | 20 | 250 | 330 |
30 | 150 | 200 | |
Glass Brick | 12 | 800 | 960 |
Glass | 5 | 1200 | 1500 |
10 | 500 | 600 | |
20 | 350 | 420 | |
Glue Chipped Glass | 10 | 450 | 540 |
Sponge | 50 | 5000 | 6000 |
Foam | 50 | 5000 | 6000 |
Wood | 10 | 1000 | 1200 |
50 | 200 | 240 | |
Steel | 2 | 600 | 720 |
4 | 400 | 500 | |
6 | 300 | 420 | |
8 | 200 | 300 | |
10 | 120 | 200 | |
15 | 75 | 120 | |
20 | 30 | 50 | |
60 | 12 | 20 | |
Laminates | 10 | 1500 | 1800 |
Aluminum | 5 | 350 | 500 |
Copper | 5 | 350 | 420 |
Glass Fiber Reinforced Plastic | 2 | 1200 | 1500 |
CNC Waterjet cutter machine is made up of several critical key componnents, such as intensifier pump; cutting table with cutting head; CNC controller; auto abrasive delivery system.
Dual-Core Waterjet Debut

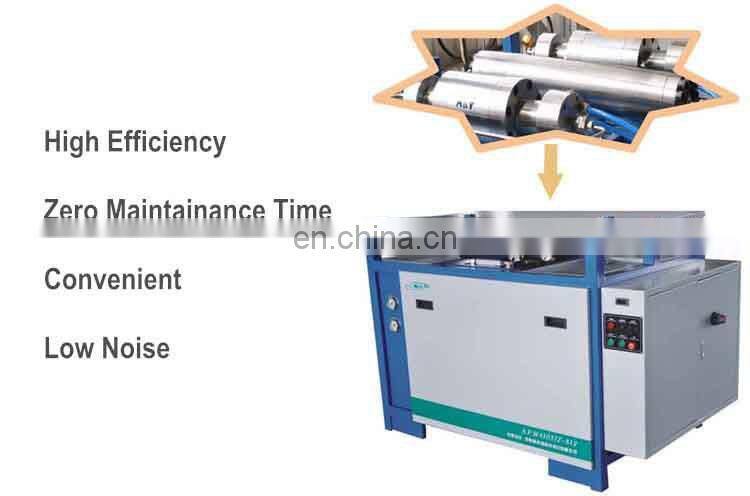

The new APW "Dual-Core" pump of cnc waterjet cutter machine is equipped with dual intensifiers imported from the USA. The two intensifiers are able to work by alternative way. It significantly reduces the maintenance time, and expands the life span of the pump.
Imported components
We adopt the imported component of cnc water jet machine like Rexroth hydraulic pump; USA intensifier; Siemens motor;Omron PLC; Yaskawa servo drive; Yuken direction control valves etc. The whole parts of Intensifier are assembled in USA (not just some parts), most of the smaller parts are also imported from USA to ensure its good stability during cutting, durability and long working service life.

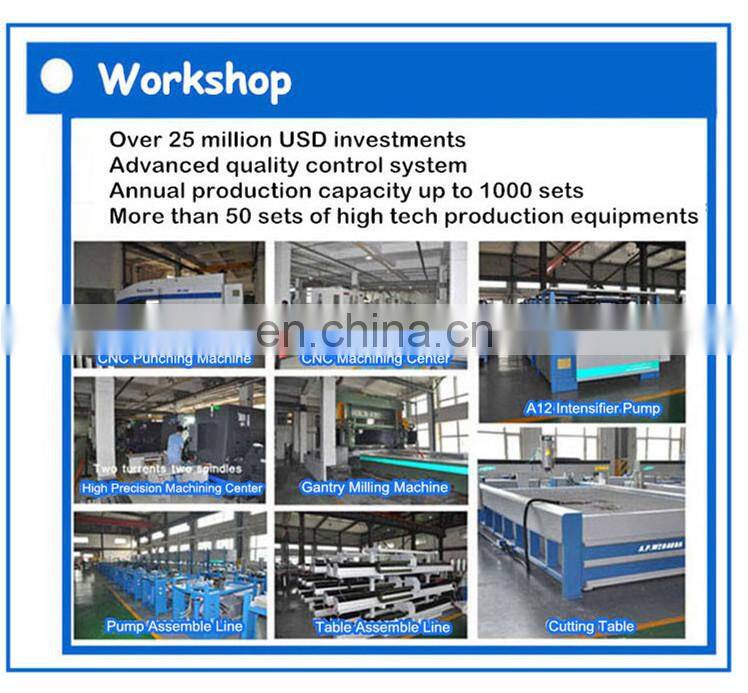

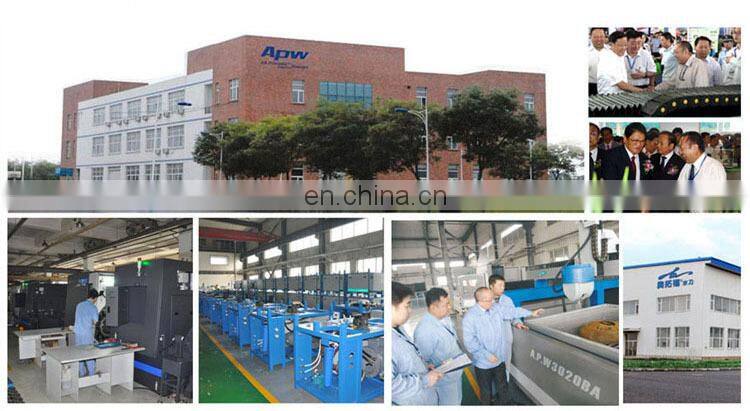

CNC water jet machine been manufactured by a large sum of the high tech production equipments. now the total area of factory is 20000sqm, moreover, the new workshop in kaiyuan have been put in to use at the end of 2014, the annual output of cnc water jet cutter will break through 1200 sets.
CNC waterjet cutter machine be packed in standard packing, suitable for long distance ocean transportation and well protected against damage, moisture, shock, rust and handing.
CNC waterjet cutter machine have got the consistant high praise from the customer at home and abroad during the 14 years development, there are many successful stories related to APW cnc water jet cutter, we are looking forward to seeing you in our picture wall.
